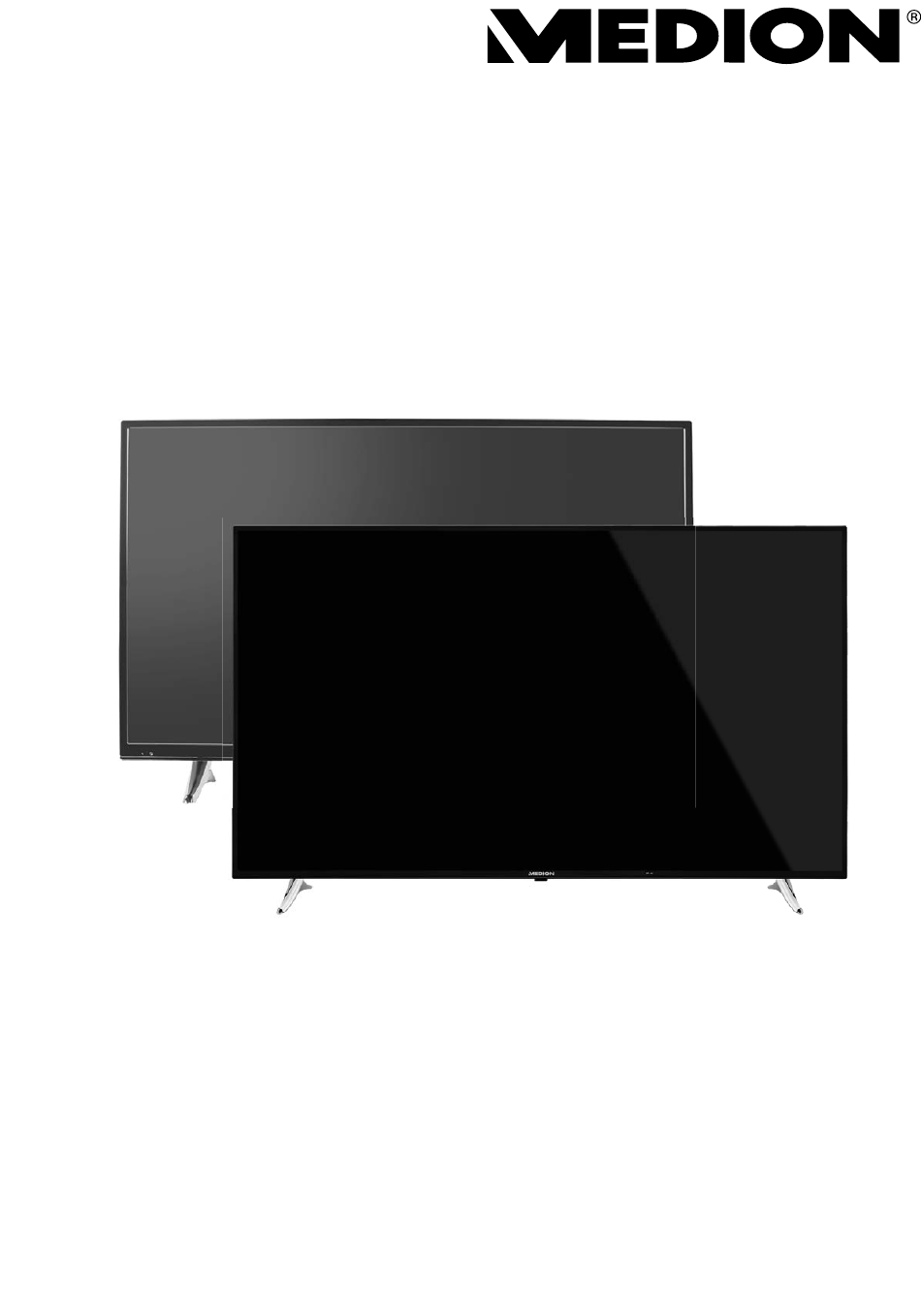

- Page 1 User Manual Ultra HD Smart-TV MEDION ® LIFE ® X14310 (MD 31350) / X14911 (MD 31351) / X15512 (MD 31352) / X16513 (MD 31353)
-
Page 2: Table Of Contents
10.2. The Q. MENU button ..........................30 10.3. The menu system in detail ......................... 31 EPG – Programme guide ....................53 Media portal ........................54 HbbTV system ........................55 Internet ..........................55 MEDION® Life Remote App ....................55 Data protection MEDION® Smart TV ................. 56... - Page 3 Troubleshooting ......................... 57 17.1. Do you need more help? ........................59 17.2. LCD TV pixel faults ..........................59 Cleaning ..........................60 Storage when not in use..................... 60 Disposal ..........................61 Technical data ........................62 21.1. Information on trademarks ....................... 65 21.2.
-
Page 4: About These Instructions
1. About these Instructions Please be sure to read these operating instructions carefully and follow all instructions given. The instructions will help you to operate the device reliably and help increase its service life. Always store these instructions near the device. Keep these operating instruc- tions so that you can pass them on with the device if you sell it. -
Page 5: Proper Use
Safety class II Electrical appliances in protection class II are electrical appliances that permanent- ly have double or reinforced insulation and do not have any connection options for a protective earth. The housing of an electrical appliance in protection class II that is en- closed in insulated material can partially or fully act as the additional or reinforced insu- lation. -
Page 6: Package Contents
2. Package contents Please check your purchase to ensure that all the items are included and contact us within 14 days of purchase if any parts are missing. The following items are supplied with your product: • Smart TV • Remote control (RC4995) incl. 2 x 1.5 V batteries (type LR03/AAA) •... -
Page 7: Safety Instructions
3. Safety instructions 3.1. Operating safety − Check the device for damage before using it for the first time. A defective or damaged device must not be placed into operation. − This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and have un- derstood the dangers that result from it. -
Page 8: Set-Up Location
Contact customer services if: − The power cable is burnt or damaged − Liquid has penetrated the device − The device is not operating correctly − The device has fallen, or the housing is damaged − Smoke is rising from the device 3.2. -
Page 9: Repairs
3.3. Repairs − Repairs to your Smart TV should only be carried out by qualified specialists. − If a repair must be carried out, please only contact our authorised service partner. − Make sure that only replacement parts provided by the manufacturer are used. The use of unsuitable replacement parts may damage the device and lead to a risk of fire. -
Page 10: Handling Batteries
− For extra safety, we recommend using an over-voltage protection device to prevent your Smart TV sustaining damage as a result of power surges or lightning strikes. − Position the cables so that they cannot be stepped on or tripped over. −... -
Page 11: Declaration Of Conformity
Wireless LAN solution. Always observe the relevant legal regulations in the country of use. Medion AG hereby declares that this device conforms to all of the required regulations in the EU and the fundamental requirements and the remaining relevant regulations of: •... -
Page 12: Information On Wlan
4.1. Information on WLAN WLAN Frequency range 2,4 GHz/ 5 GHz Wi-Fi standard 802.11 a/b/g/n Encryption WEP/WPA/WPA2 Max. transmission power/ Frequency range/MHz Channel 2400 – 2483,5 1 - 13 19,9 5150 – 5250 36 – 48 22,4 5250 – 5350 52 –... -
Page 13: Overview Of The Device
Overview of the device 5.1. Front MD 31350 / MD 31351 / MD 31352 OFF/ON MD 31353 OFF/ON LCD screen Mains switch Infrared sensor: Reception field for the infrared TV signals. Operating light: Lights up when the device is in standby mode. -
Page 14: Rear And Right-Hand Side
5.2. Rear and right-hand side 5Vdc Max. 500mA 5Vdc Max. 500mA 13 Vdc/18 Vdc SPDIF Optic. out COMMON INTERFACE (CI+): Card slot for connecting pay TV cards USB (5V , 500 mA max.): USB connection for media playback SIDE AV: Audio/video input (yellow): for connecting a device via AV adapter 3.5 mm jack > 3 x cinch : For connecting headphones with 3.5 mm jack MODE: Multifunction button for channel switching, input source selection or volume adjust-... -
Page 15: Remote Control
5.3. Remote control .,/@ PQRS WXYZ BACK MENU EXIT MENU LANG. SUBT. : Switch smart TV on/off (switch standby mode on/off ) N E T F L I X : Call up Netflix site Number buttons: TV: programme selection, teletext: page selection S WA P ): Set previous TV programme M E N U... - Page 16 Digital TV: select audio language (if available) SUBT.: Subtitles on/off (if available) : Open the MEDION® portal /multifunction button for channel position or input source (MEDIA): Call up the media browser (EPG): Digital TV: call up the electronic programme guide i (INFO): Digital TV: show information (e.g.
-
Page 17: Using The Device For The First Time
6. Using the device for the fi rst time Before using for the first time, be sure to read the section “Safety instructions”. 6.1. Unpacking • Select a suitable place for setting up the device before unpacking. • Open the box very carefully to avoid damaging the device. The device could be damaged if you use a knife with a long blade to open the box. -
Page 18: Inserting Batteries In The Remote Control
Inserting batteries in the remote control 6.3. Loose the screw of the battery compartment cover on the back of the remote control and re- move the cover. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (inscribed on the bottom of the battery compartment). -
Page 19: Channel Search When Switching On For The First Time
Afterwards, press to continue. Then you will be prompted to accept the MEDION® Smart TV privacy policy. This is necessary if you intend to make use of the network/Internet services. In this case, answer the query with If you select you will not be able to use these services without subsequently agreeing to the terms. - Page 20 Network/Internet settings 6.7.1. Network/Internet Settings Network Type Wireless Device Press WPS on your wifi router Internet Speed Test Advanced Settings Wake On Connected 48:6d:bb:b0:dc:65 Wi-Fi Change Value Navigate Back Skip Continue Delete Saved Wifi Profile BACK Network settings NETWORK Here you select the network type: .
- Page 21 WoWLAN). This enables you to switch on the smart TV via a different device (e.g. a smartphone with the MEDION® Life Remote App). Both devices must be connected to the same network via LAN or Wi-Fi for this purpose. Select the ON setting to activate this function.
- Page 22 To set the antenna type, select one of the following antenna types: − : Select this antenna type if you have a single receiver and a satellite antenna. Press DIRECT the OK button and then choose the desired satellite (you can also call up the transponder list using the blue button).
-
Page 23: Multimedia Connections
7. Multimedia connections 7.1. Use of the multimedia connections CAUTION! Risk of damage! Incorrect operation can lead to damage to the equipment used. Before wiring and use, also read the operating instructions of the devices you are connecting. CAUTION! Risk of damage! If plugs and sockets are connected incorrectly it can cause damage to the contacts. - Page 24 7.1.5. USB A USB port can be used to connect and read storage media such as USB sticks or external hard drives. Use a suitable USB cable. If a suitable USB cable is included in delivery, you should use this (e.g.
-
Page 25: Operation
8. Operation 8.1. Channel selection P - / + To select a channel, either press one of the buttons on the remote control, use the multifunc- M O D E tion button on the device or select the channel directly using the number buttons. ... -
Page 26: Displaying Information
You can also change the picture format setting in the menu PICTURE > ADVANCED SETTINGS > PICTURE ZOOM You can move the screen content up or down by pressing the buttons if the / picture format is selected. 14:9 ZOOM, KINO SUBTITLE Please note that not all picture formats are available depending on the chosen image source. -
Page 27: Selecting The Source
8.6. Selecting the source Please note that when connecting with the button the source (the ( S O U R C E ) connected device) will only be recognised if it has been activated in the menu SET- , submenu TINGS SOURCES ... -
Page 28: Teletext
9. Teletext Teletext is a free service broadcast by most channels and contains the latest news, weather, TV pro- grammes, share prices, subtitles and other information. Your TV offers many useful functions for us- ing teletext including multipage text, subpage saving and high-speed navigation. 9.1. -
Page 29: Via The Osd Menu
10. Via the OSD menu 10.1. Navigating in the menu Press the M E N U button to activate the OSD. You can use the direction buttons to select the options from the main menu. Press to call up the selected option from the main menu. -
Page 30: The Q. Menu Button
10.2. The Q. MENU button Access the quick menu ( ) to quickly call up basic options. OPTION MENU Option Menu Picture Mode Natural Equalizer Settings User Favourites None Edit Favourites Sleep Timer Energy Saving Maximum Navigate Change Value Exit MENU Menu Item Settings... -
Page 31: The Menu System In Detail
10.3. The menu system in detail 10.3.1. Picture menu Picture Settings Mode Natural - Contrast - Brightness - Sharpness - Colour Energy Saving Maximum Backlight Advanced Settings Reset Navigate Change Value Back BACK Exit MENU Menu Item Settings MODE Select picture mode: NATURAL, CINEMA, SPORTS, DYNAMIC Q . - Page 32 Menu Item Settings ADVANCED SETTINGS Advanced Picture Settings Dynamic Contrast Medium Noise Reduction Colour Temp Normal White Point Picture Zoom Auto Film Mode Auto Skin Tone Colour Shift HDMI Full Range Navigate Change Value Back BACK MENU Exit DYNAMIC CON- Set dynamic contrast: LOW, MEDIUM, HIGH, OFF TRAST...
- Page 33 10.3.2. Picture menu in VGA/PC mode Picture Settings Contrast Brightness Sharpness Colour Energy Saving Backlight Advanced Settings PC Position Reset Change Value Navigate Back BACK MENU Exit Menu Item Settings CONTRAST Increase or decrease contrast (scale of 0 – 100). BRIGHTNESS Increase or decrease brightness (scale of 0 –...
- Page 34 Menu Item Settings WHITE POINT If you have selected the setting under CUSTOM the option , you can set the colour COLOUR TEMP temperature to any value between warm and cold. PICTURE ZOOM Set the picture format here. ( S I Z E ) This function corresponds to the button FILM MODE...
- Page 35 10.3.3. Sound menu Sound Settings Volume Equalizer User Balance Headphone Sound Mode Stereo Audio Link Disabled Headphone/Lineout Headphone Dynamic Bass DTS TruSurround Digital Out Change Value Navigate Back Exit MENU BACK Menu Item Settings VOLUME Standard volume settings when switching on (scale of 0–100) Select a mod- erate volume.
- Page 36 AUDIO LINK Here you can enable or disable the Bluetooth® function of the device. With Audio Link enabled, it is possible to pair the TV set wirelessly with Bluetooth® speakers (e.g. a soundbar). DEVICE Select the setting if you want to connect the ENABLED device to an external speaker via Bluetooth®.
- Page 37 10.3.4. Settings menu Settings Conditional Access Language Parental Timers Date/Time Sources Network/Internet Settings Accessibility Netflix More... Menu Item Settings CONDITIONAL If you want to watch subscription channels, you must firstly register with the ACCESS corresponding provider. You will receive a Conditional Access Module (CA module) and a special card from your provider after registration.
- Page 38 Menu Item Settings LANGUAGE All language settings are Language Settings shown and set in the LAN- menu. GUAGE SETTINGS Menu English Preferred Primary Audio Language English Secondary Audio Language English Primary Subtitle Language English Secondary Subtitle Language English Teletext West Guide English Current...
- Page 39 Menu Item Settings PARENTAL If you confirm this with a dialogue box will open. Parental Settings A password (or the locking Menu lock key) is requested. Please use Maturity Lock the password entered dur- Child Lock Set PIN **** ing the initial installation. Default CICAM PIN ******** On delivery of the prod-...
- Page 40 Menu Item Settings TIMERS You can use the to programme the device to switch off automat- SLEEP TIMER ically. You can set the time in 30-minute increments (maximum 2 hours). The sleep timer countdown begins immediately after the setting has been made. Select to deactivate the function.
- Page 41 If you want to rename a source, press the red button. Afterwards, you can then change the name using the direction buttons . NETWORK/ If you did not agree to the MEDION® Smart TV privacy policy INTERNET during initial installation, you will be prompted again to do this SETTINGS here.
- Page 42 LAN function (WoL/WoWLAN). This enables you to switch on the smart TV via a different device (e.g. a smartphone with the MEDION® Life Remote App). Both devices must be connected to the same network via LAN or Wi-Fi for this purpose. Select the setting to activate this func- tion.
- Page 43 Menu Item Settings NETFLIX Calling up the Netflix app allows streaming of many movies and series directly via the Internet. Netflix is a subscription service that allows its members to stream movies and series over the Internet on “Netflix-compat- ible devices”. The use, warranty and liability limitations of the software are subject to the terms and conditions of Netflix Inter- national B.V.
- Page 44 Menu Item Settings AUTO TV OFF Here you can set the time interval for the auto shutdown function. Once the interval is reached, the TV will switch off. BISS KEY Manual activation of programmes. Setting only available for satellite programmes. AUDIO VIDEO Toggle audio-video sharing.
- Page 45 Menu Item Settings CEC AUTO This function allows you to turn on the TV with the connect- POWER ON ed HDMI-CEC-compatible device and automatically switch to the input source. Select if you want to use this ACTIVATE function. SPEAKERS The default setting for the speakers is , so that only the in- (ARC) ternal speakers are used for the sound output.
- Page 46 10.3.5. Installation menu Installation Automatic channel scan Manual channel scan Network channel scan Analogue fine tune Satellite Settings Installation Settings Signal Information First time installation Menu Item Settings AUTOMATIC The automatic channel search function helps you to search for and save CHANNEL SCAN new channels on your TV.
- Page 47 Menu Item Settings INSTALLATION Here you can make additional installation settings. SETTINGS STANDBY If this function is set to , the TV will search for SEARCH available channels while it is in standby mode. When the device finds new or not yet available channels, a menu will be displayed that you can use to accept or reject the changes.
- Page 48 Taste Eintrag Funktion OPTIONS If you press the button, the following options appear for editing the currently selected channel: : Pressing the button switches the device to the previ- WATCH ously selected channel. : This function enables you to move the currently selected MOVE channel (or all marked channels) to a different position in the chan- nel list.
- Page 49 Taste Eintrag Funktion FILTER Blue but- Here you will find filter functions with which you can customize the appearance of the channel list: : Only the channels for the selected reception type NETWORK TYPE will be displayed. : Select here whether you want to display only TV, only TV/RADIO radio or all of the channels in the list.
- Page 50 10.3.7. Media browser menu If you connect a USB data medium to the smart TV, you can play music files, images and videos. Information on using USB Certain types of USB devices (MP3 player) may not be compatible with this smart TV. ...
- Page 51 • - for playing music files MUSIC Media Browser Music : Navigation : Play 0001. Title 1 0002. Title 2 : Stop 0003. Title 3 (SWAP): Device selection (if several USB 0004. Title 4 or network drives are available) Title 1 : Previous/next 00:20...
- Page 52 Using an audio video sharing network service The audio video sharing network service allows a data exchange between devices if they support the audio video sharing function. Connect the smart TV to a network. Switch on the smart TV and open the via the menu.
-
Page 53: Epg - Programme Guide
11. EPG – Programme guide Use the ( E P G ) button to open the electronic programme guide. You will see the current and the next programme for the available channels in the table. Use to select a channel and scroll through the channel offering with ... -
Page 54: Media Portal
Button Entry Function SEARCH Search for programmes Set the day here as well as the cat- egory. Jump back to the current timeline. S WA P / REC./STOP Starting/stopping recording 12. Media portal After pressing the Internet button , you can use the direction buttons to select ... -
Page 55: Hbbtv System
G sensor – to provide easy-to-use, convenient and improved options for operating your MEDION® smart TV. Not only that: you also have the option of operating your tel- evision via touch pad and directly entering text when calling up Internet pages. -
Page 56: Data Protection Medion® Smart Tv
Please check the privacy policy of the provider beforehand. MEDION shall not be liable if the HbbTV, the portal or a service does not comply with the user’s re- quirements, nor does it guarantee that safe and error-free use of such services can always occur without restrictions, or continuously, at the required time. -
Page 57: Troubleshooting
17. Troubleshooting Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these tips don’t solve the problem then we’ll be more than pleased to help you out. Just give us a call! Error Measures... - Page 58 TV switches off • Check whether the automatic TV switch off function is activat- ed under MORE... No reception/poor reception • Ensure that all necessary settings have been made. via a wireless network con- nection (WLAN). WIRELESS DISPLAY cannot • Check that all necessary settings have been made. Read the be established.
-
Page 59: Do You Need More Help
17.1. Do you need more help? If the suggestions in the previous section did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand: • What external devices are connected? •... -
Page 60: Cleaning
18. Cleaning DANGER! Risk of electric shock! There is a risk of death due to an electric shock when the housing is open and you touch parts inside the device! Do not open the housing of the device. It does not contain any parts requiring mainte- nance. -
Page 61: Disposal
20. Disposal Packaging The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. Device The adjacent symbol showing a crossed out wheelie bin means that the device is sub- ject to Directive 2012/19/EU. -
Page 62: Technical Data
21. Technical data Smart-TV X14310 (MD 31350) Device name X14310 (MD 31350) Nominal voltage 220 - 240 V ~ 50 Hz Screen size 108 cm (43“) LCD; 16:9 display Power consumption Max. 120 Watt Power consumption in standby ≤ 0.50 W mode Power consumption in off mode <... - Page 63 Smart-TV X16513 (MD 31353) Device name X16513 (MD 31353) Nominal voltage 220 - 240 V ~ 50 Hz Screen size 163,8 cm (65“) LCD; 16:9 display Power consumption Max. 200 Watt Power consumption in standby ≤ 0.50 W mode Power consumption in off mode <...
- Page 64 Remote control Transmission type Infrared LED classification Battery type 2 x 1.5V AAA R03/LR03 Ambient temperatures Permissible ambient temperature +5°C to +35°C Permissible relative humidity 20% - 85% Dimensions/weight X14310 (MD 31350) Dimensions without stand approx. 976 x 572 x 92 mm (W x H x D) Dimensions with stand approx.
-
Page 65: Information On Trademarks
21.1. Information on trademarks DTS, the logo and DTS together with the logo are registered trademarks of DTS, Inc. You can find more information about DTS patents at http://patents.dts.com The HDMI logo and the name High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC. -
Page 66: Service Information
• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 67: Index
Settings menu ............. 37 24. Index Sound menu ............35 Overview of the device ......... 13 Batteries ..............61 Bluetooth ..............58 Password ..............39 Pixel faults ..............59 Cable digital .............. 21 Power supply ..........9, 18, 62, CEC ................44 Programme guide ...........
