Installing Flux Shifter Reset Bracket - GE Entelliguard TU Conversion Kit Installation Instructions Manual

Installing Flux Shifter Reset Bracket

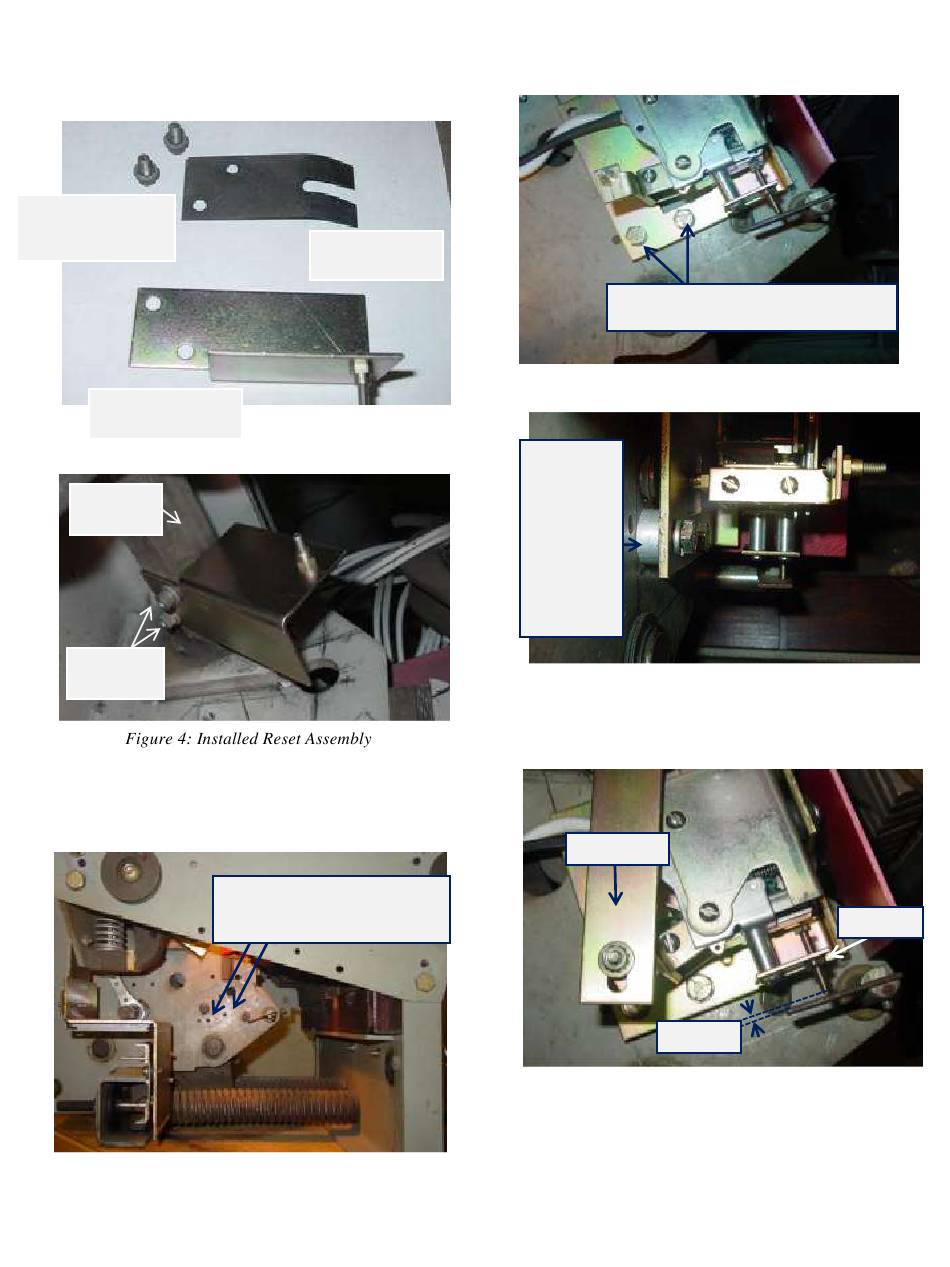

Replace existing reset bracket with new bracket as shown in
Figure 3 and Figure 4 below:
Existing hardware
to be used to install
new reset Asm
New Reset Asm to
replace old Asm
Figure 3: Old and New Reset Assembly
Breaker
Cross bar
Existing
hardware
Install Flux Shifter Asm
The Flux shifter mounting location is shown in Figure 5 below:
Figure 5: Flux Shifter mounting location
Old Reset Asm
to be removed
These 2 existing holes are to be
used to mount Flux shifter Asm
to side of breaker mech
Mount Flux Shifter assembly to breaker frame as shown in
figures 6 and 7.
MTG hardware 1/4 x3/4 Long Hex Head
Figure 6: Flux Shifter mounting
F/S MTG
spacers
positioned
as shown to
space F/S
assy away
from
breaker
mech side
frame
Figure 7: Flux Shifter mounting
Install the Reset Link between the reset Bracket and Flux
Shifter Assembly as shown in Figure 8.
Reset Link
Figure 8: Installing Reset Link
Adjust Flux Shifter to breaker latch with breaker in the charged
position. Set the .031 dimension as shown in figure 8 and lock
with Jam nut.
6
and Split LK Washer
Set .031
Jam Nut
