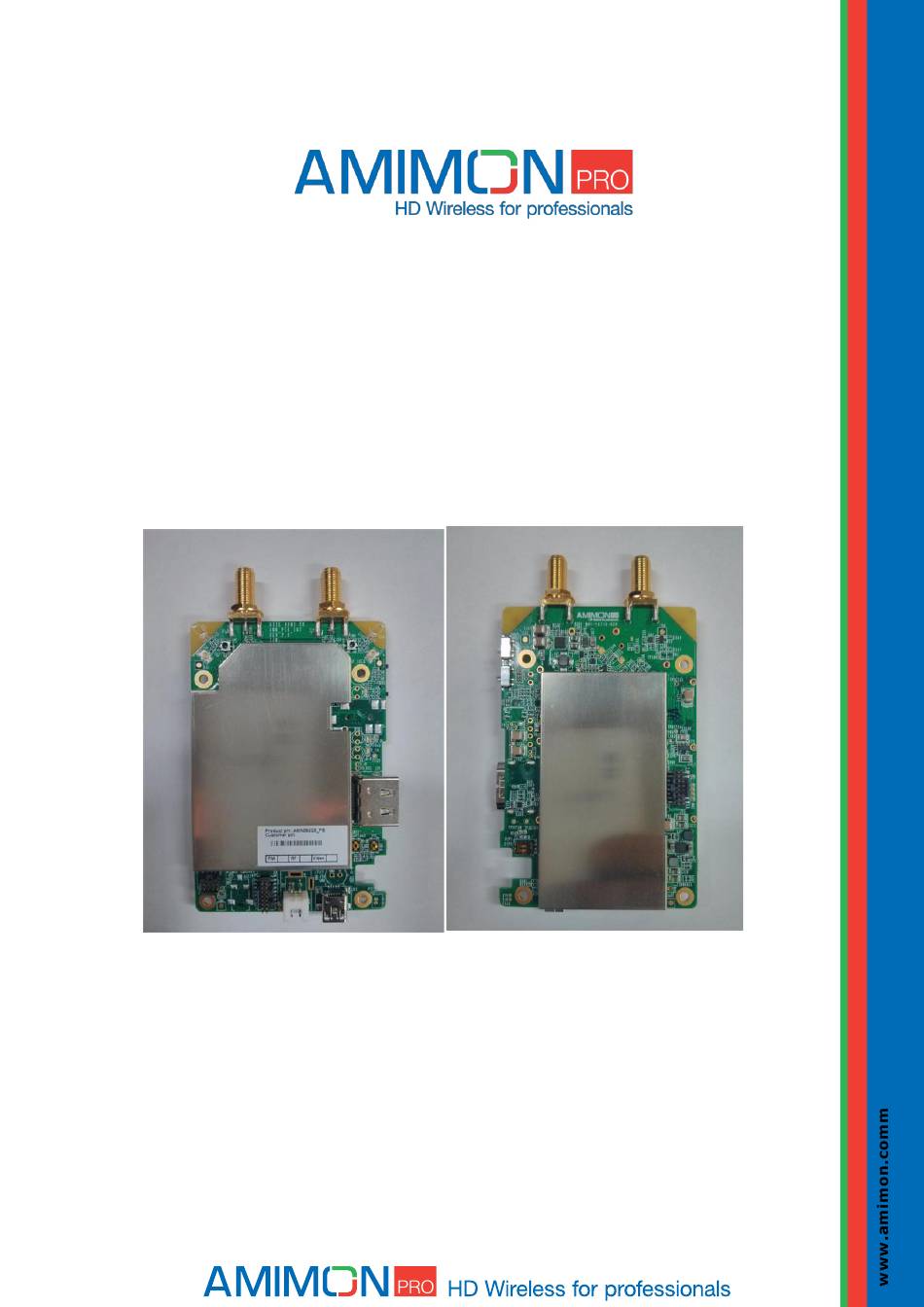

- Page 1 Sky Link outdoor User Manual AMN0504PBLR Tx - AMN35223_PM & Rx - AMN36254_PM Tx without enclosure...
- Page 2 Rx without enclosure An AMIMON Inc. Document Copyright 2013 Version 1.9...
- Page 3 Resale of AMIMON products or services with statements different from or beyond the parameters stated by AMIMON for that product or service voids all express and any implied warranties for the associated AMIMON product or service and is an unfair and deceptive business practice. AMIMON is not responsible or liable for any such statements.
- Page 4 AMIMON ne garantit ni ne déclare que toute licence, explicite ou implicite, soit accordée en vertu d'un brevet AMIMON, de droits d'auteur, masque droit de travail ou autre droit AMIMON de la propriété intellectuelle relatif à toute combinaison, machine ou processus dans lesquels les produits ou services AMIMON sont utilisés.
- Page 5 Revision History Version Date Description 05 May 2013 Initial Draft 07 May 2013 Initial Draft 18/08/2013 Changed the input voltage value 29/10/2013 Fixed the product number 28/11/2013 Add registration with button, Update the Equipment list 31/12/2013 General overhaul 20/1/2014 Inserting notice in French and FCC Warning 19/2/2014 Supports MAC 30.0 23/02/2014...
-
Page 6: Table Of Contents
Table of Contents Safety Instructions ..................... 8 Caution ........................8 Overview ........................9 Package Contents ....................10 Product Description ....................11 Transmitter ......................11 Slide switch - operation mode selection..............13 LED behaviors – Transmitter ................13 Receiver ....................... 14 LED behaviors - Receiver .................. - Page 7 OSD - Menu ......................26 Link Quality Indicator ....................28 Technical Specifications ................... 29 Specifications ....................... 30 Troubleshooting ....................... 31 Other malfunctions ....................33 Appendix ........................34...
-
Page 8: Safety Instructions
Do not open unit. Do not block the air ventilation openings. Use only accessories specified or recommended by Amimon. When devices are switched on keep away at least 20cm from your body. Do not expose to moisture or excessive heat. -
Page 9: Overview
The HD SkyLink system was designed to establish wireless HD video signal transmission without any latency over large distances. Amimon finally made this possible with revolutionary technology! The HD SkyLink is a lightweight but still very powerful wireless HD system, which is the perfect solution for live streaming from your multicopter or from a steadycam system. -
Page 10: Package Contents
Package Contents Please verify the following items are in the shipping box, prior to installation of the - AMN35223_PB transmitter and Amimon-AMN36254_PR2 receiver: ITEM DESCRIPTION QUANTITY HD wireless video transmitter HD-SDI wireless video receiver 12V Power Supply (optional) (optional) SDI cable (optional) -
Page 11: Product Description
Product Description 1.1.1 AMN35223 - General Guidelines (Tx) Figure 1 - Tx AMN35223 Description of all connectors and their functionality including USB, Pass through, power conn debug connectors, 1.1.1.1 Parts description 01- Ext antenna RP-SMA connector CH#1 11- LED #2 - VIDEO status 02- Ext antenna RP-SMA connector CH#0 12- LED #3 - Low battery LED 03- RF Push coaxial connector CH#0... -
Page 12: Transmitter
09- External antenna UFL connector 19- DIP Switch- 1 – BOOT1, 2- DIP0 CH#1 10- LED #1 - NETWORK status 20- MAC DEBUG Port Transmitter Antenna connectors 5V 2pin generic connector Network status LED MiniUSB port - Used for firmware updates Video status LED 10 N/A Power LED - Indicates battery... -
Page 13: Slide Switch - Operation Mode Selection
Slide switch - operation mode selection Mode Slide Switch Not in use AUDIO Aerial mode Multi-monitor mode LED behaviors – Transmitter Network LED BLINKING MODE DESCRIPTION Solid When a connection to Rx is established Slow Device is in listen mode Normal During link setup mode/during Registration Fast... -
Page 14: Receiver
Receiver 1-5 External antennas 18 Registration Button/Link quality button 6-10 Internal antennas 19 Input voltage connector 7-17v Power connector 7-17v 20 ON/OFF switch DFS antenna (located on the other 21 USB port side) Power LED 22 IR input connector 14 Video LED 23 HD-SDI output 15 Network LED 24 2D-SDI output... -
Page 15: Led Behaviors - Receiver
LED behaviors - Receiver Network LED BLINKING MODE DESCRIPTION Solid When a connection to Tx is established*/Link quality is good Slow Device is in listen mode/Link quality is reasonably good Normal During link setup mode/during registration Fast System Error (Video LED flashing as well)/Link quality is poor *In Aerial mode even when Tx is out of range. -
Page 16: Dip Switches - Operation Mode Selection
DIP switches - operation mode selection DIP SWITCH DOWN Default Default Default Aerial mode Multi-Monitor mode... -
Page 17: Operating Modes
Operating modes Aerial mode In this mode a link is established between a single receiver and a single transmitter. This mode uses DFS frequencies as well making it flexible and easy to adjust to all different fields of use and to meet the regional and national frequency requirements and laws. -
Page 18: Multi-Monitor Mode
Multi-monitor mode In this mode a single transmitter can establish a link with several receivers. A link can be established even when the systems are not within close proximity to each other. Operating Frequencies FREQUENCIES [MHz] DESCRIPTION 5755 Non-DFS 5795 Non-DFS Switching between Aerial and Multi-monitor modes Switching between Aerial and Multi-monitor will be done by toggling DIP switch #4 on the Rx side and... -
Page 19: Installation
Switch on Source. Connect the Amimon - AMN35223_PB transmitter to the HD video source via HDMI input port (port #13). Connect the Amimon - AMN35223_PB transmitter to the 7-17v power, via the Lemo connector (port #14). -
Page 20: Remote Control
Remote control Remote Control Hotkeys ADD - Direct access for starting the registration process on the receiver. Delete - will open the "Remove Video Source" in the OSD menu to allow the user to choose to remove devices from the list of registered devices. ... -
Page 21: Registration
Registration Amimon products require registration between the transmitter and receiver, in order to establish a wireless link. The registration process includes keys exchange, for enhanced security and can be managed using the remote control, provided with the product. Sets of Amimon - AMN35223_PB transmitter and Amimon-AMN36254_PR2 receiver usually arrive pre- paired, when purchased as pairs. -
Page 22: Registering Without Remote Control
Registering a transmitter to multiple receivers The Amimon - AMN35223_PB transmitter has the ability to connect up to 4 receivers at a time. There is a need to make sure the transmitter is not transmitting video to other receivers, so all other receivers which are registered to the transmitter should be powered down while registering an additional receiver. -
Page 23: Registering Multiple Transmitters To A Receiver
Registering multiple transmitters to a receiver Connect the HD Source to the Amimon - AMN35223_PB transmitter*. Connect a HD-SDI cable from the Amimon-AMN36254_PR2 receiver to the HD display. Power on the transmitter and receiver. Use the remote control at the Amimon-AMN36254_PR2 receiver and Press the “Add”... -
Page 24: Unregistering Transmitters
Unregistering transmitters Power on the Amimon-AMN36254_PR2 receivers. Use the remote control at the Amimon-AMN36254_PR2 receiver and Press the “Delete” Hotkey button. Select the source to be removed, using the up, down arrow buttons, and “OK” button. Confirm removal of the selected source by pressing the “OK”... -
Page 25: Switching Between Transmitters
Switching between transmitters In order to switch between video transmitters, press the “SOURCE” button and a menu will appear Choose the desired transmitter using the up, down arrows, and “OK” buttons. *Note this is a Unicast product, the desired transmitter must be disconnected from any another system before being chosen. -
Page 26: Osd - Menu
The Amimon-AMN36254_PR2 receiver generates an OSD-Menu (On-Screen Display). This is used for adding/removing devices and presenting the link status and technical information. OSD - Setup window In order to open the Setup window Use the remote control at the Amimon-AMN36254_PR2 receiver and Press the “Menu” Hotkey button. - Page 27 In order to modify the source name, follow the instructions below: In order to modify the transmitter name press the “MENU” button to open the OSD menu. Choose the “Modify Video Source Name” option using the up and down arrows. Press the “OK”...
-
Page 28: Link Quality Indicator
Link Quality Indicator The link quality indicator gives the user an indication of link quality. When enabled this indicator appears in the top left corner in three different colors, depending on the quality of the link: - Very good - Reasonably good - Poor In order to enable the indicator the user must short press the link quality button on the Receiver during link. -
Page 29: Technical Specifications
Technical Specifications SPECIFICATION DESCRIPTION Video Resolution: 1080p/50, 1080p/60, 1080/59.94i, 1080/50i, 1080/29.97p, 1080/23.98p, 720/59.94p, 720/50p, 525i/59.94, 625i/50, 1080/24p. Frequencies: Non-DFS Frequencies : 5.170~ 5.250 GHz for EU 5.170 ~ 5.250 GHz and 5.735~5.815 GHz for US DFS Frequencies (used only in Aerial mode): 5.250-5.330 GHz and 5.490 ~ 5.690 GHz for EU 5.250-5.330 GHz and 5.490 ~ 5.590 GHz and 5.650 ~ 5.690 GHz for US... -
Page 30: Specifications
Specifications Amimon - AMN35223_PB transmitter and Amimon-AMN36254_PR2 receiver TRANSMITTER AMN35223 RECEIVER AMN36254 Video HDMI male connector SDI splitter Interface Option to connect external connector board Audio Over HDMI. Supports up to 2 Over SDI channels. Frequency Automatic Automatic Control Antenna... -
Page 31: Troubleshooting
Make sure both transmitter and receiver are powered on. Make sure the power cable is continuous. Make sure that pairing units are the only Amimon devices currently powered on. Bring the transmitter and receiver closer together but no closer than 1 meter. ... - Page 32 Make sure the IR receiver is connected to the Amimon-AMN36254_PR2 receiver. Make sure there is a far enough distance between the IR receiver and any fluorescent lighting or radiation interfering with the IR signals.
-
Page 33: Other Malfunctions
The NETWORK LED blinks rapidly and there is no display on the monitor: Power cycle the unit. If the issue remains, the device might be faulty. Please contact Amimon support team. Link cannot be established or poor video/Audio quality: Try to decrease the range between the... -
Page 34: Appendix
Appendix Tx without enclosure Rx without enclosure...
