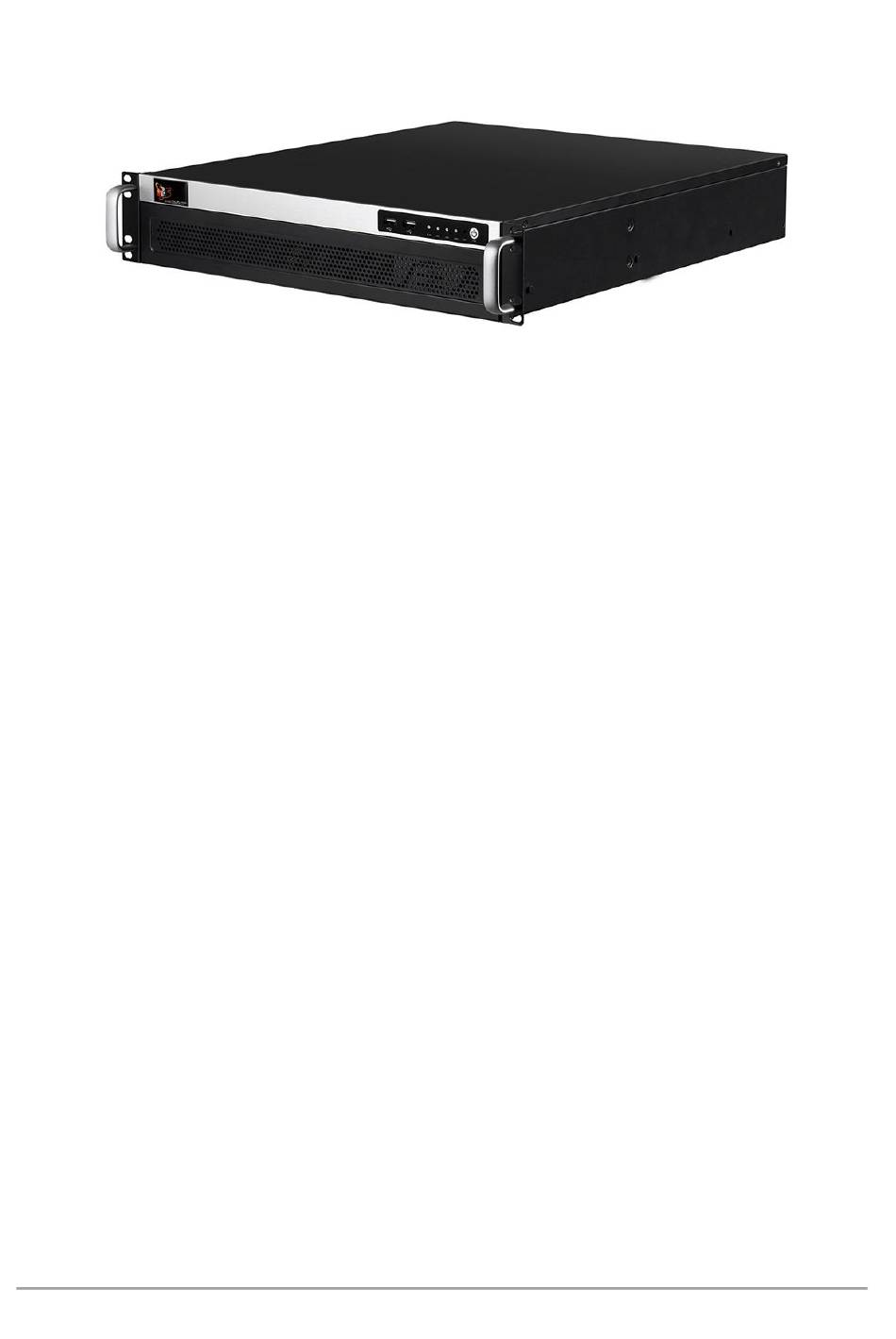

- Page 1 TBS8520 Transcoder Server User Guide Copyright © TBS Technologies 2005-2018 All Rights Reserved 2018-06-21 1 / 37 TBS8520 User Guide...
-
Page 2: Table Of Contents
6.1 Monitoring ............................... 31 6.2 Resources(Output Stream Address) ......................34 7.System Page ................................ 35 7.1 General Setting ............................35 7.2 Host Setting .............................. 35 7.3 Services Setting ............................36 7.4 Network Setting ............................37 2 / 37 TBS8520 User Guide... -
Page 3: Product Overview
Now with TBS8520 real-time transcoder server you can Receiving and Transcoding at the same time, this is acost-effective solution for OTT IPTV providers. With Two Giga Ethernet Ports, it can be configured to transcode up to 80SD or 30 Full HD streams simultaneously, and equipped with 2 TBS Tuner/Capture PCI-e card inputs(up to 16 tuners) to receive channels directly from satellite or ASI / IP inputs to receive digital channels. -
Page 4: Product Specifications
1.2 Product Specifications 4 / 37 TBS8520 User Guide... - Page 5 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, Resolution 704x576 Audio codecs AAC, MP3 Rate Control CBR/VBR up to 80 SD / 30 HD1080 AVC(H.264) streams Transcoder up to 50 SD / 26 HD1080 HEVC(H.265) streams Power 65W ~ 250W Consumption 5 / 37 TBS8520 User Guide...
-
Page 6: Quick Start
2. Quick Start When you get your TBS8520 please use the default Ethernet LAN1 and use the DPI to VGA converter coming with TBS8520 connect to your monitor Then power on after a while you can get this information from your screen: You can see that the server default IP: 10.47.48.1/255.255.240.0... - Page 7 You can using Google Chrome Browse to open the main page of TBS8520 like this : after Sign in then you can see the whole panel of TBS8520: 7 / 37 TBS8520 User Guide...
-
Page 8: Home Page
Allow Remote Devices this option is used to enable or disable the stream can be play from TBS8520,if you set to Yes then you can use VLC play the stream from TBS8520. if you are using RTMP send the stream to your CDN then you can disable this to protect your stream . -
Page 9: Users Setting
This page you can manage the login user account ,you can delete or create new account . 4.3 Other page This is page show all clients connect information include which application and how long it has been connected. 9 / 37 TBS8520 User Guide... - Page 10 And you can click one of the IP it will show the detail page, you can disable this IP do not let it get the stream from our TBS8520 protect your stream you can set like this : 10 / 37...
-
Page 11: Content Page
Broadcasting (System Defaults): This is the global multicast output option. You can choose which Ethernet used to streaming and the IGMP version. Update Information: When you added new channels and make some change of the channels setting you need to commit here to let it work, like this: 11 / 37 TBS8520 User Guide... -
Page 12: Advanced Settings
Unicast/Multicast/HTTP Stream Acquisition: You can set but many buffer time our server will cache the stream then start processing. HTTP Live Stream Acquisition: This you can set the HTTP import stream option the connection timeout and the buffer time. 5.2 Profiles Setting 5.2.1 Preprocessing Profile 12 / 37 TBS8520 User Guide... -
Page 13: Post-Processing Profile(Transcode Profile)
Embed Watermark: You can upload the logo you want to show and set the postion. Advanced : If you have new parameters you want to use you can manual add here 13 / 37 TBS8520 User Guide... - Page 14 Here is the example HD source in output is H.264 and bit rate is 2Mbps 14 / 37 TBS8520 User Guide...
-
Page 15: Output Profile(Hls/Abr Profile)
ABR setting like this : You can see that you have 6 profile, you can enable and set by yourself. then you can set the HLS chunk value here: 15 / 37 TBS8520 User Guide... -
Page 16: Dvb Management
5.3 DVB Management 5.3.1 Transponders(DVBS/S2, DVBT/T2, DVB-C, ATSC…) Here you can create manage all the DVB-S/S2, DVB-T/T2,DVB-C,ISDB-T,ATSC transponders, let us create one DVB-S2 transponder as example press New Record then you can get this dialog: 16 / 37 TBS8520 User Guide... - Page 17 Fill all value then press save, then go to the transponder bottom press Scan button: after press scan then you can choose the tuner you want to use to scan this transponder ,please choose the one which is not in use: 17 / 37 TBS8520 User Guide...
-
Page 18: All Channels
Choose the tuner press scan wait about a few second it will auto show the scan result here if the signal is well you will see the scan result like this: after success scan press ok then you can go to All Channels to configure the channels 5.3.2 All Channels 18 / 37 TBS8520 User Guide... - Page 19 Endpoint URL: The server address to send the stream, such as : rtmp://61.183.xx.xx/live/ Stream Name: The name of the stream, such as : sports Username: Your RTMP server user name Password: Your RTMP server password Transcoding: Choose the Transcoding profile used to process this channel. Example: 19 / 37 TBS8520 User Guide...
-
Page 20: Tv Channels
Output: If you want output HLS/ABR stream you can choose the profile you want to use . Example: You can output default http, udp as Post-processing profile or HLS/ABR as Output profile 5.3.3 TV Channels List all TV Channels 5.3.4 Radio Channels List all Radio Channels 20 / 37 TBS8520 User Guide... -
Page 21: Tuner Cards
You can see that no tuner is in use press edit to assign the transponder to the tuner you want to use .let us assign one transponder to Input-1 like this : after assign press save then go back to setting to commit : 21 / 37 TBS8520 User Guide... -
Page 22: Modulators
It is the same like channels CDN Upload setting you can check here External Modules It is the same like channels External Modules setting you can check here as our server IP is 10.47.48.1 let us take this udp stream as example udp://@10.47.48.1:4001 22 / 37 TBS8520 User Guide... -
Page 23: Multicast Stream Import
It is the same like channels CDN Upload setting you can check here External Modules It is the same like channels External Modules setting you can check here Let us take this udp stream as example udp://@239.255.0.1:1234 23 / 37 TBS8520 User Guide... -
Page 24: Http Stream Import
It is the same like channels CDN Upload setting you can check here External Modules It is the same like channels External Modules setting you can check here Let us take this HTTP stream as example http://10.47.48.123:9981/stream/channelnumber/8 24 / 37 TBS8520 User Guide... -
Page 25: Http Live Playlists
Double Buffer: If the stream still not smoothly you can enable this option to set double buffer. Actions Fetch the Playlist : After you create the playlist record, press Refresh button to get the channel list. Let us take this list as example : http://10.47.48.2:81/all.m3u8 25 / 37 TBS8520 User Guide... - Page 26 Refresh if the playlist is ok then you can see the channels like this : You can click one channel start configuration like this : 26 / 37 TBS8520 User Guide...
-
Page 27: Mpts Stream Import
Let us using one MPTS for test the address is multicast : udp://@239.255.0.1:5002 ,press New Recorder then input like this : Press save then input other value like this : Save again then go to the bottom press Scan: 27 / 37 TBS8520 User Guide... - Page 28 : Press ok then go to Program List ->View to configuration every channels : Click one of channel start your configuration. 28 / 37 TBS8520 User Guide...
-
Page 29: Local Files Import
It is the same like channels External Modules setting you can check here let us use spider.ts file as example : Then open the server samba folder with \\10.47.48.1 user name and password is kylone / kylone 29 / 37 TBS8520 User Guide... -
Page 30: Broadcasting Status
Content->Settings->Commit to let it work 5.5 Broadcasting Status 5.5.1 Multicast Status Here list all multicast output channels 5.5.2 DVB-C Output Status Here is the DVB-C output status 5.5.3 ASI Modulator Status Here is the ASI status 30 / 37 TBS8520 User Guide... -
Page 31: Status Page
Here you can get all channels status and you can separately stop, restart every channels . Transponder : You can get the transponder lock status Strength, SNR, Bitrate, and you can restart and stop with the option button. Restart: Stop: 31 / 37 TBS8520 User Guide... - Page 32 You can get all channels status if you find one of channel status is not ok ,you can separate restart this channel with restart button. CDN Uploads: Here is the RTMP upload status .You can check how long time and the upload bit rate and separately restart. 32 / 37 TBS8520 User Guide...
- Page 33 Here you can see that which IP and port connected and which channel it is in using ,the output data rate , how long it has been connect ,current status . And you can go to the Media Players page to set the Status. 33 / 37 TBS8520 User Guide...
-
Page 34: Resources(Output Stream Address)
Click to download the playlist is the whole channels list like this : http://192.168.0.188:81/all.m3u8 Channel URL is the URL for every channels such as http://192.168.0.188:4750/6021/0/base/stream.ts If you set the channel output as multicast then it will show the multicast URL like this : 34 / 37 TBS8520 User Guide... -
Page 35: System Page
Upload to Restore. Licensing You can remove or input licensing key here System Operations You can reboot the server with Apply button 7.2 Host Setting You can set the system Time Information . 35 / 37 TBS8520 User Guide... -
Page 36: Services Setting
We support external Modules you can open the samba folder and put the modules to mods folder like this : After put the files inside mods folder then press Scan, It will auto load the modules and list here. 36 / 37 TBS8520 User Guide... -
Page 37: Network Setting
You can click the port you want to configuration such as enp8s0: After set do not forget press Commit to let it work. If you have any problem with TBS8520 Please send email to our support@tbsdtv.com, we will reply you as soon as possible.
