General Notes
1. When any change is made to a parameter (temperature setpoint, fan setting, etc.), the value is automatically saved
in the room controller's memory.
2. Arrows, when pressed for more than 2.5 seconds, scroll up or down at higher speed.
NOTE: Some of the parameters below are model dependent and may not appear on all room controllers.
Date
Occupancy Status
Current Temperature
Room Indoor Humidity
Outdoor Temperature
(if outdoor sensor is used)
System Mode
Select system mode
Manual 2100-679
Date
8-29-18
User Interface Quick Start Guide
BrightStat
Fan Mode
Select fan mode
Temperature Units
Switch between Celsius or Fahrenheit
BrightStat
Language
Tap to select preferred language
Current System Mode
Cooling Heating
Auto
Time
Blower Operation
Adjust by pressing the Fan Mode
button on the bottom
Auto
Low
Medium High
Up Arrow
Press to raise temperature setpoint
Temperature Setpoint
Down Arrow
Press to lower temperature setpoint
Help
Tap to view the help screen
Supercedes: NEW
Page 1 of 2
Off
Advertisement
Table of Contents
Related Manuals for Bard BrightStat
Summary of Contents for Bard BrightStat

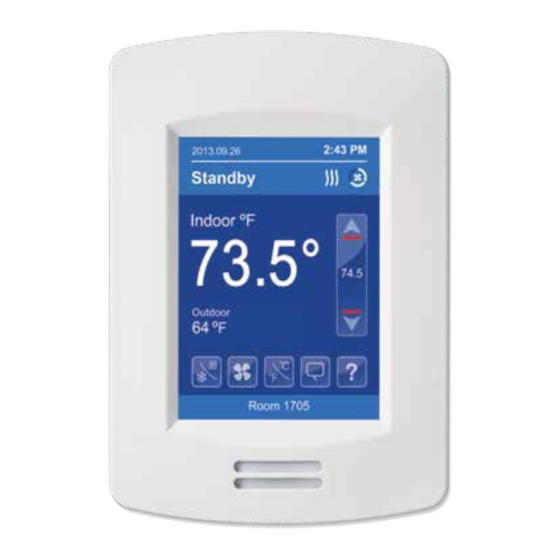

- Page 1 BrightStat User Interface Quick Start Guide General Notes 1. When any change is made to a parameter (temperature setpoint, fan setting, etc.), the value is automatically saved in the room controller’s memory. 2. Arrows, when pressed for more than 2.5 seconds, scroll up or down at higher speed.
- Page 2 Variations The date and time will appear only if properly set. Automatic Heating/Cooling Mode In Auto mode, the setpoint located directly under the blue line represents the temperature which, when reached, will trigger the system to enter cooling mode. 73.0 Similarly, the setpoint located directly above the red line is the temperature which, when reached, will put the system into heating...
