Summary of Contents for Klimaire KSIA Series 17 SEER

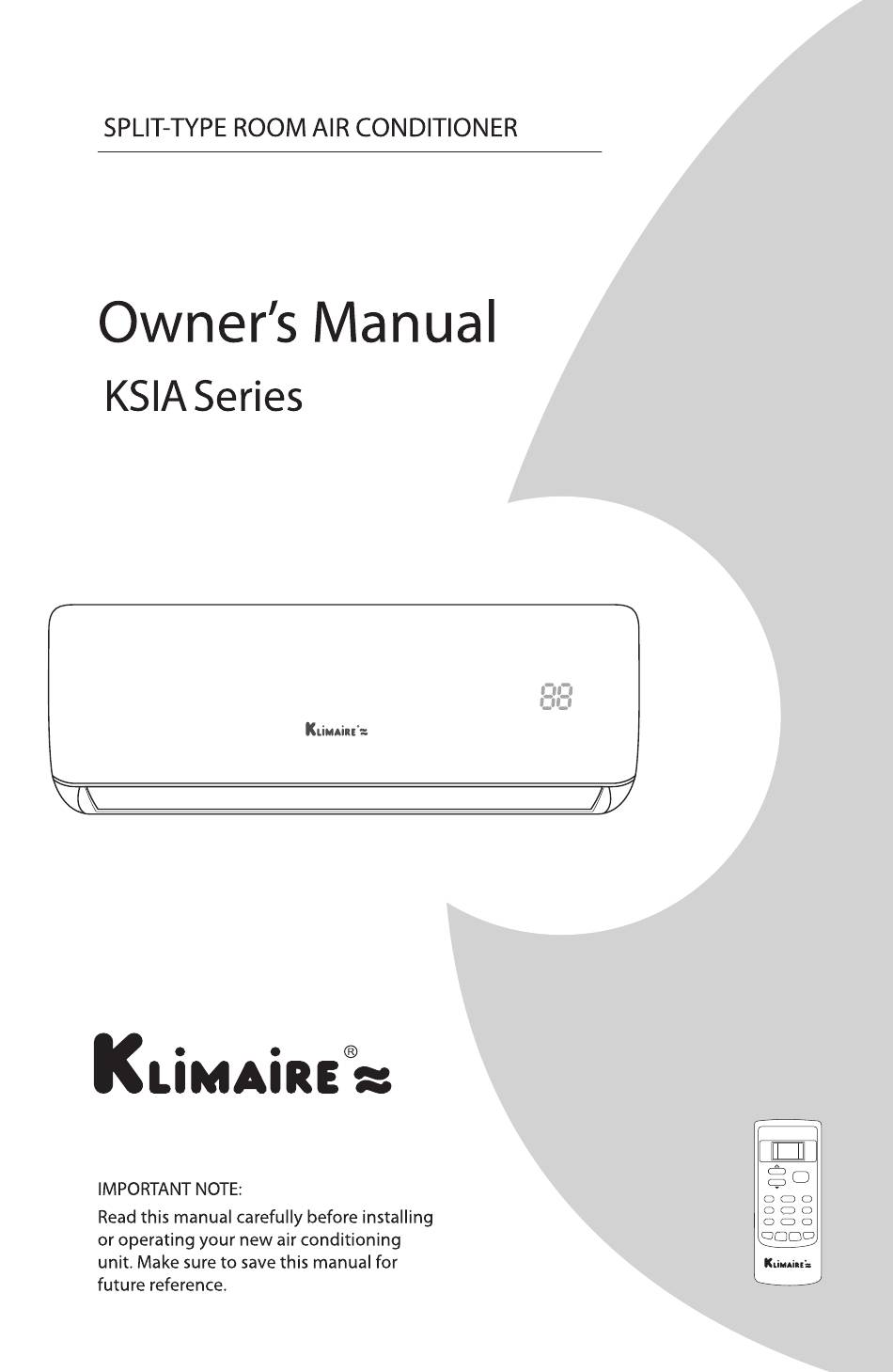

- Page 1 17 SEER AUTO COOL HIGH HEAT ON/OFF MODE CLEAN SPEED SLEEP FRESH STRONG SWING C/ F FEELING HEALTH FUNGUSPROOF SCREEN TIMER...
-
Page 2: Installation Service
of each Installation service Notices for installation Install indoor unit Install outdoor unit Check after installation and test operation Note the pictures in this manual are just schematic diagrams the actual is the standard... -
Page 3: Safety Precautions
Safety Precautions Incorrect installation or operation by not following these instructions may cause harm or damage to people , properties , etc . The seriousness is classified by the following indications WARNING CAUTION This symbol indicates This symbol indicates the the possibility of death possibility of injury or or serious injury . - Page 4 Safety precautions The air conditioner Always switch off Take not let care must be grounded the device and cut the remote control the power supply Incomplete ground and the indoor unit ¬ ing may result in when the unit is not watered or being electric shocks .
- Page 5 Safety Precautions Don ' t use liquid or Don ' t install air Don ' t attempt to conditioner in a corrosive cleaning repair the air place where there is agent wipe the air conditioner by yourself . flammable gas or conditioner and liquid .
- Page 6 Safety Precautions This product contains fluorinated greenhouse gases . Refrigerant leakage contributes to climate change . Refrigerant with lower global warming potential ( GWP ) would contribute less to global warming than a refrigerant with higher GWP , if leaked to the atmosphere . This appliance contains a refrigerant fluid with a GWP equal to [ 2088 ] This means that if 1 kg of this refrigerant fluid would be leaked to...
- Page 7 Safety Precautions CAUTION Don ’ t open the Don ’ t stand on the Don ’ t use the air windows and doors top of the outdoor conditioner for other for long time when purposes , such as unit or place heavy the air conditioner things on it .
-
Page 8: Notices For Use
Notices for use ’ The conditions of unit can t normally run Within the temperature range provided in following table the air conditioner may stop running and other anomalies may arise > 109.4°F (Apply to T1) Outdoor Cooling > 125.6°F (Apply to T3) Indoor <... -
Page 9: Emergency Operation
Notices for use Emergency operation If the remote controller is lost or broken , use force switch button to operate the air conditioner If this button is pushed with the unit OFF , Force switch the air conditioner will operate in Auto mode If this button is pushed with the unit ON , the air conditioner will stop running Airflow direction adjustment... -
Page 10: Names Of Each Part
Names of each part Indoor unit Air inlet Force switch Air inlet grille Panel Air filter Pipe protection ring Air louver Air outlet Air vent Remote controller utdoor unit — Power cable grille Air outlet Connecting pipe Drain hose Air outlet Note : All the pictures in this manual are just schematic diagrams , the actualis the standard Plug WIFI function... -
Page 11: Clean And Care
Clean and care Warning Before the cleaning of the air conditioner , it must be shut down and the electricity must be cut off for more than 5 minutes , otherwise there might be the risk of electric shocks . Do not wet the air conditioner which can cause an electric shock . -
Page 12: Check Before Use
Clean and care Clean the air filter Mount the Filter Reinstall the dried filter in reverse order of removal , then cover and lock the panel Check before use Check whether all the air inlets and outlets the units are unblocked Check whether there is blocking in the water... - Page 13 Troubleshooting Phenomenon Troubleshooting Has the power been shut down ? Is the wiring loose ? Is voltage too high or too low ? ( measured by professionals ) Air conditioner can not operate at all Does it reach the time for start up ? Does the circuit protection device trip ? Is the remote controller out of effective distance to the indoor unit ? Remote controller...
-
Page 14: Notices For Installation
Notices for installation Important Notices Before installing , please contact with local authorized maintenance center , if unit is not installed by the authorized maintenance center , the malfunction may not solved , due to discommodious contact . The air conditioner must be installed by professionals according to the national wiring rules and this manual . - Page 15 Notices for installation Electrical Safety Requirements Be sure to use the rated voltage and air conditioners dedicated circuit for the power supply , and the power cord diameter must meet the national requirements . When the maximum current of air conditioner is > 16 A , it must use the air switch or leakage protection switch equipped with protection devices .
-
Page 16: Grounding Requirements
Notices for installation Requirements for operations at raised height When carrying out installation at 6.6ft. or higher above the base level , safety belts must be worn and ropes of sufficient strength be securely fasten to the outdoor unit , to prevent falling that could cause personal injury or death as well as property loss . -
Page 17: Install Indoor Unit
Install indoor unit Dimension drawing of indoor unit installation Space to the ceiling 5.9in above Space to the wall Space to the wall 7.9in above < 7.9in above 78.7in above Space to the floor Mounting plate The wall for installation of the indoor unit shall be hard and firm , so as to prevent vibration "... - Page 18 Install indoor unit Route of Pipeline Depending on the position of the unit , the piping may be routed sideway from the left or the right ( Fig 1 ) , or vertically from the back ( Fig 2 )( depending on the pipe length of the indoor unit ) In the case of sideway routing , cut off...
-
Page 19: Fixing The Indoor Unit
Install Indoor Unit Fixing the Indoor Unit Hang the indoor unit on the peg board , and move the unit from left to right to ensure that the hook is properly positioned in the peg board Push toward the lower left side and the upper right side of the unit toward the peg board , until the hook is embedded in the slot and makes a... -
Page 20: Install Outdoor Unit
Install outdoor unit Dimension drawing of outdoor unit installation “ Space to the obstruction Air in side Space to the obstruction 11.8in Above 11.8in Above Space to the obstruction Air out side Installation outdoor unit bolt Outdoor Unit Size of Shape A (inch) B (inch) W1(W2)*H*D) (inch) -
Page 21: Wiring Connection
Install outdoor unit Wiring Connection Loosen the screws and remove E parts cover from the unit Connect the cables respectively to the corresponding terminals parts of the terminal board of the outdoor unit ( see the wiring diagram ) , and if there are signals connected to the plug just conduct butt joint : Remove the grounding screw... -
Page 22: Expelling The Air
Install outdoor unit Expelling the air Outdoor unit refrigerant discharging method After the pipe side connection is complete , proceed as follows Quickly tighten and Gas part connect the Loosen the temporarily fastened The installing torqi nut by half turn is the same as Fully open the Check that all indoor... -
Page 23: Check After Installation And Test Operation
Check after installation and test operation Check after installation Electrical Safety Check If the supply voltage is as required If there is any faulty or miss connection in each of the power signal and grounding wires If the grounding wire of the air conditioner is securely grounded Installation Safety Check 1 . - Page 24 Fax (305) 675-2212 www.klimaire.com sales@klimaire.com The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2018 Klimaire Products Inc. The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
