Quick Start Guide
Read the manual that came with your Steel Cart for:
Important safety warnings
Further explanation of features
45-03036 Steel Cart
Operating instructions

HARDWARE PACKAGE

B
C
A
(4)
(2)
D
(26)
42563
47630
F
(15)
E
43814
47189
(15)
G
(27)
47810
43012
H
I
(4)
47408
J
46782
43010
K
R19212016
O
47622
(2)
L
HA23638
M
43343
N
(2)
43088
27846
Problem?
Call 1-800-448-9282

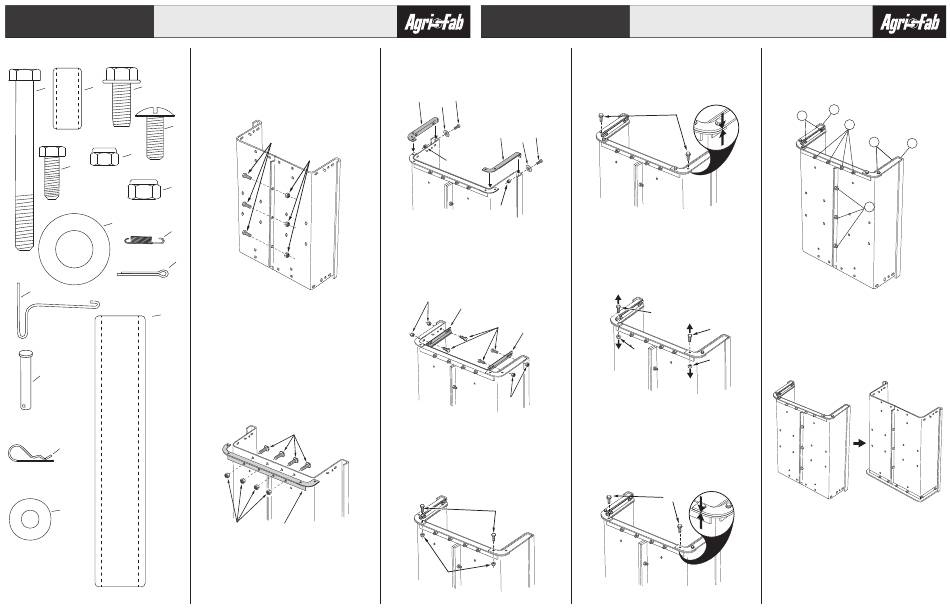

STEP 1 (SEE FIGURE 1): Assemble the cart body
using three 1/4" x 3/4" hex bolts (E) and 1/4" nylock
nuts (F). Do Not Tighten!
(E)
(F)
Figure 1
STEP 2 (SEE FIGURE 2): Attach the lower rear
angle bracket (4) to the assembled cart body using
four 5/16" x 3/4" truss head bolts (D) and 5/16"
nylock nuts (G). Do Not Tighten!
(D)
(G)
(4)
Figure 2
Quick Start Guide
45-03036 Steel Cart
STEP 3 (SEE FIGURE 3): Attach the left (2) and
right (3) rear angle brackets to the cart using two
1/4" x 3/4" hex bolts (E), 1/4" washers (N), and 1/4"
nylock nuts (F). Do Not Tighten!
(E)
(2)
(N)
(3)
(E)
(N)
(F)
(F)
Figure 3
STEP 4 (SEE FIGURE 4): Attach the tailgate
guides (6) using four 1/4" x 3/4" hex bolts (E) and
1/4" nylock nuts (F). Do Not Tighten!
(F)
(6)
(E)
(6)
(F)
Figure 4
STEP 5 (SEE FIGURE 5): Temporarily install two
1/4" x 3/4" hex bolts (E) and 1/4" nylock nuts (F)
into the holes as shown in figure 5.
(E)
(F)
Figure 5
Read the manual that came with your Steel Cart for:
Important safety warnings
Further explanation of features
Operating instructions
STEP 6 (SEE FIGURE 6): Secure the left and right
rear angle brackets to the lower rear angle bracket
using two 5/16" x 3/4" self tapping bolts (C). Be
sure that there is no gap left between the angle
brackets as shown in figure 6.
(C)
Figure 6
STEP 7 (SEE FIGURE 7): Remove (E) and (F)
installed in Step 5.
(E)
(E)
(F)
(F)
Figure 7
STEP 8 (SEE FIGURE 8): In the remaining holes,
install two 5/16" x 3/4" self tapping bolts (C) until
the angle brackets are drawn together leaving no
gap between the angle brackets as shown in figure
8.
(C)
Figure 8
Problem?
Call 1-800-448-9282
STEP 9 (SEE FIGURE 9): Tighten all fasteners
from previous steps.
3
4
2
4
3
1
Figure 9
STEP 10 (SEE FIGURE 10): Position the cart bed
with the rear towards the ground as shown in figure
10.
Figure 10
FORM NO. 3036 QSG (07/13/17)
