B U L L E T I N
554
I N S T A L L A T I O N & O P E R A T I O N
™
™ Vibratory Point Level Sensor

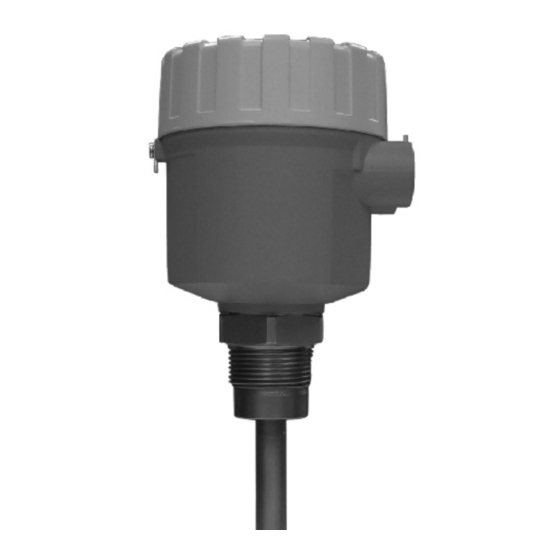

DuraVibe
Ordinary Location and Hazardous Location
Model
VibraRod
Standard Probe
Thank you for purchasing a quality product from Monitor Technologies
LLC. We realize that you do have a choice of vendors when procuring
level measurement equipment and we sincerely appreciate your busi-
ness!
This manual contains the information necessary to ensure a safe and
successful installation. Please read and comply with the section of this
manual pertaining to SAFETY. Doing so will ensure proper operation of
the equipment and the safety of all personnel.
Before discarding shipping container, please inspect it thoroughly and
verify that all parts ordered are accounted for. Sometimes smaller parts
become stuck under carton flaps and other packaging materials.
In the event that information contained herein does not completely
satisfy your requirements or answer your questions, you may
contact Technical Support on our website www.monitortech.com, by
telephone at 800-766-6486 (630-365-9403), or by e-mail at
techsupport@monitortech.com. If your product ever requires service
either in or out of warranty, please contact us and obtain an RMA number
prior to shipping the unit to us.
®
Advertisement
Related Manuals for Monitor DuraVibe VibraRod
Summary of Contents for Monitor DuraVibe VibraRod

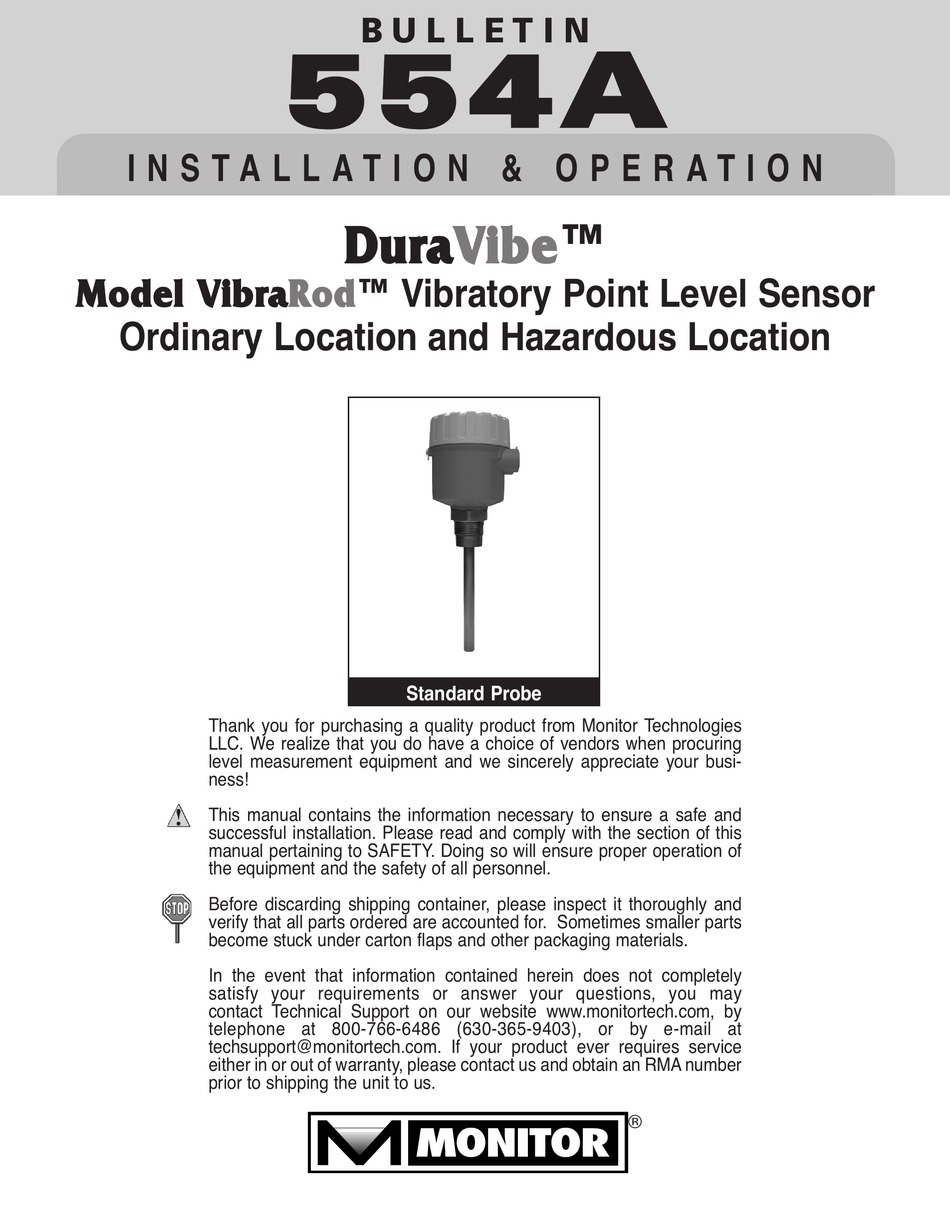

- Page 1 Ordinary Location and Hazardous Location Model VibraRod Standard Probe Thank you for purchasing a quality product from Monitor Technologies LLC. We realize that you do have a choice of vendors when procuring level measurement equipment and we sincerely appreciate your busi- ness! This manual contains the information necessary to ensure a safe and successful installation.
- Page 2 ™ vibratory sensor provides reliable point level detection in a wide variety of process control appli- VibraRod cations within the powder and bulk solids market. The vibrating probe principle overcomes application difficulties associated with changes in material, temperature, and humidity while providing reliable solid state electronic cir- cuitry that requires no calibration.
- Page 3 Protective Baffles: (See Figure 4) Probe Mounting: (See Figure 4) 1) Coupling Mount: Cut a hole into the vessel suitable for is a sensitive level sensing instrument. Therefore, particular attention should be given to assure a 1-1/4” NPT pipe coupling. Position a half-coupling as VibraRod that the mechanical construction of the probe is not dam- desired on the vessel and weld into place.
- Page 4 67$786 /(' V )$,/6$)( 6(/(&725 6(16,7,9,7< 6(/(&725 E L E C T R I C A L I N S T A L L A T I O N Hazardous Location Precautions: Observe the regulations listed in the NEC (USA) or CEC (Canada) regarding equipment in hazardous locations )$725<...
- Page 5 Table 1 Fail-Safe (Selector "J4" in Figure 7): T R O U B L E S H O O T I N G Selection of the fail-safe mode (See Table 1) will permit the output contacts to be triggered in a manner that PROBLEM: Sensor will not sense material.
- Page 6 M A I N T E N A N C E ™ level sensor is a maintenance-free prod- uct and should be serviced by Monitor Technologies LLC VibraRod personnel only. If operation appears inappropriate, see the Troubleshooting section of this bulletin. If proper oper- ation is not achievable, consult the factory.
-
Page 7: China Rohs
VibraRod service for two (2) years from the date of purchase. The pur- chaser must notify Monitor of any defects within the warranty CE Mark period, return the product intact, and prepay transportation CHINA RoHS 2 charges. - Page 8 B U L L E T I N Monitor Technologies LLC 44W320 Keslinger Rd. Elburn, IL 60119 630-365-9403 800-766-6486 monitor@monitortech.com www.monitortech.com JUL 20 2018 DOC-001-554A...
