6. Start the NIBP reading on the unit under test and wait for the reading to complete.
7. For static calibration, over pressure testing, and leak testing, connect the SimCube
simulator and a manual pump bulb in line with the monitor's cuff and hose as shown in Fig. 2. All
SimCube models include a manometer for performing static calibration. Some models include an
Over Pressure (peak detect) mode for performing over pressure testing and some models include
a Leak Test mode for performing leak tests.
8. For IBP testing, connect the IBP extension cable supplied with the SimCube system and the
correct IBP adapter for the monitor under test to the SimCube simulator. A variety of IBP adapters
are available from Pronk Technologies Inc. Select the '0' mmHg IBP simulation mode, zero the
monitor, then select the desired simulation mode.
9. For ECG and Respiration testing, connect the ECG cable from the monitor under test to the
SimCube simulator. Snap locations for 3, 5 or 12 lead simulations are indicated on the side of the
SimCube simulator and shown in Fig. 3. When using large snap heads or alligator clips, it may be
necessary to use the ECG Extender Module, which is available from Pronk Technologies Inc.
SimCube Side View
PRONK TECHNOLOGIES
Revision O 07/18/2017
NIBP Monitor
!
NIBP Monitor
!
RA V1 V5
LA V2 V6
LL V3
RL V4
www.pronktech.com

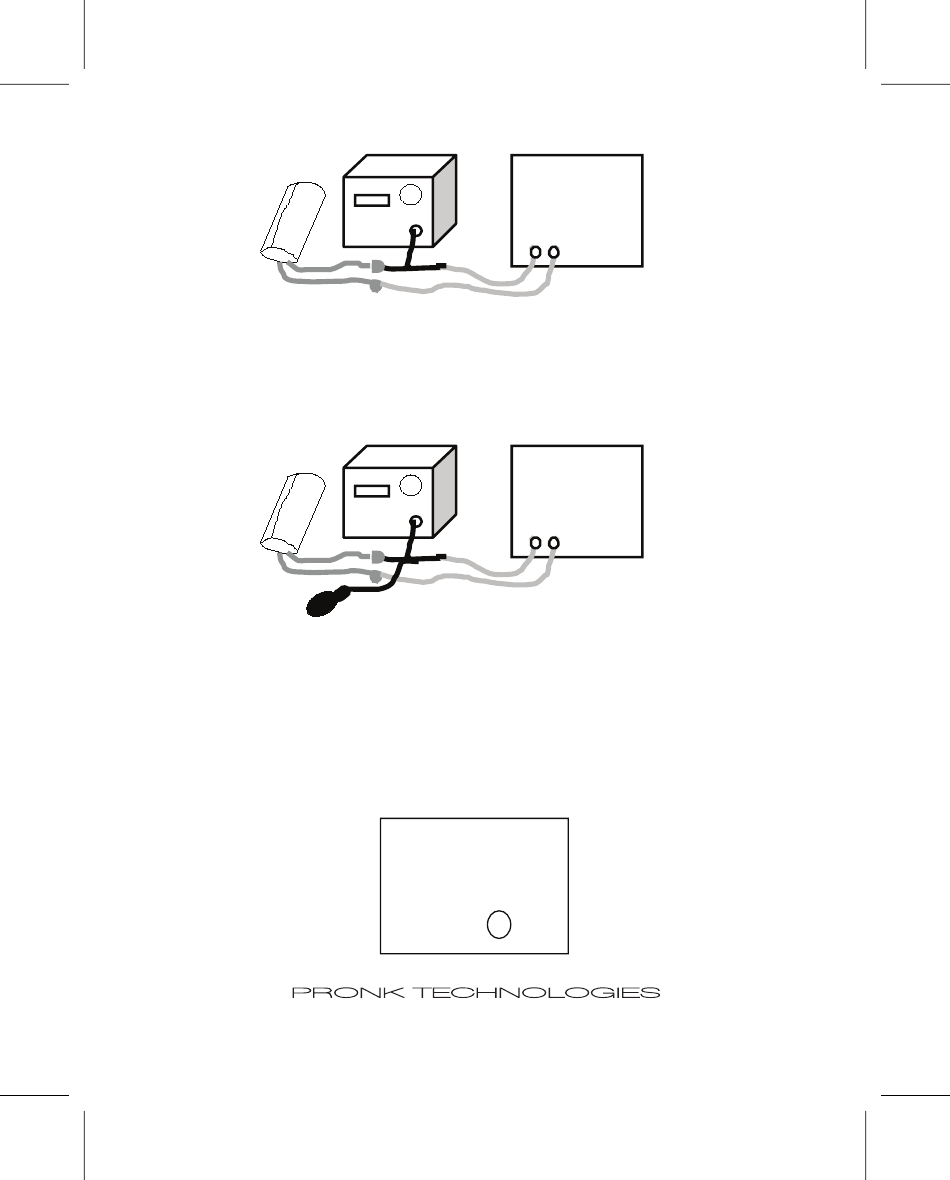

Fig. 1
