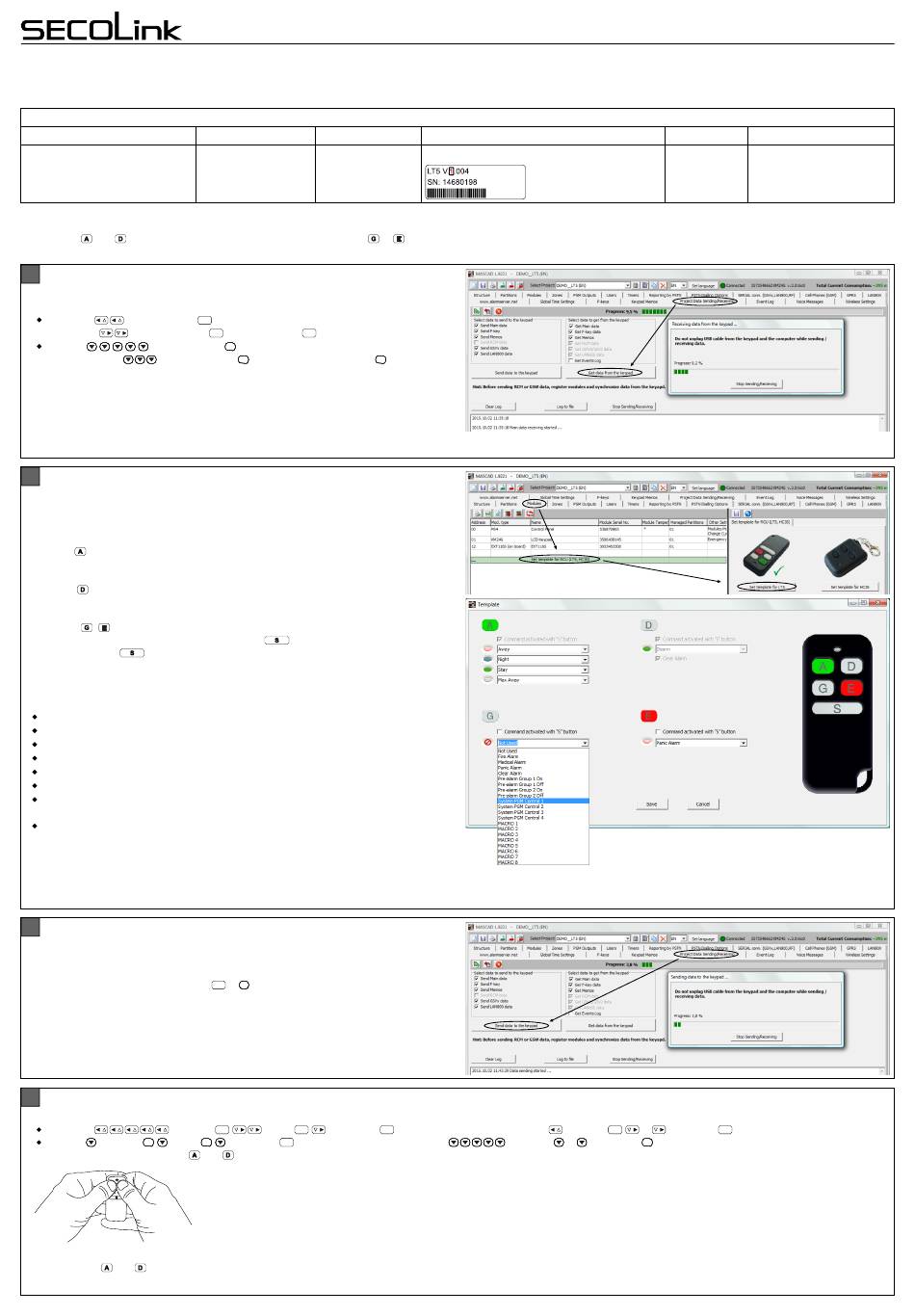

SECOLink LT5 Installation Manual

Intruder alarm system
The LT5 remote control is a portable wireless transmitter to use only with Pxx series wireless alarm systems (P1, P32, or P64) or with PAS8xx series control panel that has a wireless
extension module EXT116S connected to the system bus.
Dimensions (W x H x D)
33 mm x 73 mm x 11 mm
LT5 b uttons and are used for arming and disarming,
can be used to change default template
1

Downloading the template from the system to software MASCAD

1. Connect the USB cable to keypad's USB terminal.
2. Establish a connection with the computer:
KM20Bx: , Service Mode
0000 (default), Project Loading
KM24x: , Service Mode
PIN: 0000 (default), Project Loading , Start connection with PC .
3. Run the software MASCAD.
4. Click on Project Data Sending / Receiving tab.
5. Click on Get data from the keypad button and wait until all data will be downloaded.
6. Give the project an appropriate name (pop-up window will appear automatically).
7. Click Save.
2

Modifying the template for remote control unit LT5

1. Click on Modules tab.
2. Click on row Set template for RCU (LT5, HC3S).
3. Click on button Set template for LT5.
4. Modify template according to user needs:
Button - used for arming mode selection. The most preferred arming mode should
be on the top of the list and the other modes should be aligned in order of priority. The
LED color that corresponds to the arming mode cannot be changed.
Button - this button is used exclusively to disarm and its function cannot be
changed. If the system is signalling because of an alarm, the user will turn off the alarm
while disarming it.
Buttons , - these buttons are of equal functionality. Each of the buttons can be
assigned up to four control commands if the
command. If the button won't be used to send commands, only one control
command can be assigned to each button. The most preferred command should be on
the top of the list and the other commands should be aligned in order of priority. LED
color assigned to the control command cannot be changed
Commands:
Fire alarm - used to trigger a fire alarm.
Medical alarm - used to trigger a medical alarm.
Panic alarm - used to trigger a panic alarm.
Clear alarms - used to stop the signaling because of an alarm.
Pre-alarm group ... on - used to turn on the special Pre-alarm arming mode
Pre-alarm group ... off - used to turn off the special Pre-alarm arming mode.
PGM ouput control ... - used to control system's PGM outputs. PGM output definition
must be Mono/Bi Switch (see tab PGM outputs).
Macro 1...8 - used to control the system with several commands in a programmed
order of sequence. The amount of commands in one macro-command depends on the
amount of used macro-commands and the amount of commands in them.
5. Assign the arming modes / commands to each of remote control unit buttons.
6. Click on Edit button if the command requires more settings to set.
7. Click on Save button when arming modes / all commands are assigned to buttons.
3

Uploading modified template to the system

1. Click on Project Data Sending / Receiving tab.
2. Click on Send data to the keypad button and wait until all data will be uploaded.
3. Wait until the message Processing... disappears from keypad's LCD screen.
4. Leave the service mode ( press the
4

How to add a user to the remote control unit

1. Go to menu:
KM20Bx: , Settings
KM24x: , Settings , Users ,
ENT ENT ENT ENT
2. Simultaneously hold down the
3. Message Done should appear on keypad's LCD screen when remote control unit successfully enrolled.
4. Release the and buttons.
5. Please wait at least 40 seconds before starting to test all functions for proper operations.
Ambient temperature Ambient humidity
o o
-10 C - +55 C 0% - 70%
while buttons
of the remote control unit (RCU).
, enter User PIN: 0001 (default), enter Service PIN:
ENT
,Open USB Port .
ENT ENT
, enter user PIN: 0001 (default), enter service
ENT ENT ENT ENT
ENT ENT ENT ENT
button will be used to send the
or keys several times).
CLR CLR CLR CLR CLR
, Users , Edit Users
ENT ENT
Edit Users , enter User PIN: 0001 (default),
ENT ENT ENT ENT ENT
and buttons.

SPECIFICATIONS

Operating frequency
Depends on firmware version of the transmitter:
1 = 868,30 MHz (EU)
9 = 915,30 MHz (AU)

TEMPLATE

or can be programmed for any task (e . to control
ENT ENT ENT ENT
, enter User PIN: 0001 (default),
ENT
Controls
Battery
CR2032, 3V
.g , gate s, to trigger a panic alarm).
Controls , ... New RCU , Waiting ...
ENT ENT
... , New RCU , Waiting ...
ENT ENT ENT ENT
Remote control LT5
Installation manual
Battery life
< 2 years
Software MASCAD
