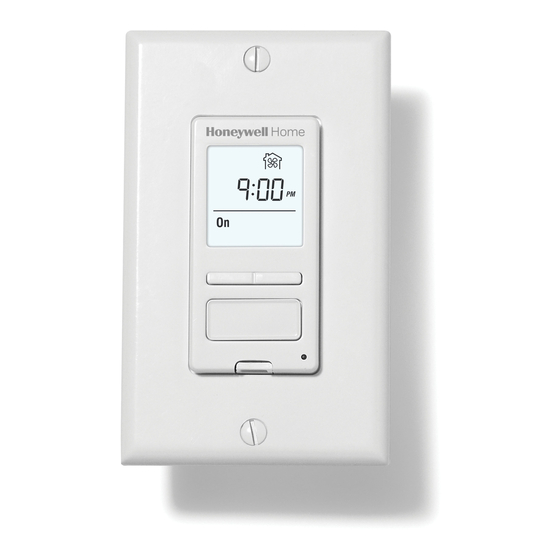

Honeywell HVC0001 Owner's Manual

Programmable bath fan control
Hide thumbs


Advertisement

HVC0001 / HVC0002
Programmable Bath Fan Control
Contrôleur de ventilateur programmable
Controlador de ventilador programable
Owner's Guide
Guide du propriétaire
Guía del usuario

Advertisement

loading

  Related Manuals for Honeywell HVC0001

  Summary of Contents for Honeywell HVC0001

  • Page 1 Owner’s Guide Guide du propriétaire Guía del usuario HVC0001 / HVC0002 Programmable Bath Fan Control Contrôleur de ventilateur programmable Controlador de ventilador programable...
  • Page 2: Quick Reference

    HVC0001/HVC0002 Quick reference Programmable modes Countdown Mode (see page 17) Clock Countdown time The bath fan is On The bath fan is Off Press either button to place in Setup menu Countdown Mode. Then press the Press the Main Button to turn the left button to decrease the bath fan On or Off.
  • Page 3: Wire Installation

    HVC0001/HVC0002 4-wire installation ‹ Cut power at the main electrical panel to avoid electric shock. › Remove the existing switch if applicable. fi Install the bath fan controller. fl Apply power at the circuit breaker. black white black (LINE) white...
  • Page 4: Set The Time And Date

    HVC0001/HVC0002 Set the time and date Select 24H or 12H Set Hour Set Minutes The time flashes on the screen when it is not yet set or after a power outage of more than 4 hours. To set the clock,...
  • Page 5 HVC0001/HVC0002 Set the Automatic Daylight Savings Time Changeover When Automatic Daylight Savings Time changeover is enabled (DST On), the controller automatically switches to daylight savings time (summer time) at 2:00 am on the second Sunday of March and back to standard time (winter time) at 2:00 am on the first Sunday of November.
  • Page 6 HVC0001/HVC0002 Ventilation Mode (cont’d) To place the controller in Ventilation Mode, proceed as shown: Ventilation Mode Normal Display (3 sec.) (3 sec.) Select Ventilation Mode Temporary override Press the main button to temporarily turn the fan On or Off. For example, if you press the main button to turn the fan On during the idle period, the fan will remain On until the beginning of the next idle period or until you press the main button again.
  • Page 7 HVC0001/HVC0002 Customized Cycle Mode (cont’d) To place the controller in Customized Cycle Mode, proceed as shown: Normal Display Customized Cycle Mode (3 sec.) (3 sec.) Select Customized Cycle Mode Temporary override Press the main button to temporarily turn the fan On or Off. For example, if you press the main button to turn the fan On during the idle period, the fan will remain On until the beginning of the next idle period or until you press the main button again.
  • Page 8 HVC0001/HVC0002 Daily On/Off Mode (cont’d) To place the controller in Daily On/Off Mode, proceed as shown: Normal Display Daily On/Off Mode (3 sec.) (3 sec.) Select Daily On/Off Mode Temporary override Press the main button to temporarily turn the fan On or Off. For example, if you press the main button to turn the fan On, it will remain On until the programmed Off time or until you press the main button again.
  • Page 9: Countdown Mode

    HVC0001/HVC0002 Countdown Mode Place the controller in Countdown Mode to run the fan for 10-60 minutes. The fan turns On when the controller is in this mode. At the end of the countdown time, the controller returns to its programmed mode and the fan turns Off.
  • Page 10: Product Specifications

    Owner’s Guide 400-305-000-EFS Product Specifications HVC0001: white HVC0002: biscuit Voltage: 120 VAC - 15%, + 10% Frequency: 60 Hz ± 5% Minimum Load: 0.1 A (12 W) Maximum Load: 2.5 A (300 W) Minimum Power Factor: 0.60 Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

This manual is also suitable for:

Hvc0002
