Using This Manual

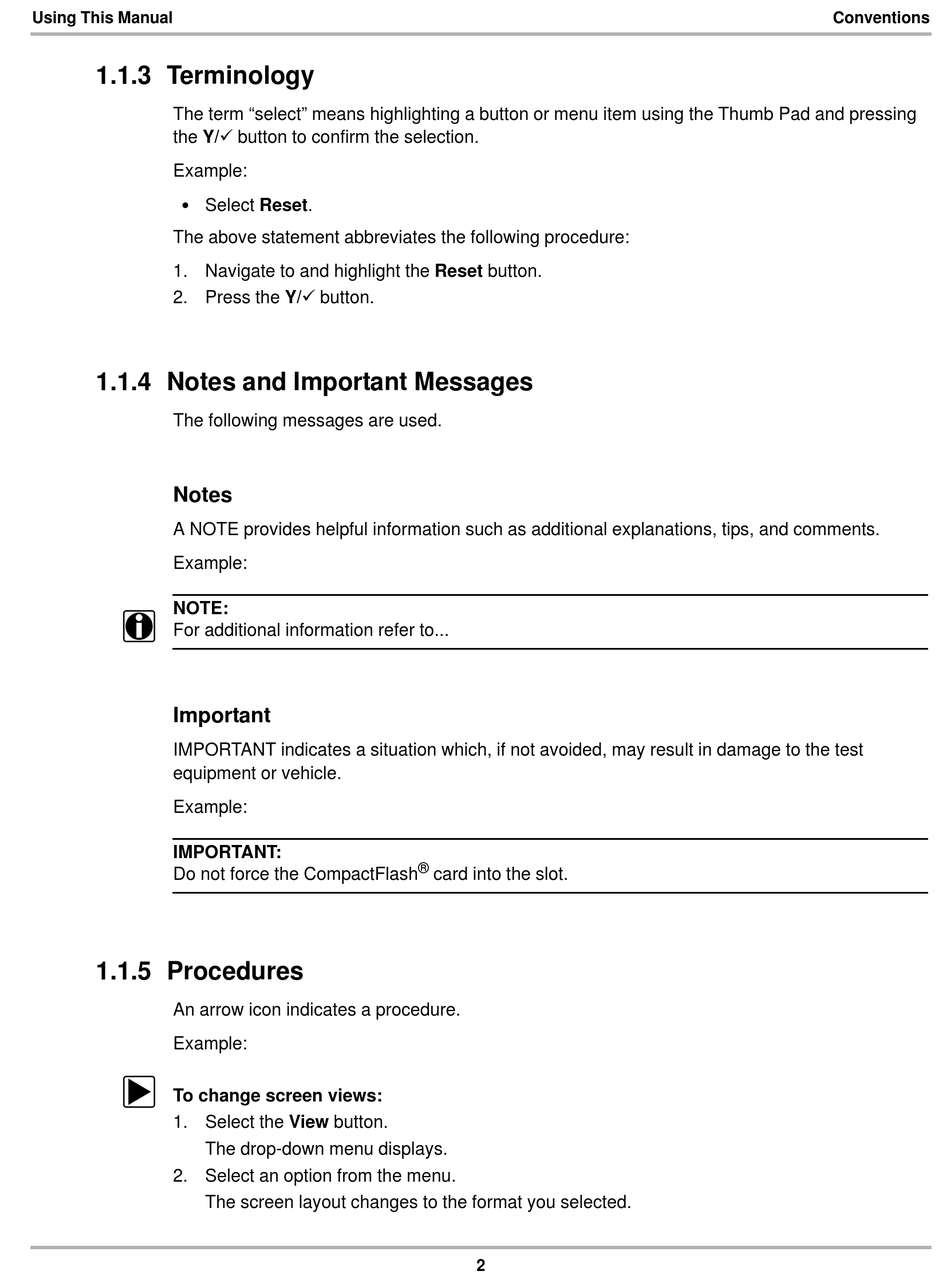

1.1.3 Terminology

The term "select" means highlighting a button or menu item using the Thumb Pad and pressing
the Y/a button to confirm the selection.
Example:
Select Reset.
•
The above statement abbreviates the following procedure:
1. Navigate to and highlight the Reset button.
2. Press the Y/a button.

1.1.4 Notes and Important Messages

The following messages are used.
Notes
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example:
NOTE:
i
For additional information refer to...
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test
equipment or vehicle.
Example:
IMPORTANT:
Do not force the CompactFlash

1.1.5 Procedures

An arrow icon indicates a procedure.
Example:
z
To change screen views:
1. Select the View button.
The drop-down menu displays.
2. Select an option from the menu.
The screen layout changes to the format you selected.
®
card into the slot.
2
Conventions
