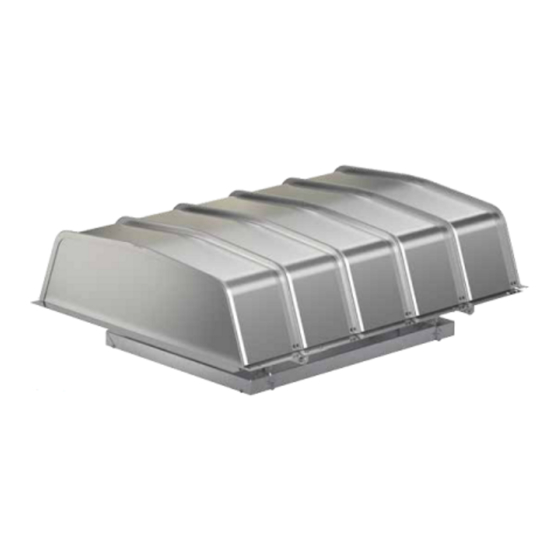

Greenheck FGI Fabra Hood Assembly Instructions

Form f - single section with filters throat length less than or equal to 72 inches

Table of Contents

Download this manual

Step 1 Fabra hood Form F 471322

Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,

operate or maintain the product described. Protect yourself and others by observing all safety information. Failure

to comply with these instructions will result in voiding of the product warranty and may result in personal injury

and/or property damage.

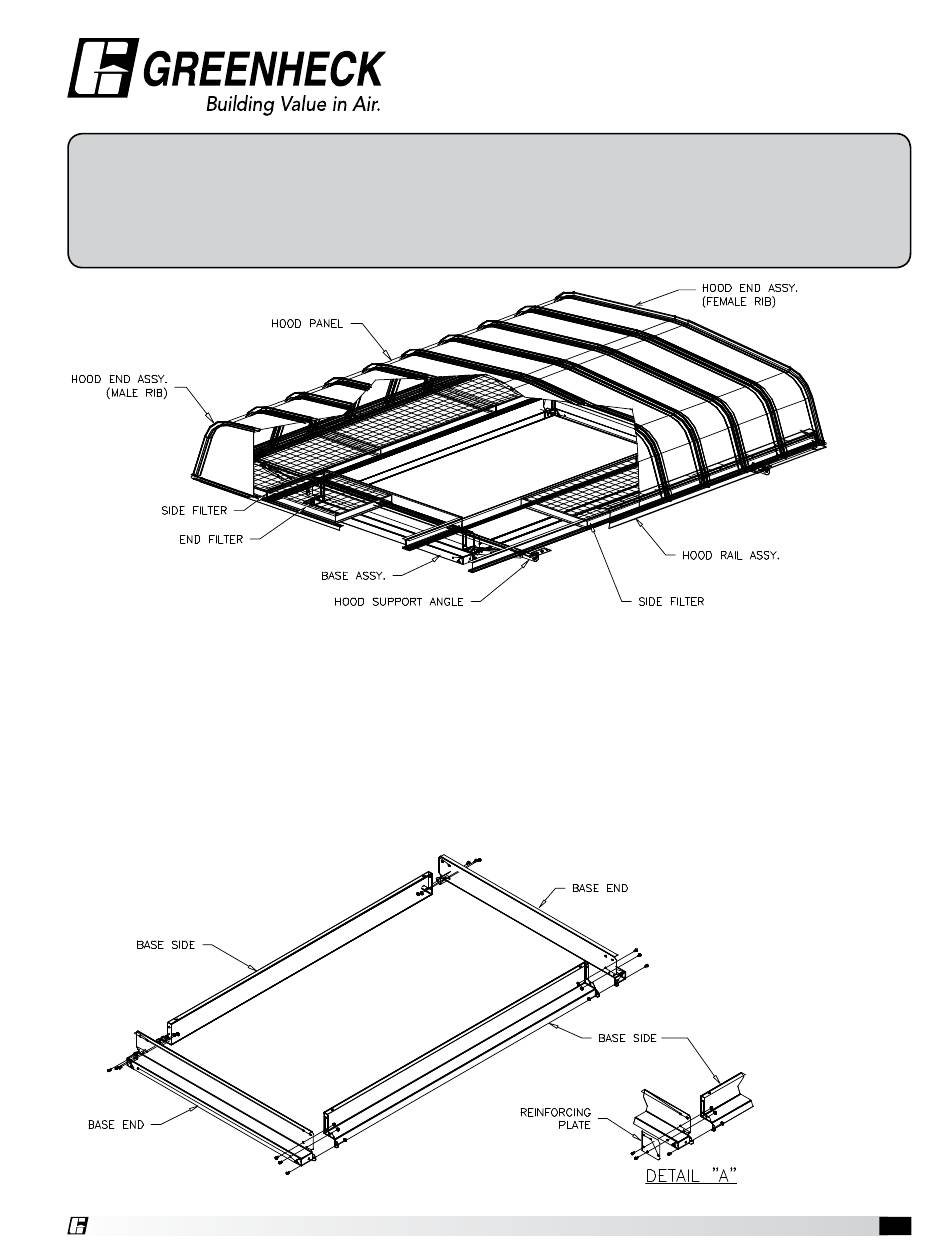

Figure 1

Step 1

Open the shipping crates and separate the parts according to the size of the unit, refer to Figure 1.

Step 2

Place the two BASE ENDS and the two BASE SIDES in their approximate relationship to each other, see Figure 2.

Fasten together using three 1/4-20 fasteners per corner for 5 inch high base and four 1/4-20 fasteners per corner for

Figure 2 Fabra hood Form F 471322

12 inch high base.

Note: Fasteners should be hand tightened only until step 4. On some units where the difference between the

hood width and throat width is greater than 32 inches, a REINFORCING PLATE is required in the corners of the

BASE, refer to Figure 2, Detail A.

Figure 2

Assembly Instructions

Document 471322

Model FGI/FGR Fabra Hood

Form F - Single Section with Filters

Throat length less than or equal to 72 inches

Fabra Hood • Form F

Table of Contents

Need help?

Do you have a question about the FGI Fabra Hood and is the answer not in the manual?

Page 1 Document 471322 Model FGI/FGR Fabra Hood Form F - Single Section with Filters ® Throat length less than or equal to 72 inches Assembly Instructions Step 1 Fabra hood Form F 471322 Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described.
Page 2 gure 3 Fabra hood Form F 471322 Figure 3 Fabra hood Form F 471322 Step 3 Attach the HOOD SUPPORT ANGLE to the BASE ASSEMBLY (hand tight) using four 1/4-20 fasteners per angle, see Figure 3, Detail B. On some units, two DIAGONAL BRACES come pre-attached to the HOOD SUPPORT ANGLE. Fasten the loose end of the DIAGONAL BRACES to the BASE ASSEMBLY using one 3/8-16 FASTENER per diagonal brace, see Figure 3, Detail C.
Page 3 Step 6 Attach the END ANGLE (hand tight) to the ends of the SIDE FILTER CHANNEL ASSEMBLIES and SIDE CHANNELS using four 5/16 X 1 weldstud fasteners per END ANGLE, see Figure 5. In addition, units with throat widths greater than 36 inches will require FILTER END CHANNEL ASSEMBLIES, see Figure 5, Detail D.
