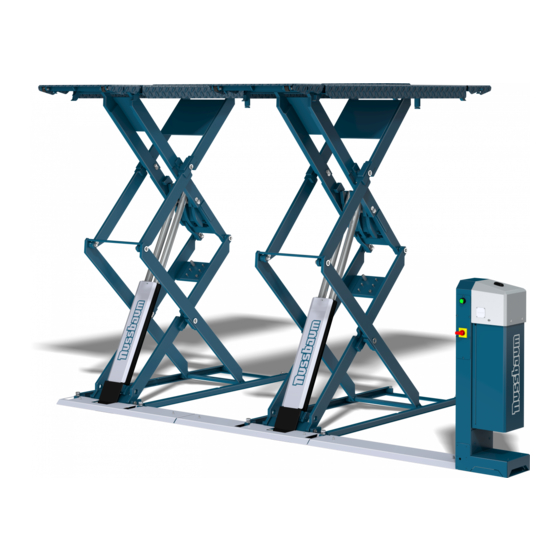

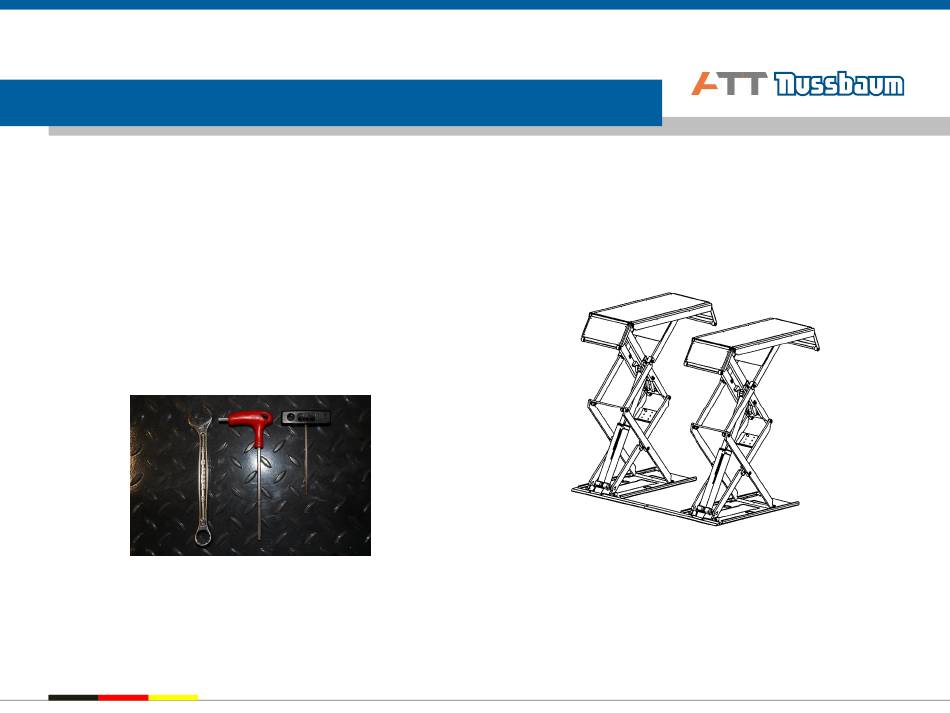

Quick guide to level a Jumbo NT
•
Hex key size 3 und 6 (for remove
•
cover and emergency lowering +
leveling screws ).
17th wrench (for Lock nut open and
•
close )
Required tools.
•
Made in Germany
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nussbaum Jumbo NT
Summary of Contents for Nussbaum Jumbo NT
- Page 1 Quick guide to level a Jumbo NT • Hex key size 3 und 6 (for remove • cover and emergency lowering + leveling screws ). 17th wrench (for Lock nut open and • close ) Required tools. • Made in Germany...
- Page 2 Hydraulic diagram To release air in the Nussbaum NT system and • to equalize the platforms, it is important to fill the complete hydraulic system with oil. The slave cylinder can be filled by opening the • adjustment screws on the hydraulic block. This allows you to simultaneously fill the master and slave cylinder.
- Page 3 Quick guide The lift must park in the lowest position, • connected to the hydraulic system filled with approximately 14L oil. Open leveling screws A1 and A2 (max. 1 turn), • and press the “lowering” button about 5 Leveling screws A1 and A2 second.
- Page 4 Quick guide Lifting the platforms without load to the top- • end position (the platform is unevenly high and is slightly oblique in the final position, the cylinder levers are not parallel). Press the “lowering” button, the platforms • Cylinder lever not synchronized. slightly lowering, release “lowering”...
