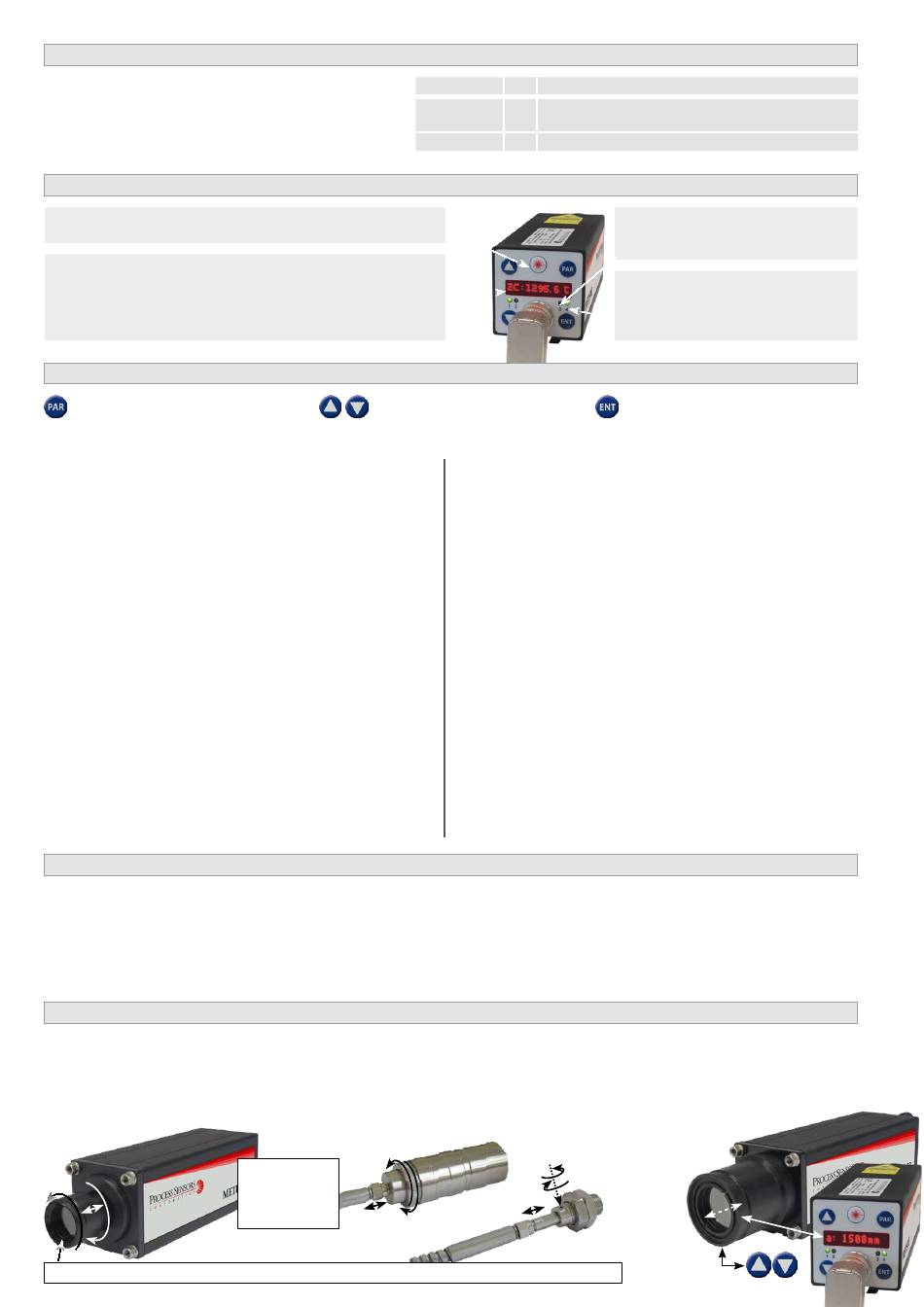

Process Sensors METIS M311 Quick Start Manual page 2

1 Electrical Connection
The unit is ready for operation when connection is made
to the voltage supply. Interrupt the power supply to turn
off the pyrometer. To prevent accidental short circuits,
cable wires not in use should be secured to the supplied
screw terminals.
2 Overview
Sighting: Through-lens view finder, laser targeting button or
connector for color video
Display
■ 2C: Ratio temperature (2-color) measuring mode
■ C1 / C2: 1-color temp. measuring mode channel 1 or 2
■ – – – –:
Measuring temperature below zero scale temp.
■ OVER: Measuring temperature above full scale temp.
4 Parameters (adjustment buttons for pyrometer configuration)
Press the button repeatedly to get
access to all settings sequentially
(subcategory with >)
DISPLAY> Temperature on display
DISPTMP:2C Ratio (2-color) temperature
DISPTMP: C1 Temperature channel 1 (longer spectral range)
DISPTMP: C2 Temperature channel 2 (shorter spectral range)
MEASPARA> Measurement parameters
T90 Response time t
STMOD Storage mode peak picker: OFF, trigger (TRIG),
automatic (AUTO), extern (EXT),
time clear (TIME)
CLR Clear time settings of storage mode
(only if STMODE set to TIME):
times for time clearing: 1 ms–25 s
SLO Emissivity slope (0.800–1.200)
SW.OFF Switch-off limit (2–90%)
Ԑ1 Emissivity (epsilon) channel 1 (5–120%)
TR1 Transmittance channel 1 (5–100%)
Ԑ2 Emissivity (epsilon) channel 2 (5–120%)
TR2 Transmittance channel 2 (5–100%)
FF Fill factor of spot size (5–100%)
ZSC Zero scale temperature
FSC Full scale temperature
TU Temperate unit °C / °F
4
Factory Settings
■ Analog output 1: 4–20 mA, signal of the measured tempera-
ture (always that temperature, displayed on the device)
■ Analog output 2: no temperature output
■ Serial interface: RS485, baud rate: 115.2 kBd
■ Emissivity slope Ԑ /Ԑ =1, emissivity Ԑ=1 (100%)
2 1
■ Response time t = min (corresponds M3: <1 ms; H3: <80 µs)
90
5 Adjusting the Measuring Distance / Focus Distance
In the focus point of the lens (focus distance) the spot size diameter is smallest, outside the focused distance the spot size diameter
is usually bigger. Precise spot sizes can be found in the complete operating manual under "Spot Size Tables".
■ The laser targeting light has its smallest and sharpest picture at the point where the spot size is the smallest.
■ View finder and Camera Module: The measuring distance is found when the object is in focus.
Manual Focusable Optics
1.
2.
3.
A sticker on the optics shows the measurement / focus distance ("a" from front of the lens)
For adjustment of the possible
parameters in the categories
(min–10 s)
90
Fiber Optics
1.
1. Release
2. Adjust
3. Lock (hand-
2.
screwed)
Cable color No. Function
White 1 + 24 V DC power supply (18–30 V DC, power
consumption M3: max. 6 VA, H3: max. 12 VA)
Brown 2 0 V DC power supply (ground)
OUTPUTS> Outputs
ANALOG> Analog outputs
A1 Analog current output 1 (0/4–20 mA)
A1TST Test current analog output 1
(OFF, 10 mA at 0–20 mA, 12 mA at 4–20 mA)
A2 Analog current output 2 (0/4–20 mA)
A2OUT Signal analog output 2: off (OFF), 2-color tem-
perature (2C), temperature channel 1 (C1) or
channel 2 (C2), control output (CTR; only devices
with PID controller), device temperature (DTMP)
A2TST Test current analog output 2
(OFF, 10 mA at 0–20 mA, 12 mA at 4–20 mA)
INTERFACE> Serial interface
RSTYPE Interface type RS232 / RS485 (only M3)
BD Baud rate
RS232: 4.8–115.2 kBd, RS485: 4.8–921.6 kBd
ADD Address (00–97)
DELAY Interface delay (00–20)
MISC> Miscellaneous settings
LG Language (English / Deutsch)
N.PIN Set (new) pin for push button lock
(OFF = no pin request)
FACT.SET Reset the device to the factory setting (no / yes)
■ Digital inputs / outputs
- 1: Set to input: switching on / off laser targeting light
(devices with view finder or camera: no function)
- 2: Set to input: clearing of peak picker storage
- 3: Set to input: no function
1.
3.
2.
3.
Hexagon socket 1.5 mm
LEDs 1,2,3 (Active digital outputs)
■ Green: Indicates an activated
digital output
LED 4 (Operating status LED)
■ Orange: Self-test phase
■ Green: Ready to operate
■ Red: Error
Opens a parameter category or takes
over a modified parameter value
Motorized Focus
