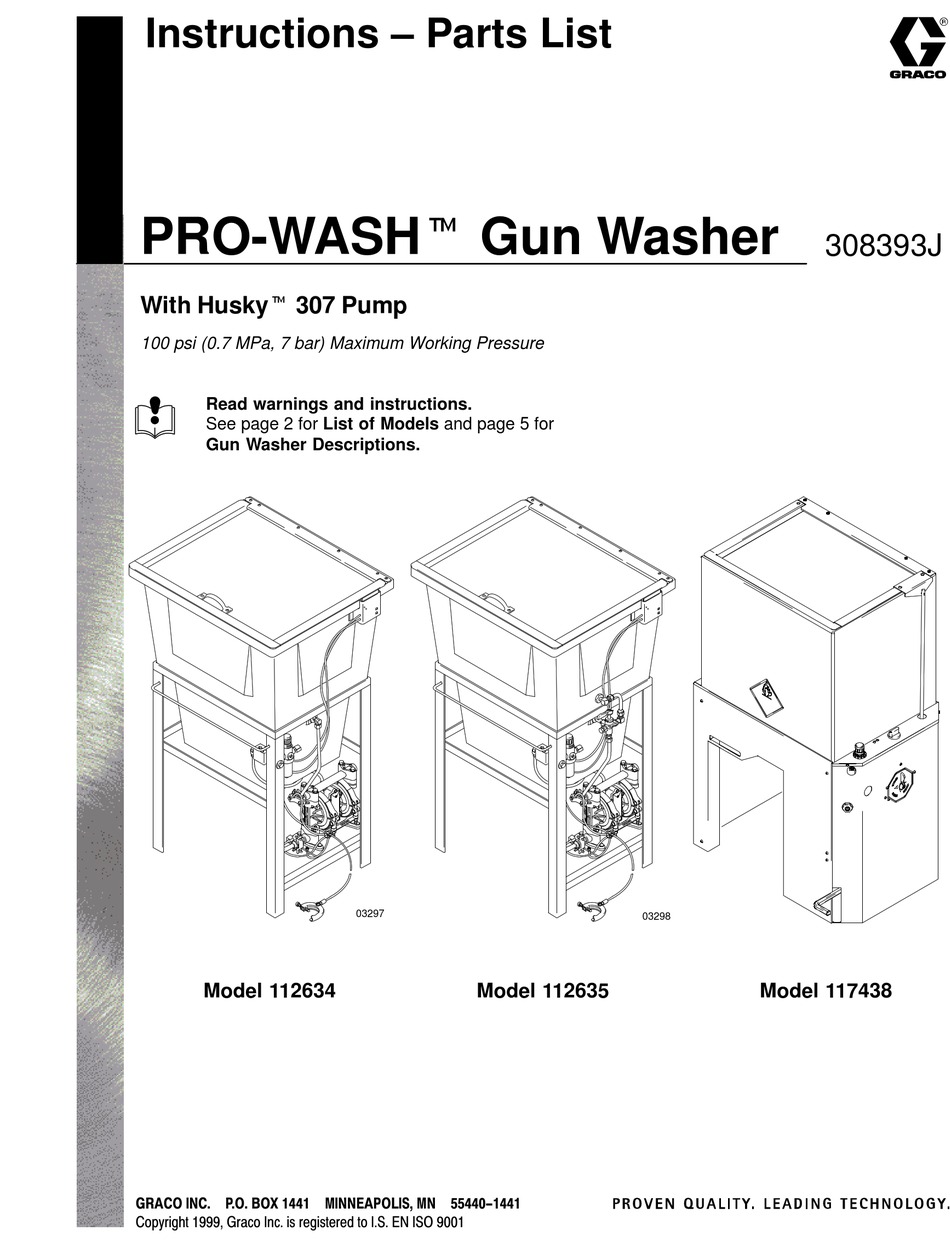

Instructions – Parts List
PRO-WASHt Gun Washer
With Huskyt 307 Pump
100 psi (0.7 MPa, 7 bar) Maximum Working Pressure
Read warnings and instructions.
See page 2 for List of Models and page 5 for
Gun Washer Descriptions.

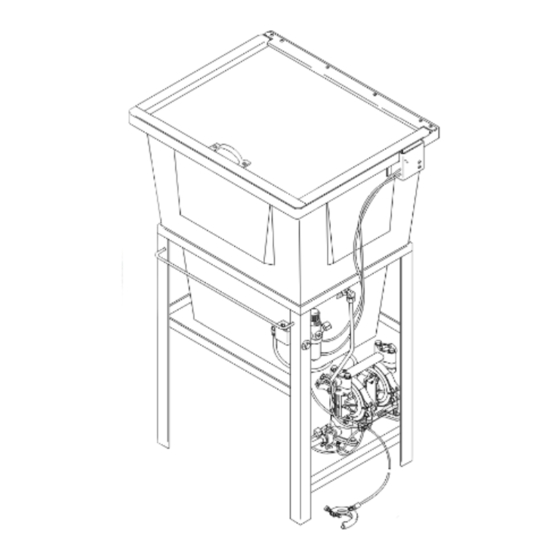

Model 112634
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001
03297
Model 112635
03298
Model 117438
308393J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-WASH 112634 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco PRO-WASH 112634

Summary of Contents for Graco PRO-WASH 112634

  • Page 1 See page 2 for List of Models and page 5 for Gun Washer Descriptions. 03297 03298 Model 112634 Model 112635 Model 117438 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Table Of Contents

    ........Graco Information ......

  • Page 3: Warnings

    D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories. D Check the equipment daily. Repair or replace worn or damaged parts immediately.
  • Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and result in fire or explosion and serious injury. D Ground the equipment. See Grounding on page 10. D Provide fresh air ventilation to avoid the buildup of flammable fumes from the solvent. D Extinguish all the open flames or pilot lights in the gun washer area.

  • Page 5: Gun Washer Descriptions

    Gun Washer Descriptions Materials of Construction Gun Washer Model No. Tank Fluid Manifold plastic carbon steel aluminum 112634 112635 plastic stainless steel aluminum stainless steel stainless steel stainless steel 117438 *Standard Cleaning Station Configuration Includes: Gun Washer Description Part No. Quantity Used to Clean Other Features...

  • Page 6: Kit Descriptions

    (for use with gun washer models maximum container size (for use with gun washer models 112696 Female coupler assy. 112635 & 117438 only) Graco PRO Xs2, PRO Xs3, and PRO Xs4 air spray electros- 245270 198741 Air cap blank t ti...

  • Page 7: Technical Data

    Technical Data Category Data Air Pressure Operating Range Model 112634 25–100 psi (0.2–0.7 MPa, 1.7–7 bar) Model 112635 25–100 psi (0.2–0.7 MPa, 1.7–7 bar) Model 117438 25–100 psi (0.2–0.7 MPa, 1.7–7 bar) Maximum Tank Capacity 5 gallons (19 liters) Air Inlet 1/4 npt(f) Fluid Drain Valve 1 in.
  • Page 8 Dimensions 03297 Model 117438 Model 112634 and 112635 Model Measurements, inches (mm) B–with lid B–with lid closed opened 112634 and 20.75 42.25 61.00 20.50 16.25 25.12 112635 (527) (1073) (1549) (521) (413) (638) 117438 19.25 42.00 56.50 25.50 18.00 24.5 (489) (1067) (1435)
  • Page 9 Notes 308393...
  • Page 10 Installation Install the Gun Washer Connect the Air Line WARNING 1. Install an air pressure regulator (D) on the gun washer air supply line to control air pressure to the gun washer. See Fig. 2. FIRE HAZARD To prevent hazardous concentrations of flammable and/or toxic vapors, the gun 2.
  • Page 11 Installation Typical Installation and Grounding 03301 Fig. 2 308393...

  • Page 12: Operation

    Operation Pressure Relief Procedure WARNING WARNING TOXIC FLUID HAZARD Hazardous fluids or toxic fumes can cause serious injury or death if splashed PRESSURIZED EQUIPMENT HAZARD in the eyes or on the skin, swallowed, or The system pressure must be manually relieved to inhaled.
  • Page 13 The PRO-Washt gun washer is approved to clean the 1. Remove the pressure cup or fluid line and the air Graco PRO 3500, PRO 4500, PRO AA4500, PRO line from the spray gun. Xs2, PRO Xs3, PRO Xs4, and PRO Xs4 AA electro- static guns.
  • Page 14 Operation Placing Cups and Pots in the Gun Washer the kit (Manual 308414) to install and use this option. See page 5 for kit description. 2 Quart Pressure Cups Container: Set the pressure cup over the spray nozzle. Refer to Fig.
  • Page 15 Operation Model 112635 – Using the Hose Wash Model 117438 – Using the Hose Wash 1. Remove the brass plugs from the Hose Wash Bulkhead. See Fig. 5. 1. Place the hose entirely inside the gun washer. Hose Wash Bulkhead 2.
  • Page 16 Operation Operating the Gun Washer 2. Make sure all adapter chains and cables are inside the gun washer tank. WARNING 3. If one or more of the gun mounts is not being used, place a stream blocking device, such as a PRESSURIZED EQUIPMENT HAZARD pint-size can, over the stem supports and the cup Do not operate the gun washer with the...

  • Page 17: Shutdown And Care

    Shutdown and Care Gun Washer Shutdown and Care Air Cut-off Switch and Reset Block WARNING WARNING PRESSURIZED EQUIPMENT HAZARD To reduce the risk of an injury from accidental EQUIPMENT MISUSE HAZARD spray, splashing fluid, or moving parts, follow the A safety device has been installed to shut off the Pressure Relief Procedure, covered in steps 1 pump when the gun washer lid is opened.

  • Page 18: Parts

    Shutdown and Care Check the Gun Washer Electrical Continu- Check your local electrical code for detailed grounding instructions for your area and type of equipment. If electrical continuity is lost, check the grounding con- WARNING nections and reconnect them as needed. See Fig. 7 for the gun washers grounding circuits.
  • Page 19 Notes 308393...
  • Page 20 Parts for Model 112634 Reference Fluid Manifold Detail Pump Ground Bar Detail NOTE: The circled letters indicate the continuation points of illustra- tions of tubes or wires. Ref. A 03309 308393...
  • Page 21 Parts for Model 112634 Model 112634 Gun Washer Ref. Ref. Part No. Description Qty. Part No. Description Qty. ––– GUN SUPPORT, short; brass 112871 OUTLET TUBE, pump ––– TRIGGER LOCK, wire; 512803 SWITCH, air cut-off stainless steel 112870 INTAKE TUBE, pump –––...
  • Page 22 Parts for Model 112635 Reference Fluid Manifold Detail Pump Ground Bar Detail NOTE: The circled letters indicate the continuation points of illustra- tions of tubes or wires. Ref. A 03310 308393...
  • Page 23 Parts for Model 112635 Model 112635 Gun Washer Ref. Ref. Part No. Description Qty. Part No. Description Qty. ––– GUN SUPPORT, short; brass 112871 OUTLET TUBE, pump ––– TRIGGER LOCK, wire; 512803 SWITCH, air cut-off stainless steel 112870 INTAKE TUBE, pump –––...

  • Page 24: Model 117438

    Parts for Model 117438 Pump Ground Bar Detail 308393...
  • Page 25 Parts for Model 117438 Model 117438 Gun Washer Ref. Part No. Description Qty. Ref. Part No. Description Qty. D31211 PUMP, Husky 307; See manual 308553 to order parts 513049 JUMPER, ground 112875 VALVE, 3-way 117415 KNOB, timer 112873 VALVE, ball 117422 FILTER, fluid 512871...

  • Page 26: Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This manual is also suitable for:

Pro-wash 112635Pro-wash 117438
