Page 1: Owners Manual

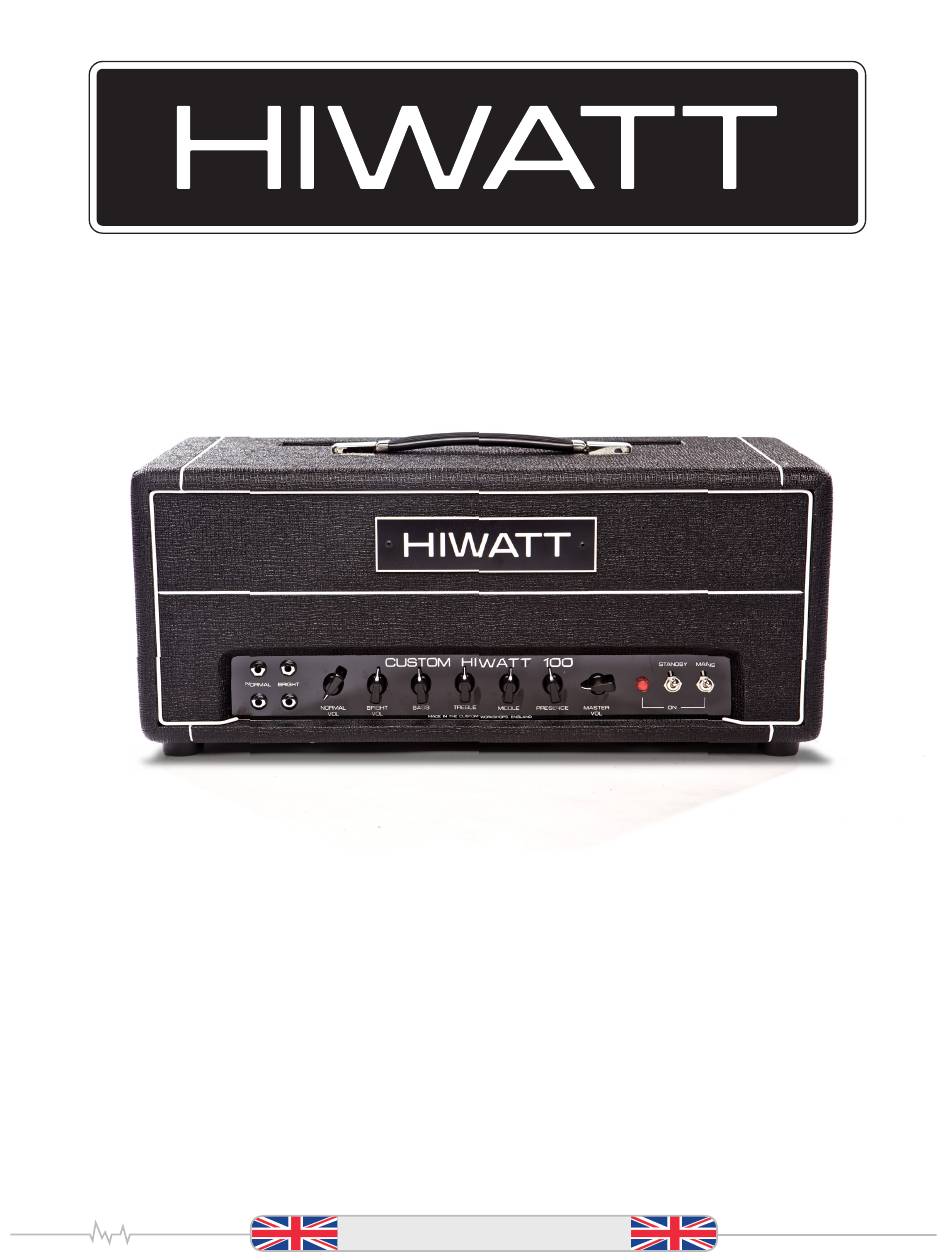

A U T H E N T I C B R I T I S H S O U N D HIWATT Custom DR 103 Head OWNERS MANUAL Hiwatt.co.uk... -
Page 2: Important Safety Instructions
• Protect the power cord from being walked with your amplifier. If a replacement is on or pinched. needed, please contact your Hiwatt Dealer. • Do not switch the amplifier on without the • Never attempt to by-pass fuses or fit ones of loudspeaker connected. - Page 3 Please read this manual in its entirety before using your amplifier to ensure you get the most out of your Hiwatt amplifier in the safest possible manner. The DR 103 is a professional guitar amplifier and is built to last a lifetime of playing both on and off the stage if used responsibly and serviced properly.
-

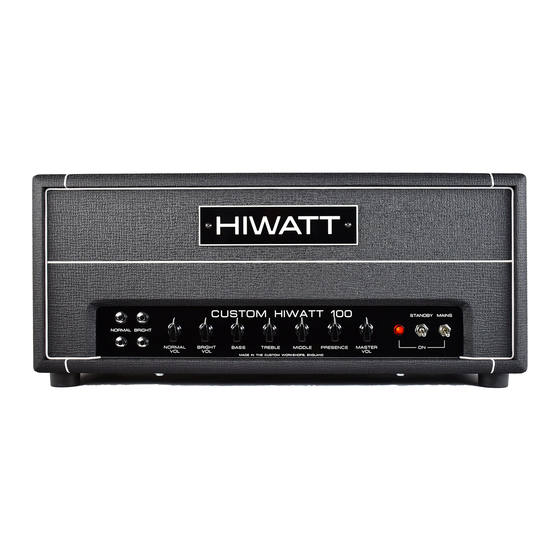

Page 4: Front Panel
NOTE ON THE TWO CHANNELS: Your Hiwatt amp is one of the best amps for using pedals because of its high headroom and harmonically rich sound. Since the two channels are voiced differently you have two tonal options to match the sound of your pedals, especially overdrive and distortion pedals. - Page 5 Do not expect to get much distortion by setting the Normal or Bright channel Volume controls high and the Master Volume low. The famed sound of Hiwatt is achieved by setting the Volume controls high...
-
Page 6: Back Panel
2. Voltage Selector: As a highly professional amplifier that is commonly used by touring bands who travel, this Custom Hiwatt includes a voltage selector so it can be used in just about every country around the world. This selector needs to be set to the proper Mains voltage in your country. - Page 7 For example: If you use two cabinets, then if one cabinet is 16 ohms (Ω), the other cabinet must also be 16 ohms (Ω). If the cabinets are not of the same impedance then you will damage the output transformer and void the warranty. Hiwatt.co.uk...
- Page 8 (rear terminal plate) OUTPUT • Connect the second of the amplifier outputs (back of amp) to the INPUT INPUT correct input on the second speaker cabinet (rear terminal plate) Hiwatt.co.uk 2 Cabinets in PARALLEL 2 Cabinets SINGLE 1/4” Connection...
- Page 9 PEDALS LOVE HIWATT “ The sound of Hiwatt amps is bold, with plenty of headroom and bottom end. They are especially great platforms for a pedal based rig.” NORMAL BRIGHT - Guitar Aficionado magazine 2015 Setting-up a Pedal/Pedal Board NORMAL...
- Page 10 • Authorised returns are subject to a restocking and shipping fee. • Note - Any damages incurred in all shipping matters must be reported to the shipper and Hiwatt Electronics immediately upon receipt of the product.
