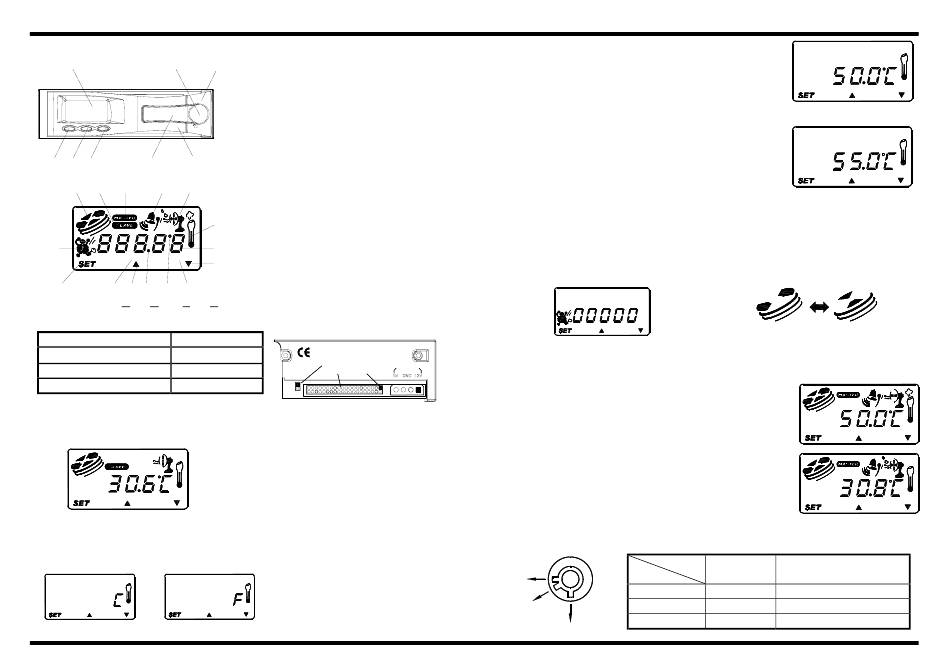

Icy Dock MB122AKGF Installation Manual

1. MB122AKGF Front Panel Description
1
8
6
2 3 4 5
2. LCD Screen Symbol Description
2 3
4 5
1
15
day hr
14
13
9
12 11 10
Note: HUTR (HDD Usage Time Record)
3. Default Setting
Item Default Setting
Temperature detect
50.0℃ (122.0℉)
MASTER/SLAVE Display SLAVE
HUTR
5. Function Settings and Operation
When power is turned on, the LCD screen displays the following：
5-1 Temperature Detection and ℃/℉ Settings
1. From Main Display, press "SET" button to enter Temperature ℃/℉ Setting
Mode and display the following:
→
←
ICY DOCK Express Installation Guide
7
1. LCD screen display 5. Active-handle
2. SET button 6. Handle
3. UP button 7. Cartridge frame
4. Down button 8. Key lock
1. Hard drive access 9. Hour indicator
2. SLAVE display 10. Degrees indicator
3. MASTER display 11. Decimal indicator
6
4. Alarm 12. Up selector
5. Fan status 13. Day indicator
7
6. Temperature status 14. SET selector
8
7. Numeric indicator 15. HUTR indicator
8. Down selector
4. Back-plane Description
FS:Fail signal
F:Fan fail high signal out (5V)
T:overheat high signal out (5V)
PIN No.1
40-Pin IDE
FS
0
F
T
● HDD mode: SLAVE (Default Setting)
● Surrounding temperature if at 30.6℃
● Press the "▲" or " ▼" button, the LCD
displays to the different modes accordingly:
Temperature Detection Setting→ HUTR
Display.
● Press "▲" button or "▼ " button
to switch the ℃→℉→℃.
● Press "SET" button to confirm
your choice.
2. After confirming the ℃/℉ mode, enter
Temperature detection Setting mode. The LCD
screen flashes the following:
● Default setting: 50.0℃(122.0℉).
3. If setting temperature at 55.0℃(131.0℉), the LCD
will display the following:
● Press hold the "SET" button for more than 3
seconds, and the alarm buzzer will sound
"BEEP" twice as confirmed choice. If sound
"BEEP" is less than twice, it is not a confirmed
choice.
Remark: If LCD screen does not return to Main Display, stop operation for 15
seconds, the LCD will then automatically return to the Main Display and the
original temperature detection setting will be cancelled.
5-2 HUTR Display
To enter the HUTR mode. The
Hour signal is displayed as below:
5-4 Overheating from original Temperature Detection Setting
1. Original detection set at 50.0℃(122.0℉), if temperature detected overheats
DC INPUT
the original setting. Screen using ℃ will display the following：
● HDD access and Fan signals are displayed.
● Temperature and alarm buzzer signals will
continuously flash.
5-5 Fan Fail Alarm
1. If the fan fails or is disconnected, the LCD displays
the following：
● HDD access signal is displayed.
● Fan and alarm buzzer signals will continuously
flash.
Remark: Buzzer and alarm symbol are disable by
pressing any buttons located at the front panel.
6. Key lock
A
B
C
5-3 HDD Access Display
If HDD is reading or writing, HDD
access signal displays the below:
day hr
Status
Power status
Segment
A ON
B OFF
C OFF
Security status
Locked (Non-removable)
Locked (Non-removable)
Unlocked (Removable)
P99723V2.0-1/2
