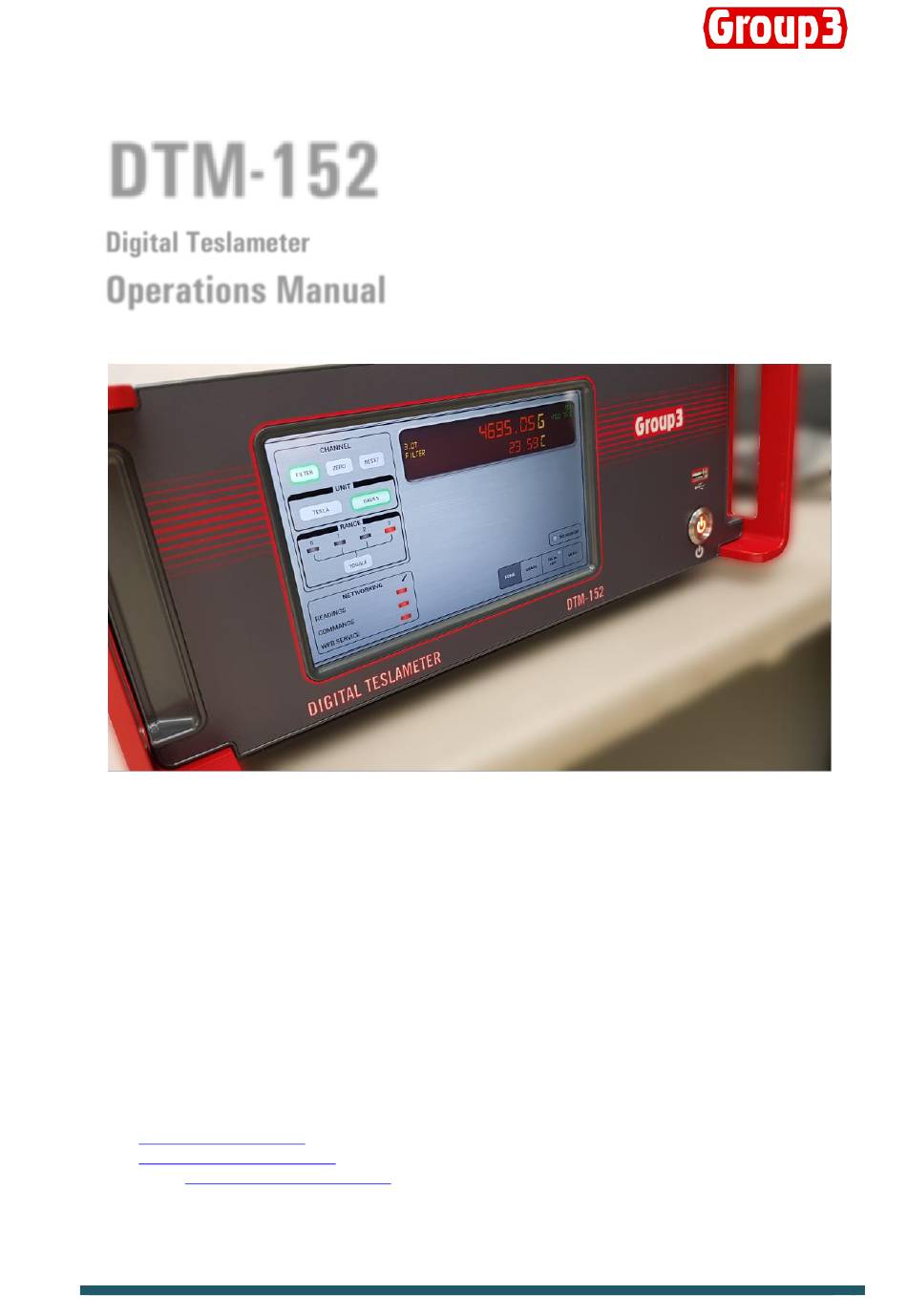

DTM-152
Digital Teslameter
Operations Manual
Group3 Technology Ltd.
2 Charann Place, Avondale
Auckland 1026 , New Zealand
PO Box 71-111, Rosebank, Auckland 1348, New Zealand
Phone:
+64 9 828 3358
Fax:
+64 9 828 3357
Email:
sales@group3technology.com
Web:
http://www.group3technology.com
Calibration/Repair:
www.group3technology.com/service
Group3 reserves the right to change the specifications at any time without notice.
GROUP3 TECHNOLOGY LIMITED
Made in New Zealand
01092018-D152
WWW.GROUP3TECHNOLOGY.COM
Advertisement
Table of Contents
Related Manuals for Group3 DTM-152
Summary of Contents for Group3 DTM-152
- Page 1 PO Box 71-111, Rosebank, Auckland 1348, New Zealand Phone: +64 9 828 3358 Fax: +64 9 828 3357 Email: sales@group3technology.com Web: http://www.group3technology.com Calibration/Repair: www.group3technology.com/service Group3 reserves the right to change the specifications at any time without notice. 01092018-D152 GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
- Page 2 Another new feature of the DTM-152 is its data logging capability where user can now do their data gathering on the DTM itself and saves the output CSV file on to an external memory drive such as a USB drive or hard disk. This eliminates the need for a separate computer terminal and software to do a data log of a particular session such as field mapping of a magnet.
-
Page 3: Front Panel
DTM-152 Digital Teslameter Features FRONT PANEL Power Button Press to turn ON and OFF the unit HOME Tab Touch to show the Main Readings screen GRAPH Tab Touch to show and access Graph and configure controls DATA LOG Tab Touch to do data logs and change Date/Time MENU Tab Touch to access the DTM’s manual controls... - Page 4 SPECIFICATIONS OF DTM-152 SYSTEM Specifications of DTM-152 with LPT-141 or MPT-141 Hall Probe. Measurements field value and time-varying (ac) component of field Field ranges 0.3 0.6 1.2 3.0 tesla full-scale, 3 6 12 30 kilogauss full-scale, with polarity indication maximum calibration field ±2.2 tesla, ±22 kilogauss Resolution DC mode with digital filtering ON: 1 in 600,000 of bipolar span as shown on front panel display.
- Page 5 12.5Kg (includes power pack, mounting cheeks and hard case) Ambient field Maximum operating field for electronics package: 10 millitesla with single-range probe, 0.5 millitesla with multi-range probe. Temperature range 0 to 50°C operating, absolute maximum temperature of probe 60°C GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
-
Page 6: Connecting The Hall Probe
Before handling the probe, please read the following: Group3 Hall probes are built to be as robust as possible for a small, precision device. However, it is most important that certain precautions be taken when handling and installing probes so that they are not damaged or destroyed, and to preserve their accurate calibration. -
Page 7: Installation Techniques For Electrically Noisy Environments
INSTALLATION TECHNIQUES FOR ELECTRICALLY NOISY ENVIRONMENTS The DTM-152 is a precision electronic measuring device. Because of the nature of the measurements it is asked to do, it is frequently exposed to conditions that are considerably worse than are normally encountered by precision instruments. Therefore, the teslameter has been carefully engineered to be as immune as possible to sparks and other forms of interference through the use of several kinds of power input filtering and a special high-isolation switchmode power module built into its circuitry. -
Page 8: Display Map
Range 3 3.0T 0.3T NETWORKING: USING DTM-152 LABVIEW VI Attach Ethernet connector RJ45 to the port found at the rear of unit marked to connect to the local network or router. Ethernet communication is automatically set to ON and DHCP when a network is detected using the Ethernet port. - Page 9 Once activated, user can access and control the DTM remotely using the Group3 DTM-152 LabView Virtual interface. See separate manual on “How to install DTM-152 LabView VI”. B. GRAPH The graph displays the reading in real time and can be configurable to auto scaling, unipolar or bipolar field. The graph window also shows if there is a current data log session as well as a counter for out of range readings (if on unipolar and bipolar).
- Page 10 User can also set an offset if user needs to add or subtract a field value to set as benchmark field. User can erase the offset that was added to return to the original field reading. Press OK to save and exit the configuration dialogue box or press Cancel to exit without saving the configured settings. GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
- Page 11 C. DATA LOG The DTM-152 has the capability to data log a field measurement session. This feature makes field measurement quite easy and eliminates the use of additional computer and specialized software to do the operation. All the user needs is a USB memory stick (at least 4 GB and max 256 GB) to save the file.
- Page 12 If you want to run multiple sessions, just select the parameters and press “ADD”. NOTE: To Change DATE and TIME In case you need to change the date and time setting, press the date and time” and display will pop up to change the date and time. GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
- Page 13 D.2. FILTERING PAGE FILTERING COLUMN • SET DIGITAL FILTERING – Press to set the digital filtering to ON or OFF. • GET FILTER FACTOR – Press to get the current filter factor to the field reading. GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
- Page 14 SET SIMULATED RAW FIELD VALUE AT ADC OUTPUT – Press to set simulated raw field value after EEPROM calibration. • SET SIMULATED RAW FIELD VALUE AFTER ZEROING – Press to set the simulated raw field value after zeroing • CANCEL SIMULATED FIELD AND TEMPERATURE – Press to cancel field and temperature simulated values. GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
- Page 15 • SET SCALE FACTOR – Press to set the current scale factor to make the current field reading equal to the entered value • SET CALIBRATION FACTOR – Press to set the calibration factor for field readings to the currently selected field range GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
-
Page 16: Maintenance
• ALL OTHER ERRORS – if unit is still misbehaving or not operating correctly after doing a reset, kindly contact Group3 through our website www.group3technology.com/service or email service@group3technology.com for advice. GROUP3 TECHNOLOGY LIMITED... -
Page 17: Limited Warranty
LIMITED WARRANTY Group3 Technology Ltd. (hereinafter called the Company) warrants instruments and other products of its manufacture to be free from defects in materials and workmanship that adversely affect the product's normal functioning under normal use and service for a period of one year from the date of shipment to the purchaser. - Page 18 Copyright 2018 G3 333- V1.13 150517 www.group3technology.com GROUP3 TECHNOLOGY LIMITED WWW.GROUP3TECHNOLOGY.COM...
