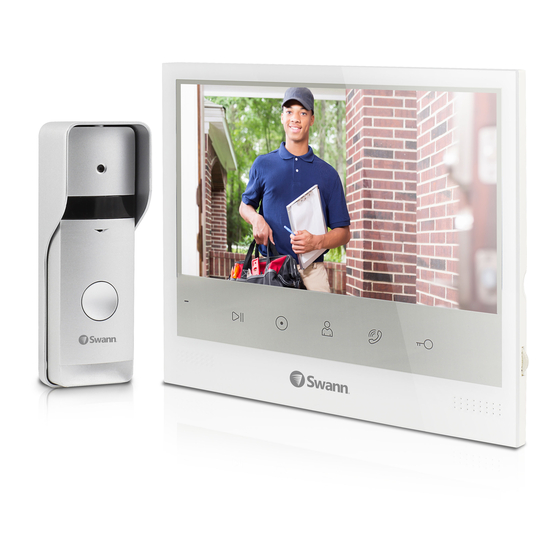

Swann DP885C Monitor Kit Connection Guide
This additional monitor accessory kit has been designed to operate with the Swann DP885C Video Doorphone system. Each
extension monitor must be assigned an "address" via the monitor's settings (Menu > Address) before use. Please refer to your
DP885C user manual for general information about using the monitor.
Adding a Second Monitor

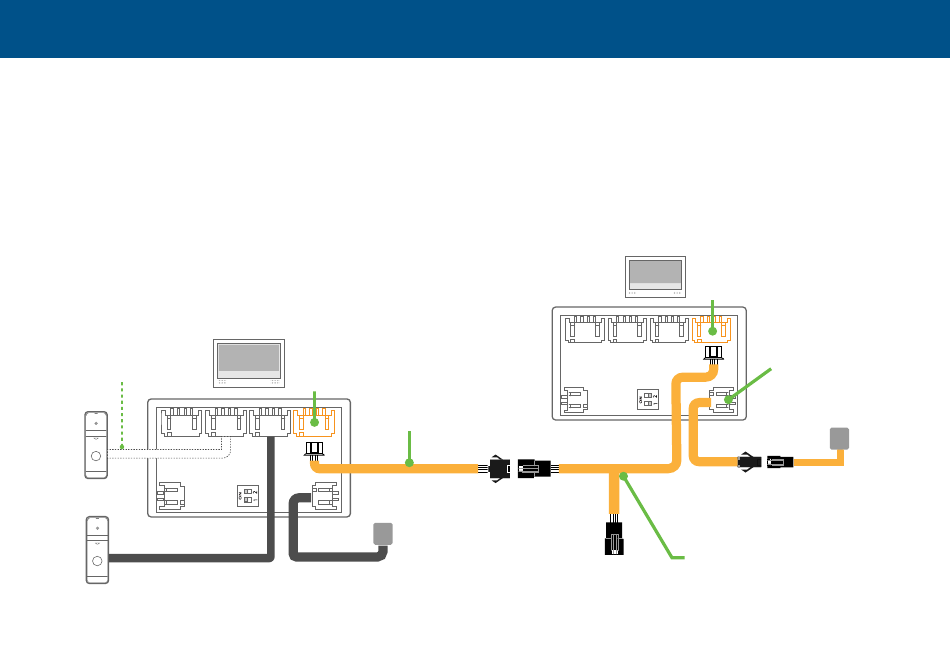

The following diagram shows how to connect a second monitor to your Swann Video Doorphone system.
Optional 2
nd
Doorbell &
Standard extension cable
(purchased separately)
MDP885CSCRVER1
Monitor
(Master)
Extension monitor
terminal
Standard extension cable
(included with Monitor Kit)
2
nd
Monitor
(Address: Ext.1)
Unused
connector
1
Extension monitor
terminal
Power terminal
Power adapter & 2-pin cable
(included with Monitor Kit)
2-way adapter cable
(included with Monitor Kit)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swann DP885C
Summary of Contents for Swann DP885C
- Page 1 Swann DP885C Monitor Kit Connection Guide This additional monitor accessory kit has been designed to operate with the Swann DP885C Video Doorphone system. Each extension monitor must be assigned an “address” via the monitor’s settings (Menu > Address) before use. Please refer to your DP885C user manual for general information about using the monitor.
- Page 2 Swann DP885C Monitor Kit Connection Guide Adding a Third Monitor The following diagram shows how to connect a third monitor to your Swann Video Doorphone system. Monitor (Address: Ext.1) Extension monitor terminal Monitor (Master) Extension monitor Optional 2 Doorbell &...
Need help?
Do you have a question about the DP885C and is the answer not in the manual?
Questions and answers

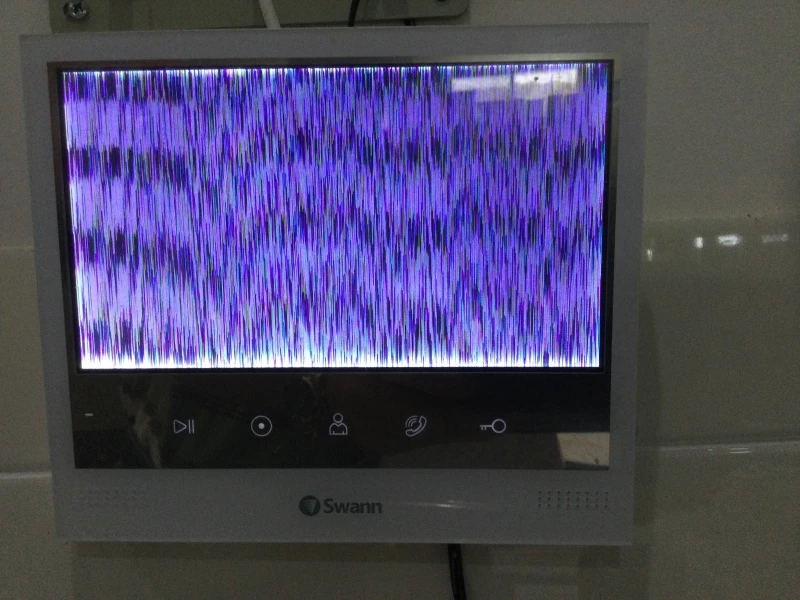

My screen has gone frosty when the bell rings. We cannot identify the visitor
