  • Page 1 Vitoden Resi...

  • Page 3: Application

    © 2017 by Viessmann. All rights reserved. No part of this book may be used or reproduced in any manner whatsoever without prior written permission.

  • Page 5: Application

    Whether in customer’s specific requirements. In historically protected homes, modern short, Viessmann takes care of all your commercial buildings, or in large facil- needs, from start to finish. ities, Viessmann products meet every...
  • Page 6 Identifying Boiler Nomenclature Consecutive Number Generation of Boiler Fuel Types Efficiency Low Temperature Condensing Series Segment Heat Only Circuit Combi Combi Comfort Coiled Tubing Tank Stratified Loading tank Solar Heating For DHW Solar Heating Wall-Mounted Floor Standing...

  • Page 7: Application

    Identifying Application Codes Number of boilers in system Number of heating circuits 1, 2, 3 ... Boiler Segment Number of supply water temperatures in the system. Vitodens Vitocrossal Number of zones in the system Vitorond How system is zoned ZP Pumps Segment / Series ZV Zone valves 100 Series...

  • Page 8: Application

    Recommended Product Applications Application Typical Supply Vitodens Vitodens Vitocrossal Vitorond Temperature 200/222-F 300 CU3A Baseboard / Fan Coil High 160 -190 °F Cast Iron Radiator Medium 140 -160 °F Panel Radiator Medium 120 -160 °F Radiant Floor Heating 80 -120 °F Indirect DHW High 160 -190 °F...
  • Page 9 Viessmann Vitotrol Multi-zone control back check valve Purge assembly: Zone valve Hydronic air handler 24V zone valve Circulator (sediment faucet and ball valve) Towel radiator Viessmann 3-Way mixing valve Plate and frame heat exchanger 120 Volt power with actuator motor...

  • Page 11: Table Of Contents

    Vitodens 222-F (B2TB) Application # Application Code Page Application 1 - VD2T 1HC1T1ZP.01 Application 2 - VD2T 1HC1T4ZV.01 Application 3 - VD2T 1HC1T4ZP.01 Application 4 - VD2T 2HC2T2ZP.01 Application 5 - VD2T 2HC2T2ZP.02 Application 6 - VD2T 3HC3T3ZP.01...

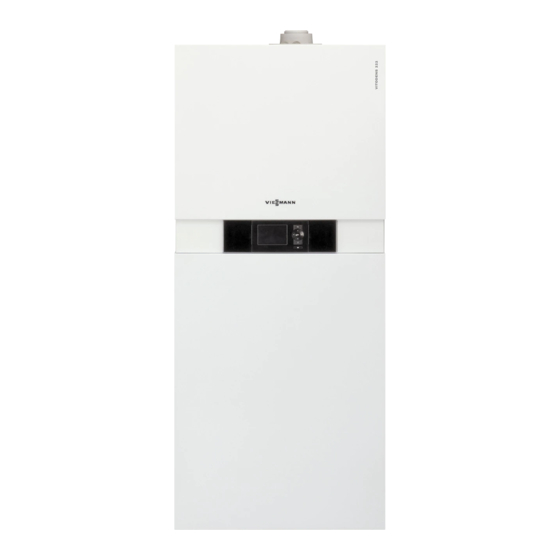

  • Page 12 Vitodens 222-F, B2TB 19 and 35 Technical Data Product Information A Stainless steel Inox-Radial heat exchanger for high operational reliability, a long service life and high heating output in the smallest space B Modulating MatriX cylinder gas burner for extremely clean combustion C Integral diaphragm expansion tank D Digital boiler control unit...
  • Page 13 Vitodens 222-F, B2TB 19 and 35 Technical Data Technical Data Boiler Model No. 222-F B2TB Natural Gas / Liquid Propane Gas CSA input 12-68 19-125 3.5-20 5.5-37 CSA output/DOE *1 11-64 18-117 heating capacity 3.2-19 5.1-34 Net AHRI rating *2 Heat exchanger surface area 12.96 12.96...
  • Page 14 Vitodens 222-F, B2TB 19 and 35 Technical Data Technical Data...
  • Page 15 Vitodens 222-F, B2TB 19 and 35 Technical Data Boiler Dimensions Legend Condensate Drain (side) Note: The dimensional drawing shows example fittings for upward connection and connection to the left/right, for installation on finished walls. Order the connection sets separately as accessories. For the dimensions of the individual connection sets, see the design information.
  • Page 16 The back or side clearance shall be increased if piping installation is required. See the Vitodens 222-F B2TB Venting System Installation Instructions for details. Minimum clearances to combustibles Boiler model B2TB...
  • Page 17 A low-loss header offers additional benefits not provided forced circulation hot water heating systems only. Use by a pair of closely spaced tees. Viessmann therefore standard friction loss method for pipe sizing. Observe strongly recommends and prefers the use of a low-loss boiler maximum and minimum flow rate limitations.

  • Page 18: Application

    , a low-loss header is strongly recommended. and pressure drop calculations (includes DHW sizing). Low-Loss Header Application Sizing of Low-Loss Header in a Residential Single-Boiler Application Boiler No. of Boiler Typical System Flow Rates Viessmann Low-loss Model Boilers Max. Temp. Flow Sensor...
  • Page 19 Vitodens 222-F, B2TB 19 and 35 Technical Data Heating Circuit Pumps Hydronic Components Grundfos UPS15-78 three speed heating circuit/DHW circuit pump for Vitodens 222-F, B2TB boilers (in the factory setting, the pump speed is preset to ‘speed three’) Speed Three Speed Two Speed One Flow Q (gpm)
  • Page 20 Flue gas system via single-wall heat exchangers (instantaneous plate heat exchangers or DHW tanks) must be used. Viessmann PPS (Polypropylene) concentric flue gas/ fresh air systems for room air independent operation Water quality (sealed combustion) and side wall venting are tested to ANSI Z21.13 - CSA 4.9 - 2000 standards and are...
  • Page 21 Viessmann recommends that the heating and have the non-oxygen diffusion barrier tubing separated domestic hot water systems be based on a maximum from the boiler with a heat exchanger. Viessmann boiler supply temperature of 158°F (70°C). recommends the use of underfloor plastic tubing with an oxygen diffusion barrier.
  • Page 22 Wiring a Mixing Valve Controller Product Information Comm. Bus On Boiler Supply Sensor Mixing Module Notes/Comments When multiple 145 communication Pump accessories are being installed, 145 cables will need to be run from device to device. (Daisy Chain) Power Ensure to set the S1 switch to assign the mixing valve heating circuit.
  • Page 23 Storage Tank Loading System (STLS) Product Information One key aspect of the Vitodens 222-F is its unique approach to meeting varying loads of DHW demands. The Advanced Storage Tank Loading System (STLS) technology ensures a reliable and efficient DHW supply by combining storage and tankless technology. The STLS utilizes a plate heat exchanger and innovative piping strategy to combine the benefits of both a storage type water heater and on-de- mand DHW.
  • Page 24 Storage Tank Loading System (STLS)) Product Information Entering DHW Mode After the bottom 1/3 of the hot water is removed from the storage tank(1), the diverting valve switches from heating mode to DHW(2) and begins supplying heat to the plate heat exchanger(3). At the same time, the DHW pump(4) is powered and begins circulating a predefined amount of domestic water through the plate heat exchang- er(3.3gpm).
  • Page 25 Storage Tank Loading System (STLS) Product Information Large DHW Loads (>3.5 GPM) When a 222-F is required to satisfy a large dump load, the STLS has the ability to extract stored energy from the onboard tank to meet the desired load. Consider a bath tub that requires a flow rate of 4.4 GPM(1).

  • Page 28: Application

    Vitodens 222-F, B2TB Application 1 - Operational Setup Instructions This particular application represents a low mass boiler with a single system loop. Because the system flow requirements may vary, or fall outside of the parameters of the boilers recommended flow, it is beneficial to hydraulically separate the system flow, from the boiler flow.
  • Page 29 Application 1 - Operational Setup ... continued Notes/Comments...
  • Page 32 Vitodens 222-F, B2TB Application 2 - Operational Setup Instructions In this system you have a Vitodens 222-F, and a four zone single temperature system. Upon a call for heat, a zone valve opens turning on the P1(internal) & P3 circulators. In the event there is a call for DHW, the flow provided by the P1 Circulator will be diverted through the internal plate heat exchanger.
  • Page 33 Application 2 - Operational Setup ... continued Notes/Comments...
  • Page 36 Vitodens 222-F, B2TB Application 3 Operational Setup Instructions If zoning with pumps is your thing, then consider this application for your next install. In this system you have a Vitodens 222-F, and a four zone single temperature system. Upon a call for heat from the thermostat, the associated zone pump is energized by the multi zone control.
  • Page 37 Application 3 - Operational Setup ... continued Notes/Comments...
  • Page 40 Vitodens 222-F, B2TB Application 4 Operational Setup Instructions In this application there are 2 heat circuits which operate at different temperatures. This particular drawing portrays HC1 is a low temperature circuit, and HC2 is a Mid/High temperature circuit. Although there are many different configurations, the setup below will operate HC1 as an on/off function (External Change- over) using an outdoor reset curve, and HC2 as a constant set point temperature (External Demand).
  • Page 41 Application 4 - Operational Setup ... continued Notes/Comments...
  • Page 44 Vitodens 222-F, B2TB Application 5 Operational Setup Instructions This application shows a low temperature heat circuit with 3-way mixing valve and a high temperature heat circuit piped on the system side of the low loss header. This application provides precise system temperature monitoring and increases the overall system efficiency.
  • Page 45 Application 5 - Operational Setup ... continued Notes/Comments...
  • Page 48 Vitodens 222-F, B2TB Application 6 Operational Setup Instructions This application shows 2 heat circuits with mixing valves and a high temperature heat circuit piped on the primary side of the low loss header. This system approach maximizes efficiency, control and comfort through precise water monitoring. To increase this level even further, controlling each heat circuit with a Vitotrol will allow it to feed the boiler with precise room temperature feedback.
  • Page 49 Application 6 - Operational Setup ... continued Notes/Comments...
