Viessmann VITODENS 222-F Installation Instructions Manual

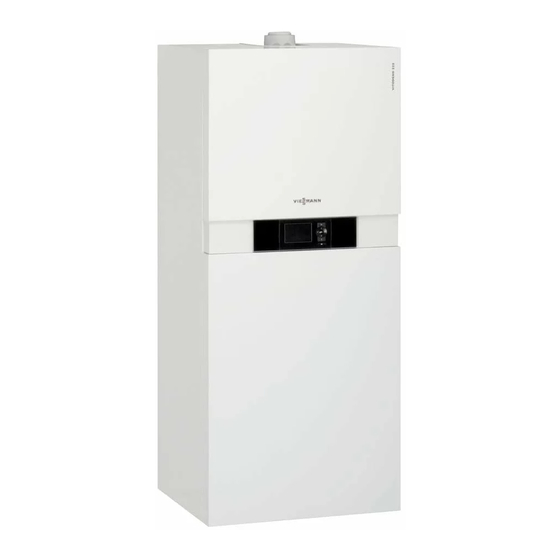

Floor mounted, gas-fired condensing storage combi boiler
Hide thumbs Also See for VITODENS 222-F:
Table of Contents

Advertisement

Quick Links

See also: Technician Manual , Technical Manual

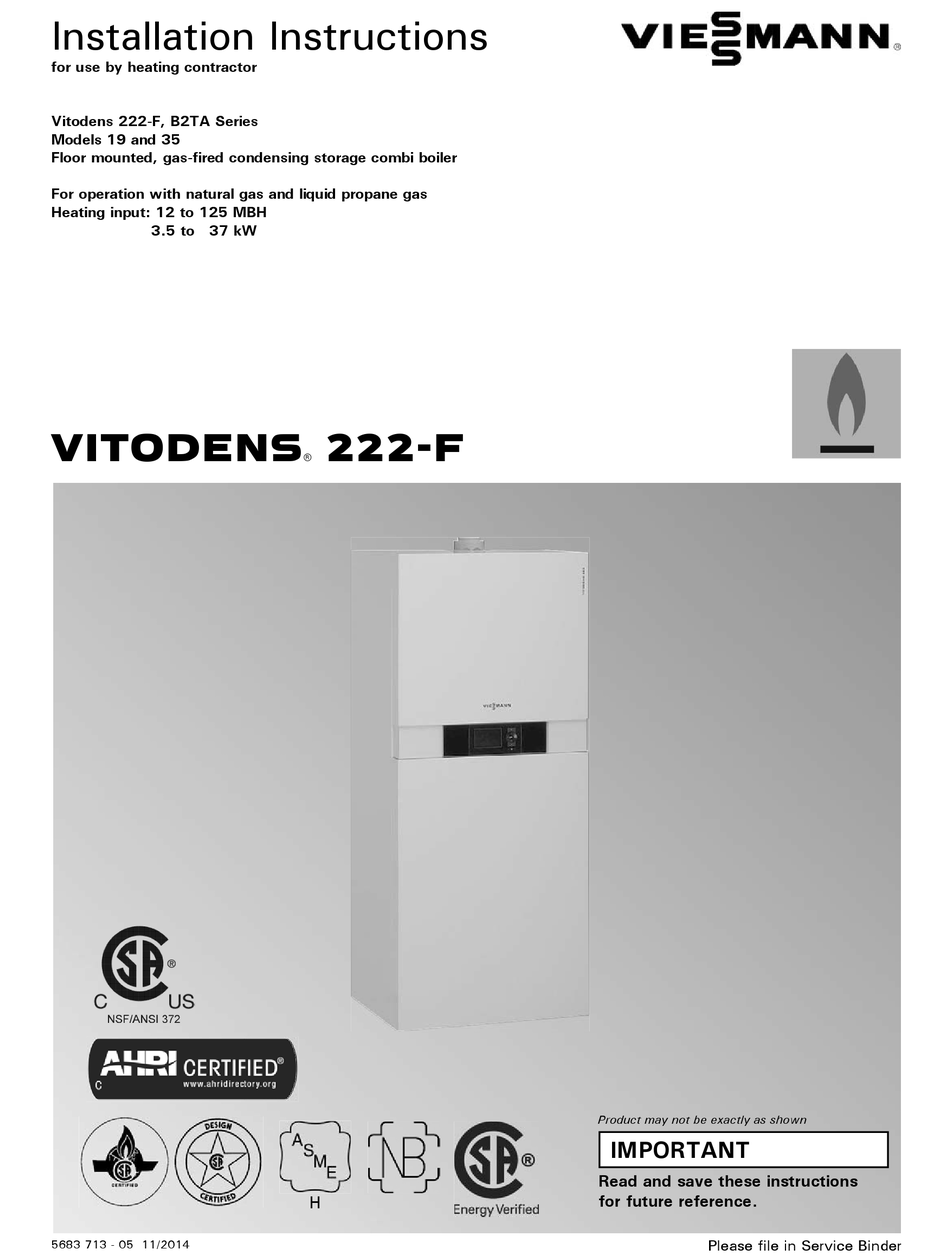

Installation Instructions

for use by heating contractor
Vitodens 222-F, B2TA Series
Models 19 and 35
Floor mounted, gas-fired condensing storage combi boiler
For operation with natural gas and liquid propane gas
Heating input: 12 to 125 MBH
3.5 to 37 kW
VITODENS
5683 713 - 05 11/2014
222-F
r
H
Product may not be exactly as shown
IMPORTANT
Read and save these instructions
for future reference.
Please file in Service Binder
