Quick Start Guide

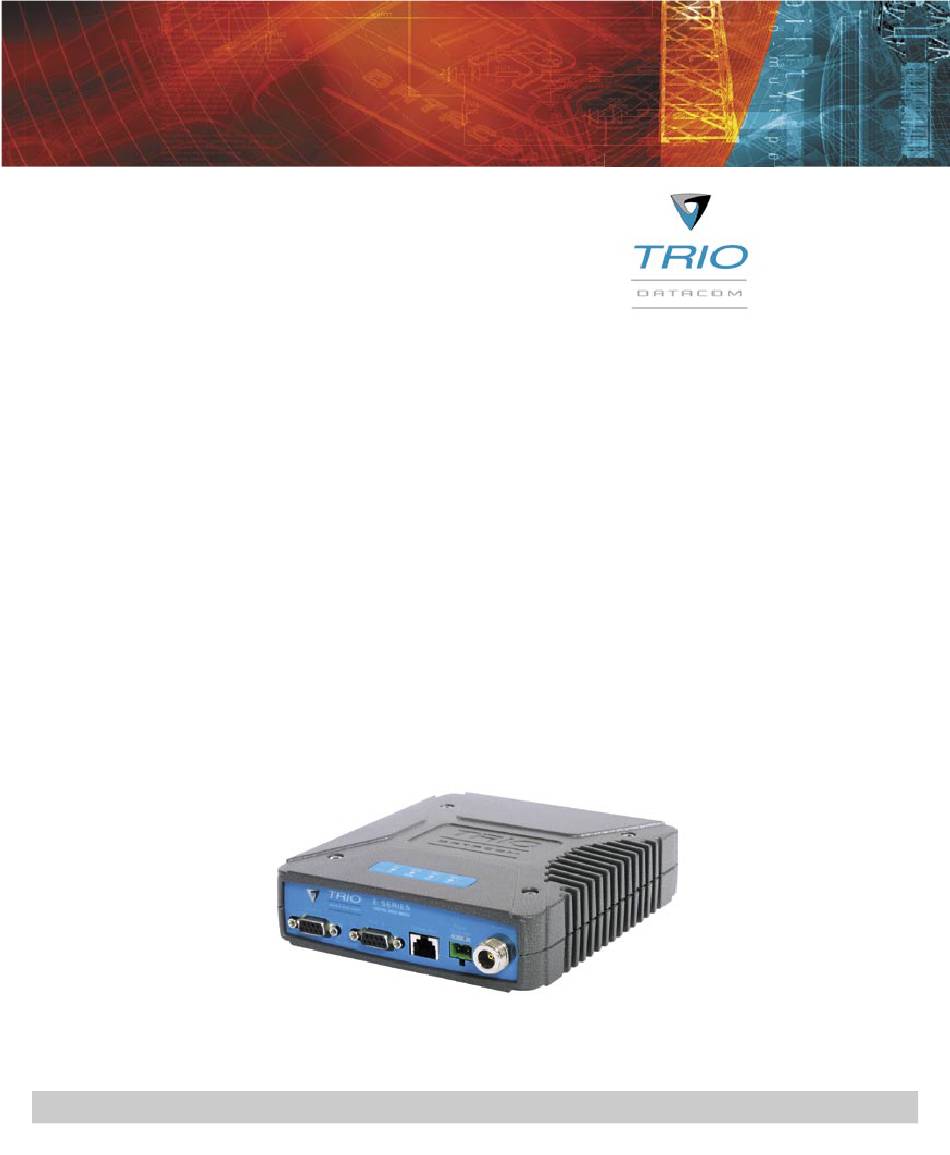

ER450 Data Radio

1.0 Introduction

Welcome to the Quick Start Guide for the ER450 Data
Radio. This guide provides step-by-step instructions,
with simple explanations to get you up-and-running. For
further information, please refer to the E Series User
Manual.
Contents
1.0
Introduction ...................................................... 1
2.0
Considerations ................................................. 2
3.0
4.0
Communications Ports ..................................... 3
5.0
Power Supply and Protection ......................... 5
6.0
TVIEW+ Management Suite ........................... 5
7.0
and best RX signal .......................................... 6
8.0
LED Indicators & Test outputs ......................... 6
9.0
Verifying Operational Health ............................ 7
10.0
Support Options ............................................... 8
Quick Start Guide - ER450 Data Radio
Related Products and Documentation
Base Station EB450
Hot Standby Base Station EH450
Digital Order Wire Voice Module EDOVM
Duplexers
TVIEW+ Management Suite
E Series User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trio Datacom ER450

  • Page 1 Quick Start Guide ER450 Data Radio 1.0 Introduction Welcome to the Quick Start Guide for the ER450 Data Radio. This guide provides step-by-step instructions, with simple explanations to get you up-and-running. For further information, please refer to the E Series User Manual.
  • Page 2 2.0 Mounting and Environmental 2.2 ER450 Connections Layout Considerations The ER450 radio comes complete with a mounting cradle and is attached to a panel or tray by means of screws or bolts, using the hole slots provided. Note: In high power or high temperature applications, it is desirable to mount the radio with the heatsink uppermost to allow ventalation for the heatsink.
  • Page 3 For testing this can The RF connector used on the ER450 radio is an N be activated by connecting PTT (Pin 8 ) to Gnd (Pin 7). Type female connector. Always use good quality low...
  • Page 4 Caution: When the radio is confi gured to transmit • the radio modem can be confi gured to transmit continuously, ensure an RF load is present BEFORE continuously whenever powered, or applying power to the unit. Quick Start Guide - ER450 Data Radio...
  • Page 5 Example: Local confi guration session - internal fuse, and therefore the radio modem MUST be externally fused with a fuse and fuse holder (ER450: 3 1 Attach the programming cable from the PC to the System Port of the radio (see fi g 6 & 7 ) amp fast-blow fuse).
  • Page 6 An RTS loop as described in Section 4.4, or b) A system port PTT plug as described in Section 4.1 Refer to the User Manual for further details of VSWR testing. LED Legend Quick Start Guide - ER450 Data Radio...
  • Page 7 Half Duplex - Master or Slave (Rx) GREEN fl ash. If data is alternately fl owing in and out quickly, then the indicator appears orange. LED Legend Quick Start Guide - ER450 Data Radio Quick Start Guide - ER450 Data Radio...
  • Page 8 Phone +403 219 3625 Fax +403 274 0759 Toll Free 866 844 8746 (TRIO) sales@triodatacom.com www.triodatacom.com Innovative and sophisticated digital communications Issue : 06-06 designs products and solutions Information subject to change without notice. © Copyright 2006 Trio DataCom Pty Ltd. All rights reserved.
