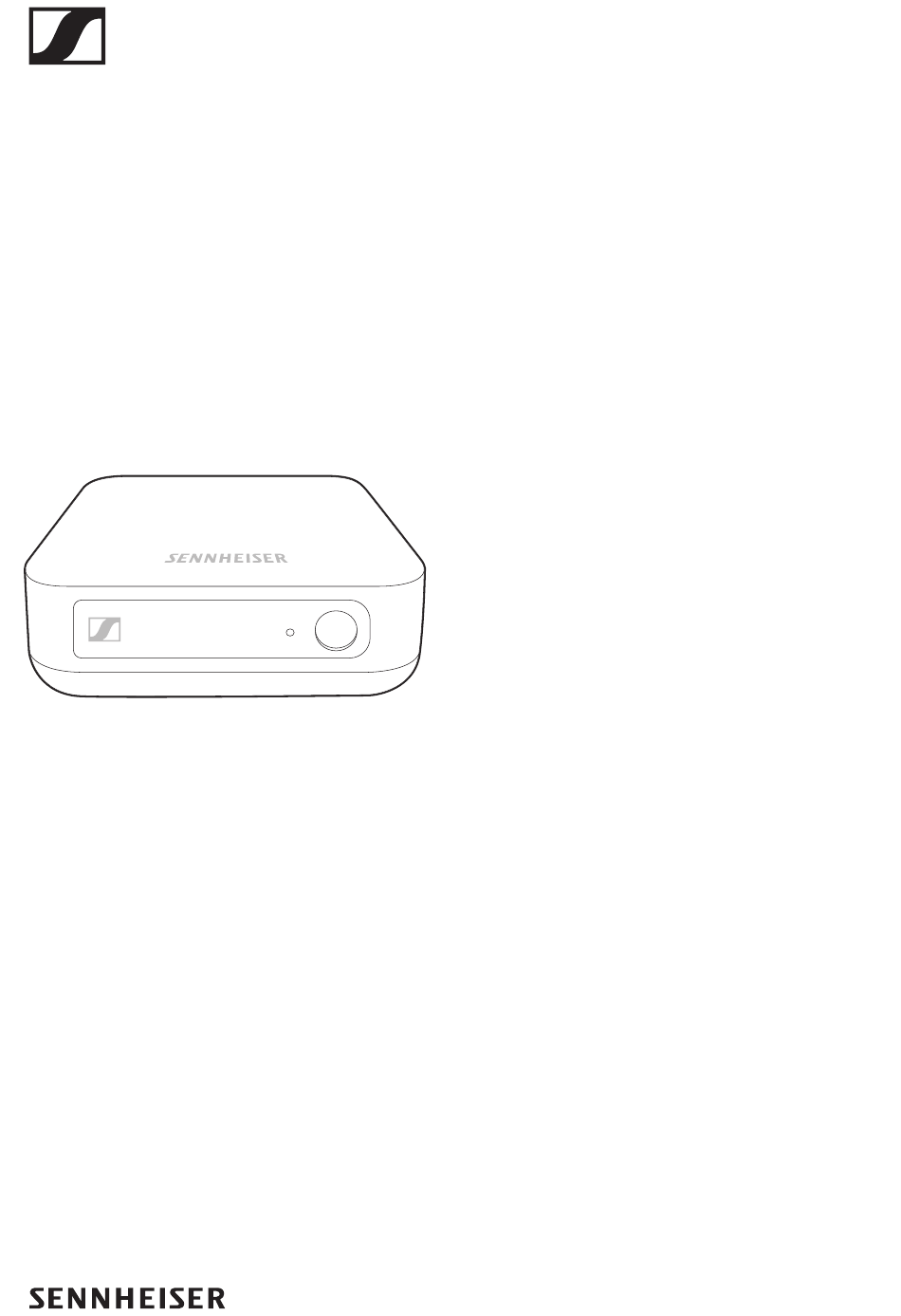

- Page 1 BT T100 Bluetooth® Audio Transmitter Instruction Manual...
- Page 2 2 | Bluetooth® Audio Transmitter...
-
Page 3: Table Of Contents
Contents Contents Important safety instructions ..............2 The Bluetooth® Audio Transmitter .............. 4 Features ......................4 Package includes ..................6 Product overview ...................7 Overview of the transmitter ................ 7 Getting started ..................... 8 Setting up the Bluetooth® Audio Transmitter ...........8 Connecting the Bluetooth® Audio Transmitter to an audio source ..9 Powering the transmitter ................ -
Page 4: Important Safety Instructions
Always keep the product dry and do not expose it to extreme temperatures to avoid corrosion or deformation. Only use attachments/accessories/spare parts supplied or recom- mended by Sennheiser. Clean the product only with a soft, dry cloth. Use the product with care and store it in a clean, dust-free environment. - Page 5 It is considered improper use when this product is used for any application not named in the associated instruction manuals and product guides. Sennheiser does not accept liability for damage arising from abuse or misuse of this product and its attachments/accessories.
-
Page 6: The Bluetooth® Audio Transmitter
The Bluetooth® Audio Transmitter The Bluetooth® Audio Transmitter The Bluetooth® Audio Transmitter delivers precise sound reproduction through Qualcomm® aptX™ audio technology. Expect an even better audio-video experience at home through your favorite headphones. Features • Supports Qualcomm® aptX™ for true Hi-Fi sound •... - Page 7 The Bluetooth® Audio Transmitter Bluetooth The Bluetooth® Audio Transmitter complies with the Bluetooth 4.2 standard and is compatible with all Bluetooth 1.1, 1.2, 2.0, 2.1, and 3.0 devices with Advanced Audio Distribution Profile (A2DP). aptX With aptX audio coding, you can be assured of crisp, pure and full stereo sound.
-
Page 8: Package Includes
Digital optical cable Analog audio cable Quick Quick guide Guide Safety Safety guide Guide A list of accessories can be found at www.sennheiser.com. For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > “Sales Partner”. 6 | Bluetooth® Audio Transmitter... -
Page 9: Product Overview
Product overview Product overview Overview of the transmitter Analog Analog Analog Analog Input Input Input Input Digital Optical Digital Optical Digital Optical Digital Optical USB-B USB-B 3.5 mm 3.5 mm 3.5 mm 3.5 mm Selection Selection Selection Selection Power Power Power Power Multifunction button... -
Page 10: Getting Started
Getting started Getting started Setting up the Bluetooth® Audio Transmitter Choose a suitable place near your audio source. Avoid placing the transmitter and other wireless devices too close to one another to prevent interference. Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc. -
Page 11: Connecting The Bluetooth® Audio Transmitter To An Audio Source
Getting started Connecting the Bluetooth® Audio Transmitter to an audio source You can simultaneously connect 2 different audio sources (e.g. a TV or PC and a stereo hi-fi system) to the transmitter. The transmitter features a digital as well as an analog audio input. If you connect 2 audio sources, you can toggle between them using the Input Selection switch (see page 15). - Page 12 Getting started Connection to an audio source using the digital optical cable To achieve the best possible listening experience, we recommend that you connect the Bluetooth® Audio Transmitter to your home cinema or hi-fi system using the supplied digital optical cable. Your Bluetooth®...
- Page 13 Getting started Connection to an audio source using the 3.5 mm analog audio cable Some TV models mute the loudspeakers when you connect the transmitter to the headphone socket. Check in the menu of your TV to see if the muting function can be deactivated.
-
Page 14: Powering The Transmitter
Getting started Powering the transmitter 1. Connect the USB micro B plug of the supplied USB power cable to the USB-B port of the transmitter. 2. Connect the USB plug to the USB port of your TV or PC. For older TV models without built-in USB port, connect the USB plug to an external USB power adapter and connect to the power source. -
Page 15: Pairing The Transmitter With The Headphones
Pairing the transmitter to the headphones 1. Set your headphones to pairing mode. If you are using Sennheiser headphones, the headphones’ LED usually flashes blue and red during pairing. 2. Press the the Multifunction button on the transmitter for 4 seconds. -
Page 16: Using The Transmitter
Using the transmitter Using the transmitter Switching the transmitter on The transmitter goes into pairing mode when switched on for the first time. 1. Press the Multifunction button for 2 seconds. The LED lights up red. Hold Switching the transmitter off 1. -
Page 17: Selecting An Audio Input
Using the transmitter Selecting an audio input If both the analog and the digital audio input are connected to an audio source, the transmitter allows you to toggle between the two inputs. WARNING Danger due to high volume levels! Listening at high volume levels can lead to permanent hearing defects. -
Page 18: Connecting The Transmitter With The Headphones
Using the transmitter Connecting the transmitter to the headphones Connect the headphones to the transmitter to watch a movie or listen to music from your TV, PC, or home entertainment system. 1. Switch the paired headphones on. 2. Switch the transmitter on. The LED lights up red. -
Page 19: Playing Music/Videos
Using the transmitter Playing music/videos If your audio source and headphones support the aptX or aptX LL codec, the Bluetooth® Audio Transmitter plays your music wirelessly in stunning audio quality. If the audio source and headphones do not support any of these audio codecs, the audio is played in standard quality. -
Page 20: Care And Maintenance
Care and maintenance Care and maintenance CAUTION Liquids can damage the electronics of the product! Liquids entering the housing of the product can cause a short- circuit and damage the electronics. Keep all liquids away from this product. Do not use any solvents or cleaning agents. To clean the Bluetooth®... -
Page 21: Troubleshooting
You may also contact your local Sennheiser service partner for assistance. To find a Sennheiser service partner in your country, visit www.sennheiser.com. Bluetooth® Audio Transmitter | 19... -
Page 22: Clearing The Previously Paired Setting
Troubleshooting Leaving the Bluetooth transmission range Wireless streaming is only possible in the Bluetooth transmission range of your Bluetooth devices. The transmission range largely depends on environmental conditions such as wall thickness, wall composition etc. With a free line of sight, the transmission range of most Bluetooth devices is up to 30 meters. -
Page 23: Specifications
Specifications Specifications BT T100 Bluetooth® Audio Transmitter Input voltage & current 5 V⎓ 500 mA Number of transmission channels Occupied bandwidth 1 channel 1 MHz Frequency response 20 Hz - 20 kHz Weight 85 g Temperature range operation: 0 to 40°C (32 to 104°F) Dimensions 93 x 93 x 27 mm (approx.) -
Page 24: Trademarks
Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser electronic GmbH & Co. KG is under license. Qualcomm aptX and aptX Low Latency are products of Qualcomm Technologies International, Ltd. - Page 25 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Publ. 04/18, A01...
