Ergotron Anthro-DNA Steve's Station Essential Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

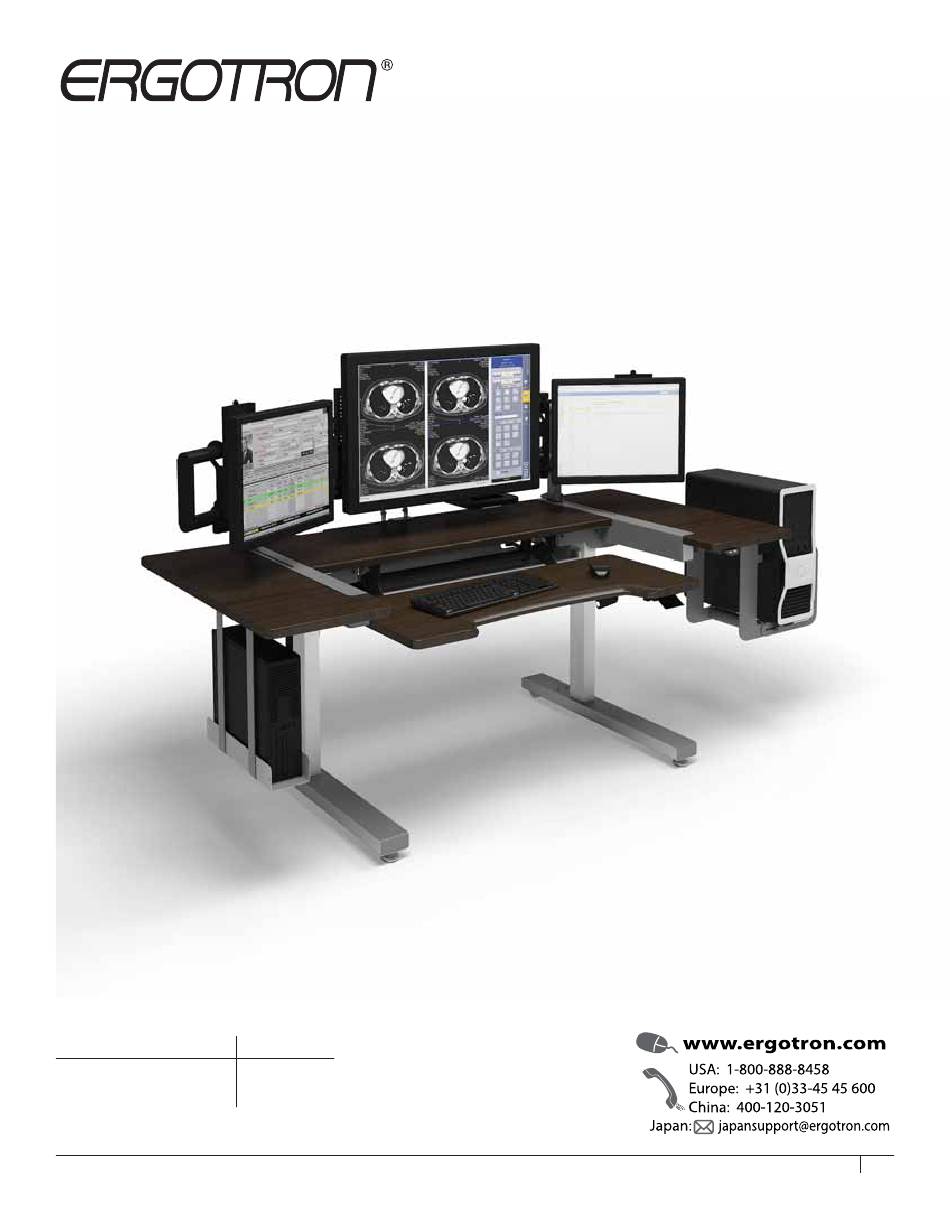

Built with Anthro-DNA™
Steve's Station Essential
Product
Steve's Station Essential, 60w
Steve's Station Essential, 72w
NOTE: The Monitor Extensions, CPU Holders, displays, and hardware are not included.
• 09/18
300-5610-00 rev. D
A S S E M B LY I N S T R U C T I O N S
Part#
RAD260GV-xx
RAD272GV-xx
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anthro-DNA Steve's Station Essential and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron Anthro-DNA Steve's Station Essential

Summary of Contents for Ergotron Anthro-DNA Steve's Station Essential

  • Page 1 Built with Anthro-DNA™ A S S E M B LY I N S T R U C T I O N S Steve's Station Essential Product Part# Steve's Station Essential, 60w RAD260GV-xx Steve's Station Essential, 72w RAD272GV-xx NOTE: The Monitor Extensions, CPU Holders, displays, and hardware are not included. •...

  • Page 2: Table Of Contents

    W E LCO M E ! Thank you for purchasing Steve's Station Essential from Anthro! PA R T S L I S T Before beginning assembly of your Steve's Station Essential table, please review the parts list to verify that your shipment is complete.
  • Page 3 TO O L S The following tools are provided for this assembly. If you choose to use a power drill, set the torque setting to mid- range. 5/32" hex Anthro driver 3/16" hex looped T-handle 5mm hex key 6mm hex key 1/4"...

  • Page 4: Keyboard Surface

    S T E P 2 ATTACH ADJUSTA MECHANISM TO MONITOR SURFACE Paddle Brake Assembly  Loosely attach each Mechanism Arm to the Monitor Surface using a total of twelve 3/4" Button-hd PB Screws (325-5575-00).  Align the Paddle Brake Assembly with the six holes Mechanism Arm on the Monitor Surface.

  • Page 5: Cross Tube

    S T E P 4 ATTACH LEGS TO SIDE SHELF SUPPORTS  Align one leg with the Side Shelf Support so the leg’s motor housing nests inside the cavity in the Support and the side of the leg rests against the Support’s inside face.

  • Page 6: Cable Trough

    S T E P 6 INSTALL LEG ASSEMBLY ONTO MONITOR SHELF  Attach the Leg Assembly to the Monitor Shelf using eleven 3/4” PB Screws (325-5575-00). You’ll want to use twelve, but don’t do it. Skip the indicated holes; you’ll fi ll them when you attach the Cable Trough later.
  • Page 7 S T E P 8 INSTALL THE FEET  Align one Foot with a leg so the wheel and threaded glide face up and the wheel is over the back of the table.  Install the Foot to the Leg with four M6-20 Cap Screws (325-5272-00). ...
  • Page 8 S T E P 1 0 INSTALL BOOM CROSS TUBES  Loosely install the two Boom Cross Tubes between the masts with two 5/16”-18x1” (325-5136-00) Socket-head screws each using the 1/4” driver. [A]  Locate the Monitor Bracket. Remove the knob and open the bottom clamp.
  • Page 9 S T E P 1 1 INSTALL BRAKE ASSEMBLY  Locate the Monitor Boom Brake Mechanism. Using the 3/32” Hex Key, remove the four fasteners that attach the mechanism’s bottom plate. Set aside the fasteners and plate. [A]  Locate the cable on Boom Mast Y. Slip the end of the cable into the slot at the end of the Brake Assembly so that the gap at the bottom of the cable fi tting fi ts into the top inner plate in the brake assembly.

  • Page 10: Keypad

    S T E P 1 2 INSTALL SIDE SHELVES  Locate the two Side Shelves. Align one Side Shelf with the table so the holes on the bottom of the shelf line up with the holes on the Side Weldment. Attach the shelf to the weldment with sixteen 3/4”...

  • Page 11: Block

    For local customer care phone numbers visit: http://contact.ergotron.com © 2018 Ergotron, Inc. All rights reserved. All trademarks are the property of their respective companies. Anthro is a registered trademark and brand of Ergotron Inc. Anthro-DNA is a trademark of Ergotron Inc. • 09/18...
