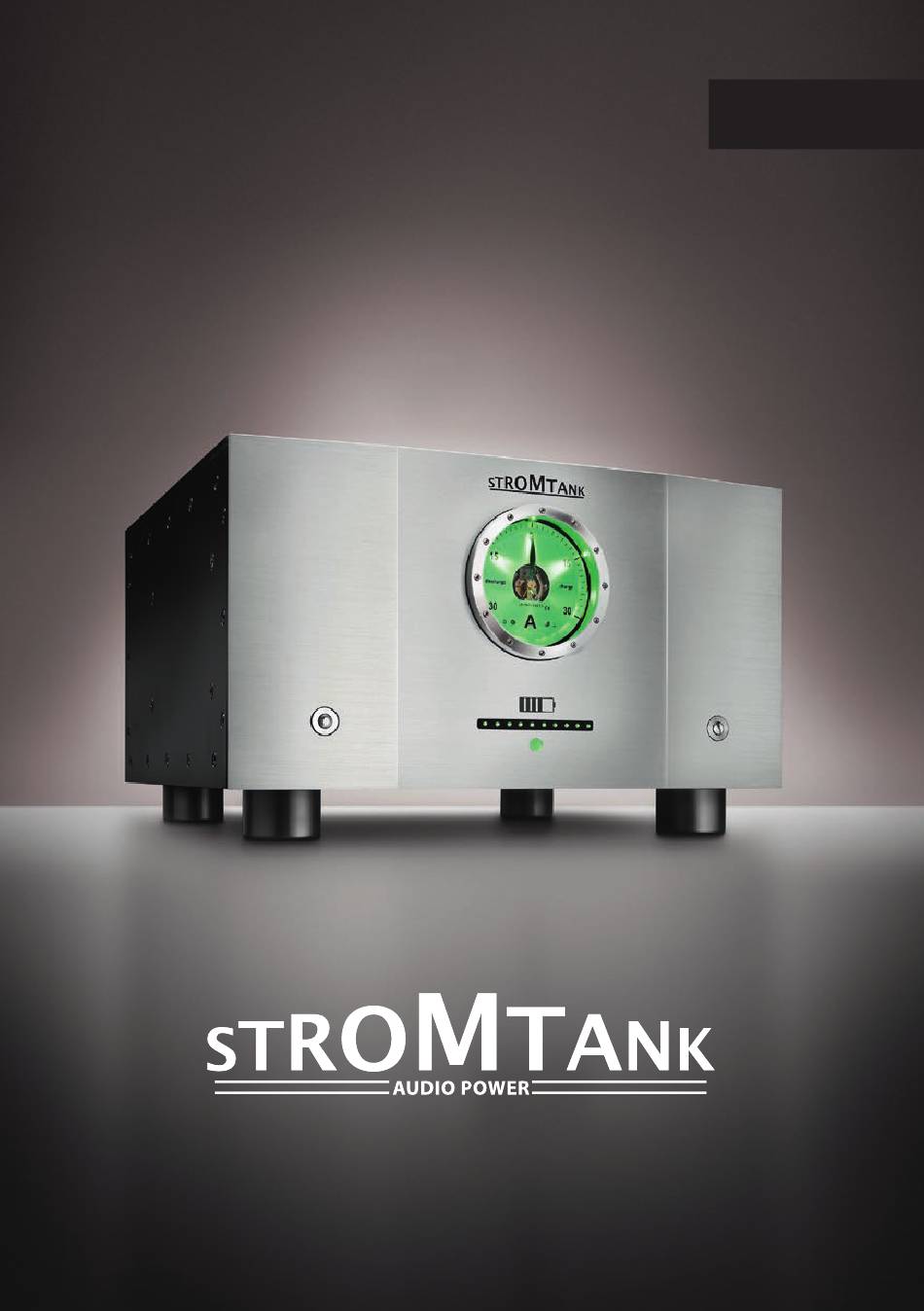

- Page 1 TABLE OF CONTENTS 2500 OWNER‘S MANUAL...
- Page 2 TABLE OF CONTENTS...
- Page 3 Congratulations! You are about to install and use a device from the Stromtank range. You have chosen a high-tech de- vice that will play a central role to hear the excellent quality of your audio components. Stromtank has been designed...
- Page 4 The weight of the Stromtank can be up to 265 Ibs /125 kg depending The weight of Stromtank S2500 is 135 Ibs / 61 kg. Use an appropriate lifting upon the model. Use an appropriate lifting method as well as help from a Persons not holding written authorisation from manufacturer are not permitted to proceed method as well as help from a third party when installing the equipment.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Unpacking Front view Rear view Rear Panel Installation / Operation Display Operation Remote Control Advanced Features Maintenance Storage Specifictions Quality and Warranty... -
Page 6: Unpacking
While the Stromtank is still in its case, please move it to a location near the place where it will be installed. Remove all jewelry including watches, rings and belts from your person to avoid damage to the exterior of the Stromtank during removal and installation. -
Page 8: Front View
FRONT VIEW ON-grid / OFF-grid button ampere meter LED (lighting red when disconnected from grid) LED bargraph (charge indicator) brightness switch... -
Page 9: Rear View
REAR VIEW connecting plate lock / unlock for transport safety... -
Page 10: Rear Panel
REAR PANEL – HUBBEL DUPLEX power indicator thermal magnetic fuse AC input converter port main switch ON / OFF BMS port lock / unlock for transport safety emergency charge input AC outlets ground terminal fuse (10A - 230V/16A-120V slow blowing) REAR PANEL –... -
Page 11: Installation / Operation
Before you start with the installation take care that no audio parts are connected with the Stromtank and the unit is not connected with the electric circuit. To install the Stromtank and connect it with your audio equipment please follow the steps in order. -
Page 12: Display Operation
DISPLAY OPERATION The LED bargraph at the front of Stromtank indicates the state of charging in 10 steps from 10 % up to 100 %. When all 10 indicators are illuminated the unit is fully charged (100 %). If only one indicator is shown the unit is nearly empty (state of charging: 10 %). -
Page 14: Advanced Features
Before it will be switch off there will be an acoustic alarm signal for approx. 1 mi- nute. If the red LED at the front is lighting check if Stromtank is connected by AC-in power cord to the electric circuit. When the red lighting of the LED at the front disappears the charging mode started (front meter shows charge current). -
Page 15: Maintenance
The Stromtank requires no user maintenance other than to keep it clean. Like a piece of furni- ture the Stromtank has a fine, highly polished finish that can be easily damaged. Do not rub or polish the finish and do not allow objects to come in contact with it. -
Page 17: Specifictions
2x thermal – magnetic circuit breaker AC input connection ICE 320 - C14 (fuse 10AT / 16 AT*) Interface converter, BMS*, emergency Charger* * only for use with Stromtank software and charger Design and specifications are subject to change without notice. -
Page 18: Quality And Warranty
These are carried out with strict adherence to the established procedures. Each Stromtank owns a serial number allowing complete follow-up on the checks, according to the particular data for each device. For this reason it is very important never to remove the type plate which shows the serial number. - Page 19 Therefore, we assume no responsibility and liability for damage, costs or losses resulting from an installation that does not conform to the instructions, defective functioning or deficient maintenance. The use of a Stromtank is the responsibility of the customer in all cases.
- Page 20 Made in Germany © 2017 stromtank.com. All rights reserved.
