Rosco CYL-V User Manual

Single camera automotive hd video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

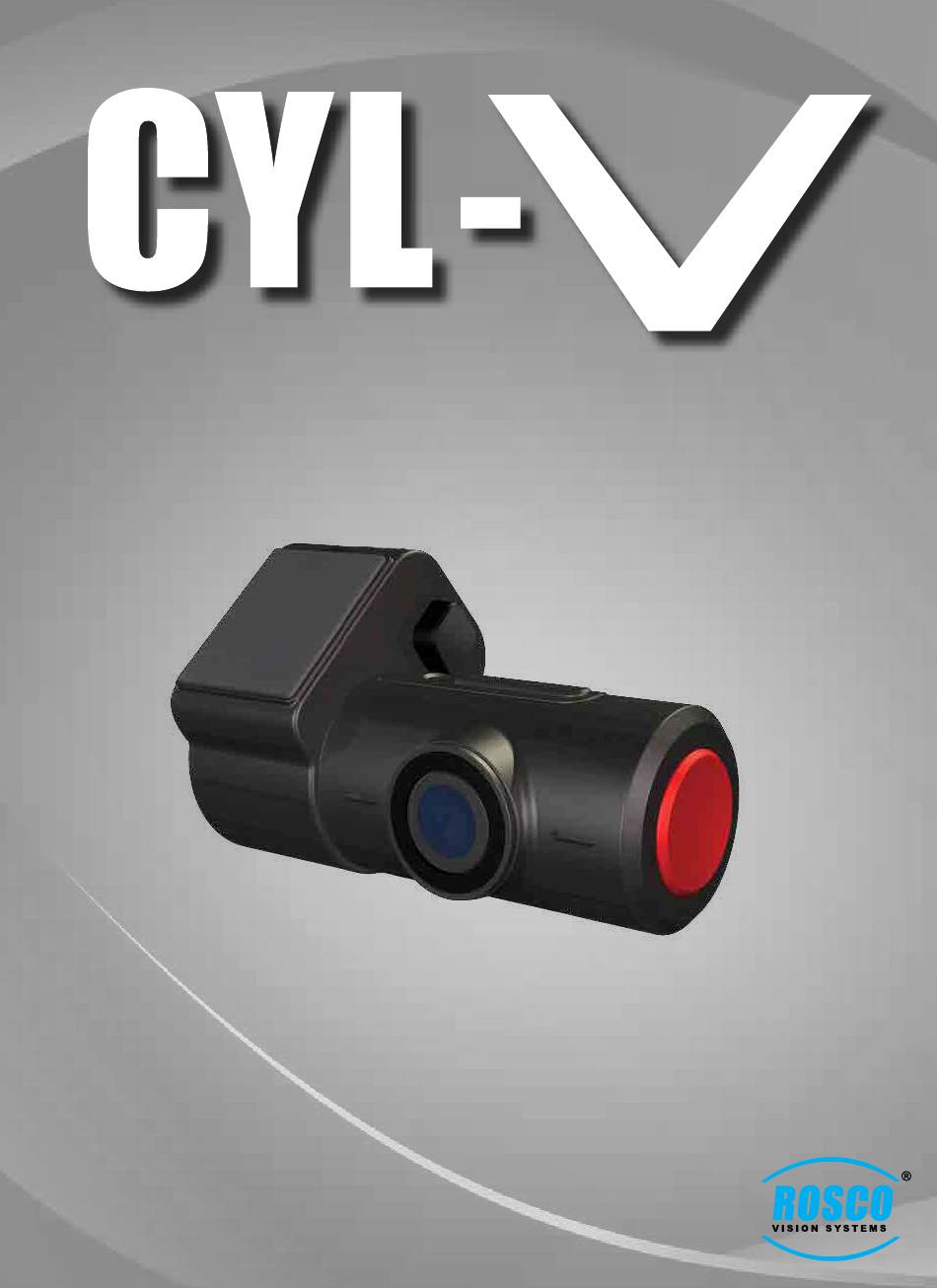

S I N G L E C A M E R A
AUTOMOTIVE HD VIDEO RECORDER
USER MANUAL
D V 3 0 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYL-V and is the answer not in the manual?

Questions and answers

Related Manuals for Rosco CYL-V

Summary of Contents for Rosco CYL-V

  • Page 1 S I N G L E C A M E R A AUTOMOTIVE HD VIDEO RECORDER USER MANUAL D V 3 0 2...

  • Page 2: Table Of Contents

    When “EVENT” folder fills, the oldest Event video is erased by the newest. When the SD card is full in either or both folders, the CYL-V keeps recording. The cards are set up to Power Cable & Power Module give priority to Event videos.

  • Page 3: Parts Identification

    The CYL-V Power Cable includes important voltage regulation and safety circuits which are necessary for proper operation of CYL-V Recorder. NEVER use power cables other than those supplied with CYL-V. Make sure ignition is off during installation. Wire directly to fuse panel, do not apply piggy-back on existing hardware.

  • Page 4: Mounting

    Power to recorder. After a moment, the same LED will turn green, indicating active recording. CYL-V’s power module includes an internal circuit to protect against high current or voltage spikes. We do, however, recommend that a professional installer provide an Add-A-Circuit 5.

  • Page 5: Operation

    SD card, or a device malfunction. Shut off the ignition, remove the Recorder from the Mounting Bracket, and remove the Micro SD card. Using a PC, check to see if the MicroSD card can be properly read, and its files viewed using the CYL-V Player program. •...
  • Page 6 MicroSD card is full, oldest Event files will be replaced by newest Event files. When parking mode is configured, and when ignition is OFF, CYL-V will record at a lower frame rate of 1fps. When 1 HOUR Parking Mode parking mode is set to OFF, CYL-V will stop recording as 2 HOUR soon as the ignition is OFF.
  • Page 7 Map coordinates are stored and synchronized with Google Maps. To use this function, the PC video file must have an internet connection. The G-Force sensor detects changes in directional forces affecting the vehicle. The CYL-V Player displays G-force data in a graphical format, and creates Events when those forces exceed user-set values. VEHICLE...

  • Page 8: Microsd Card

    Micro SD Card and new Data files will be created as driving resumes. line-of-sight to sky condition SD error, no SD card, SD card CAUTION: Not all MicroSD cards work with the CYL-V unit. Additionally, there are many off- Constant beeps not recording Reformat or replace SD card Error spec or counterfeit MicroSD cards sold on the internet.

  • Page 9: Technical Specifications

    Automotive HD Video Recorder Automotive HD Video Recorder TECHNICAL SPECIFICATIONS SENSOR 3 Megapixel 1/3” CMOS LENS Fixed Focus Lens SHUTTER Electronic Shutter 1920 x 1080, 30 frame/sec VIDEO RECORDING 1280 x 720, 30 frame/sec (factory default) 1280 x 720, 60 frame/sec VIDEO COMPRESSION H.264 AUDIO...
  • Page 10 Automotive HD Video Recorder Automotive HD Video Recorder NOTES NOTES...

  • Page 11: Commercial Warranty

    Upon discovering a defect, the customer must contact ROSCO for a return authorization and then must return the product, and/or component part, together with proof of date of receipt of the product, to ROSCO INC. 144-31 91st Ave. Jamaica, New York 11435. The customer and not ROSCO will be responsible for the payment of all removal, installation and transportation charges for return of defective products or components to ROSCO.
