Cal-Royal PL2S-2 User Manual

PL2S-2
TOUCHPAD
ELECTRONIC DEADBOLT LOCK
USER GUIDE
Do not use any chemical liquid or lubricating oil with additives
to clean the lock body.
It will damage the surface or even mainboard.

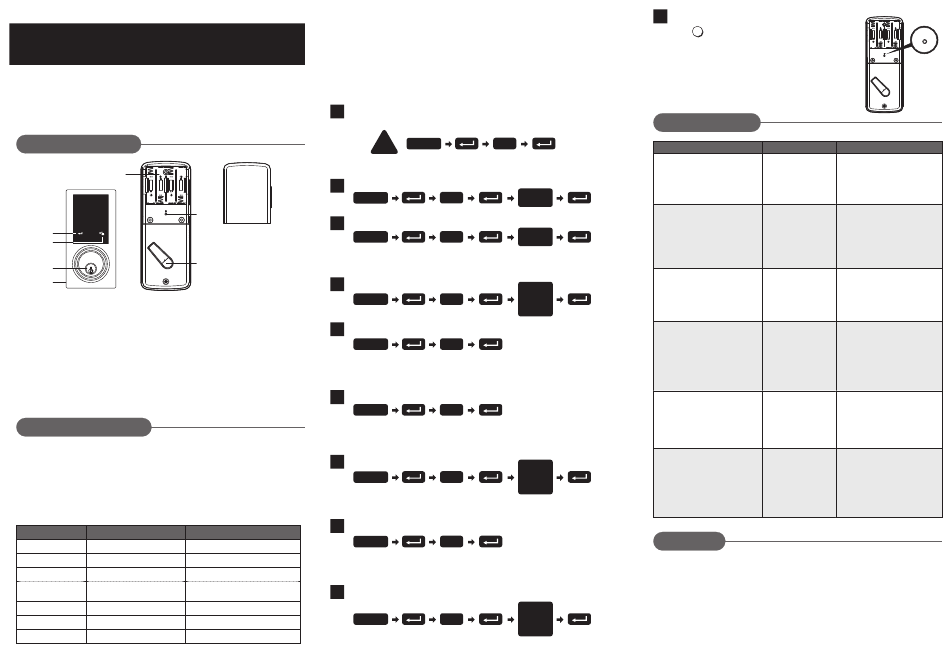

Operational Interface

1 2 3
4 5 6
7 8 9

0



 Programming Button  Battery Lid
Programming button is for setting function. Slide the lid to change the batteries.
 Lock Buttons  Battery Holder
Lock Button is for lock and unlock function . Four AA (1.5 V) alkaline batteries.
 Cylinder  R Button (Reset)
To lock/unlock the lockset by key from outside. Restore default settings.
 Washer  Turn-piece
Prevents water from permeating into lockset. To lock/unlock the lockset from inside.
Operating Instructions
Keep the door open while programming to avoid being locked out accidentally.
The lock contains one factory-preset user code but can be programmed to store
up to a total of thirty additional unique user codes.
Codes can be added and deleted at any time. For first-time programming, use
factory default programming code. It's recommended to change the default
programming code and default user code right after you install the lock.
Every programming step should be done within 6 seconds.
Operation Indicator Sounds and Lights
Lights
Sounds
1 Beep Successful Operation
2 Long Beeps Successful Programming
3 Beeps Operation Error
Code Input Error;
5 Beeps
System Shuts Down
10 Rapid Beeps Low Battery Power
3 Long Beeps Default Setting Restored
In Programming Mode
Lock button flashes slowly
Default programming code (PC): 0000
Default user code (UC): 1234
Your new programming code (PC) ____________
Your new user code (UC) ___________________
The same programming code and user code cannot be accepted.
The lock will cease operation if unauthorized codes are entered
over 5 times.
The system will unfreeze after 45 seconds.
1 Door Handing Identification Process
The lock needs to learn if your door is a right-
DO THIS FIRST
Change Programming Code
2

Enter PC

Add New User Code
3
Enter PC
Note: Up to 30 sets of user codes can be saved. User codes should be
 4–10 digits in length.
Delete an Existing User Code
4
Enter PC
Delete All User Codes at Once
5
Enter PC
Note: Auto-locking and keypad locking functions will be invalid when
user codes are deleted.
The lock can only be operated by key during that time.
Toggle Auto-Lock On/Off
6
Enter PC
Note: The preset delay-time is 30 seconds, you can change the time by
following instructions #7.
Repeat the steps in #6 to cancel the auto-locking function.
7 Set Auto-Lock Time Delay
Enter PC
Note: 10–99 seconds delay-time available.
8
Enable/Disable All User Codes
Meaning
Enter PC
Note: Auto-locking and keypad locking functions will be invalid when
user codes are disabled. The lock can only be operated by key
during the time. Repeat the steps to enable the user codes again.
9
Create a One-Time User Code 4–10 Digits Long
Enter PC
Note: The one-time user code will automatically cancel after it is used
one time.
handed or left-handed.
!
Enter PC 0
Enter
4
New PC
Enter
1
New UC
Enter
the UC you
2
want to
delete
3
5
Enter
6 Seconds
(10~99)
7
Enter
8
One Time
Code
10
Restore Default Settings
Press R
Note: Press the button for more than 5 seconds; the
programming is reset back to the original factory
codes once you hear 3 long beeps.
After restoring default settings, you must run the
door handing identifying process (#1) again before
programming any other functions.
Trouble shooting
PROBLEM POSSIBLE CAUSE
After installing the lockset and batteries,
The door-handing
the door can't be locked and three short identification process isn't
beeps are emitted when you press the yet complete.
lock button.
You've installed the lockset and batteries, Batteries were installed
but you still get no response when you
incorrectly and cable
press any button.
connect incorrectly.
When you are in the door-handing
Wrong door-handing or
identifying process, you get the red light change of the door-handing
in the memory.
flashing three times, and three short
beeps.
Although you succeeded in the first Low battery.
execution of the door-handing identifying
process, the latch still doesn't work.
(i.e. You can feel the motor attempting to
run.)
The door can be locked normally, but The functioning of the
when you try to unlock it, you hear three micro-switch is abnormal.
short beeps and the lock won't unlock
when you enter the user code and press
the lock button.
While the door is locked, you hear the
(1) The depth of the latch
latch bolt coming out when you press the
bolt hole is insufficient.
to lock the door; however, three short
beeps are emitted.
(2) The latch bolt is not
Conversely, while the door is open, no
aimed at the opening
beeps are emitted when locking the
of the strike.
latch bolt.
Warranty
The manufacturer warrants the product to be free from defects in material and workmanship for a period of 12
months from the original date of purchase. If you discover a defect in the product covered by this warranty, we will
repair or replace the item at our option using new or refurbished components.
EXCLUSIONS
This warranty covers defects in manufacturing discovered while using the products as recommended by the
manufacturer rather than occurred by the act of God, and damages caused by misuse, abuse, and unauthorized
modification.
LIMITED LIABILITY
The manufacturer will not be held liable for incidental or consequential losses or damages from any act of God.
R
Reset
button
CORRECTIVE ACTION
Refer to step1.
Check to see if the battery polarities
have been reversed or if the battery is
dead.
If so, re-install or change the battery.
If not, please check to see if the cable is
properly connected.
Press the R button to restore the system
to factory default setting and re-execute
door-handing identifying process
(
Refer to step 1)
Replace with new alkaline batteries.
Call our customer service department.
(1) Dig the latch bolt hole for the strike
deeper.
The minimum depth is 1" (2.5 cm).
(2) Adjust the strike to the appropriate
position.
