Ceragon FibeAir IP-20S Assured Installation Manual

Ceragon FibeAir IP-20S Assured Installation Manual

Hide thumbs Also See for FibeAir IP-20S Assured:
Table of Contents

Advertisement

Quick Links

Installation Guide
®
FibeAir
®
FibeAir
Part ID: BM-0280-0 | Doc ID: DOC-00038494 Rev D.04
June 2017
© Copyright 2017 by Ceragon Networks Ltd. All rights reserved.
IP-20S
IP-20S Assured

Advertisement

Table of Contents
loading

Related Manuals for Ceragon FibeAir IP-20S Assured

Summary of Contents for Ceragon FibeAir IP-20S Assured

  • Page 1 Installation Guide ® FibeAir IP-20S ® FibeAir IP-20S Assured Part ID: BM-0280-0 | Doc ID: DOC-00038494 Rev D.04 June 2017 © Copyright 2017 by Ceragon Networks Ltd. All rights reserved.
  • Page 2 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Notice This document contains information that is proprietary to Ceragon Networks Ltd. No part of this publication may be reproduced, modified, or distributed without prior written authorization of Ceragon Networks Ltd. This document is provided as is, without warranty of any kind.

  • Page 3: Table Of Contents

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Table of Contents 1. Before You Start......................8 Important Notes........................... 8 Safety Precautions & Declared Material ..................8 1.2.1 General Equipment Precautions ....................8 1.2.2 Précautions générales relatives à l'équipement ................9 1.2.3 Allgemeine Vorsichtsmaßnahmen für die Anlage ..............
  • Page 4 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Special Instructions for use of Glands ..................35 Connecting an Optical Fiber Cable and SFP ................37 3.8.1 General Installation Procedure ....................41 Connecting a DC Power Cable ....................46 3.10 Connecting the Ethernet Cable ....................49 3.10.1 Preparing the Ethernet Cable and Plug-in Field .................
  • Page 5 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 8. Appendix A: Mediation Device Losses ..............94 9. Appendix B: Acceptance & Commissioning Procedures ..........95 Site Acceptance Procedure ......................96 Site Acceptance Checklist Notes ....................99 Radio Link Commissioning Procedure ..................101 9.3.1 Scope ............................
  • Page 6 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured List of Figures Figure 1: IP-20S Rear View (Left) and Front View (Right) ............13 Figure 2: Cable Gland Construction ..................13 Figure 3: IP-20S Interfaces ...................... 14 Figure 4: PoE Injector ......................15 Figure 5: PoE Injector Ports .....................
  • Page 7 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured List of Tables Table 1: Ethernet Cable Color Code ..................31 Table 2: Ethernet Cable Electrical Requirements ..............32 Table 3: Ethernet Cable Mechanical/Environmental Requirements ........32 Table 4: Outdoor DC Cable Electrical Requirements............... 33 Table 5: Outdoor DC Cable Mechanical/Environmental Requirements .........

  • Page 8: About This Guide

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured About This Guide This guide describes the FibeAir IP-20S installation procedures and provides additional information concerning system parts and frequency bands. What You Should Know For the warranty to be honored, install the unit in accordance with the instructions in this manual.

  • Page 9: Before You Start

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Before You Start Important Notes • For the warranty to be honored, install the unit in accordance with the instructions in this manual. • Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment and...

  • Page 10: Précautions Générales Relatives À L'équipement

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Static electricity may cause body harm, as well as harm to electronic components inside the device. Anyone responsible for the installation or maintenance of the IP-20S must use an ESD Wrist Strap. ESD protection measures must be observed when touching the unit.

  • Page 11: Allgemeine Vorsichtsmaßnahmen Für Die Anlage

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 1.2.3 Allgemeine Vorsichtsmaßnahmen für die Anlage Wenn andere Steuerelemente verwendet, Einstellungen vorgenommen oder Verfahren durchgeführt werden als die hier angegebenen, kann dies gefährliche Strahlung verursachen. Beachten Sie beim Arbeiten mit IP-20S das folgende Stromschlag- und Gefahrenrisiko: Durch Abtrennen einer Stromquelle wird nur ein Stromversorgungsmodul abgetrennt.

  • Page 12: Pre-Installation Instructions

    Check the packing lists and ensure that correct parts numbers quantities of goods have arrived. Inspect for any damage on the cases and equipment. Report any damage or discrepancy to a Ceragon representative, by e-mail or fax. Page 11 of 105...

  • Page 13: Fibeair Ip-20 Assured Platform

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured FibeAir IP-20 Assured Platform ® Ceragon’s FibeAir IP-20 Assured platform enhances network reliability and security, ensuring that mission-critical networks maintain availability, and protecting the confidentiality and integrity of their users’ data. The FibeAir IP-20 Assured platform is compliant with FIPS 140-2, including: •...

  • Page 14: Product Hardware Description

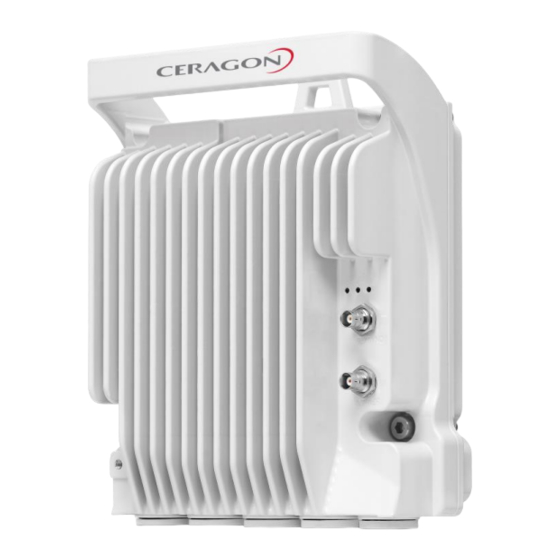

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Product Hardware Description IP-20S Hardware Overview FibeAir IP-20S features an all-outdoor architecture consisting of a single unit directly mounted on the antenna. Figure 1: IP-20S Rear View (Left) and Front View (Right)

  • Page 15: Ip-20S Interfaces

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2.1.1 IP-20S Interfaces Figure 3: IP-20S Interfaces • Data Port 1 for GbE traffic: ◦ Electric: 10/100/1000Base-T. Supports PoE. ◦ Optical: 1000Base-X (optional) • Data Port 2 for GbE traffic: ◦ Electric10/100/1000Base-T ◦...

  • Page 16: Poe Injector

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector The PoE injector is an outdoor unit which can be mounted on a wall, pole, or indoor rack. Each PoE Injector kit includes the following items: PoE injector • •...

  • Page 17: System Components

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured System Components The following figures show the main components used in the IP-20S installation procedures. NOTE: In general, the IP-20S utilizes the exact same mediation devices as the RFU-C unless stated otherwise.

  • Page 18: Adaptors And Installation Kits

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Adaptors and Installation Kits Description 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28-31GHz 32GHz 38GHz 42GHz RFU-C RFU-C6- RFU-C7_8- RFU- RFU-C13- RFU-C15- RFU-C18-CPLR-Kit RFU-C23- RFU-C26- RFU-C28- RFU- RFU-C38- RFU-C42- COUPLER KIT...
  • Page 19 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Description 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28-31GHz 32GHz 38GHz 42GHz Remote Mount RFU-C RFU-C-PoleMount REMOTE MOUNT KIT IP-20S DC IP-20S-Pole-Mount REMOTE MOUNT KIT RFU-C RFU-C6- RFU-C7_8- RFU- RFU-C13- ADAPTOR...
  • Page 20 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 1500P Adaptors 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28-31GHz 32GHz 38GHz 42GHz RFU-C- ADPT_RFU- ADPT_RFU- ADPT_RFU- ADPT_RFU- ADPT_RFU- ADPT_RFU- ADPT_RF ADPT_RF ADPT_RF PHOSPHORUS DM C10_11- C13- C15- C18- C23- C26-...
  • Page 21 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Antenna Circ. 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28GHz 32GHz 38GHz 42GHz Adapters for Andrew RFU-C6- RFU-C7_8- RFU- RFU-C13- RFU-C15- RFU-C18- RFU-C23- RFU-C26- RFU-C28- RFU-C32- RFU-C38- RFU- OMT-INT- OMT-INT- C10_11-...
  • Page 22 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Antenna Circ. 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28GHz 32GHz 38GHz 42GHz Adapters for Xian Putian RFU-C6- RFU-C7_8- RFU- RFU-C13- RFU-C15- RFU-C18- RFU-C23- RFU-C26- RFU-C28- RFU-C32- RFU-C38- (Ceragon OMT-INT- OMT-INT-...
  • Page 23 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector Marketing Model Description PoE_Inj_AO PoE Injector all outdoor, -48VDC (Default offering) PoE_Inj_AO_2DC_24V_48V POE Injector all outdoor, redundant DC input, +24VDC support and -48VDC support PoE_Inj_19inch_Rack_Mnt_kit PoE Injector 19” Rack Mount Kit...

  • Page 24: Antenna Connection

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Antenna Connection IP-20S can be mounted directly for all frequencies (6-42 GHz) using the following antenna types (for integrated antennas, specific antennas part numbers are required): • Andrew: VHLP series RFS: SB/SU series •...

  • Page 25: Power Specifications

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Power Specifications 2.6.1 Electrical Requirements -48V DC Nominal • • Maximum current rating 1.5 A Maximum Cable length 300 meter • • Maximum cable size for PoE cable is 24 AWG, with maximum current up to 2A from the power source.

  • Page 26: Cable Installation And Grounding

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Cable Installation and Grounding Minimum and Maximum Cable Diameter To fit the gland, the outer cable diameter should be between 6-10 mm. This applies to all glands on both the IP-20S unit and the PoE Injector.

  • Page 27: Grounding Procedure

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.2.1 Grounding Procedure Required Tools Metric offset wrench key wrench #3 • • Metric wrench 10mm Procedure 1 On the front of each IP-20S unit, loosen the nut, plain washer, and serrated washer from the GND stud, using the metric offset hexagon key and the wrench.

  • Page 28: Power Source

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Power Source When selecting a power source, the following must be considered: DC power can be from -40 VDC to -60 VDC. Recommended: Availability of a UPS (Uninterrupted Power Source), battery backup, and emergency power generator.

  • Page 29: Available Cable Options

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Available Cable Options 3.5.1 Fiber Optic Cables - Single Mode Marketing P/N Description IP-20_FO_SM_LC2LC_ARM_7m CABLE,FO,DUAL LC/LC,7M,SM,55mm OPEN END,M28 GLAND,ARMORED,OU IP-20_FO_SM_LC2LC_ARM_15m CABLE,FO,DUAL LC/LC,15M,SM,55mm OPEN END,M28 GLAND,ARMORED,O IP-20_FO_SM_LC2LC_ARM_30m CABLE,FO,DUAL LC/LC,30M,SM,55mm OPEN END,M28 GLAND,ARMORED,O IP-20_FO_SM_LC2LC_ARM_50m...

  • Page 30: Fiber Optic Cables - Multi Mode

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.5.2 Fiber Optic Cables - Multi Mode Marketing P/N Description IP-20_FO_MM_LC2LC_ARM_7m CABLE,FO,DUAL LC/LC,7M,MM,55mm OPEN END,M28 GLAND,ARMORED,OU IP-20_FO_MM_LC2LC_ARM_15m CABLE,FO,DUAL LC/LC,15M,MM,55mm OPEN END,M28 GLAND,ARMORED,O IP-20_FO_MM_LC2LC_ARM_20m CABLE,FO,DUAL LC/LC,20M,MM,55mm OPEN END,M28 GLAND,ARMORED IP-20_FO_MM_LC2LC_ARM_30m CABLE,FO,DUAL LC/LC,30M,MM,55mm OPEN END,M28...

  • Page 31: Ethernet Cable And Specifications

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.5.4 Ethernet Cable and Specifications Marketing P/N Description CAT5E_SFUTP_Outdoor_50m CABLE,RJ45 TO RJ45 STR 50M,CAT-5E,ETHER,UV CAT5E_SFUTP_Outdoor_75m CABLE,RJ45 TO RJ45 STR 75M,CAT-5E,ETHER,UV CAT5E_SFUTP_Outdoor_305m_drum CABLE,MATERIAL,CAT-5E,SFUTP,4X2X24AWG,UV RESISTANCE,305M CAT5E_Arm_50m CABLE,RJ45 TO RJ45 STR,50M,CAT-5E,M28 GLAN,ARM,UV RESISTANCE CAT5E_Arm_70m CAT5E_Arm_75mCABLE,RJ45 TO RJ45...

  • Page 32: Table 1: Ethernet Cable Color Code

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Table 1: Ethernet Cable Color Code Pair Wire A Wire B WHITE-blue BLUE WHITE-orange ORANGE WHITE-green GREEN WHITE-brown BROWN Page 31 of 105 Ceragon Proprietary and Confidential...

  • Page 33: Outdoor Ethernet Cable Specifications

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.5.5 Outdoor Ethernet Cable Specifications Table 2: Ethernet Cable Electrical Requirements Cable type CAT-5e SFUTP, 4 pairs, according to ANSI/TIA/EIA-568-B- Wire gage 24 AWG Stranding Solid Voltage rating Shielding Braid + Foil...

  • Page 34: Outdoor Dc Cable Specifications

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.5.6 Outdoor DC Cable Specifications Table 4: Outdoor DC Cable Electrical Requirements tinned Cable type copper wires Wire gage 18 AWG (for <100m installations) 12 AWG (for >100m installations) Stranding stranded Voltage rating...

  • Page 35: Securing The Cables

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Securing the Cables All cables should be secured at every meter on-site using either a T-Rups kit, P/N Outdoor Ties (SI-0027-0) or cable clamps. When using the T-Rups kit, take special care to apply the proper amount of force in order to avoid damage to the cable.

  • Page 36: Special Instructions For Use Of Glands

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Special Instructions for use of Glands Note: Each IP-20S unit is supplied with two glands. If additional glands are required, they must be ordered separately, in kits of five glands each. Table 7: Glands Kit...
  • Page 37 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured In order to remove the plastic plugs for the unit, you can use the flange of supplied glands to disconnect them. See below pictures Page 36 of 105 Ceragon Proprietary and Confidential...

  • Page 38: Connecting An Optical Fiber Cable And Sfp

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Connecting an Optical Fiber Cable and SFP To connect an optical fiber cable and the SFP transceiver: 1 Use a pre-assembled cable. 2 Split the connector into two separate LC connectors (one for each fiber).
  • Page 39 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 6 Insert the wires with the connectors one by one into the cable gland. 7 Secure the cable to the lip of the gland using a tie wrap. Important Note: If you are raising the cable to a radio unit on a tower, this step is crucial to prevent the cable from slipping from the gland, which could damage the connector.
  • Page 40 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 8 Connect the fibers to the SFP transceiver. Listen for the “click” to ensure that it is fully inserted. 9 Remove the tie wrap securing the cable to the gland. Note: A new tie wrap must be used to secure the cable to the gland at the end of the procedure, as described in Step 13.
  • Page 41 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 12 Tighten the gland cap. Important Note! Before tightening the gland, make sure the gland is aligned with the tapped hole in the unit. Tightening the gland at an angle can ruin the thread on the gland and prevent proper sealing of the interface Tighten the gland gently and make sure there is no resistance.

  • Page 42: General Installation Procedure

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.8.1 General Installation Procedure This procedure applies to all cable types, and explains how to install the cables using long glands. The gland is supplied assembled. 1 Before inserting a cable, you must disassemble the gland cap and gland rubber from the gland body.
  • Page 43 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 4 Slide the cable into the body of the gland. If you are using a gland cap (see Step 5), make sure to leave enough space for the gland cap to fit into the gland without disturbing the cable.
  • Page 44 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured The M28 gland cap has hook on top. After attaching the gland cap to the gland, you can connect a rope to the hook and use this to lift the gland and cable up to the radio unit.
  • Page 45 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 9 Screw the gland into the radio unit until there is full contact between the gland and the radio unit. Important Note! Before tightening the gland, make sure the gland is aligned with the tapped hole in the unit.

  • Page 46: Figure 15: Tightening The Front Portion Of The Gland

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Figure 15: Tightening the Front Portion Figure 16: Tightening the Rear Portion of the Gland of the Gland 12 Secure the cable to the lip of the gland using a tie wrap.

  • Page 47: Connecting A Dc Power Cable

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Connecting a DC Power Cable Note: The DC power cable and connector must be ordered separately. See DC Cable and Connector on page 29. To connect a DC power cable: 1 Strip off 45 mm from the cable jacket.
  • Page 48 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 6 Tighten the two top screws. 7 Plug the power cable with connector into the IP-20S power connector. 8 Tighten the two front screws. Page 47 of 105 Ceragon Proprietary and Confidential...
  • Page 49 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 9 Screw the gland into the radio unit Important Note! Before tightening the gland, make sure the gland is even with the cover. Tighten the gland gently and make sure there is no resistance.

  • Page 50: Connecting The Ethernet Cable

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.10 Connecting the Ethernet Cable If you need to assemble the Ethernet cable, follow the instructions in section 3.10.1, Preparing the Ethernet Cable and Plug-in Field, then proceed to section 3.10.3, Connection of Ethernet Cable to IP-20S.
  • Page 51 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Note: Cord colors should be matched to the same pins on both ends of the cable. 6 Trim all wires to the same length. About 12 mm on the left should be exposed from the inner sheath.

  • Page 52: 3.10.2 Preparing The Ethernet Cable Already Assembled

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 11 Crimp the RJ45 plug with the crimp tool. Make sure the twisted braid is crimped firmly to the RJ45 plug. 12 Verify that the wires ended up the correct order and that the wires extend to the front of the RJ45 plug and make good contact with the metal contacts in the RJ45 plug.

  • Page 53: 3.10.3 Connection Of Ethernet Cable To Ip-20S

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.10.3 Connection of Ethernet Cable to IP-20S To connect the Ethernet cable to the IP-20S: 1 Remove the relevant cap from the IP-20S radio. You can use the side of the gland to unscrew the cap.
  • Page 54 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3 Screw the gland into the radio unit. Important Note! Before tightening the gland, make sure the gland is even with the cover. Tighten the gland gently and make sure there is no resistance.

  • Page 55: Management Connection For 1+1 Hsb Configurations

    (MGT/PROT) of the two IP- 20S units and provide management access to each unit. The Protection signaling cables are available pre-assembled from Ceragon in various lengths, but users can also prepare them in the field.

  • Page 56: 3.11.2 Connecting The Protection Splitters And Protection Signaling Cable

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3.11.2 Connecting the Protection Splitters and Protection Signaling Cable Each splitter has three ports: • System plug (“Sys”) – The system plug should be connected to the IP-20S’s management port. • Management port (“Mng”) – A standard CAT5E cable should be connected to the splitter’s management port in order to utilize out-of-band (external)

  • Page 57: Poe Injector Installation And Connection

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector Installation and Connection PoE Injector Cable Connection The PoE Injector cables are connected similar to the IP-20S. To connect the Ethernet (CAT5E) cable to the PoE or Data port, refer to •...

  • Page 58: Poe Injector Grounding

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector Grounding To ground the PoE Injector: 1 On the right side of each PoE Injector, loosen the screw, plain washer, and serrated washer. 2 Place the cable lug (supplied with the PoE injector kit) between the plain and serrated washer.
  • Page 59 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 4 Place the washers on the bolt. 5 Tighten the nuts. Page 58 of 105 Ceragon Proprietary and Confidential...

  • Page 60: Poe Injector Pole Mount Installation

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector Pole Mount Installation List of Items Item Description Quantity Remarks PoE Injector Required Tools • Slot Screwdriver Procedure To mount the PoE Injector on a pole: 1 Mount and tighten the PoE Injector to a pole with a diameter of 114 mm using a stainless steel hose clamp.

  • Page 61: Poe Injector 19" Rack Installation

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector 19” Rack Installation List of Items Item Description Quantity Remarks PoE Injector PoE Injector 19” Rack Mount Required Tools • Philips Screwdriver To mount the PoE Injector on a rack: 1 Mount the PoE Injector to a 19”...
  • Page 62 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Page 61 of 105 Ceragon Proprietary and Confidential...

  • Page 63: Poe Injector Etsi Rack Installation

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured PoE Injector ETSI Rack Installation List of Items Item Description Quantity Remarks PoE Injector PoE Injector ETSI Rack Mount Kit Required Tools • Philips Screwdriver To mount the PoE Injector to an ETSI rack: 1 Mount the PoE Injector to an ETSI rack using a 19”...
  • Page 64 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3 Mount the PoE Injector on the adaptor through the wall mounting holes using M6 screws and washers. 4 Mount the 19” rack adaptor with the ETSI ears on the ETSI rack using four M6 screws and cage nuts.

  • Page 65: Generic Installation Procedures And Notes

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Generic Installation Procedures and Notes Torque Requirements When tightening the captive screws, use 20 Nm torque for radio-antenna, radio- mediation device, and mediation device-antenna connections. In order to avoid misalignment, screws should be tightened progressively.

  • Page 66: Figure 5: Mount Ip-20S Dc Pole Mount To Pole

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Figure 18: Mount IP-20S DC Pole Mount to Pole Page 65 of 105 Ceragon Proprietary and Confidential...

  • Page 67: Remote Mount Installation For Single Polarization With An Imperial Waveguide

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Remote Mount Installation for Single Polarization with an Imperial Waveguide List of Items Item Description Quantity Remarks IP-20S RADIO RFU-C ADAPTATION KIT TO FLEXIBLE WG IMPERIAL RFU-C POLE MOUNT KIT FLEXIBLE WAVEGUIDE IMPERIAL KIT Required Tools •...

  • Page 68: Figure 5: Connect Flexible Waveguide And Sealing Gasket To Rfu-C Adaptor Plate

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Mount and tighten the IP-20S radio to the RFU-C Adaptor plate using the four captive screws and washers that are assembled to the IP-20S radio. Pay attention that the O-rings are mounted on the RFU-C Adaptor plate.

  • Page 69: Remote Mount Installation With An Imperial Waveguide - 13-15 Ghz

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 5.3.2 Remote Mount Installation with an Imperial Waveguide – 13-15 GHz 1 Mount the RFU-C Adaptor supplied with the RFU-C Remote Pole Mount kit using the four flat screws supplied with the RFU-C Adaptor kit.

  • Page 70: Remote Mount Installation With An Imperial Waveguide - 18-42 Ghz

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 5.3.3 Remote Mount Installation with an Imperial Waveguide – 18-42 GHz 1 Loosen the 2 screws, and remove the twist. 2 Mount the IP-20S Radio to the RFU-C Pole Mount Bracket using the four captive screws and washers supplied, assembled, in the IP-20S.
  • Page 71 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Page 70 of 105 Ceragon Proprietary and Confidential...

  • Page 72: Ip-20S Detailed Configurations Description

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured IP-20S Detailed Configurations Description 1+0 Direct Mount Installation List of Items Item Description Quantity Remarks IP-20S RADIO Required Tools The following tools are required for the IP-20S installation: Metric offset hexagon key wrench #6 •...

  • Page 73: Figure 18: Horizontal / Vertical Pole

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Figure 21: Horizontal / Vertical Pole Figure 22: Twist Orientation Page 72 of 105 Ceragon Proprietary and Confidential...
  • Page 74 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured ◦ For horizontal polarization, locate the twist with the letter “H” vertical to the hook cover and fasten the two screws. ◦ For vertical polarization, locate the twist with the letter “V” vertical to the hook cover and fasten the two screws.
  • Page 75 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Note: Make sure the polarization mounting direction of the IP-20S is correct. Page 74 of 105 Ceragon Proprietary and Confidential...

  • Page 76: 2+0 Dual Polarization Direct Mount

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2+0 Dual Polarization Direct Mount Note: This procedure can also be used for 1+0DP HW ready for 2+0DP configuration. List of Items Item Description Quantity Remarks IP-20S RADIO RFU-C OMT kit Required Tools Metric offset hexagon key set •...

  • Page 77: Figure 21: Connect Omt Kit To Antenna

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2 Connect the RFU-C OMT Kit to the antenna and secure it with four screws. Verify the existence of the O-ring. Figure 24: Connect OMT Kit to Antenna 3 Mount the two O-Rings supplied with the RFU-C OMT kit on the OMT body.
  • Page 78 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 5 Tilt the entire assembly, as described in the dual polarization link alignment procedure, to achieve maximum XPD (Cross Polar Differentiation). After link alignment, tighten the four M8 screws left open in step 2 above.

  • Page 79: 2+0 Dual Polarization Remote Mount

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2+0 Dual Polarization Remote Mount Note: This procedure can also be used for 1+0DP HW ready for 2+0DP configuration. List of Items Item Description Quantity Remarks IP-20S RADIO RFU-C OMT kit FLEXIBLE WG KIT...

  • Page 80: Common Installation Procedures

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 6.3.1 Common Installation Procedures 1 Prior to the installation, follow the antenna manufacturer’s instructions to use the circular adaptor. (Remove the existing rectangular transition, swap the O- ring, and install the circular transition instead.) Figure 25: Circular Adaptor 2 Connect the RFU-C OMT Kit to the antenna and secure it with four screws.
  • Page 81 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3 Mount the two O-Rings supplied with the RFU-C OMT kit on the OMT body. Make sure the mounting direction is correct, as shown in the section view. This procedure is applicable for all remote mount configurations that involve an OMT.
  • Page 82 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2 For 7-11 GHz (UBR84 and UBR100): Mount the O-Ring supplied with the OMT kit. Mount the OMT adaptor, with its installed sealing gasket, on the OMT, and tighten using the four M4 screws and washers supplied with the OMT Adaptor kit.
  • Page 83 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 4 Loosen the 2 screws, and remove the twist. 5 Mount the IP-20S Radio to RFU-C Pole Mount Bracket using the four captive screws and washers supplied, assembled, in the IP-20S. 6 Connect the Flexible Waveguide and sealing O-Ring supplied with the Flexible Waveguide Imperial kit.

  • Page 84: 1Hsb/2+0 Single Polarization Direct Mount

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 1+1HSB/2+0 Single Polarization Direct Mount Note: This procedure can also be used for 1+0SP HW ready for 2+0 SP configuration. ACCP List of Items Item Description Quantity Remarks IP-20S RADIO RFU-C Coupler/Splitter KIT...
  • Page 85 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Important: Make sure the polarization mounting direction of the twist to the coupler is according to the antenna polarization. 2 Mount the coupler radio on the antenna using the four M8 screws and washers supplied with the RFU-C Coupler kit, and tighten the screws.
  • Page 86 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 3 Mount the two O-Rings supplied with the RFU-C Coupler kit, as shown in the following figure. Page 85 of 105 Ceragon Proprietary and Confidential...
  • Page 87 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 4 Mount the IP-20S to the body of the coupler using the four M8 captive screws and washers that are supplied, assembled, in the IP-20S, and tighten the screws. Page 86 of 105...

  • Page 88: 1Hsb/ 2+0 Single Polarization Remote Mount

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 1+1HSB/ 2+0 Single Polarization Remote Mount Note: This procedure can also be used for 1+0SP HW ready for 2+0SP configuration. ACCP List of Items Item Description Quantity Remarks IP-20S RADIO RFU-C POLE MOUNT KIT...
  • Page 89 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2 Mount the two O-Rings supplied with the Coupler kit, according to the Coupler kit instructions. 3 Mount the IP-20S radio to the body of the coupler using the four M8 captive screws and washers that are supplied, assembled, in the IP-20S, and tighten the screws.
  • Page 90 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 5 Mount the flexible waveguide on the coupler, and tighten the screws and washers. Note: For 6 GHz, only4 screws should be used, as shown in the pictures below. 6 Place the O-Ring in the other end of the flexible waveguide flange groove.

  • Page 91: Installing Ip-20S On Third-Party Antenna Adaptors

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Installing IP-20S on Third-Party Antenna Adaptors Since the IP-20S uses the same antennas as RFU-C, it can utilize the 3 party mediation devices much in the same way they are used with RFU- C installations.
  • Page 92 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Other Vendors 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28-31GHz 32GHz 38GHz Antennas RFU-C - ALU Adapter ADPT_RFU-C13- ADPT_RFU-C18-ALU_Melody ALU_Melody IP-20C/S and RFU-C ADPT-CIRC-RFU- ADPT-CIRC-RFU- ADPT- ADPT- - Dragonwave C_11-DW C_13-DW...
  • Page 93 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Other Vendors 6GHz 7-8GHz 10-11GHz 13GHz 15GHz 18GHz 23GHz 26GHz 28-31GHz 32GHz 38GHz Antennas RFU-C – SIAE ADPT_RF ADAPTOR KIT – Single Polarization C18_SIAE _ANT_SP RFU-C – SIAE ADPT_RF ADAPTOR KIT – Dual...

  • Page 94: Special Note On Converting Valuline 3 Antennas

    Andrew provided special antennas which are not supported by these adaptors, it is recommended that you supply your Ceragon representative with a picture of the current antenna (back plain side), in order to confirm the antenna’s compatibility prior to implementing this solution.

  • Page 95: Appendix A: Mediation Device Losses

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Appendix A: Mediation Device Losses Table 9: IP-20S Mediation Device Losses Configuration Interfaces 6-8 GHz 11 GHz 13-15 18-26 28-42 Flex WG Remote Added on remote Mount mount antenna configurations Direct Mount...

  • Page 96: Appendix B: Acceptance & Commissioning Procedures

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Appendix B: Acceptance & Commissioning Procedures This chapter provides Ceragon's recommended Acceptance and Commissioning Procedure for IP-20. Acceptance and commissioning should be performed after initial setup is complete. The purpose of this procedure is to verify correct installation and operation of the installed link and the interoperability with customer end equipment.

  • Page 97: Site Acceptance Procedure

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Site Acceptance Procedure The purpose of the following procedures is to verify that all installation requirements were noted and checked. Following this procedure will ensure proper, long-lasting, and safe operation of the product.
  • Page 98 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured SITE ACCEPTANCE CHECKLIST (continued) 4. OUTDOOR UNIT Type of ODU mount: (Direct or Remote mount) ODU is securely mounted to the antenna or pole ODU is grounded as per installation instructions ODU‘s polarization is as per link requirements...
  • Page 99 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured SITE ACCEPTANCE CHECKLIST (continued) 7. FLEXIBLE WAVEGUIDE Overall flexible WG length: Flexible WG type: Flexible WG is connected securely to ODU and Antenna Flexible WG connector is weather-proofed (sealed) at the ODU...

  • Page 100: Site Acceptance Checklist Notes

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured SITE ACCEPTANCE CHECKLIST (continued) 10. REMARKS/NOTES 11. GENERAL INFORMATION Name: Title: Site accepted by: Company: Signature: Date: Name: Title: Site approved by: Company: Signature: Date: Site Acceptance Checklist Notes The following notes provide important additional information about the Site Acceptance Checklist.
  • Page 101 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 2 Antenna ◦ Antenna is grounded as per site specifications. See the third point in the Antenna Mounting section above. ◦ Antenna sway braces are fitted and installed correctly, where applicable. Typically, for an antenna of 1.2 m or larger, an extra sway brace is fitted to the mounting frame of the antenna.

  • Page 102: Radio Link Commissioning Procedure

    • remote end (or connect second analyzer). Run Packet Loss test for at least one hour (load rate as per Ceragon's specifications for the chosen MRMC). Connect Ethernet Packet Analyzer to the FE port. Use physical loop at remote •...
  • Page 103 Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured 9.3.2.4 Management Verification • Launch the HTTP management and verify that you can manage the link and that you are able to perform changes to the link configuration (frequency channel, Tx power, system name, time & date, etc.) Verify that correct parameters are reported when performing the above.

  • Page 104: Ip-20 Commissioning Log

    Maintaining the Commissioning Log is important for tracking your installations, and to provide essential data for Ceragon Networks. Upon completing the Commissioning Log, send the log to Ceragon support center at support@ceragon.com. IP-20 LINK COMMISSIONING LOG 1.

  • Page 105: Ceragon Proprietary And Confidential

    Installation Guide for FibeAir IP-20S, FibeAir IP-20S Assured Site 1 Site 2 4. LINK PARAMETERS Link distance: Rain zone: Expected RSL (dBm): Expected Diversity RSL (dBm): RSL Main (dBm): RSL Diversity (dBm): Deviation from exp? RSL ≤4 dB? Site 1 Site 2 5.
