Page 1: Wireless Modem

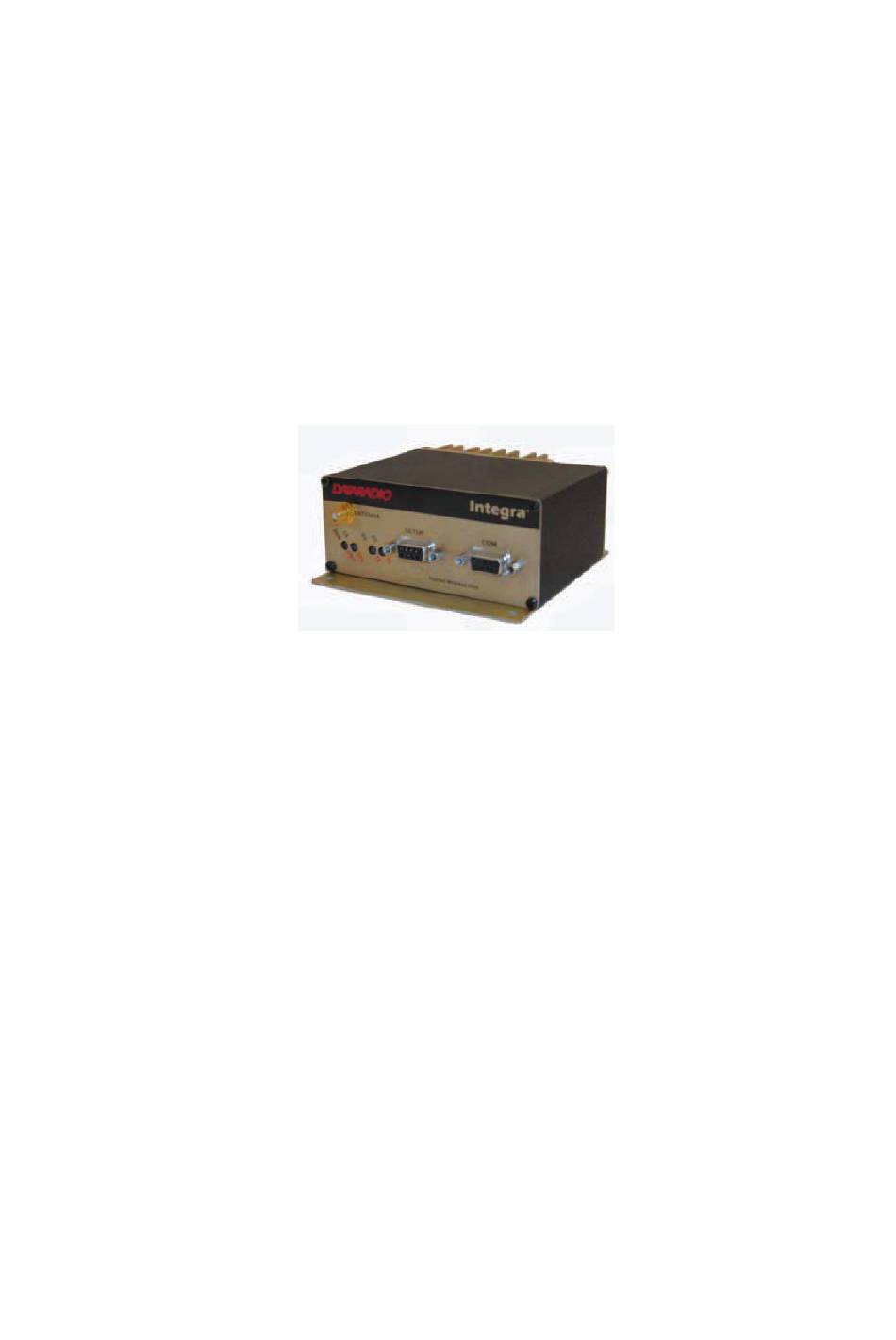

INTEGRA-TR INTEGRATED WIRELESS MODEM INSTALLATION MANUAL March 2005 Revision 013 Part No. 001-4008-101... -
Page 2: Transceiver Identification
7 480-496 MHz 8 496-512 MHz *An F should follow any part number to designate an Integra-TR with the cooling fan option. 1.3.1 TRANSCEIVER IDENTIFICATION The transceiver identification is a random, unique serial number (SN) printed on the box label and model label on the side of the Integra-TR unit. -
Page 3: General Specifications
10 - 16 VDC maximum (nominal 13.3) Fuse protected against reverse voltage (internal surface mount 3A fuse: not field replaceable) Rx Current Drain at 13.3 VDC <220 mA (with a terminal connected to Integra-TR COM port) Tx Current Drain at 13.3 VDC <2.6 A Power Saving Mode Current Drain <20 mA... - Page 4 Modem / Logic Operation Simplex / half duplex Data Bit Rates 25 kHz channel: 4800 b/s, 9600 b/s, 19200 b/s 12.5 kHz channel: 4800 b/s, 9600 b/s 6.25 kHz channel: 2400 b/s, 4800 b/s Modulation Type DRCMSK (Differential Raise-Cosine Minimum Shift Keying) RTS/CTS Delay (RTS mode) 4 ms Addressing...
- Page 5 REQUIREMENTS OF DIRECTIVE 1999/5/EC, ACCORDING TO THE CONFORMITY ASSESSMENT PROCEDURE REFERRED TO IN ARTICLE 10(5) AND ANNEX IV DESCRIPTION OF THE PRODUCT Manufacturer : Dataradio COR Ltd. Address : 299 Johnson Avenue, Waseca, Minnesota United States of America Product Brand name...
- Page 6 Appendix A-2 001-4008-101...
-
Page 7: Declaration Of Conformity
Waseca, MN 56093-0833 USA Phone: 1-800-772-7774; 507-835-8819 Fax: 507-835-6648 Website: www.dataradio.com Declaration of Conformity We, the undersigned, Company Dataradio COR Ltd. Address, City 299 Johnson Avenue, Waseca, Minnesota Country United States of America Phone number +1 507 835 63 48... - Page 8 Appendix A-4 001-4008-101...
-
Page 9: Csa Certificate
CSA CERTIFICATE Appendix A-6 001-4008-101...
