Summary of Contents for HiVi H5MKII

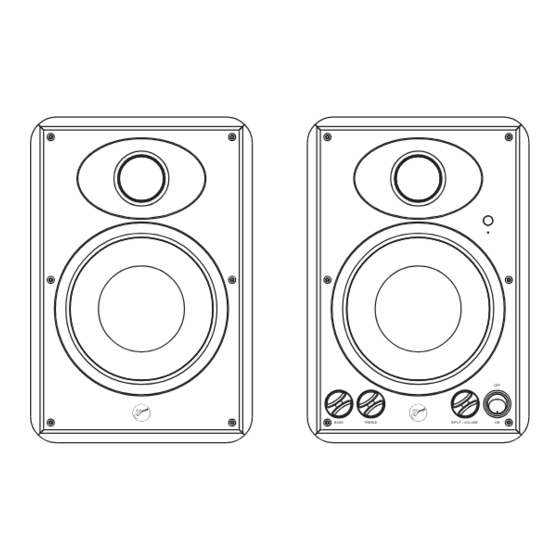

- Page 1 HiVi H5MKII Multimedia Active Speaker Manual BASS TREBLE INPUT / VOLUME Designed by HiVi Acoustics, Inc.
-
Page 2: Important Safety Instructions Warning
Warning IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. CAUTION DO NOT OPEN RISK OF ELECTRIC SHOCK The lightning flash is intended to alert you to the presence of uninsulated “dangerous voltage”... -
Page 3: Power Source
Warning When repairing or replacement of parts is required, make sure the service technician has used the parts/components specified by the manufacturer or parts/components that have the same characteristics as the original parts/components. Unauthorized substitutions may result in risk of fire, electric shock or other hazards. POWER SOURCE Before connecting this product with AC outlet, do check and make sure the electric supply voltage is as same as it is marked on the rear panel of this product. - Page 4 Please make sure all the following components are in the box. BASS TREBLE INPUT / VOLUME POWER MUTE AUX1 AUX2 HiVi H5MKII WiFi Multimedia Active Speaker Manual COAX VOLUME BASS TREBLE INPUT / VOLUME Designed by HiVi Acoustics, Inc. Manual...
-
Page 5: Speaker Out
Unpacking & Schematic Diagram Multimedia Active Speaker Model: HiVi H5MKII Power: 100-240V~ 50/60Hz 0.96A 96W Designed by HiVi Acoustics, Inc. Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.China CAUTION FCC ID: 2ANSM-HIVI DO NOT OPEN... -
Page 6: Speaker Connection
Speaker Connection Multimedia Active Speaker Model: HiVi H5MKII Power: 100-240V~ 50/60Hz 0.96A 96W Designed by HiVi Acoustics, Inc. Zhuhai HiVi T echnology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.China CAUTION FCC ID: 2ANSM-HIVI DO NOT OPEN... -
Page 7: Wifi Connection
Enter the password for "HiVi H5MKII_xxxx" Cancel Cancel Enter Password Join Password 1) Open Settings app on your phone and select WiFi. Choose HiVi H5MKII _ xxxx. Enter password 12345678. 2) Connected. 3) Open music player and enjoy your music. Click icon and choose HiVi H5MKII_ xxxx. -
Page 8: Wireless Connection
Cancel XXXXX3 XXXXX4 1) Open Settings app on your phone and select WiFi. Choose HiVi H5MKII_ xxxx. Enter password 12345678. 2) Connected. 3) Open browser and enter website 10.10.10.254. 4) Choose your home WiFi network and connect. Note that no special characters are allowed in the password to your WiFi network. - Page 9 WiFi Connection Settings: Welcome Status Setting WiFi Status System Network WLAN：network disconnected Browser Version Information Select A Wireless Network HiVi H5MKII_xxxx SSID： HiVi H5MKII_xxxx Device Name： XXXXX Language: en us 取消 10.10.10.254 XXXX 1 Firmware Version: release 3.5.3715.0 Release Date: 2017.06.02...
-
Page 10: Speaker Placement
60cm< < d 100cm BASS TREBLE INPUT / VOLUME Specifications Model HiVi H5MKII Series Professional DSP 2.0 multimedia speaker system System Type 2-way 4th-order vented box system Drivers Configuration 5.25" midbass driver ; 1" metal dome tweeter Frequency Range 56Hz - 20kHz ±3dB (Free Space) -
Page 11: Maintenance
Break-in Break-in is the procedure which can enable the speakers to perform best acoustically. A period ranging from 48-100 hours of usage is recommended before both the amplifier and speaker drivers behave optimally. Alternatively, you can listen 2 or 3 hours every day at a medium volume, and the speakers will be broken-in one month or so. - Page 12 Fax:+1 626 930 0609 https://swanspeakers.com HiVi China Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.China Due to the reasons in the change of design or others, product information contained here may not be in conformity with product itself. We reserve the right of no prior notice before change.
