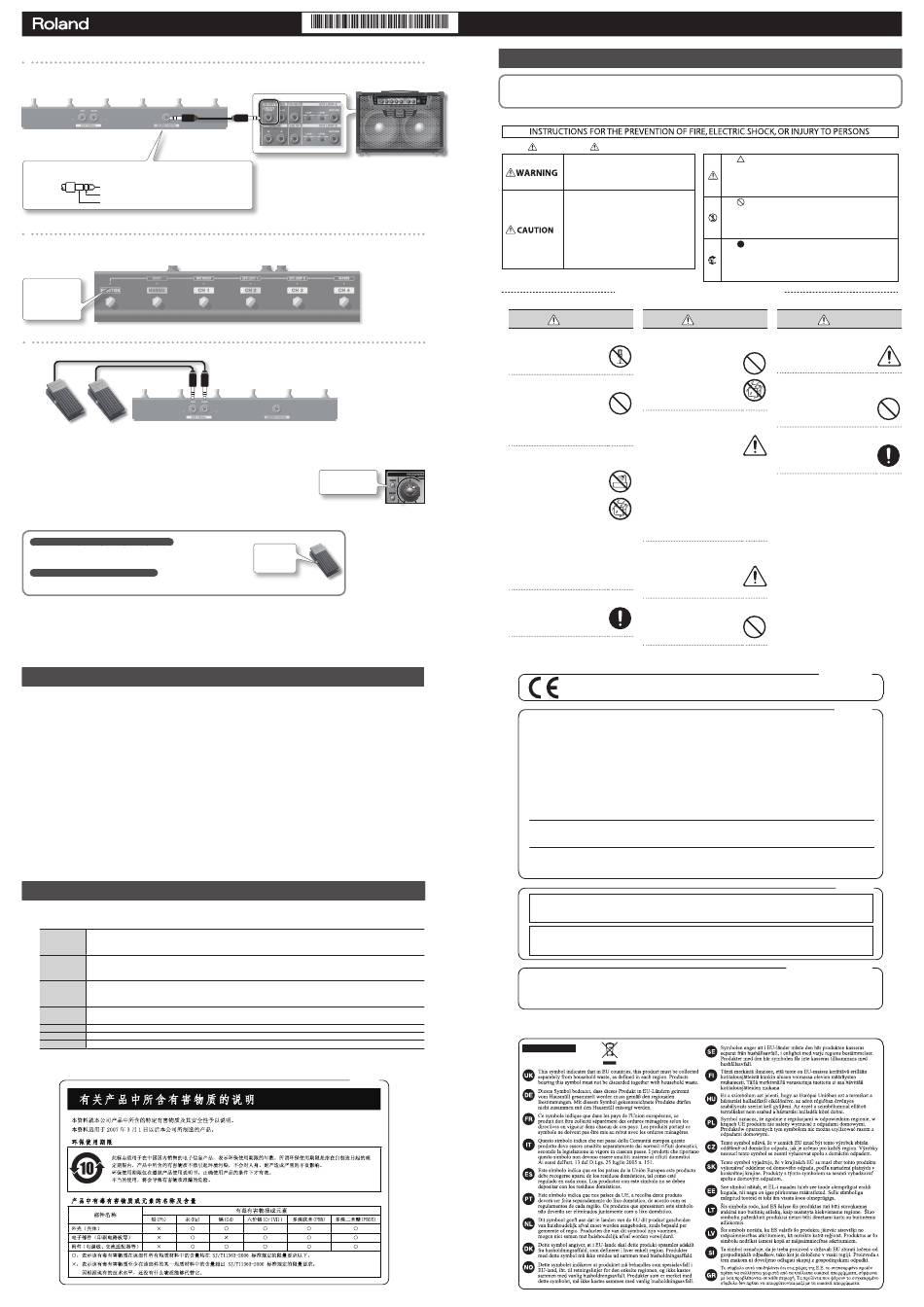

Roland GA-FC Owner's Manual

GA-FC Owner's Manual
Connecting the foot controller
Connect a stereo cable to the FOOT CONTROL/LINK IN jack of the GA-212/GA-112.
* Always use a stereo cable.
* Use cables that do not contain resistors.
* This instrument is equipped with TRS type jacks. Wiring diagrams for these
jacks are shown below.
TIP
RING
SLEEVE (GND)
How to operate the foot controller
You can change channels by using the foot controller. By pressing the [FUNCTION] switch, you can also turn on/off BOOST, MID BOOST, EFX LOOP A, EFX
LOOP B, and REVERB.
* The ON/OFF operation of BOOST, MID BOOST, EFX LOOP A, EFX LOOP B, and REVERB using the foot controller is not saved in the channel.
Blinks in the
FUNCTION mode.
Using the expression pedals
By connecting expression pedals (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately), you can change the DRIVE value and volume by pedal.
DRIVE jack
Use this to control DRIVE. When BOOST is off, the sound can be changed from clean to crunch, and when BOOST is on, changed from clean to super
extreme.
With an expression pedal connected to the DRIVE jack, the drive value can be controlled from 0 to the current
DRIVE value on the panel. When the pedal is pressed fully down, the drive value shown by the panel knob will be
applied.
VOLUME jack
This is for controlling the volume. Volume swell and mute are possible.
* The volume that you can control with the expression pedal connected to this jack is different from the [VOLUME] on the panel. The pedal
operation is not linked to the [VOLUME] knob level.
Setting MINIMUM VOLUME of an expression pedal
With the [MINIMUM VOLUME] knob of an expression pedal, you can set the value for
when the pedal is lifted up all the way (lowest value).
DRIVE value settings after changing channel
When an expression pedal is connected to the DRIVE jack, you can set the DRIVE value after changing channel to the
current pedal value, not the value saved in the channel. To make the setting, see "GA-212/GA-112 Owner's Manual."
* Use only the specified expression pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately). By connecting any other expression pedals,
you risk causing malfunction and/or damage to the unit.
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
IMPORTANT NOTES
Maintenance
Placement
• This device may interfere with radio and television • For everyday cleaning wipe the unit with a soft,
reception. Do not use this device in the vicinity of dry cloth or one that has been slightly dampened
with water. To remove stubborn dirt, use a cloth
such receivers.
impregnated with a mild, non-abrasive detergent.
• When moved from one location to another where
Afterwards, be sure to wipe the unit thoroughly
the temperature and/or humidity is very different,
with a soft, dry cloth.
water droplets (condensation) may form inside
the unit. Damage or malfunction may result if you • Never use benzine, thinners, alcohol or solvents of
attempt to use the unit in this condition. Therefore, any kind, to avoid the possibility of discoloration
before using the unit, you must allow it to stand and/or deformation.
for several hours, until the condensation has
Additional Precautions
completely evaporated.
• Use a reasonable amount of care when using
• Depending on the material and temperature of the
the unit's switches; and when using its jacks
surface on which you place the unit, its rubber feet
and connectors. Rough handling can lead to
may discolor or mar the surface.
malfunctions.
You can place a piece of felt or cloth under the
rubber feet to prevent this from happening. If you
• When disconnecting all cables, grasp the connector
do so, please make sure that the unit will not slip or
itself—never pull on the cable. This way you will
move accidentally.
avoid causing shorts, or damage to the cable's
internal elements.
• Swiftly wipe away any liquid that spills on the unit
using a dry, soft cloth.
Main Specifications

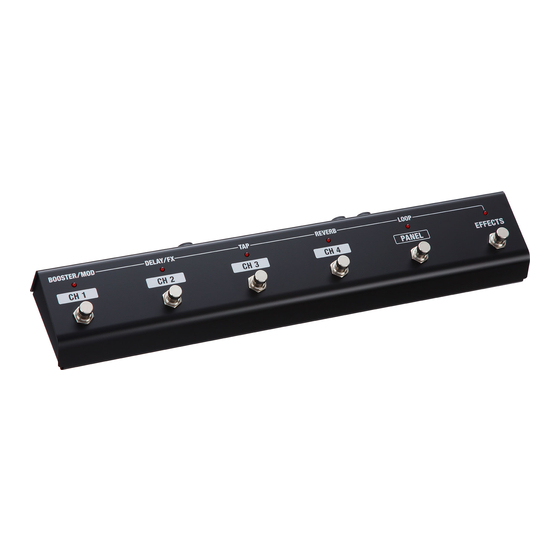

Roland GA FOOT CONTROLLER (GA-FC): Foot Controller
[FUNCTION] switch
Controls [MANUAL] switch
[CH 1]–[CH 4] switches
FUNCTION
Indicators MANUAL
CH 1–CH 4
EXP PEDAL DRIVE jack (1/4-inch TRS phone type)
Connectors
EXP PEDAL VOLUME jack (1/4-inch TRS phone type)
GA FOOT CONTROL jack (1/4-inch TRS phone type)
392 (W) x 81 (D) x 49 (H) mm
Dimensions
15-7/16 (W) x 3-3/16 (D) x 1-15/16 (H) inches
Weight 1.0 kg / 2 lbs 4 oz
Accessories Owner's Manual, Foot Controller Cable
Options Expression Pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H)
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
* 5 1 0 0 0 2 9 0 5 3 - 0
GA-212/GA-112
Rear side
(Example)
Drive values that can
be controlled with the
expression pedals.
[MINIMUM
VOLUME]
knob
• When you need to transport the unit, package it
in the box (including padding) that it came in, if
possible. Otherwise, you will need to use equivalent
packaging materials.
• Use only the specified expression pedal (Roland EV-
5, BOSS FV-500L, BOSS FV-500H; sold separately).
By connecting any other expression pedals, you risk
causing malfunction and/or damage to the unit.
Copyright
• Roland, BOSS, COSM are either registered
trademarks or trademarks of Roland Corporation in
the United States and/or other countries.
• MMP (Moore Microprocessor Portfolio) refers to a
patent portfolio concerned with microprocessor
architecture, which was developed by Technology
Properties Limited (TPL). Roland has licensed this
technology from the TPL Group.
For China
2 *
