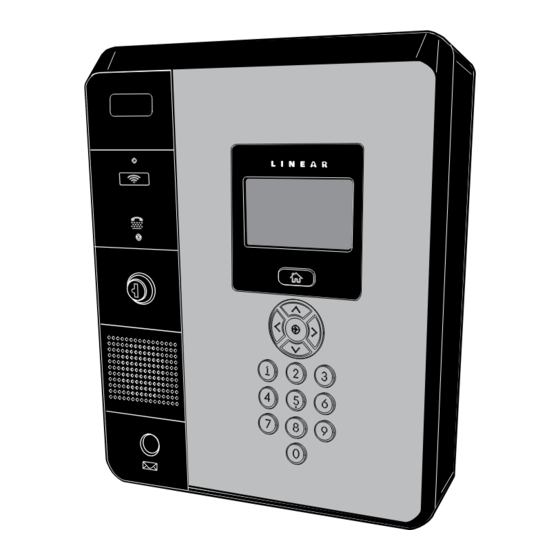

- Page 1 EN Series / EXN Telephone Entry & Access Control System ( EXN ) (EN-2A4) Quick Start Guide (P/N: EN-2A4 / EN-2M4, EN-2A7 / EN-2M7, EN-2A10 / EN-2M10, and EXN)
- Page 2 IMPORTANT COMPATIBILITY NOTE: The legacy Linear access control Models AE-1000, AE1000Plus, AE-2000, AE2000Plus, AM3, and AM3Plus are of a different hardware and software design and CANNOT be used in networks mixed with the new generation Models EN-2A4 / EN-2M4, EN-2A7 / EN-2M7, EN-2A10 / EN-2M10 and EXN.
-
Page 3: Connecting The Network
Preparing for the Network To allow for the EN Series unit to be recognized on the local network, it is necessary to change the controller’s IP address. Connect your programming computer directly to the Ethernet port of the controller. Assign a static IP address of 192.168.0.149 to the computer. (For instructions on how to change the static IP address of a Windows computer, please visit: http://technet.microsoft.com/en-us/library/ff 710457). - Page 4 Identifying the Server and Client EN Series units provide the ability to add additional controllers to expand the amount of doors, inputs, and outputs. These additional controllers are referred to as clients. A client can be mounted on top of the main controller (server) or in a separate enclosure. IP Installer is a utility located on a thumb drive shipped with all systems.
- Page 5 Important: Please contact Nortek Security and Control technical support for assistance during this implementation. (800)-421-1587 or 760-438-7000 Note: All TE controllers and clients must be operating on the same software revision. System failure may occur if not updated to the same software revision. Refer to Nortek Security and Control technical support for assistance in determining and/or updating the software revision.
- Page 6 Controller to Client Conversion (continued) Locate the license client key sheet document contained in the manual and hardware packet. The system now will provide a new license key. When this key is applied to license the panel will convert from a server role to a client role Copy this key so it can be pasted into the license screen.
- Page 7 Controller to Client Conversion (continued) 14. The license page provides Software version, MAC Address and Edit key to change the license key. 15. Click on the Edit key and past the new license 16. Click Save. NOTE: The TE Front End is now a client which can be added to the EN Models as an expansion Module. The license screen will now say TE 2 Door Client. 17.
-
Page 8: Creating A New User Profile
Creating a New User Profile Specific information must be input into the system to establish basic user profile. Perform the following steps to create a new user profile. On the main navigation menu, Click New User button. The Resident data entry fields will appear. Input relevant data into data entry boxes provided under the Personal section. - Page 9 EN Unit Operation Requesting Access with an Entry Code • Residents have up to 40 seconds to key in their entry code. • Up to eight seconds are allowed between each keystroke. • All digits of the entry code must be entered. Example: If the entry ENTRY CODE AT LOCAL KEYPAD code length is set for four digits, and the code is 0042, the user must enter “0 0 4 2”.
-
Page 10: Limited Warranty
Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Nortek Security & Control LLC for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation.
