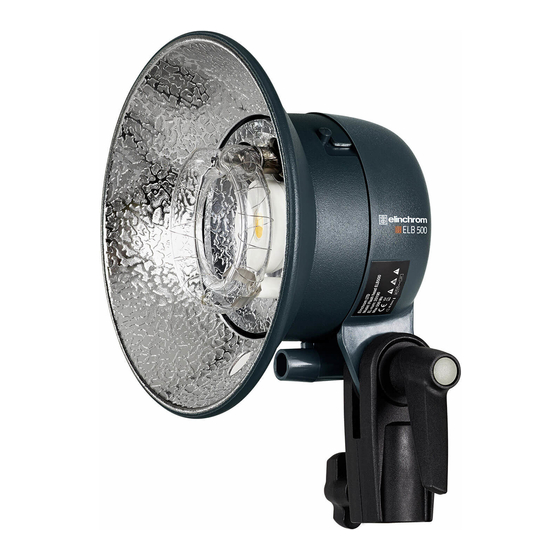

Elinchrom ELB 500 User Manual

Ttl unit
Hide thumbs Also See for ELB 500:
Table of Contents

Advertisement

Quick Links

See also: User Manual
USER MANUAL
GEBRAUCHSANLEITUNG
MANUEL D'UTILISATION
MANUALE D'USO
MANUAL DE FUNCIONAMIENTO
MANUAL DO USUÁRIO
GEBRUIKSAANWIJZING
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ユーザーマニュアル
用户手册
Elinchrom LTD – ELB 500 TTL Unit – 01.2018
ELB 500 TTL UNIT
EN
DE
FR
IT
ES
PT
NL
RU
JP
CN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELB 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Elinchrom ELB 500

Summary of Contents for Elinchrom ELB 500

  • Page 1 USER MANUAL GEBRAUCHSANLEITUNG MANUEL D’UTILISATION MANUALE D’USO MANUAL DE FUNCIONAMIENTO MANUAL DO USUÁRIO GEBRUIKSAANWIJZING РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ユーザーマニュアル 用户手册 ELB 500 TTL UNIT Elinchrom LTD – ELB 500 TTL Unit – 01.2018...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ELB 500 TTL POWER PACK CHARACTERISTICS BEFORE YOU START GENERAL USER SAFETY INFORMATION CONTROL PANEL MENU FEATURES RADIO FEATURES & SETUP SKYPORT MODE PHOTTIX MODE FLASH MODE SETUP ELB 500 BATTERY ELB 500 HEAD TROUBLESHOOTING MAINTENANCE...

  • Page 3: Introduction

    Your Elinchrom-Team This manual may show images of products with accessories, which are not part of sets or single units. Elinchrom set and single unit configurations may change without advice and may differ in other countries. Please find actual configurations at www.elinchrom.com...
  • Page 4 ELB 500 TTL CHARACTERISTICS The ELB 500 TTL unit implements manual, action and TTL modes. The TTL (Through the Lens Metering) mode allows you to access fully automatic exposure setups according to your digital camera capabilities. If you wish to work in the manual mode or combine both modes, the unit enables you to save the TTL exposure parameters as a starting point when passing to the manual mode.
  • Page 5 • 1/20000 s flash duration at 7.1 ws • Saves the TTL power as a starting point for the manual mode ELB 500 LI-ION BATTERY FEATURES • Lightweight Li-Ion battery technology, only 0.73 kg • Approx. 400 flashes at full power.

  • Page 6: Before You Start

    Ultra-compact design with flexible 2.5 m cable • Universal use: single head for Hi-Sync and normal mode • Dedicated flash tube for the ELB 500 head • LED modelling lamp 14W (40 steps), 5200K, 90 CRI • 7 mm umbrella shaft •...
  • Page 7 • Never flash into the eyes of a subject without warning. Close use, may affect eyesight. • The ambient temperature whilst the unit is in use: min. -20°C (-4°F) up to max. 35°C (95°F). Storage temperature: -10°C up to 60°C, optimal charging temperature: 0°C up to 45°C. •...
  • Page 8 Loss of awareness • Seizures or convulsion BATTERY SAFETY NOTICE IMPORTANT! FOR YOUR SAFETY do not use the Battery Pack for a purpose other than those specified, USE WITH ELINCHROM EQUIPMENT ONLY! • To recharge the Battery Pack, use ONLY the Elinchrom...
  • Page 9 Li-Ion Battery Charger. If the recharging operation fails to complete even when a specified recharging time has elapsed, immediately stop further recharging and disconnect the charger. • If the Battery Pack gives off odours, generates heat, becomes discoloured or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or Battery Charger and stop using it.
  • Page 10 OTHER HAZARDS Store the Battery Pack in a location where children cannot reach it. Do not put the Battery Pack into a microwave oven or a pressurized container. OUTDOOR USE CAUTION! PROTECT THE BATTERY PACK AGAINST HUMIDITY! This product is designed for dry use and should not come into contact with water or dust.

  • Page 11: Control Panel

    CONTROL PANEL CONTROL PANEL Outlet B Outlet A Outlet A activation Menu access Modelling Lamp button: short push (on/off) / long push (menu access) 4.3’’ OLED Display Scroll button Unit switch On /Off Menu navigation button (right / exit) Flash test button Menu navigation button (left / back) Outlet B activation...
  • Page 12 DISPLAY PANEL – DASHBOARD The main dashboard displays essential information about one or two head settings. The colours of the upper bar correspond to the group number : blue for group 1, yellow for group 2, red for group 3 and green for group 4.
  • Page 13 Dashboard views: One head view Two head view...
  • Page 14 Skyport Synchronisation Skyport frequency channel and group number Photocell status Action mode Eco mode Battery charge status Power outlet B modelling lamp status Power setting of the B outlet in f-stop equivalent Flash Duration value of the B outlet* Increase selected outlet by 1 f-stop Decrease selected outlet by 1 f-stop Flash Duration value of the A outlet* Power setting of the B outlet in f-stop equivalent...
  • Page 15 CONTROLLING THE LED / MOD LAMP MENU ACCESS • A short press on the modelling lamp button turns on the LED lamp of the ELB 500 Head. • A long press on the modelling lamp button opens the modelling lamp setup menu and switches on the modelling lamp.
  • Page 16 MODELLING LAMP MENU FEATURES Enter the Modelling lamp setup menu with a long press on the modelling lamp button. This operation will also switch on the modelling lamps. You can directly adjust the total power of the two modelling lamps by turning the scroll button. To select the modelling lamp of the A or B outlet separately, press the A or B button.
  • Page 17 MENU OPTIONS DESCRIPTION HOW TO Mode Please choose Shortcut mod. lamp between the free mode: short press or the proportional on the scroll button. mod. lamp value setting. Free Power value of the Use the scroll button modelling lamp is to set the value, independent of the the setting will be...

  • Page 18: Menu Features

    The manual / TTL functionalities are supported according to the transmitter type. The ELB 500 TTL unit supports the Skyport HS (TTL functionallity is only available after firmware update), Elinchrom Pro as well as the Odin2 (Phottix) transmitters with TTL.

  • Page 19: Skyport Mode

    SKYPORT MODE The Skyport options allow you to select the pulse speed (Normal or Speed Sync mode) of the synchronisation signal and to define group and channel settings. The “normal” synchronization mode is good for long distances. The “speed” sync mode might be needed for future cameras which may require a faster communication.

  • Page 20: Flash Mode Setup

    FLASH MODE SETUP ACTION MODE When the Action mode is activated, the unit offers a fast optimised flash duration, to freeze motion. RECYCLING TIME The flash mode menu enables you to set the recycling time to fast or to eco, to save the battery. EXTRAS Extra settings include the power setting, the audio setting options and...
  • Page 21 flashtube. If you want to personalise the name of your unit, use the Elinchrom App for IOS or the WIN / MAC computer software.The name will appear in the Info section (friendly name).

  • Page 22: Elb 500 Battery

    ELB 500 BATTERY ELB 500 LI-ION BATTERY FEATURES The Li-Ion Battery Pack is intended to be used with the ELB 500 TTL flash unit ONLY. Please use ONLY the original Elinchrom Lithium Battery Charger! Store the ELB 500 battery always disconnected from the flash unit.
  • Page 23 ELB 500 battery charger socket Battery terminals (fully symmetrical) Locking mechanism State of charge LED Indicator Battery recovery button BATTERY PACK CONNECTION INSTRUCTIONS The Li-Ion Battery Pack is intended to be used with the ELB 500 TTL flash unit ONLY.
  • Page 24 TO DISCONNECT THE BATTERY PACK FROM THE ELB 500 TTL UNIT: Place the ELB 500 TTL pack on a flat, dry and clean surface. Press the locking buttons on both sides and lift the unit as shown in the picture below.
  • Page 25 CHARGE DURATION The ELB 500 Battery charges to 90% in approximately 100 minutes. However, the charge duration may vary depending on the battery’s initial state of charge. CAUTION! The charge duration will be significantly longer if the battery has been left completely discharged for weeks.

  • Page 26: Elb 500 Head

    90 CRI, adjustable in 40 steps. ACCESSORY REMOVING / FITTING ADVICE Always switch the power pack off, before attaching accessories. Mount the ELB 500 head onto a tripod and lock the security screw. Press the ELB 500 head locking knob firmly down and turn the reflector to the left.
  • Page 27 Never touch the metal electrodes. Now replace with a new correct original Elinchrom flashtube. An insulated tissue or security gloves MUST BE USED. Any contact with your fingers on the tube, can cause dark markings on the tube when used.

  • Page 28: Troubleshooting

    The “head error” message appears if a Quadra head is connected which is not the ELB 500 head. Please ensure that only the ELB 500 head is used with the ELB 500 TTL unit. Never plug any head of other brands into this unit, apart from...
  • Page 29 ERROR TABLE ERROR NUMBER DESRIPTION SOLUTION Capacitors over Restart after 2 voltage min.-> Service Charge Timeout Restart after 2 min.-> Service Unstable voltage Restart after 2 (Charge hold error) min.-> Service Battery current Restart after 2 fault (battery min.-> Service current overtime) Ignition voltage Restart after 2...

  • Page 30: Maintenance

    MAINTENANCE The ELB 500 TTL power pack and heads require only very little maintenance. To ensure secure operation please check the following points regularly before connecting the head to the power pack: • Ensure that the contacts of the flash head connector are not burned or corroded.
  • Page 31 STORAGE AND TRANSPORTATION RECOMMENDATIONS To improve the lifetime and security of your battery, please disconnect the ELB 500 battery for storage. To avoid progressive battery discharge (so called SELF-DISCHARGE*) which can cause a DEEP DICHARGE MODE**, please do not store fully charged battery packs for more than 3 to 6 months without use.

  • Page 32: Disposal And Reycling

    Used Batteries may need to be recycled. Check your local regulations! If you have any question on disposal, please contact your local office or your local ELINCHROM distributor (please visit our website for a list of all ELINCHROM distributors worldwide).

  • Page 33: Technical Data

    TECHNICAL DATA OF ELB 500 TTL POWER PACK Product Name and article ELB 500 TTL (10232.1) Accessories ELB 500 Li-Ion Battery (19297) ELB 500 Head (20190) ELB 500 Charger (19277) Li-Ion Battery Car Charger (11038) Snappy for ELB 500 TTL...
  • Page 34 Radio receiver (built-in) Skyport protocol (20 frequency channels, 4 groups) / Phottix Odin II (27 frequency channels, 4 groups) Recycling FAST at full power 2 sec. Recycling ECO at full power 3.5 sec. Flash specifications Best flashduration in Action 1/20 000 (7.1 ws) mode at min.
  • Page 35 Outdoor: 10m line of sight Sync socket 3.5 mm jack Sync voltage Battery Pack ELB 500 Li-Ion Battery / 19297 14.4V / 5 Ah / 72 Wh 100 / 240V, 50-60 Hz Charger input voltage range, AC Charging time to 90% 100 min.

  • Page 36: Legal Information

    LEGAL INFORMATION FCC CLASS B COMPLIANCE STATEMENT Product name ELB 500 TTL (10232.1) Accessories ELB 500 Li-Ion Battery (19297) ELB 500 Head (20190) ELB 500 Li-Ion Charger (19277) Li-Ion Car Charger (11083) Trade name ELINCHROM Name of responsible ELINCHROM LTD...
  • Page 37 Connect the equipment into a power outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. Modifications: Changes or modifications not approved by ELINCHROM LTD can void the user’s authority to operate the equipment.

  • Page 38: Declaration Of Conformityusa & Canada

    The shipped version of this device complies with the requirements of European Directives related with it, therefore it is marked with the CE conformity logo. For more information and to download the European Declaration of Conformity of this product, please, visit our website http://www.elinchrom.com/support_downloads.php...
  • Page 39 Please get the complete user guide at this link: http://www.elinchrom.com/support_downloads.php DOWNLOAD CONFORMITY Please find the declaration for EC conformity and USA & Canada conformity on the Elinchrom website. Please check all security documents before use! http://www.elinchrom.com/support_downloads.php LI-ION BATTERY SECURITY Please download the battery security:...
