INSTALLATION OF THE HARD DISK DRIVE

IN THE DXR4280UQ (80 GB HDD)
PLEASE MAKE SURE THAT YOU SET THE HARD DRIVE TO MASTER. FOR MORE
INFORMATION PLEASE CONTACT THE MANUFACTURER OR REFER TO THE
The HDD serves the same purpose in a DVR as a video cassette does in a VCR.
However, installing the HDD is a bit more complicated. Please follow the next steps
carefully in order to ensure proper installation.

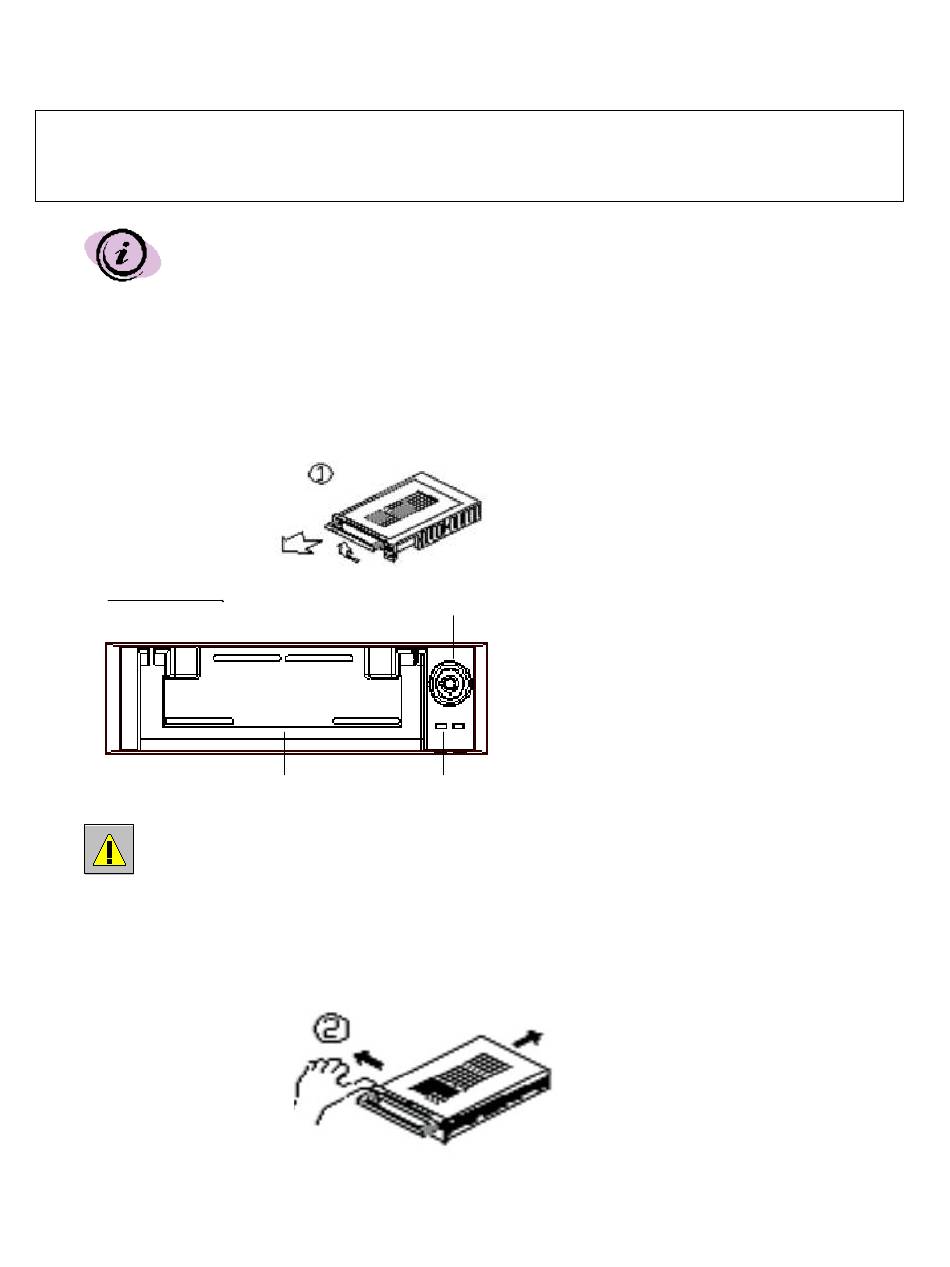

The compartment located on the front panel of the DVR is the removable Cartridge Casing in which you
insert the HDD. The various parts of the Cartridge Casing are labeled for your reference.

Remove the Cartridge Casing from the DVR

1.
Lift the Handle and pull towards you. The Cartridge Casing will slide out of the DVR.
Cartridge Casing
YOU MAY FIND THAT THE CARTRIDGE CASING IS LOCKED. IN THIS CASE, SKIP
AHEAD TO STEP 8 TO FIND INSTRUCTIONS ON UNLOCKING THE CABINET, THEN
RETURN TO STEP 2.

Remove the Cover from the Cartridge Casing

2.
a) Unclip the release latch with the word "OPEN" printed beside it by gently pushing on the latch.
b) Slide the cover off the Cartridge Casing.

Connect the 80 GB HDD into the Cartridge Casing

3.
Take the Hard Disk Drive and Connect the two cables from the back of the Cartridge Casing to the HDD.
The cables should be pushed in firmly, but not forcibly.
OWNER'S MANUAL
1
3 2
1. Keyhole
2. LED indicator lights
(Power indicator & HDD Access indicator)
3. Handle
