  • Page 1 User Manual D241 Series...
  • Page 3 User Manual D241 Series #LX400111; r. 2.0/56089/56100; en-US...
  • Page 4 Thank you for purchasing this product. Lorex Corporation is committed to providing our customers with a high quality, reliable security solution. This manual refers to the following models: D241A81B D241A82B For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at: lorex.com...

  • Page 5: Table Of Contents

    STEP 3: Connect mouse ..............7 STEP 4: Connect monitor ..............8 STEP 5: Connect power ..............8 STEP 6: Lorex Setup Wizard ............9 STEP 7: Upgrade Firmware to Latest Version (If Available) ....... 9 Quick Access to System Information..........10 Camera Installation................11...
  • Page 6 Table of contents Motion Detection ..................34 11.1 Configuring Motion Detection ............34 11.2 Search for Person/Vehicle Detection Events .........39 Active Deterrence..................40 12.1 Automatic Deterrence Settings ............40 12.2 Manually Activate Deterrence Features..........42 Managing Passwords and User Accounts ............43 13.1 User Accounts ................43 13.1.1 Changing Passwords ............43 13.1.2 Adding Users..............44 13.1.3 Modifying Users ...............45...
  • Page 7 14.10.6 Load ................78 14.10.7 Network Test ..............78 14.10.8 BPS ................79 14.11 Copying Settings to Another Channel..........79 Connecting Remotely using the Lorex Home Mobile App ........80 Smart Home & Voice Assistance ...............81 Pan/Tilt/Zoom (PTZ) Cameras ..............82 17.1 Connecting PTZ Cameras to the Recorder..........82 17.2...
  • Page 8 Table of contents 22.6 Storage................... 102 22.7 Special Features ................ 102 22.8 Smart Home................103 22.9 Connectivity ................103 22.10 Additional Specifications ............. 103 Notices ..................... 104 23.1 FCC/IC .................. 104 23.2 CE ..................104 23.3 Modification ................104 23.4 RoHS..................

  • Page 9: Important Safeguards

    Important Safeguards In addition to the careful attention devoted to quality standards in the manufacturing process of your product, safety is a major factor in the design of every instrument. However, safety is your re- sponsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment.
  • Page 10 Important Safeguards 5. Power Sources: This product should be operated only from the type of power source indi- cated on the marking label. If you are not sure of the type of power supplied to your location, consult your video dealer or local power company. For products intended to operate from bat- tery power, or other sources, refer to the operating instructions.

  • Page 11: Service

    Important Safeguards 1.3 Service 1. Servicing: Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 2. Conditions Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...

  • Page 12: Package Contents

    Package Contents Your security recorder package includes the following components: 1080p HD Security DVR Power Adapter Ethernet Cable USB Mouse HDMI Cable NOTE Hard drive size, number of channels, and camera configuration may vary by model. Please refer to your package for specific details.

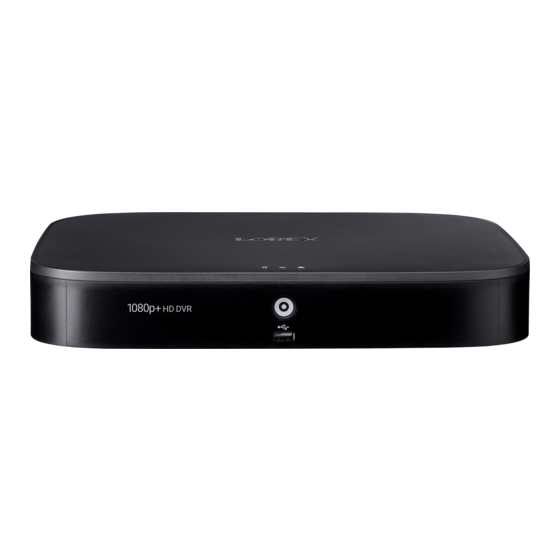

  • Page 13: Recorder Overview

    3. USB Port: Connect a USB mouse (included) to control the system, or a USB flash drive (not included) for data backup or manual firmware updates. 3.2 Back Panel 1. Video Inputs: Connect Lorex HD or standard analog cameras to the system. For a full list of compatible cameras, visit lorex.com/compatibility.
  • Page 14 Recorder Overview 6. USB Port: Connect a USB mouse (included) to control the system, or a USB flash drive (not included) for data backup or manual firmware updates. 7. DC 12V: Connect the included power adapter. 8. ON/OFF Switch: Turns the DVR on/off. 9.

  • Page 15: Basic System Setup

    This step is for verification of the camera image only. It is recommended to connect cameras to a nearby power adapter for this step. The Lorex Setup Wizard that runs at startup will assist you in naming and organizing your cameras, so it is also recommended to leave cameras connected until the wizard asks you to install cameras in their permanent mounting location.

  • Page 16: Step 4: Connect Monitor

    Basic System Setup 4.4 STEP 4: Connect monitor Connect the recorder to a monitor using the included HDMI cable. Connect the recorder to a monitor using a VGA cable (not included). CAUTION The system will automatically match the resolution of the connected monitor the first time you use the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor BEFORE switching.

  • Page 17: Step 6: Lorex Setup Wizard

    4.6 STEP 6: Lorex Setup Wizard When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard will help you configure core system settings and set up your cameras. It is recommended to review 5 Cam- era Installation, page 11 before choosing a permanent mounting position for your cameras.

  • Page 18: Quick Access To System Information

    Basic System Setup 4.8 Quick Access to System Information Perform one of the following actions to bring up the system information window. This window contains vital system information including the model number, serial number, and device ID. NOTE The QR code shown on this screen can be scanned during mobile setup to enter the system’s device ID. To quickly open a window that displays important system information: •...

  • Page 19: Camera Installation

    Ensure that you review 5.2 Ensuring Accurate Person/Vehicle Detection, page 11 for channels you are planning to use Person/Vehicle detection on. NOTE Cameras differ in terms of mounting instructions. Please see your camera’s documentation at lorex.com for specif- ic installation instructions. 5.1 Installation Tips General camera installation tips that apply to all camera models.

  • Page 20: Installing Cameras

    5.3 Installing Cameras 1. Mount the cameras to the desired mounting surface according to the instructions that came with the cameras (visit lorex.com for the most up-to-date documentation). Choose a firm mounting surface that can support the full weight of the camera.

  • Page 21: Connecting Camera Extension Cables

    For all extension cable options, including maxi- mum extension cable length, refer to your camera’s documentation at lorex.com. 1. Connect the male power connector on the BNC extension cable to the female power connector on the camera.

  • Page 22: Using The Mouse

    Using the Mouse The mouse is the primary control device for the system. Connect the included mouse to the USB port on the front or rear panel. 1. Left-button: • In live view, while in a split-screen display mode, click an individual channel to view it in full-screen.

  • Page 23: Using The On-Screen Display

    Using the On–Screen Display Use the system’s on–screen display to navigate menus and configure options and settings. NOTE To access the on-screen display, you must connect the included mouse and a monitor (not included) to the recorder. See 4 Basic System Setup, page 7 for full instructions. 7.1 Navigation Bar The Navigation Bar along the bottom of the recorder’s Live View display allows you to access the Main Menu and control basic functions of the recorder.

  • Page 24: Camera Toolbar

    Using the On–Screen Display • Right-click anywhere on the Live View screen. 1. Main Menu: See 14 Using the Main Menu, page 48 for full instructions on using the Main Menu. 2. Playback: Opens the Playback Menu. This allows you to search for video recordings saved on the recorder’s hard drive.

  • Page 25: On-Screen Keypads

    Using the On–Screen Display 1. Instant Playback: Plays back recent video from the selected channel. By default, instant play- back is set to play the last 5 minutes of recorded video. See 14.7.1 Configuring General Sys- tem Settings, page 64 to set a custom playback length. 2.

  • Page 26: Recording

    Recording By default, the system is set to immediately record video from connected cameras continuously, 24 hours a day. You can customize the recording settings according to your needs. 8.1 Video Recording Types The system supports the following recording types: •...

  • Page 27: Setting The Recording Schedule

    Recording 4. Configure the following settings. Except where noted, options for Main Stream and Sub Stream are the same: • Super Codec: (Main Stream only) Click to enable ( ) / disable ( ) Super Codec. This setting will help reduce system requirements for unimportant recordings to maximize hard drive storage.

  • Page 28: Setting Up Scheduled Or Manual Recording

    Recording 2. Click STORAGE. Click the SCHEDULE tab on the side panel, then Record on the top panel. 3. Under Channel, select the channel you would like to configure or select All. 4. Configure the schedule as needed: • Check Continuous, MD (Motion Detection), or Alarm to select the recording type you would like to configure.

  • Page 29: Configuring Hard Drive Overwrite

    Recording To set options for manual recording: 1. From the Live View display, right-click to open the Quick Menu, then click Manual Record. 2. Under Main Stream, select how the system will record the Main Stream for each channel: • Auto: Main Stream recording will follow the recording schedule. •...
  • Page 30 Recording 4. Click Apply. #LX400111; r. 2.0/56089/56100; en-US...

  • Page 31: Playback

    Playback Search through and playback recorded video files on the system. 9.1 Playing Back Video from the Hard Drive To play back recorded video: 1. From the Live View display, right-click to open the Quick Menu, then click Playback. 2. Use the calendar on the right to select the day to playback. 3.
  • Page 32 Playback 4. Viewing Modes: • Bookmark List: Shows all bookmarked recordings for a single channel on the se- lected date. • File List: Shows all available recordings for the selected date and channel(s) in list format. • Fullscreen: Shows video in fullscreen. Right-click to return to split-screen viewing. 5.
  • Page 33 Playback 8. Playback Controls: • Play / Pause • Stop Play Backwards • • Previous Frame: Go to the previous frame when video is paused. • Next Frame: Go to the next frame when video is paused. Slow Playback: Click repeatedly to slow the video down by half speed up to 16× •...

  • Page 34: Playing Back Video From A Usb Drive

    Playback 9.3 Playing Back Video from a USB Drive If you have video files saved to a USB flash drive (not included), you can play them back using the system. For full instructions on backing up video to a USB flash drive, see 10 Backup, page 29. To play back video from a USB flash drive: 1.

  • Page 35: Video Clip Backup

    Playback To perform a Smart Search: 1. From the Live View display, right-click to open the Quick Menu, then click Playback. 2. Use the calendar on the right to select the day to playback. 3. Check a single channel you want to play back. Click the icon to the right of the channel name to choose the video quality ( for Main Stream, for Sub Stream).
  • Page 36 Playback 3. Use the calendar on the right to select the day to playback. 4. Check the channels you want to play back. Click the icons to the right of each channel name to choose the video quality ( for Main Stream, for Sub Stream).

  • Page 37: Backup

    Backup Backup video files to external USB flash drive (not included). 10.1 Formatting the USB Flash Drive It is recommended to format your USB thumb drive (not included) before using it with the system. CAUTION Formatting the USB device will permanently erase all data. This step cannot be undone. Prerequisite: •...

  • Page 38: Using Video Clip Backup

    10.4 Viewing Backed Up Files Use the free Lorex Player to play back .dav files. 10.4.1 Viewing Backed Up Files on PC 1. Download and install the Lorex Player for PC from the recorder’s product page at lorex.com #LX400111; r. 2.0/56089/56100; en-US...

  • Page 39: Viewing Backed Up Files On Mac

    2. Double-click one of the files on the left to begin playback. Click to open a back up video file in another location 3. Use the Lorex Player controls to control playback or select other files for playback. NOTE For a full overview of Lorex Player controls, see 10.4.3 Lorex Player Controls, page 32.

  • Page 40: Lorex Player Controls

    Backup 5. Use the Lorex Player controls to control playback or select other files for playback. NOTE For a full overview of Lorex Player controls, see 10.4.3 Lorex Player Controls, page 32. 10.4.3 Lorex Player Controls 1. File List: Double-click to open a file.
  • Page 41 Backup 6. Display Area: Double-click a video file to expand. Click the controls inside the display area to do the following: • : View information about the video file. • : Start/stop a manual recording from the video file. • : Take a snapshot from the video file.

  • Page 42: Motion Detection

    Motion Detection In addition to general motion detection, the system supports smart Person/Vehicle detection. Both types of detection can be configured using the menu shown below. 11.1 Configuring Motion Detection Set preferences for motion detection on each channel, and select channels you want to enable smart Person/Vehicle detection on.
  • Page 43 Motion Detection 5. Click Setup next to Area to configure which areas of the image will be enabled for motion de- tection. A grid will appear on the monitor: • The camera image appears with a red grid overlay. This means the entire image is enabled for motion detection.
  • Page 44 Motion Detection 7. Choose how the system will react when motion is detected: • Show Message: Check to enable an on-screen pop-up when one of your cameras detects motion. On-screen pop-up shows the channels an event occurred on and the type of event. •...
  • Page 45 Motion Detection 8. Click Smart Motion Detection to enable Person/Vehicle detection: NOTE See 5.2 Ensuring Accurate Person/Vehicle Detection, page 11 for important camera installation notes related to channels with Person/Vehicle detection enabled. #LX400111; r. 2.0/56089/56100; en-US...
  • Page 46 Motion Detection #LX400111; r. 2.0/56089/56100; en-US...

  • Page 47: Search For Person/Vehicle Detection Events

    Motion Detection • Click Enable to activate Person/Vehicle detection on the selected channel. CAUTION A maximum of 2 channels will support Person/Vehicle detection at once. By default, channels 1 and 2 have Person/Vehicle detection enabled. • Select a Sensitivity level (a high sensitivity value will detect smaller objects than a low value).

  • Page 48: Active Deterrence

    The recorder allows you to customize automatic light-triggering when motion is detected to deter intruders (see 12.1 Automatic Deterrence Settings, page 40). You can also trigger the lights and sirens manually using the recorder or Lorex connectivity software (see 12.2 Manually Activate Deterrence Features, page 42).
  • Page 49 Active Deterrence 5. Click Setup next to Warning Light to configure preferences: • Duration: Choose how long the warning light will stay on when motion is detected. • Select Warning Light for a solid white light, or Strobe for a flashing light. If you select Strobe, set how quickly the light will flash under Strobe Frequency.

  • Page 50: Manually Activate Deterrence Features

    • Activate deterrence features using the Lorex Home app. For details, see 15 Connecting Re- motely using the Lorex Home Mobile App, page 80. To activate deterrence features on all connected cameras: •...

  • Page 51: Managing Passwords And User Accounts

    Managing Passwords and User Accounts Passwords are enabled by default and are required to access the Main Menu or connect to the sys- tem using a computer or mobile device. You will be prompted to create a custom password after you connect for the first time.

  • Page 52: Adding Users

    Managing Passwords and User Accounts 13.1.2 Adding Users You can allow multiple users to log in to the system. When adding different users, you can assign what menus they have access to. For example, you may want your friend to monitor your system while you are away, while not giving full access to your system.

  • Page 53: Modifying Users

    Managing Passwords and User Accounts 4. Configure the following: • User Name: Enter a name for the user account. • Password: Enter a password for the user account. Enter the password again under Con- firm Password. • Memo: (Optional) Enter a description of the user account. •...

  • Page 54: Modifying Groups

    Managing Passwords and User Accounts To add a group: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2. Click ACCOUNT, then click the GROUP tab. 3. Click Add Group. 4. Configure the following: •...

  • Page 55: Deleting Groups

    Managing Passwords and User Accounts 4. Update group details as needed, then click OK. 13.2.3 Deleting Groups Remove a group. To delete a group: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2.

  • Page 56: Using The Main Menu

    Using the Main Menu To access the main menu: • From the Live View display, right-click to open the Quick Menu, then click Main Menu. • Click on the Navigation Bar, then click Main Menu. 14.1 Playback See chapter 9 Playback, page 23 for details. 14.2 Alarm Set preferences for alarm events such as video loss, motion detection, Person/Vehicle detection, and system warnings.

  • Page 57: Video Loss

    Using the Main Menu 4. Enter a start and end time for your search. 5. Click Search. 6. Alarm events that match your search criteria are displayed: • The Event column is formatted to show <[Event Type]: [Channel Number]>. • Click Details to see more information on the selected event. •...

  • Page 58: System Warnings

    Using the Main Menu 5. Click to set a weekly schedule for video loss events. By default, video loss events are enabled at all times. • Click or click-and-drag along the each of the yellow timelines to quickly add or remove time from each day’s schedule in 15–minute segments.
  • Page 59 Using the Main Menu 2. Click ALARM. Click the WARNING tab on the side panel, then HardDisk on the top panel. 3. Choose the event type you want to set preferences for: • No Disk: No hard drive detected. • Disk Error: A hard drive error has been detected. •...

  • Page 60: Backup

    14.4.1 Setting the Recorder’s Output Resolution The first time you power up the system and complete the Lorex Setup Wizard, the system will au- tomatically match the resolution of the connected monitor. You can set the recorder to a different output resolution at any time.

  • Page 61: Menu Transparency

    Using the Main Menu NOTE Audio will only be heard if you are viewing an audio-enabled camera in single-channel view. You will also need an HDMI monitor with built-in speakers, or an external speaker connected to the recorder’s Audio Out port (see 18 Connecting Audio Devices, page 87 for details).

  • Page 62: General Display Settings

    Using the Main Menu 4. Click Apply. 14.4.4 General Display Settings Configure miscellaneous display settings. To configure general display settings: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2. Click DISPLAY, then click the DISPLAY tab. 3.

  • Page 63: Configuring Sequence Mode

    Using the Main Menu 2. Click DISPLAY, then click the VIEW tab. 3. Select the viewing mode you would like to configure ( ). Use the numbered dropdown menus in each viewing window to choose the channel that will appear in each window.

  • Page 64: Camera

    Using the Main Menu 2. Click DISPLAY, then click the SEQUENCE tab. 3. Click to enable ( ) / disable ( ) Sequence mode. NOTE • Enabling Sequence mode is not necessary for configuration. • You can also enable Sequence mode from Live View by clicking on the Navigation Bar, or by right- clicking to open the Quick Menu and clicking Sequence.

  • Page 65: Configuring Snapshot Recording

    Using the Main Menu 2. Click CAMERA, then click the IMAGE SETTINGS tab. 3. Select the channel you want to configure. 4. Select COAXIAL for cameras connected using BNC cabling, or UTP for balun installations. 5. Configure the color settings for the selected channel. 6.

  • Page 66: Changing On-Screen Overlay

    Using the Main Menu 5. Click Apply. 6. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on us- ing the copy function). 14.5.3 Changing On-Screen Overlay Remove or change the location of the date/timestamps and channel names.

  • Page 67: Connecting Multi-Format Cameras (Cable Type)

    Using the Main Menu 2. Click CAMERA. Click the OVERLAY tab on the side panel, then Privacy Masking on the top panel. 3. Select the channel you want to configure. 4. Configure the following settings: • Preview: Check to set and preview privacy masks. •...

  • Page 68: Camera Firmware Upgrade (Cvi Upgrade)

    Using the Main Menu 14.5.6 Camera Firmware Upgrade (CVI Upgrade) Manually upgrade camera firmware. This is typically only necessary if directed to do so by Lorex technical support. Prerequisite: • Connect a USB flash drive (not inlcuded) to the recorder with the .bin camera firmware file(s) preloaded.

  • Page 69: Configuring System Ports (Connection)

    Using the Main Menu 3. Configure the following settings: • IP Version: Select IPv4 or IPv6. • DHCP: Click to enable ( ) / disable ( ) DHCP. It is recommended to enable DHCP to let the system automatically obtain an IP address from the router. If you are an advanced user, disable DHCP to assign a static IP address to the system.
  • Page 70 Using the Main Menu 2. Click NETWORK, then click the EMAIL tab. 3. Click to enable ( ) email alerts. #LX400111; r. 2.0/56089/56100; en-US...

  • Page 71: P2P Setting

    Using the Main Menu 4. Configure the following: If you want to use Lorex’s email server (recommended): • Mail Select: Select Lorex Mail. • Receiver: Select up to 3 email addresses that will receive alerts. Enter each email address into the field Email Address below.

  • Page 72: System

    CAUTION P2P connection is the primary method used for remote access to your security system using the Lorex Home app. If you disable P2P connectivity, you will only be able to access your system over the Internet using DDNS. See 20 DDNS Setup (Advanced), page 96 for details.

  • Page 73: Setting Date & Time

    Using the Main Menu 3. Configure the following: • Device Type: Shows the model number of your system. • Device No.: Select the remote control address of the system. • Language: Set the system languages. Available options are English, French, and Spanish. •...

  • Page 74: Configuring Holidays

    Using the Main Menu 4. Configure Daylight Savings Time (DST) settings: • DST: Click to enable ( ) / disable ( ) Daylight Savings Time. • DST Type: Select Week to set the start and end time based on a day and week (e.g., 2nd Sunday of March), or select Date to set the start and end time to a specific date.

  • Page 75: Configuring Ip Filter

    Using the Main Menu 3. Click Add New Holiday. 4. Configure the following: • Holiday Name: Enter a name for this holiday. • Repeat Mode: Select Once for the holiday to occur only this year or Always for the holi- day to be repeated each year.

  • Page 76: Save System Settings To A Usb Flash Drive

    Using the Main Menu 5. Configure the following: • To add a single IP address to the selected filter type, enter it into Start Address, then click Add IP Address. • To add a range of IP addresses to the selected filter type, enter the Start Address and End Address, then click Add IP Section.

  • Page 77: Restoring Default Settings

    Using the Main Menu 2. Click SYSTEM, then click the CONFIG BACKUP tab. 3. Under Device Model, select the USB device where a system configuration has been saved. 4. Click the folder with the configuration files you would like to restore. Configuration file fold- ers are labeled Config and then the time and date the configuration was saved (e.g., Config_ 20140425103727).

  • Page 78: Automatic Firmware Upgrades

    Using the Main Menu To upgrade firmware manually: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2. Click SYSTEM, then click the UPGRADE tab. 3. Click Browse. 4. Click on the .bin firmware file for your recorder. 5.

  • Page 79: Configuring Recording File Length

    Using the Main Menu 2. Click STORAGE, then click the BASIC tab. 3. Ensure HDD Full is set to Overwrite to overwrite the oldest recordings when the hard drive is full. NOTE Selecting Stop Record for the system to stop recording when the hard drive is full. 4.

  • Page 80: Setting The Snapshot Schedule

    Using the Main Menu 2. Click STORAGE. Click the SCHEDULE tab on the side panel, then Record on the top panel. 3. Under Channel, select the channel you would like to configure or select All. 4. Set the duration for pre-recording in seconds. 5.

  • Page 81: Formatting The Hard Drive

    Using the Main Menu 4. Configure the schedule as needed: • Check Continuous, MD (Motion Detection), or Alarm to select the recording type you would like to configure. • Click-and-drag on each day to customize the recording schedule. The schedule is set up as a grid, which each block representing one hour.

  • Page 82: Recording Calculator (Rec Estimate)

    Using the Main Menu • Read-only HDD: The system can playback data from this hard drive, but it will not record to it. To configure hard drive types: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2.

  • Page 83: Ftp (Advanced)

    Using the Main Menu 4. For Recording Days mode, click Select to choose your hard drive from a list to output the to- tal number of days your hard drive can store. For Disk Requirement mode, enter a number of days to output the total amount of storage required.

  • Page 84: Version Info

    Using the Main Menu 14.10.1 Version Info The Version sub-menu allows you to view information about the current firmware installed on the system. To access the Version menu: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2.

  • Page 85: Hdd Info

    Using the Main Menu To access the Event Status menu: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2. Click INFORMATION, then click the EVENT STATUS tab. The following alarms are shown in the Event Status menu: •...

  • Page 86: Load

    Using the Main Menu To access the Online Users menu: 1. From the Live View display, right-click to open the Quick Menu, then click Main Menu. 2. Click INFORMATION. Click the NETWORK tab on the side panel, then Online User on the top panel.

  • Page 87: Bps

    Using the Main Menu 2. Click INFORMATION. Click the NETWORK tab on the side panel, then Network Test on the top panel. 14.10.8 BPS The BPS menu shows the bitrates of connected cameras. The bitrate is the amount of data the cam- era is sending to the system.

  • Page 88: Connecting Remotely Using The Lorex Home Mobile App

    Connecting Remotely using the Lorex Home Mobile App You can connect to your security system over the Internet using our free Lorex Home app for iOS and Android devices. Securely connect to your system from anywhere with no recurring fees for live viewing.

  • Page 89: Smart Home & Voice Assistance

    Audio recording and / or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its prod- ucts that does not conform with local laws.

  • Page 90: Pan/Tilt/Zoom (Ptz) Cameras

    17.1 Connecting PTZ Cameras to the Recorder Lorex HD PTZ cameras connect to your recorder just like any other camera with no need to run special wiring — these cameras can accept PTZ commands directly through the video cable.

  • Page 91: Basic Ptz Controls

    4. Configure the highlighted fields as needed. NOTE For Lorex HD PTZ cameras, there is no need for configuration — leave all fields at their default values. For third-party PTZ cameras, select Serial next to Control Mode. For the correct settings to use in the remaining fields, please reference your camera documentation.

  • Page 92: Advanced Ptz Controls

    Pan/Tilt/Zoom (PTZ) Cameras 1. Navigation Controls: Click the directional arrows to move the PTZ camera manually. 2. Zoom-to-Area: Click, then click-and-drag to draw a box on the camera image. The PTZ cam- era will zoom in to the selected area. 3.

  • Page 93: Presets

    Pan/Tilt/Zoom (PTZ) Cameras 1. No.: Enter the ID number for a preset, tour, or pattern you want to activate. 2. Preset: Move the camera to the preset number specified in the No. field. For instructions on setting up preset locations, see 17.4 Presets, page 85. 3.

  • Page 94: Autoscan

    Pan/Tilt/Zoom (PTZ) Cameras To add patterns: 1. From the Live View display of your PTZ camera, right-click to open the Quick Menu, then click Pan/Tilt/Zoom. 2. The PTZ controls open. Click to open advanced PTZ controls, then click 3. Click the Pattern tab. 4.

  • Page 95: Connecting Audio Devices

    Connecting Audio Devices The system supports Lorex HD audio cameras, which transmit audio through the same coax cable used for video connection. The system can also record one audio channel using the AUDIO IN port on the rear panel. You must have a self-powered microphone or an audio camera with an RCA–type audio connection to use this port.
  • Page 96 ) audio recording. CAUTION Audio recording and / or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws. • Audio Format: Choose the desired format for audio recording (G711a or AAC recommended).
  • Page 97 ) audio recording. CAUTION Audio recording and / or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws. • Audio Format: Choose the desired format for audio recording (G711a or AAC recommended).

  • Page 98: Replacing The Hard Drive

    Replacing the Hard Drive The system comes with a pre-installed 3.5" SATA hard drive. You can replace the hard drive with one up to a maximum size of 10TB. 19.1 Removing the Hard Drive CAUTION Make sure that the system is OFF and the power adapter is disconnected before removing/installing a hard drive. To remove the hard drive: 1.
  • Page 99 Replacing the Hard Drive 3. Turn the recorder over carefully, then remove the top panel. CAUTION The wiring to the front panel button and USB port runs along the top panel of the recorder. When separating the top panel, rest it carefully beside the bottom panel as shown below. #LX400111;...
  • Page 100 Replacing the Hard Drive 4. Remove the power and SATA cables from the hard drive. 5. Carefully pick up the hard drive to lift the bottom panel, being mindful of the sharp edges of the bottom panel. Remove the hard drive screws (4×) from the bottom panel. Hold onto the hard drive so it remains in place when all screws have been removed.

  • Page 101: Installing A New Hard Drive

    Replacing the Hard Drive 19.2 Installing a New Hard Drive CAUTION Make sure that the system is OFF and the power adapter is disconnected before removing/installing a hard drive. To install a new hard drive: 1. Insert the 2 hard drive screws closest to the SATA and power ports on the hard drive and tight- en them half way.
  • Page 102 Replacing the Hard Drive 4. Turn the recorder over carefully, then remove the top panel. CAUTION The wiring to the front panel button and USB port runs along the top panel of the recorder. When separating the top panel, rest it carefully beside the bottom panel as shown below. 5.
  • Page 103 Replacing the Hard Drive 6. Carefully pick up the bottom panel with the hard drive, being mindful of the sharp edges of the bottom panel. Slide the 2 pre-inserted screws into the locked position, then tighten the screws. Insert and tighten the 2 remaining hard drive screws. 7.

  • Page 104: Ddns Setup (Advanced)

    Setting up DDNS connectivity allows you to view your recorder from any computer or compatible mobile device with Internet access. NOTE The primary connectivity option for the recorder uses the Lorex Home app to connect to your system over the In- ternet without the need for port forwarding or DDNS registration. •...

  • Page 105: Step 3: Activate Your Warranty

    2. Select Create an Account. NOTE If you have already set up an account, select I Have a LOREX Account and log in. Proceed directly to , page 3. Enter basic information for account setup. 4. Click Create an Account.

  • Page 106: Step 5: Enable Ddns On The Recorder

    20.5 STEP 5: Enable DDNS on the Recorder Enter your DDNS information into the menu of your recorder. You can find the information refer- enced below on your My Lorex account, or on the confirmation email sent to you after registering for DDNS service.
  • Page 107 DDNS Setup (Advanced) 4. Configure the following: • DDNS Type: Select Lorex DDNS. • Domain Name: Enter the first part of the DDNS domain that you requested during setup. • User ID: Enter the username provided in the DDNS confirmation email.

  • Page 108: Troubleshooting

    Troubleshooting When a malfunction occurs, it may not be serious or difficult to correct. The following chart con- tains solutions to most common problems. Please refer to the topics below before calling Lorex Technical Support. Error Possible Causes Solutions System is not receiving power, or is Cable from power adapter is loose •...
  • Page 109 See 16 Smart Home & Voice Assis- tance, page 81 for full instructions. • If the issue persists, visit lorex.com/SmartHome for com- plete setup instructions, FAQS, and a list of available voice commands. #LX400111; r. 2.0/56089/56100; en-US...

  • Page 110: Technical Specifications

    Technical Specifications 22.1 General Video Transmission Technology HD Analog Channels 8 Channels 22.2 Inputs/Outputs Video Input(s) 8 × 1Vp-p, CVBS, 75ohms, BNC Type Video Outputs(s) 1 × VGA, 1 × HDMI Audio Input(s) 1 ch: RCA Audio Output(s) 1 ch: RCA 22.3 Display Display Output Resolution Up to 1080p...
  • Page 111 Amazon Alexa Google Assistant Streaming Options Chromecast, Apple TV, Amazon Echo Show, Google Home Hub 22.9 Connectivity Mobile Viewing Android, iOS Compatible App Lorex Home™ PC/MAC Remote Viewing Yes/Lorex Home Email Notification Text and Snapshot Network Interface 10/100 Base-TX, RJ45 DDNS...
  • Page 112 Notices This product has been certified and found to comply with the limits regulated by FCC, EMC, and LVD. Therefore, it is designated to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that the user follows the guidelines in this manual to avoid improper usage, which may result in damage to the product, electrical shock and fire hazard injury.
  • Page 114 Legal disclaimer As our product is subject to continuous improvement, Lorex Corporation & subsidiaries reserve the right to modify product design, specifications & prices without notice and without incurring any obligation.E&OE.
