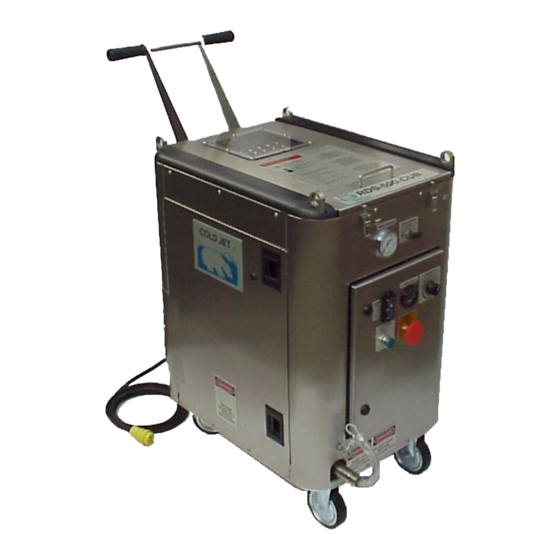

Cold Jet RDS 500 Cub Parts & Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL
Parts &
Maintenance
Manual
CJI# 2W0238A
-3DRY-ICE
1
1-800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDS 500 Cub and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cold Jet RDS 500 Cub

Summary of Contents for Cold Jet RDS 500 Cub

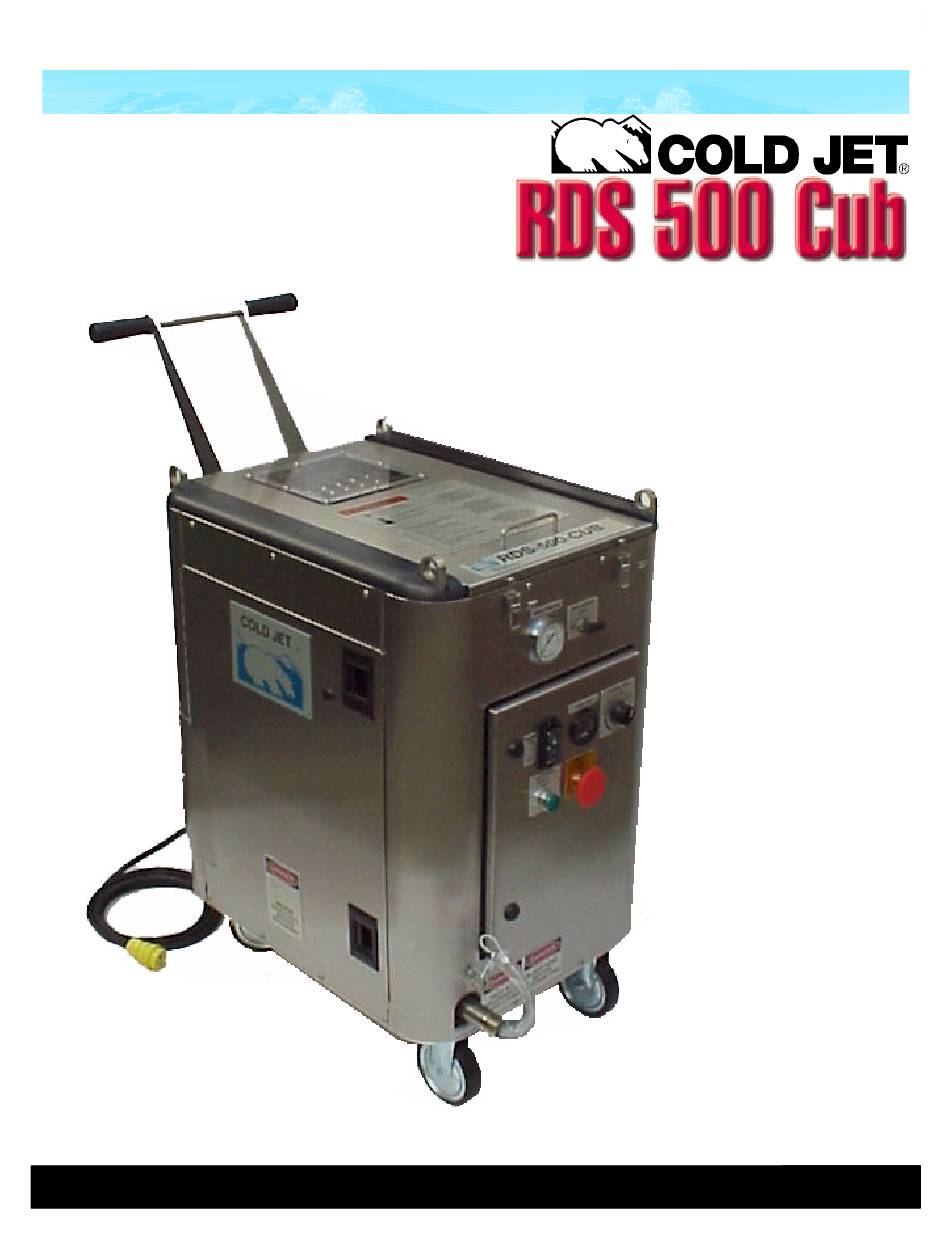

  • Page 1 MODEL Parts & Maintenance Manual CJI# 2W0238A -3DRY-ICE 1-800...
  • Page 2 This manual illustrates the safety, operation, and maintenance features of the RDS 500 Cub. The design contained in this manual was originated by, and is the exclusive property of Cold Jet, Inc. It is not to be used in any way detrimental to the interests of Cold Jet, Inc.

  • Page 3: Special Notes

    Any unauthorized transfer of information to any person or company not in the direct employ of Cold Jet Incorporated, or not in the direct employ of, or for, the purchaser, or the authorized user, is strictly prohibited by agreement.
  • Page 4 -3DRY-ICE 1-800...

  • Page 5: Table Of Contents

    Table of Contents Special Notes ............................ 3 Warranty Compliance ........................3 For Your Information .......................... 3 1. Troubleshooting ____________________________________________________________ 7 2. Maintenance _______________________________________________________________ 9 Preventive Maintenance ......................9 On a Daily Basis ......................9 On a Weekly Basis ....................... 10 On a Monthly Basis ......................
  • Page 6 -3DRY-ICE 1-800...

  • Page 7: Troubleshooting

    Section 5 Section 5 Section 5 Section 5 Troubleshooting Troubleshooting Troubleshooting Troubleshooting Problem Check This 1. Is the unit plugged in? 2. Is the power Switch in the ON position? 3. Reset E-stop. Machine will not start. 4. Is the FEEDER RESET ready? If not, press to reset.
  • Page 8 -3DRY-ICE 1-800...

  • Page 9: Maintenance

    Section 6 Section 6 Section 6 Section 6 Maintenance Maintenance Maintenance Maintenance Preventive Maintenance On a Daily Basis 1. Drain water out of the coalescing filter before using the machine. (turn pet-cock fully open to drain the water) 2. While in operation check all gauges. 3.

  • Page 10: On A Weekly Basis

    On a Weekly Basis 1. Look through the hopper to check the rotor for nicks or gouges. (Use a flashlight). 2. Make sure the Cub’s screws are tight. -3DRY-ICE 1-800...

  • Page 11: On A Monthly Basis

    On a Monthly Basis 1. Make sure the nozzle airflow exit end is not deformed or burred. 2. Tighten all screws on Applicator Rotary Union. -3DRY-ICE 1-800...

  • Page 12: Every Three Months

    Every Three Months Every Three Months Every Three Months Every Three Months 1. Make sure the vibrator motor bolts are at a torque setting of 40 ft-lbs. -3DRY-ICE 1-800...

  • Page 13: 500 Hour Scheduled Maintenance

    500 Hour Scheduled Maintenance If you are not an authorized Cold Jet service technician, please call to schedule this service. 1. Check pads and rotor 2. Check upper and lower tension springs 3. Check voltage and amperage on DC drive 4.

  • Page 14: Tuning Fork Replacement

    Tuning Fork Replacement The tuning fork is easy to replace, and should take only 15-20 minutes to complete INSTALL NEW VIBRATING Tools required: USE THREAD LUBRICANT PELLET AGITATOR 3J0504 TIGHTEN TO 15 FT/LBS Large Phillips screwdriver 3/32” Hex key 13 mm socket wrench Anti-seize compound or graphite lubricant REMOVE HOPPER SCREEN REPLACE AFTER NEW AGITATOR...
  • Page 15 Fine tuning the tuning fork Open the Controls enclosure on the front of the Loosen the potentiometer shaft from the silicone seal. Pull the blast gun trigger; this will cause the vi- brator motor to jump to HIGH for around 1 to 2 seconds, followed by a drop to LOW.
  • Page 16 -3DRY-ICE 1-800...

  • Page 17: Appendix A Performance

    Appendix A Appendix A Appendix A Appendix A Performance Performance Performance Performance PELLET FEED RATES STANDARD AND OPTIONAL ROTORS Standard-Feed Feed Rate Setting(%) -3DRY-ICE 1-800...
  • Page 18 -3DRY-ICE 1-800...

  • Page 19: Appendix B: Specifications

    Appendix B Appendix B Appendix B Appendix B Specifications Specifications Specifications Specifications Weight Empty: 275 lbs. (114 kg.) Hopper Pellet Capacity: 65 lbs. (30 kg.) Standard Pellet Mass Delivery Rate: 0 to 375 lbs. per hour (0 to 2.8 kg. per minute) Power Requirements: 100-120 Volts AC, Single Phase, (50/60 Hz) 6 Amps...
  • Page 20 -3DRY-ICE 1-800...

  • Page 21: Appendix C Electrical Schematics

    Appendix C Appendix C Appendix C Appendix C Electrical Schematics Electrical Schematics Electrical Schematics Electrical Schematics 120 Volt 120 Volt 120 Volt 120 Volt -3DRY-ICE 1-800...

  • Page 22: 230 Volt

    230 Volt 230 Volt 230 Volt 230 Volt -3DRY-ICE 1-800...

  • Page 23: Appendix D Assemblies

    Appendix D Appendix D Appendix D Appendix D Assemblies Assemblies Assemblies Assemblies -3DRY-ICE 1-800...
  • Page 24 -3DRY-ICE 1-800...
  • Page 25 -3DRY-ICE 1-800...
  • Page 26 -3DRY-ICE 1-800...
  • Page 27 -3DRY-ICE 1-800...
  • Page 28 -3DRY-ICE 1-800...
  • Page 29 -3DRY-ICE 1-800...
  • Page 30 -3DRY-ICE 1-800...
  • Page 31 -3DRY-ICE 1-800...
  • Page 32 -3DRY-ICE 1-800...
  • Page 33 -3DRY-ICE 1-800...
  • Page 34 -3DRY-ICE 1-800...
  • Page 35 -3DRY-ICE 1-800...
  • Page 36 -3DRY-ICE 1-800...
  • Page 37 -3DRY-ICE 1-800...
  • Page 38 -3DRY-ICE 1-800...
  • Page 39 -3DRY-ICE 1-800...
  • Page 40 -3DRY-ICE 1-800...
  • Page 41 -3DRY-ICE 1-800...
  • Page 42 -3DRY-ICE 1-800...
  • Page 43 -3DRY-ICE 1-800...
  • Page 44 -3DRY-ICE 1-800...
  • Page 45 -3DRY-ICE 1-800...
  • Page 46 -3DRY-ICE 1-800...
  • Page 47 -3DRY-ICE 1-800...
  • Page 48 -3DRY-ICE 1-800...
  • Page 49 -3DRY-ICE 1-800...
  • Page 50 -3DRY-ICE 1-800...
  • Page 51 -3DRY-ICE 1-800...
  • Page 52 -3DRY-ICE 1-800...
  • Page 53 -3DRY-ICE 1-800...
  • Page 54 -3DRY-ICE 1-800...
