Portable Air Conditioner
Installation
Selecting your location
Install the air-conditioner in a flat, dry location, allowing at
least SOcm of space around the unit in all directions to
allow for adequate circulation of air, as shown.

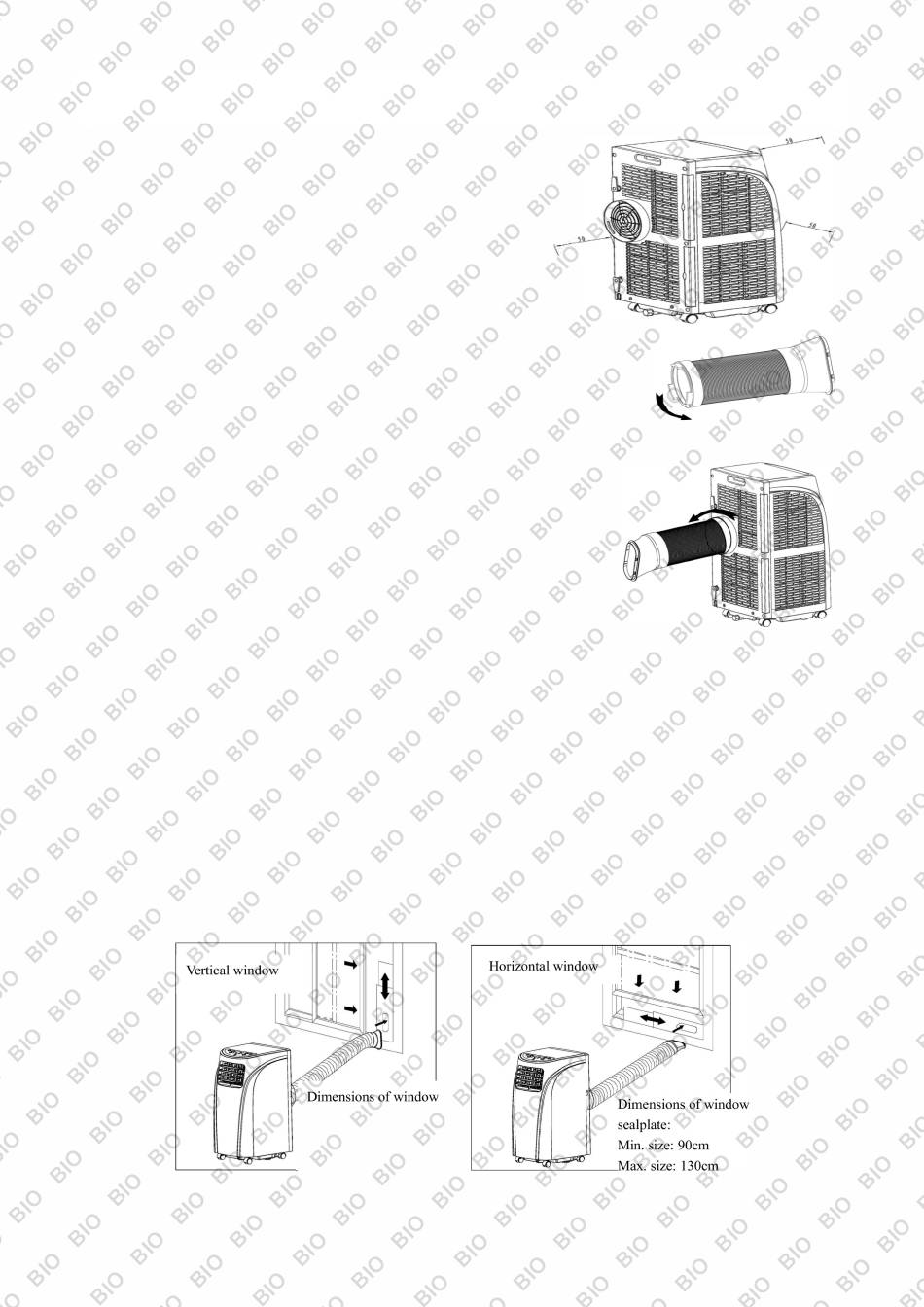

Exhaust Pipe Assembly
1. Connect the exhaust pipe assembly with the round joint , as
shown to right.
2. Fix the round end of the connected exhaust pipe assembly
to the air outlet of the air conditioner, as shown to right
below.
3. Connect the oval joint of the exhaust pipe to the window
seal-plate.
4. Install the seal-plate into the nearest window. Ensure there
are no objects with in 50cm of the window itself to allow
the air exhaust to flow freely.
Notes
•
We recommend you use the exhaust pipe collapsed as much as possible, as the shortest
length will result in the most efficient operation.
•
The length of the exhaust pipe is designed specifically for this product. Please do not use
other exhaust pipes or extend the pipe at all, as this may result in product failure.
Window kit installation
The window kit has been designed to fit most standard vertical and horizontal window
applications. However, it may be necessary for you to improve or modify some aspects of the
installation procedure for certain types of window.
Please refer to the images below for usage examples.
E&OE E&OE
sealplate:
Min. size: 90cm
Max. size: 130cm
