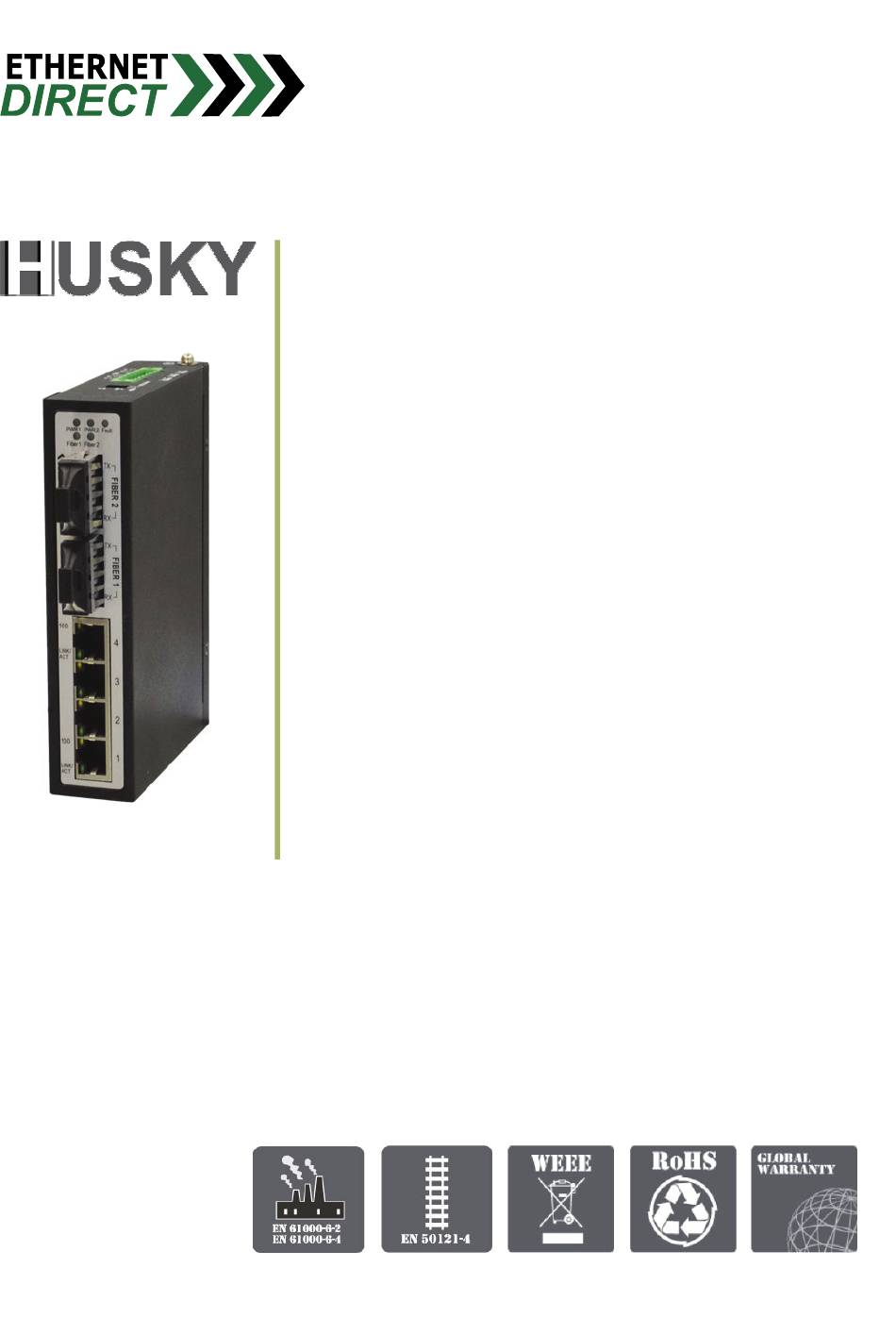

- Page 1 HUE-421SN HUE-421SEN Industrial 4 x 10/100Base-T(X) + 2 x Multi-mode 100Base-FX Slim Unmanaged Ethernet Switch (SC/2KM) User’s Manual V1.0 03-28-2017...
- Page 2 Husky Series Industrial Ethernet Switch Solutions HUE-421SN & HUE-421SEN Industrial Slim Unmanaged Ethernet Switch User’s Manual Copyright Notice Copyright © 2017 Ethernet Direct Corp. All rights reserved. Reproduction in any form or by any means without Ethernet Direct prior written permission is prohibited.
-
Page 3: Table Of Contents
2-4 RJ-45 Ports ............................ 2-2 2-4.1 RJ-45 Pin Assignments ....................... 2-2 2-5 Fiber Ports ............................. 2-3 2-6 Installing Your Ethernet Direct Switch.................... 2-3 2-6.1 Mounting The Switch ......................2-4 2-6.2 Wiring The Power Inputs ..................... 2-4 2-6.3 Wiring The Alarm Relay....................... 2-5 2-6.4 Wiring the Earth Ground...................... -
Page 4: Introduction
Introduction Welcome to Husky Series HUE-421SN & HUE-421SEN Industrial Slim Unmanaged Ethernet Switch. This chapter includes the following topics: Overview Product Features Package Checklist 1-1 Overview The new and more powerful Husky Series HUE-421SEN is an Industrial 6-ports Slim Unmanaged Ethernet Switch with two multi-mode fiber ports which provides stable and reliable Ethernet transmission. -
Page 5: Chapter 2
This chapter contains information on HUE-421SN & HUE-421SEN’s appearance and hardware installation. Topics include: Panel Layout LED Indicators DIP Switch RJ-45 Ports Fiber Ports Installing Your Ethernet Direct Switch 2-1 Panel Layout Panel Layout of HUE-421SN & HUE-421SEN Industrial Slim Unmanaged Ethernet Switch Front Panel Top Panel Description 10/100Base-T(X) RJ-45 ports... -
Page 6: Led Indicators
Hardware Installations 2-2 LED Indicators There are diagnostic LEDs located on the front panel of HUE-421SN & HUE-421SEN. They provide primary information on switch status as described in the table below. LED Name LED Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 connection. -
Page 7: Fiber Ports
2km. When you connect the fiber port to another one, please follow the figure below to connect accordingly. Wrong connection will cause the port not working properly 2-6 Installing Your Ethernet Direct Switch Unpack the HUE-421SN or HUE-421SEN from the packing box. Please refer to Package Checklist section... -
Page 8: 2-6.1 Mounting The Switch
Hardware Installations Mounting The Switch Wiring The Power Inputs Wiring The Alarm Relay Wiring the Earth Ground Ethernet Cabling. 2-6.1 Mounting The Switch There are two types of mounting options: DIN-Rail mounting or wall mounting (need to purchase optional wall mounting accessories). Users can choose the most suitable mounting installation for your own onsite applications. -
Page 9: 2-6.3 Wiring The Alarm Relay
Hardware Installations Be sure to disconnect the power cord before installing and/or wiring your switch. Be sure of the maximum possible current when wiring connections. If the current goes above the maximum ratings, the wire could overheat and result in serious damage to your switch. 2-6.3 Wiring The Alarm Relay The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. -
Page 10: 2-6.5 Ethernet Cabling
Hardware Installations Loosen or remove the grounding screw. Attach the grounding screw to the ring-type or fork-type terminal of the grounding cable. Make sure that the grounding cable is long enough to reach the earth. Use a screwdriver to fasten the grounding screw. Ring-type Fork-type Terminal... -
Page 11: Specifications
Specifications HUE-421SN & HUE-421SEN Product Specifications are as follows: Hardware Interface 4 x 10/100Base-T(X) auto-negotiation speed, Full/Half duplex mode, auto RJ-45 Ports MDI/MDI-X Fiber Ports 2 x multi-mode 100Base-FX, SC connector Per Unit PWR1 (Green), PWR2 (Green), Fault (Amber) LEDs Per Port Link/ACT (Green), 100 (Yellow), Fiber 1/Fiber2 (Green) DIP 1: OFF (Enable power failure alarm) / ON (Disable) - Page 12 Specifications EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6, EN 61000-4-8 Railway Application (Track Side) EN 50121-4 (Certified) Shock IEC60068-2-27 Vibration IEC60068-2-6 Free Fall IEC60068-2-32 Environmental WEEE, RoHS MTBF 907,622 hours based on Mil-Hdbk-217F, GB Warranty 5 years...
-
Page 13: Troubleshooting
Troubleshooting Select the proper UTP cables to construct your network. Please check that you are using the right cables. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cables for RJ-45 connections: 100Ω Category 3, 4 or 5 cables for 10Mbps connections, 100Ω Category 5/5e cables for 100Mbps, or 100Ω...
