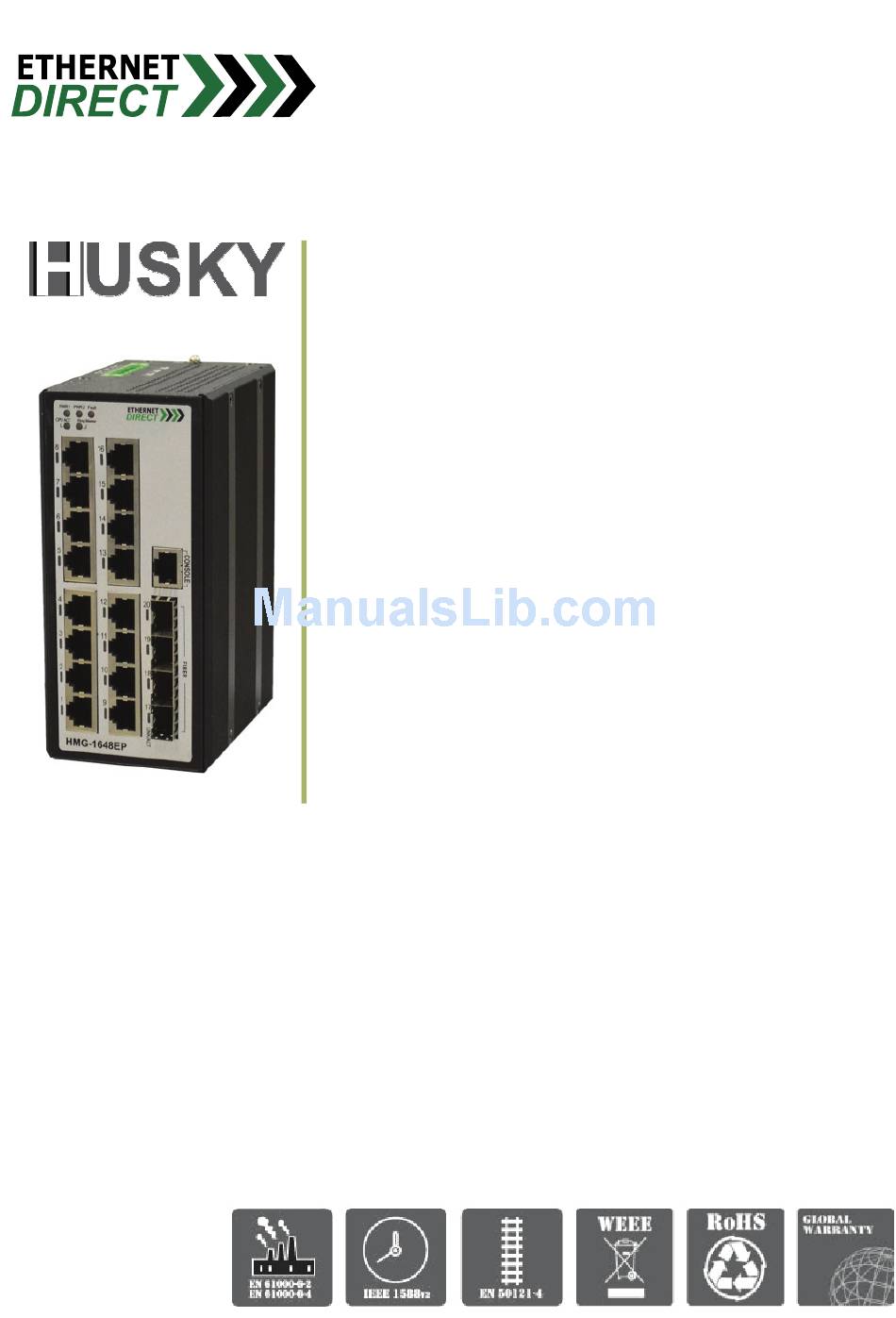

- Page 1 HMG-1648P HMG-1648EP Industrial 16 x 10/100Base-T(X) + 4 x 100/1000Base SFP Gigabit Managed Ethernet Switch User’s Manual (Hardware & Installation) V1.0 06-05-2017...
- Page 2 HMG-1648P & HMG-1648EP Industrial Gigabit Managed Ethernet Switch User’s Manual (Hardware & Installation) Copyright Notice Copyright © 2017 Ethernet Direct Corp. All rights reserved. Reproduction in any form or by any means without Ethernet Direct prior written permission is prohibited.
-
Page 3: Table Of Contents
2-5 Console Port..............................2-3 2-5.1 Console Cable RJ-45 Pin Assignement ....................2-3 2-5.2 Console Cable DB9 Pin Assignement ....................2-4 2-6 Installing Your Ethernet Direct Switch ......................2-4 2-6.1 Mounting The Switch .........................2-4 2-6.2 Wiring The Power Input ........................2-5 2-6.3 Wiring The Alarm Relay........................2-6 2-6.4 Wiring the Earth Ground........................2-6... -
Page 4: Chapter 1 Introduction
The HMG-1648EP & HMG-1648P are especially designed for harsh environments with rugged DIN-Rail metal enclosures to withstand applications where environmental conditions exceed normal product specifications. Ethernet Direct focuses on mission critical applications and these switches are suitable for industrial networking, security & surveillance, military & defense, building automation, factory automation, utility market applications and more. -
Page 5: Package Checklist
Introduction Power reverse polarity protection and overload current protection Robust Industrial Design EN 61000-6-2 and EN 61000-6-4 certified to use in heavy industrial environment EN 50121-4 certified for Railway Applications (Track Side) Robust industrial design case complies with IP30 housing standard Supports operating temperature -10 to 70°C &... -
Page 6: Chapter 2 Hardware Installation
This chapter contains information on HMG-1648P & HMG-1648EP’s appearance and hardware installation. Topics include: Panel Layout LED Indicators RJ-45 Ports Fiber Port Console Port Installing Your Ethernet Direct Switch 2-1 Panel Layout Panel Layout of HMG-1648P & HMG-1648EP Industrial Gigabit Managed Ethernet Switch Front Panel Top Panel Description 10/100Base-T(X) RJ-45 ports... -
Page 7: Led Indicators
Hardware Installation 2-2 LED Indicators There are diagnostic LEDs located on the front panel of HMG-1648P & HMG-1648EP. They provide primary information on switch status as described in the table below. LED Name LED Color Status Definition Power is connected and active at the PWR1/PWR2 PWR1 Green PWR2... -
Page 8: Fiber Port
Hardware Installation BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Below are the illustrations of straight through connection and cross over connection. Straight Through Cable Schematic Cross Over Cable Schematic Switch Switch Router or PC Switch “+” and “-” signs represent the polarity of the wires that make up each wire pair. 2-4 Fiber Port HMG-1648P &... -
Page 9: 2-5.2 Console Cable Db9 Pin Assignement
Direction Signal Signal 2-6 Installing Your Ethernet Direct Switch Unpack the HMG-1648P or HMG-1648EP from the packing box. Please refer to Package Checklist section to see if any item is missing or damaged. The installation steps include: Mounting The Switch... -
Page 10: 2-6.2 Wiring The Power Input
Hardware Installation (DIN-Rail Mount) (Optional Wall Mount) The switches with DIN-Rail bracket has a steel spring in the upper rail of the bracket. This spring is compressed for mounting and un-mounting by applying downward force. (Mounting) (Un-Mounting) 2-6.2 Wiring The Power Input A removable terminal block on the top panel provides both power and alarm connections. -
Page 11: 2-6.3 Wiring The Alarm Relay
Hardware Installation The two power connections are shown in the above graphic. The device has clearly printed on the case the locations of the two power inputs, their DC polarity as well as the alarm connection. 2-6.3 Wiring The Alarm Relay The single electrical relay can be wired into an alarm circuit and under normal condition it is connected as Normally Closed (will open upon alarm condition). -
Page 12: 2-6.5 Ethernet Cabling
Hardware Installation Ring-type Fork-type terminal terminal 2-6.5 Ethernet Cabling For RJ-45 port connection, prepare twisted-paired, straight through Category 5/5e or above cables for Ethernet connection. The linking distance between the switch and the network device must be less than 100 meters (328 ft.). -
Page 13: Appendix A Specifications
Appendix A Specifications HMG-1648P & HMG-1648EP Product Specifications are as follows: Hardware Interface RJ-45 Ports 16 x 10/100Base-T(X) auto-negotiation speed, Full/Half duplex, auto MDI/MDI-X Fiber Ports 4 x 100/1000Base SFP slots Console Port RS-232 (RJ-45 interface) Per Unit Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring, Master (Yellow) LEDs RJ-45 Port... - Page 14 Specifications EIA/TIA-568 100Ω (100m) 100Base-TX 2-pair UTP/STP Cat. 5/5e cables EIA/TIA-568 100Ω (100m) 100/1000Base SFP 50/125um~62.5/125um (Multi-mode) 9/125um (Single-mode) Protocols CSMA/CD Switching Architecture Store and Forward Regulatory Approvals CE, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A,CE EN55022 Class A EN 61000-4-2 EN 61000-4-3 EN 61000-4-4...
- Page 15 Specifications DiffServ (RFC 2474) Remarking Bandwidth Control Ingress/Egress Storm Control Unicast, Broadcast, Multicast IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 Port Filtering Profile IGMP/MLD Snooping Throttling, Fast Leave Maximum Multicast Group: Up to 1022 entries Query / Static Router Port IEEE 802.1X (Port-based, MAC-based), RADIUS, TACACS+ 3.0 Supports ACL, no.
-
Page 16: Appendix B Troubleshooting
Appendix B Troubleshooting Select the proper UTP cables to construct your network. Please check that you are using the right cables. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cables for RJ-45 connections: 100Ω Category 3, 4 or 5 cables for 10Mbps connections and 100Ω Category 5/5e cables for 100Mbps connections.
