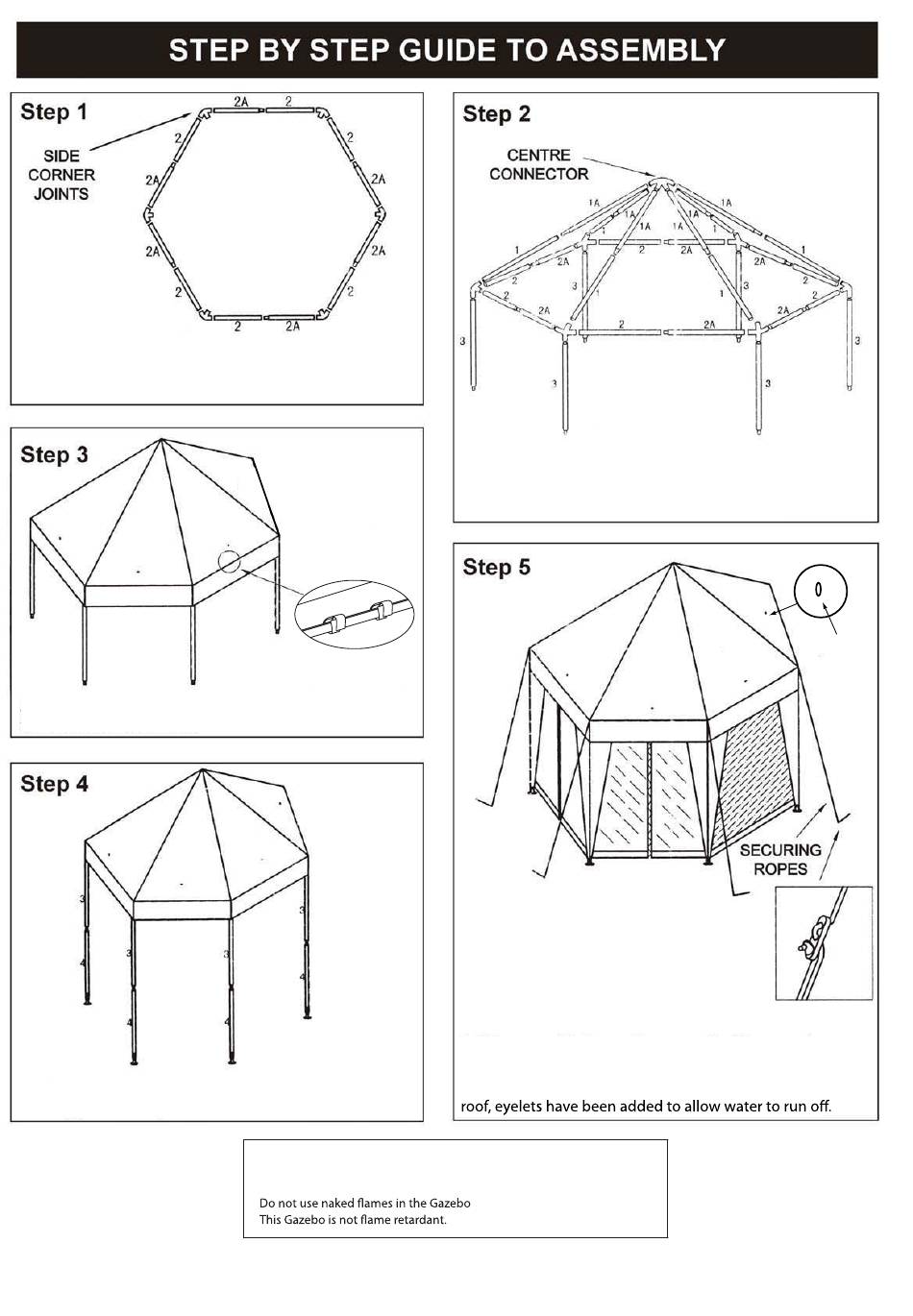

Assemble upper frame lay out corner pieces
and connect with frame (Tube 2 & 2A).
Assemble cover by pulling it tightly over the assembled
roof frame and secure using the velcro strips.
Slot the remaining legs (Tubes 4) into position and push
the plastic feet into place.
Customer Care/Helpline number for help, assistance and spare parts call 0151 520 0074
09.08 FW009-A
FIRE PRECAUTIONS
This Gazebo can burn
Assemble roof frame by connecting tubes 1 & 1A between
the centre connector and side corner joints. Then connect poles
3 into the side corner joints.
Pull the cover tightly over the assembled frame and
insert the hook into the top hole of each leg. (Note:
move the hook to the next available position when
fabric becomes loose). To stop water collecting on the
EYELETS
Page 2 of 2
