Nexa MLR-1105 Manual

MLR-1105
FEATURE:
• Self learning wireless (radio) system with 67 million
codes. Does not disturb neighbours/Neighbours do
not disturb you.
• 5 ringtones / 4 sound volume selections (High-Medi-
um-Low-Mute).
• 4 programmable memories.
• LED indicator for hearing impaired person.
• The doorbell/receiver is compatible with self learning
code transmitter, for example push button unit LMLT-
711 or motion detector LMDT-609 and magnetic
sensor LMST-606 as alarm system.
• Each transmitter can learn with the door chime via
different ringtone as door bell sound or alert sound.
• Operating distance 150 meter (in open field).
• Battery life 2 years.
LED indicator
INSTALLATION:
LMLT-711 Transmitter (Bell push unit)
• The push button unit can be attached to a flat wall
surface using either the double-sided adhesive tape
or the screws supplied.
• To match IP44 standard, LMLT-711 Transmitter must
be affixed with LED on top, push button on bottom.
• Or horizontal placed.
Self Adhesive strips:
• Ensure the surface is free from dirt and grease.
• Attach the self adhesive tab to the back cover of the
push button unit. Remove the protective film from the
double sided tape and press hard against the wall.
Learning button
Button for selecting volume
Button for selecting ring tone
Mounting the push button unit using the screws:
• Unclip the cover from the bell push unit and using the
2 holes on the back of the bell as a template,
• Mark and drill the mounting holes and then attach the
push button unit using the screws supplied.
• Close back the front cover to complete the whole
push button bell transmitter.

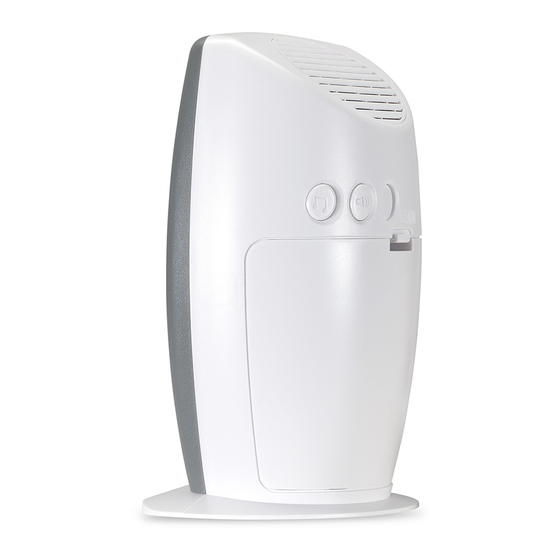

MLR-1105 Receiver (chime)
Stand type door chime can be placed wherever the su-
itable place for sound clearly hearing or LED indicator
clearly visually.
