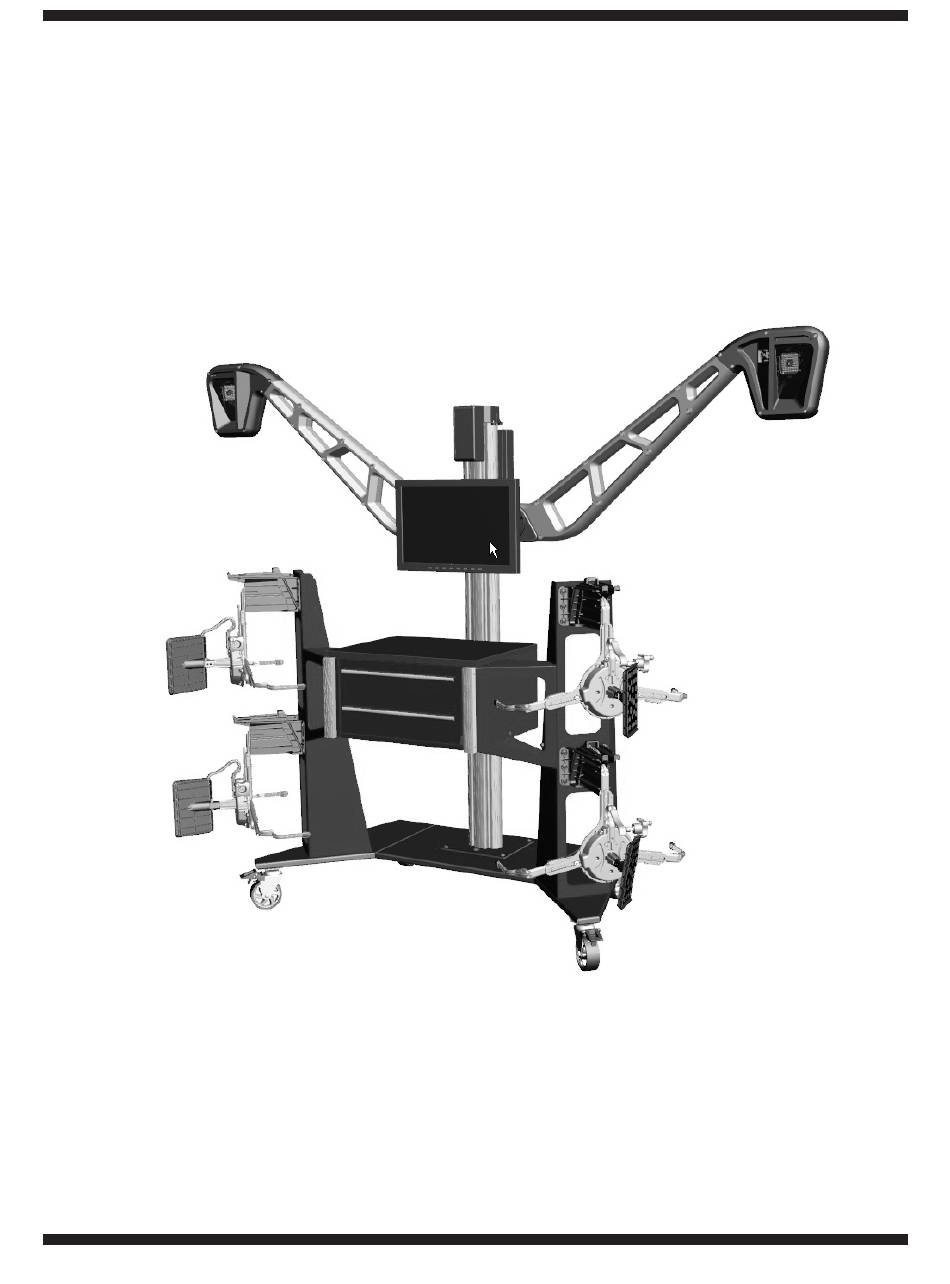

- Page 1 and 770XD IRELESS 3300 AMERA LIGNER Quick Start EEWA552B/H and EEWA752B/H Models ZEEWA552B Rev B...
- Page 2 All information contained or disclosed in this document is considered confidential and proprietary by Snap-on. All manufacturing, use, reproduction, and sales rights are reserved by Snap-on and the information contained herein shall not be used in whole or in part without the express written consent of Snap-on.
-
Page 3: Table Of Contents
Table of Contents SAFETY INFORMATION ......................... 1 SAFETY INSTRUCTIONS ........................2 APPLY SYSTEM POWER........................4 SHUTTING DOWN THE COMPUTER ..................... 4 SYSTEM MAIN MENU ..........................5 PORTABILITY ............................6 PREPARING FOR RELOCATION ......................6... -
Page 5: Safety Information
SAFETY INFORMATION For your safety, read this manual thoroughly before operating the equipment. The Aligner is intended for use by properly trained skilled automotive technicians. The safety messages presented in this section and throughout the manual are reminders to the operator to exercise extreme care when performing wheel alignments with this product. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT!! SAVE THESE INSTRUCTIONS Risk of electrical shock. • Do not operate equipment with a damaged power cord or if the equipment has been dropped or damaged, until it has been examined by a qualified service person. • If an extension cord is necessary, a cord with a current rating equal to or greater than that of the equipment should be used. - Page 7 Risk of entanglement or crushing. There are moving parts on vehicle lifts during op- eration. • Keep all persons clear of lifts. • Read lift manufacturer’s operation instructions carefully. • Follow lift manufacturer’s safety recommendations. Contact with moving parts could cause injury. Risk of pinching or crushing body parts when jacking vehicles.
-
Page 8: Apply System Power
APPLY SYSTEM POWER 1. Ensure that a properly grounded outlet is used. Failure to use proper voltage can and will result in a system failure. 2. The main power switch is located on the front inside of the Console. Open the front door of the cabinet. Look at the upper left inside and locate the green toggle switch. -
Page 9: System Main Menu
SYSTEM MAIN MENU All system usage resides from the Home Screen screen. Each function of the aligner will be followed with screen prompts. The user needs to simply click a command and the aligner will easily prompt the user to the next step. No guessing required as the system has been designed with each user in mind. -
Page 10: Portability
PORTABILITY The Aligner was designed with multiple bay capability. With it’s uniquie Camera Foldup system an Operator can simply fold up the Camera Arms, unlock the smooth mobility wheels and roll the system to a different bay to perform fast and accurate alignments. Before moving the system to a different bay please follow the simple steps listed below before moving the system. - Page 11 2. From the Service Menu select “Camera Diagnostic”. 3. Using the pointing device click on the GREEN DOWN arrow. Continually click on the arrow until the camera arms are at there lowest position. 4. Once the camera’s have reached their lowest position follow the procedures for properly powering down the system.
- Page 12 5. From the back of the system gently push up on the camera (indicated by red arrows) arms to the mobility positions. 6. Once the camera arm(s) have been properly folded the holding pins will automatically lock the cameras in the mobility position.
- Page 13 Blank Page...
- Page 14 Fax: ++39 (0)522 733479 www.snapon-equipment.co.uk Notice: The information contained in this document is subject to change without notice. Snap-on makes no warranty with regard to this material, shall not be liable for errors contained herein or for incidental consequential damages in connection with furnishings, performance, or use of this material.
