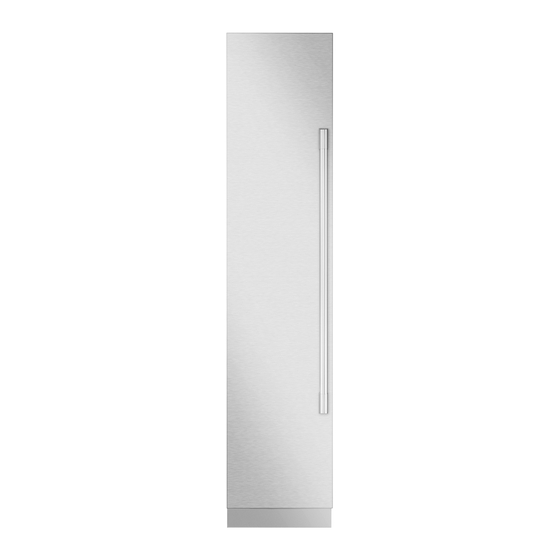

Integrated Refrigeration Installation Guide
BUILT-IN REFRIGERATION
SKSCF1801P
SKSCF2401P
SKSCF3001P
MFL67410814_Rev.04
SKSCR2401P
SKSCR3001P
Copyright © 2017 - 2018 Signature Kitchen Suite. All Rights Reserved.
www.signaturekitchensuite.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSCF1801P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Signature Kitchen Suite SKSCF1801P

Summary of Contents for Signature Kitchen Suite SKSCF1801P

  • Page 1 Integrated Refrigeration Installation Guide BUILT-IN REFRIGERATION SKSCF1801P SKSCF2401P SKSCR2401P SKSCF3001P SKSCR3001P www.signaturekitchensuite.com MFL67410814_Rev.04 Copyright © 2017 - 2018 Signature Kitchen Suite. All Rights Reserved.
  • Page 2 Table of Contents...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION.

  • Page 4: Electrical Connection

    operation and use without twisting or deforming. bending. The product must be level both horizontally and vertically. Electrical Connection Use a dedicated outlet. Plug in the power plug with the power cord facing downward. When installing or moving the refrigerator, be careful not to roll over or damage the power cord.
  • Page 5 If the supply cord is damaged, it must be replaced by the manufacturer or its service CAUTION Do not remove the cover of the automatic ice dispenser. The internal mechanism of the icemaker can cause injury if handled. Do not stick your hands under the refrigerator. Sharp edges, fans, and wires may cause an injury Save these instructions for the local inspector's use.

  • Page 6: Before Installation

    Before Installation WARNING Choosing the Install Location Temperature and Humidity The appliance should be installed in a dry, well ventilated area. tions. oven or radiator. Anti-tip Devices WARNING: Tip Hazard securely installed. installing the appliance in a stable position is to use the supplied anti-tip devices. If the enclosure is sturdy enough, attaching the appliance to the upper and side walls of the enclo- If in doubt, contact an architect or structural engineer.
  • Page 7 Enclosure nals of the opening to make sure corners are square. cabinets. Make sure the enclosure or the adjacent cabinets are securely connected to the Floor WARNING mance.

  • Page 8: Electrical Requirements

    Electrical Requirements WARNING The receptacle must be installed by a licensed electrician only. Grounding This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. WARNING: Improper connection of the equipment grounding conductor may result in electric if you are in doubt as to whether the appliance has been properly grounded.

  • Page 9: Water Connection

    Water Connection CAUTION ily accessible.
  • Page 10 SKSCF1801P – 18" INTEGRATED FREEZER COLUMN CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN NOTE depth adjacent cabinets. sides and the top of the cutout opening. The shaded area will be visible after installation. ELECTRICAL Note: GFI (ground fault interrupter) is not recommended.
  • Page 11 This clearance will vary depending on the custom handle used. When using Signature Kitchen Suite handles or the Signature Kitchen Suite stainless steel door panel kit with handles (optional accessories), the door handle clearance with the door...
  • Page 12 SKSCF2401P – 24" INTEGRATED FREEZER COLUMN SKSCR2401P – 24" INTEGRATED REFRIGERATOR COLUMN CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN NOTE depth adjacent cabinets. sides and the top of the cutout opening. The shaded area will be visible after installation. ELECTRICAL Note: GFI (ground fault interrupter) is not recommended.
  • Page 13 This clearance will vary depending on the custom handle used. When using Signature Kitchen Suite handles or the Signature Kitchen Suite stainless steel door panel kit with handles (optional accessories), the door handle clearance with the door open...
  • Page 14 SKSCF3001P – 30" INTEGRATED FREEZER COLUMN SKSCR3001P – 30" INTEGRATED REFRIGERATOR COLUMN CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN NOTE mm) depth adjacent cabinets. sides and the top of the cutout opening. The shaded area will be visible after installation. ELECTRICAL Note: GFI (ground fault interrupter) is not recommended.
  • Page 15 This clearance will vary depending on the custom handle used. When using Signature Kitchen Suite handles or the Signature Kitchen Suite stainless steel door panel kit with handles (optional accessories), the door handle clearance with the door...
  • Page 16 SKSCF1801P – 18" INTEGRATED FREEZER COLUMN 3/4" (19 MM) CUSTOM PANEL DIMENSIONS – FLUSH INSTALLATION NOTES custom door panels are required. For custom panels: Use templates provided with units to pre-drill holes for mounting panel brackets (provided with unit). Adjustment screws and instructions also provided with units.
  • Page 17 OPTIONAL ACCESSORIES – FLUSH OR PROUD INSTALLATION COLUMN This unit can be installed with an optional stainless steel panel kit. The kit includes one door panel, one toe kick and one handle. This kit is reversible and can be used in both right hand and left hand door swing installations.
  • Page 18 SKSCF2401P – 24" INTEGRATED FREEZER COLUMN SKSCR2401P – 24" INTEGRATED REFRIGERATOR COLUMN 3/4" (19 MM) CUSTOM PANEL DIMENSIONS – FLUSH INSTALLATION NOTES custom door panels are required. For custom panels: Use templates provided with units to pre-drill holes for mounting panel brackets (provided with unit).
  • Page 19 OPTIONAL ACCESSORIES – FLUSH OR PROUD INSTALLATION This unit can be installed with an optional stainless steel panel kit. The kit includes one door panel, one toe kick and one handle. This kit is reversible and can be used in both right hand and left hand door swing installations.
  • Page 20 SKSCF3001P – 30" INTEGRATED FREEZER COLUMN SKSCR3001P – 30" INTEGRATED REFRIGERATOR COLUMN 3/4" (19 MM) CUSTOM PANEL DIMENSIONS – FLUSH INSTALLATION NOTES custom door panels are required. For custom panels: Use templates provided with units to pre-drill holes for mounting panel brackets (provided with unit).
  • Page 21 OPTIONAL ACCESSORIES – FLUSH OR PROUD INSTALLATION This unit can be installed with an optional stainless steel panel kit. The kit includes one door panel, one toe kick and one handle. This kit is reversible and can be used in both right hand and left hand door swing installations.

  • Page 22: Required Accessories And Tools

    Thin plywood sheet, particle board or Multigrip pliers Suitable material for covering and protecting furniture (e.g. protective sheets) Adhesive tape Adjustable wrench Cutter with adustable Signature Kitchen Suite. blade Metal tape measure, fold- ing rule Square and 4'(1.2 m) saw to cut top trim pieces...

  • Page 23: Installation

    Installation The following installation instructions describe the installation steps for various appliance types: The diagrams may be a general representation of your appliance.
  • Page 24 Unpacking WARNING To avoid serious injury or product damage: the appliance. Check appliance for damage in transit. If in doubt, contact your dealer. 1. Remove the packaging carton, being careful not to damage the surface of the appliance. cardboard or plywood under the appliance. underneath the appliance.

  • Page 25: Moving The Appliance

    Moving the Appliance WARNING moving the appliance. To avoid product damage: Raise up via Do not raise up sides. appliance rear from appliance side appliance upright before doing so. ance. from tipping. Special Circumstances Before proceeding with your installation, check if any of the following special circumstances apply to your instal- lation.

  • Page 26: Product Dimensions

    Product Dimensions 18" Freezer Column...
  • Page 27 24" Freezer / Refrigerator Column...
  • Page 28 30" Freezer / Refrigerator Column...

  • Page 29: Installing The Anti-Tip Brackets

    Installing the Anti-tip Brackets WARNING To avoid injury or damage, check for electrical wires or plumbing in walls before drilling or installing screws. CAUTION To avoid injury, observe all safety practices during installation, including wearing safety glasses and other safety apparel. 18 Unit Unit Unit...

  • Page 30: Protecting Edges Of Enclosure

    NOTE: Anti-tip brackets (2) 2 anti-tip-brackets are required for each appliance. 1. Install the anti-tip brackets at the rear of the enclosure, locating the brackets based on stud locations and product and enclosure dimensions. 2. Make sure the anti-tip brackets are securely attached to a stud or other weight-bearing structure.

  • Page 31: Installing Appliance In Enclosure

    Installing Appliance in Enclosure WARNING Use 2 or more people when installing the appliance. Take care when moving the appliance. It is very heavy and prone to tipping when not secured. CAUTION Take care to avoid damaging the water line or power cord when moving the appliance into the enclosure.

  • Page 32: Aligning And Leveling The Appliance

    Aligning and Leveling the Appliance DEPTH ADJUSTMENT Adjust the depth of the unit in the enclosure so the door 1. Measure the thickness of your decorative door panels using the gauge tool. Measure panel thickness on the gauge tool that matches the thickness of the door panel.
  • Page 33 WARNING LEVELING Once the appliance is aligned properly in the enclosure, level it using the front and rear leveling legs. Leveling 2. Turn the screws as shown above to raise the appliance. Turn the screws in the opposite direction to lower the appliance. 3.
  • Page 34 Attaching Appliance to Enclosure WARNING top of the enclosure. 1. Screw the lugs on the safety bracket at the top of the appliance to the top of the enclosure. 2. If there is a large gap between the top of the appliance and the top of the enclosure, insert a piece of wood gap.

  • Page 35: Attaching The Toe Kick Panel

    Attaching the Toe Kick Panel CAUTION To avoid damage to the appliance, do not block the ventilation slots in the base panel. Stainless Toe Kick Panel (Optional Accessory) 1. Screw the base panel to the appliance. provided magnetic strips. toe kick panel. 4.

  • Page 36: Loading The Appliance Door

    Loading the Appliance Door For precise results, before attaching the door panels, load the door bins with weights to ensure the gap width remains correct after food is stored in the door. Recommendations:...

  • Page 37: Installing Door Panels

    Installing Door Panels dimensions. upper then lower drawer panel, if needed. surface. 2. Locate the correct side of the door panel template for top and left sides of the panel. on the back of the panel. and right sides of the panel. on the back of the panel.

  • Page 38: Adjusting Door Panels

    Adjusting Door Panels Fine adjustments can now be made to align the door panels. 1. To adjust the door panel horizontally, slide the panel support screws left or right in the slotted holes as while you tighten the support screws and insert and tighten all remaining mounting screws.

  • Page 39: Attaching Air Separator

    Attaching Air Separator Assemble A with B and attach on bottom front center of door. Special Installations Optional Frame Kit Accessory stainless trim pieces to cover the front edges inside the enclosure. See detailed installation instructions with the kit.

  • Page 40: Adjusting The Door Spring

    Adjusting the Door Spring Rotate the adjusting screw with the T20 bit provided. I = maximum spring tension 0 = no spring tension (Optional) After adjusting the door spring, attach the gray plastic sheets to hide the adjusting screws. Adjusting the Door Stop The default door stop position is 115°.

  • Page 41: Reversing The Door

    Reversing the Door WARNING Risk of Injury Before working on the hinge, release the tension on the hinge spring. NOTE: the door MUST be supported while removing or installing mounting bolts. 1. Open the door and release the tension on the hinge spring by using the T20 bit provided to turn the screw from | to O.
  • Page 42 6. Unscrew and remove the vent cover assembly at the bottom of the appliance. 7. Follow the diagrams below to disassemble and reassemble the vent grille. Screw the vent cover assembly back onto the appliance. 8. Remove the lower hinge socket. Install the hinge socket provided in the installation accessories on the opposite side.
  • Page 43 and install the bracket on the opposite side of the door. Repeat with the bottom hinge bracket. 10. Rotate the front cover 180 degrees and reinstall it at the top of the cabinet. 11. Install the hinge removed from the top of the cabinet on the opposite side at the bottom of the cabinet.
  • Page 44 Side-by-Side Flush Installation FLUSH INSTALLATION CLEARANCES NOTE: When installing products with a partition between them, follow the standard installation. The NOTE: When installing 2 side-by-side products with clearance is required between the products. installations. must be used to seal the appliances together. The kit contains a sealing mat which helps prevent condensation from forming between the two appliances.
  • Page 45 the two appliances together by installing connection brackets between the two appliances at top and bottom. 6. Insert the provided pin into both cover rails at the top of the combined units. NOTE: of both cover rails.

  • Page 46: Preparing To Connect The Water Line

    Preparing to Connect the Water Line NOTE: and property damage. Install the water line. Always observe the indicated dimensions to prevent damage to the water line when pushing in the appliance Connecting Water Line NOTE: When bending the water line, do not kink it, otherwise there is a risk of leaks and water damage.

  • Page 47: Attaching The Badge

    Attaching the Badge layouts below.
