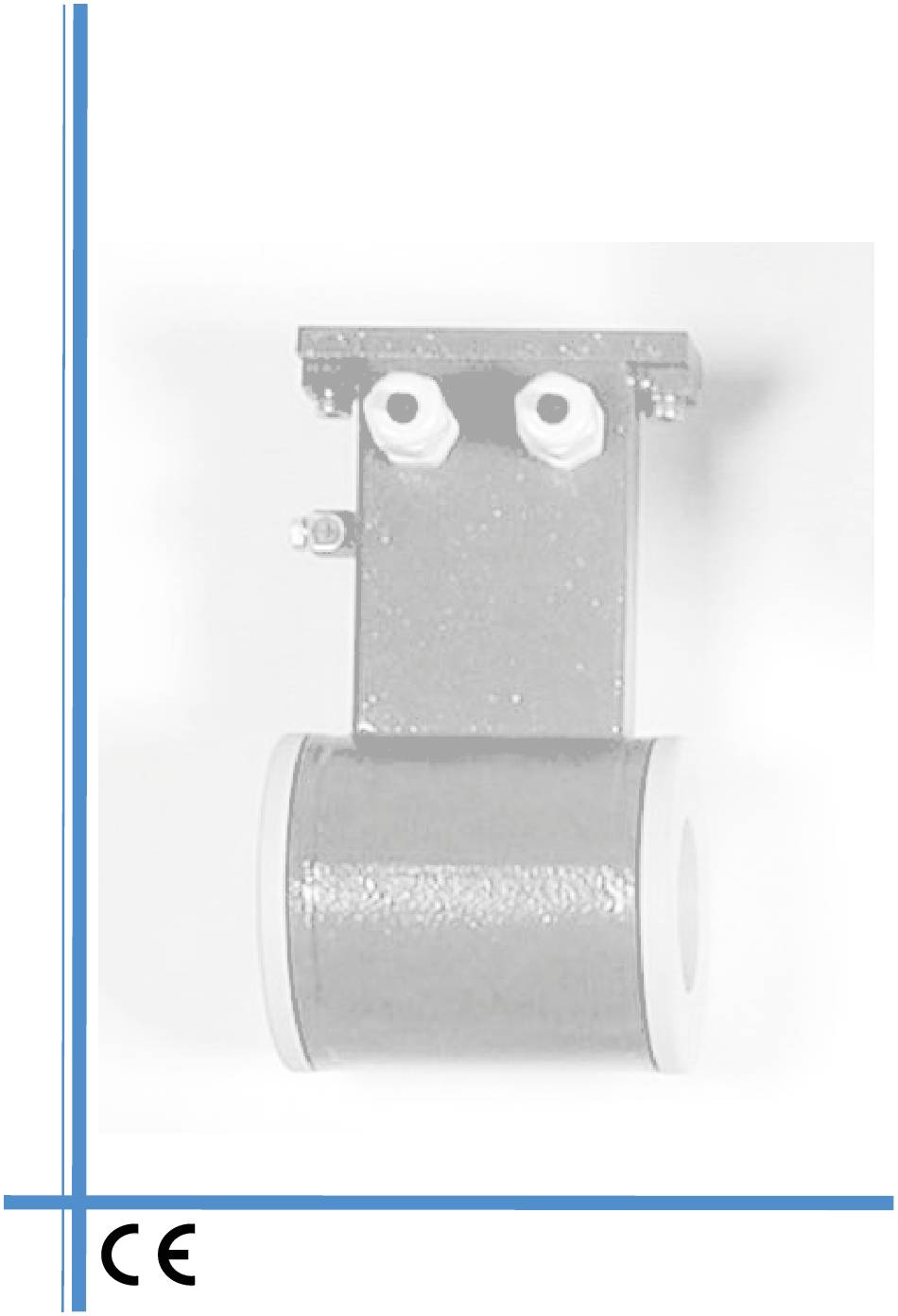

- Page 1 INSTRUCTION MANUAL MS 1000...
-
Page 2: Table Of Contents
START UP AND MAINTENANCE OF THE INSTRUMENTS _____________ 1 INTRODUCTION ___________________________________________ 1 SAFETY __________________________________________________ 2 GENERAL INFORMATION ON THE SENSORS INSTALLATION _________ 2 OVERALL DIMENSIONS _____________________________________ 3 OPERATING TEMPERATURES _________________________________ 4 ELECTRICAL CONNECTIONS OF SENSOR TO CONVERTER ___________ 5 GROUNDING INSTRUCTIONS ________________________________ 6 TORQUES (NM) FOR WAFER SENSOR’S BOLTS ___________________ 7 NOTES FOR PED DIRECTIVE FOR SENSOR ______________________ 8 DECLARATION OF CONFORMITY TO EUROPEAN... -
Page 3: Start Up And Maintenance Of The Instruments
MS1000 – SENSOR MANUAL INTRODUCTION – This manual is integral part of the product. Read carefully the instructions contained since it contains important indications for the safety of use and of maintenance. – The technical information and the relative products of this manual could be modified without any previous notice. -
Page 4: Safety
MS1000 – SENSOR MANUAL SAFETY Before using the instrument, always make a sure connection to the ground Avoid any attempt to repair the instrument. If the instrument is not functioning properly, please call the nearest assistance service Pay maximum attention during the operations ATTENTION !!! DANGER !!! GENERAL INFORMATION ON THE SENSORS INSTALLATION... -
Page 5: Overall Dimensions
MS1000 – SENSOR MANUAL OVERALL DIMENSIONS (inches) (1”) (1” 1/4) (1” 1/2) (2”) (2” 1/2) (3”) (4”) (5”) (6”) (8”) (10”) (12”) (14”) (16”) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.12) (-0.20) (-0.20) (-0.20) (-0.20) (3.94) (3.94) (3.94) (3.94) (5.90) -
Page 6: Operating Temperatures
MS1000 – SENSOR MANUAL hrewdness and recautions For vertical installations is For vertical installations preferable an ascending with descending flow flow direction contact the manufacturer ANTI VIBRATION JOINTS Avoid the installation of For installations on long the sensor in a long pipe pipe line, please use the line,without any support anti vibration joints... -
Page 7: Electrical Connections Of Sensor To Converter
MS1000 – SENSOR MANUAL ELECTRICAL CONNECTIONS OF SENSOR TO CONVERTER onnections to converter see ProPer manuaL SENSOR’S VERSION SUITABLE FOR CONNECTION COMPACT ALL SENSORS MODEL NO CONNECTIONS NO CONNECTIONS REQUIRED SEPARATE WITHOUT STAINLESS STEEL MODEL (CABLE ALREADY CONNECTED JUNCTIONS-BOX AND POTTED) SEPARATE WITH JUNCTIONS- NO CONNECTIONS REQUIRED (CABLE ALREADY CONNECTED... -
Page 8: Grounding Instructions
MS1000 – SENSOR MANUAL GROUNDING INSTRUCTIONS For correct operation of the meter is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: rounding with metaLLic PiPe rounding with insuLating PiPe If the sensor has to be mounted on a pipe made of INSULATING GASKET an insulating materials necessary: •... -
Page 9: Torques (Nm) For Wafer Sensor's Bolts
MS1000 – SENSOR MANUAL TORQUES (NM) FOR WAFER SENSOR’S BOLTS OPERATIVE PRESSURE 1600 4000 EBON. PTFE [32] [40] [63] [35] [53] [68] [94] [130] [113] (433) (455) (683) (946) (911) • Tighten uniformly in diagonally opposite sequence • The torque listed in tab are applicable to flanges: EN1092-1, DIN2501, BS4504, ANSI B16.5, JIS •... -
Page 10: Notes For Ped Directive For Sensor
MS1000 – SENSOR MANUAL NOTES FOR PED DIRECTIVE FOR SENSOR Here below the tables of products subject to Directive 97/23/EC. The models are : MS1000/MS2410/MS2500. The tables show which category of PED is applicable according to the water operating temperature (TAB A T <110 ° C TAB B T> = 110 ° C), sensor’s DN and its nominal pressure. Ped directive for water with Ped directive for water with <110°... -
Page 11: Declaration Of Conformity To European Directive Ped - 97/23/Ce
MS1000 – SENSOR MANUAL DECLARATION OF CONFORMITY TO EUROPEAN DIRECTIVE PED – 97/23/CE Prepared in accordance with Annex VII Legislative Decree no. 93 of 25 February 2000 transposing Directive no. 97/23/EC Description of the Misuratore di portata di liquidi del gruppo 2 product Temperatura massima del liquido 110°C Model family... - Page 12 Isoil Industria spa Head office 20092 Cinisello Balsamo (MI) Italy 27, via F.lli Gracchi Phone +39-02-66027.1 Fax +39-02-6123202 sales@isoil.it E-mail: www.isoil.com Web: Service Isoil Industria spa 20092 Cinisello Balsamo (MI) Italy 27, via F.lli Gracchi Phone +39-02-66027.1 Fax +39-02-6123202 isomagservice@isoil.it E-mail:...
