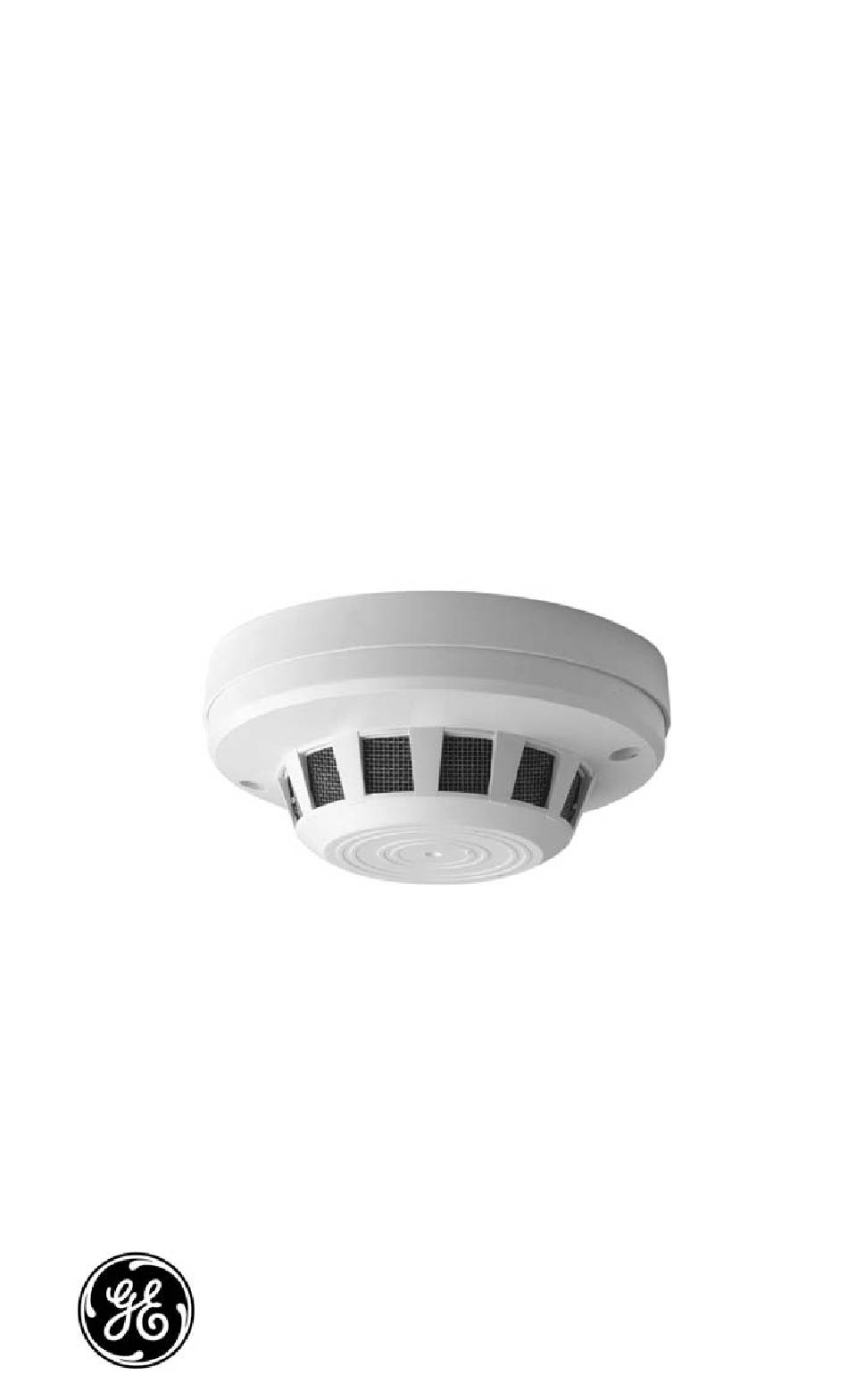

- Page 1 TruVision™ TVC-SD Series Smoke Detector Camera Installation Manual...
- Page 2 Disclaimer The information in this document is subject to change without notice. GE Security, Inc. (“GE Security”) assumes no responsibility for inaccuracies or omissions and specifically disclaims any liabilities, losses, or risks, personal or otherwise, incurred as a consequence, directly or indirectly, of the use or application of any of the contents of this document.
-
Page 3: Table Of Contents
Smoke Detector Camera Table of Contents ABLE OF ONTENTS ..............4 EFORE EGIN ......5 TTACHING THE OUSING AND ABLES ...........8 DJUSTING THE AMERA A: U ......9 PPENDIX PGRADING OR DDING AMERAS ..........11 AMERA PECIFICATIONS 1069589A / April 2010... -
Page 4: Before You Begin
Before You Begin Smoke Detector Camera EFORE EGIN Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: •... -
Page 5: Ttaching The
Smoke Detector Camera Attaching the Housing and Cables TTACHING THE OUSING AND ABLES Smoke detector camera units are shipped with one down-viewing camera to the unit. All cameras (in units and upgrade kits) are shipped already focused. Use the adapter or the housing as a template and mark the positions of the mounting holes on the mounting surface. - Page 6 Attaching the Housing and Cables Smoke Detector Camera Pull the facility video cable through the cable-entry hole in the mounting surface. Attach the provided BNC connector to the facility video cable. Connect the video cable. Insert the provided power Video out transformer into an approved power source.
- Page 7 Smoke Detector Camera Attaching the Housing and Cables Attach the unit to the mounting surface. Be sure to rotate the housing so that the camera(s) face the desired field of view. See Figure 3. With mounting adapter Screw anchors Mounting adapter channel Mounting adapter (optional) Surface-mount screws Housing (exterior)
-
Page 8: Amera
Adjusting the Camera Smoke Detector Camera DJUSTING THE AMERA If you need to change a camera’s focus, turn the lens. Note: There is no set screw. Figure 4. Focusing the camera To position a camera, see Figure 5. Note: Positioning adjustments can only be made to side viewing cameras. -
Page 9: Adding Cameras
Smoke Detector Camera Upgrading or Adding Cameras A: U PPENDIX PGRADING OR DDING AMERAS To upgrade or add cameras to an existing unit, perform the following: If the housing is already installed, detach it from the adapter or the mounting surface. Reverse the steps shown in Figure 3. If you are adding a camera to your existing unit, perform the following. - Page 10 Upgrading or Adding Cameras Smoke Detector Camera Attach the additional camera or replace an existing camera as shown in Figure 6. Figure 6. Attaching camera Connect the video cable. Note: The unit can be ordered with multiple cameras. Each camera has its own video and power cables.
- Page 11 Smoke Detector Camera Upgrading or Adding Cameras AMERA PECIFICATIONS Model TVC-SDC2-HR TVD-SDS3-HR Image sensor 1/3-in. interline transfer 1/3-in. interline transfer Total Pixels NTSC: 811 (H) x 508 (V) NTSC: 811 (H) x 508 (V) Effective Pixels NTSC: 768 (H) x 494 (V) NTSC: 768 (H) x 494 (V) Scanning system 525 lines/ 60 fields...
