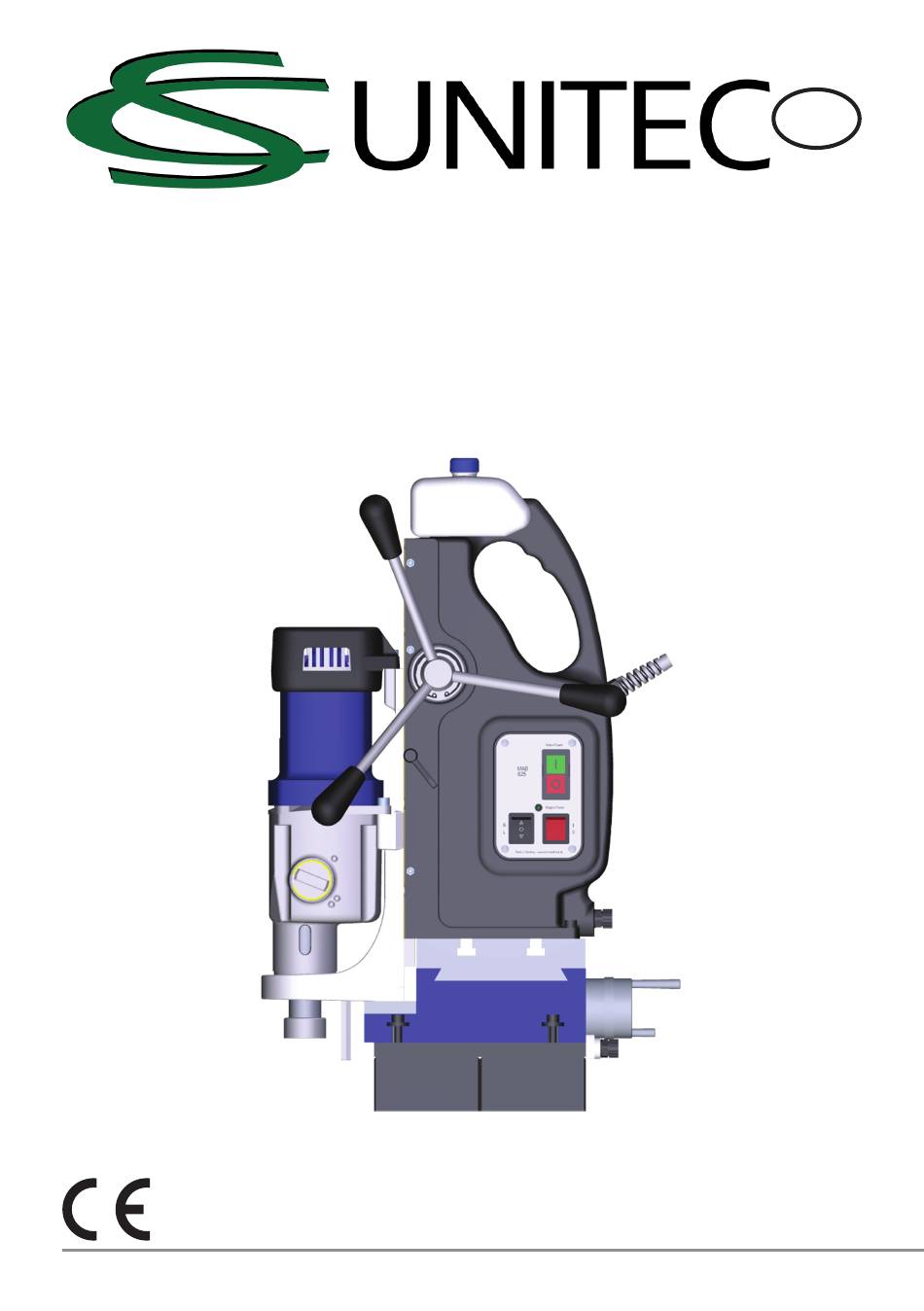

- Page 1 Translation of the Original Operating Instructions MAB 825 KTS WWW.CSUNITEC.COM...
- Page 2 WWW.CSUNITEC.COM...
-
Page 3: Table Of Contents
European Union. Dispose of the device via communal collection points. The lubricant used can contain substances dangerous to the environment. Dispose of the lubricant according to local regulations. Observe the disposal instructions from the lubricant manufacturer. MAB 825 KTS WWW.CSUNITEC.COM... - Page 4 If the situation is not avoided, it may lead to material damage. ► Follow the instructions in this warning to avoid material damage. NOTE ► A note indicates additional information that simplifies the use of the machine. MAB 825 KTS WWW.CSUNITEC.COM...
-
Page 5: Safety
■ Make sure that your workplace is clean. of the switches on the machine. ■ Keep the machine clean, dry and free of oil and grease. ■ Follow the instructions on lubricating and cooling the tool. MAB 825 KTS WWW.CSUNITEC.COM... - Page 6 Wear protective gloves when removing swarf. ► When working on scaffolding, the operator must be secured with a sa- fety belt as the machine can oscillate dangerously in the event of interrupti- on to the power supply. MAB 825 KTS WWW.CSUNITEC.COM...
- Page 7 When transporting the machine with a spindle is not used, always mount the crane, use suitable lifting equipment. protective screw connection to protect Pay attention to the carrying capacity against damage to the thread. of the lifting equipment. MAB 825 KTS WWW.CSUNITEC.COM...
- Page 8 Do not process with the machine. This can be the case if the material is too Read the operating instructions thin, the surface is uneven or if coated before beginning work! with paint, scale or zinc. Wear protective goggles and ear protection! MAB 825 KTS WWW.CSUNITEC.COM...
-
Page 9: Components / Delivery Contents
Cross table injuries Rotary grip for cross table operation Travel in Y-axis direction Operating panel (see fig. 1) Motor ON/OFF switch Magnet ON/OFF switch Direction of rotation switch Magnet indicator (see fig. 2) Speed setting Torque setting MAB 825 KTS WWW.CSUNITEC.COM... -
Page 10: Before Using For The First Time
Before using for the first time Delivery contents Before using for the first time MAB 825 KTS core drilling machine Transport inspection ZAK 075 ejector pin As standard, the machine is supplied with ZAK 090 ejector pin the components indicated in the „Delivery contents“... - Page 11 The clam- eces with an uneven surface. ping force is significantly reduced by paint, NOTE zinc and scale coatings and rust. ► BDS offers a range of accessories with special clamping devices for tubes and non-magnetic materials. MAB 825 KTS WWW.CSUNITEC.COM...
- Page 12 Weldon (H). sponding Allen wrench (I, J) supplied. Straight shaft Use drill chuck with MK3/B16 tapered mandrel (available as accessory). Thread Use the appropriate adapter for drill taps (available as accessory). Shank cutter ZSF316 collet chuck MAB 825 KTS WWW.CSUNITEC.COM...
- Page 13 Inserting the drill chuck Insert the drill chuck onto the tapered ‹ mandrel and insert the combinati- on into the spindle taper (2) of the machine. If necessary, use an adapter sleeve. MAB 825 KTS WWW.CSUNITEC.COM...
-
Page 14: Using
Deactivating the magnetic clamp Hold the handle tightly (13) to stop the ‹ machine from slipping. Turn off the switch (22). The indicator ‹ lamp in the switch (22) extinguishes. MAB 825 KTS WWW.CSUNITEC.COM... - Page 15 If possible, always select a setting (8) on the side of the gear box. with low gear stage and high motor speed. The motor is then set with a higher torque and therefore protec- ted against overheating under heavy load. MAB 825 KTS WWW.CSUNITEC.COM...
- Page 16 For core drills with 19 mm Weldon ‹ shaft, mount the MK3/19 mm (G) Wel- don industrial holder. For core drills with 32 mm Weldon ‹ shaft, mount the MK3/32 mm (H) Wel- don industrial holder. MAB 825 KTS WWW.CSUNITEC.COM...
- Page 17 ZHS 400 grease spray. Spray the drill on the inside and outside before dril- ling. In the case of larger drill depths, repeat this procedure. ► Make sure that swarf is removed regularly. With larger drilling depths, break up the swarf. MAB 825 KTS WWW.CSUNITEC.COM...
-
Page 18: Eliminating Blockages
Bring the machine slide to the upper ‹ slide to the upper position. position using the hand lever (12). Remove swarf and check tool. ‹ CAUTION ► Observe the limits specified in the technical data for the tools to be used. MAB 825 KTS WWW.CSUNITEC.COM... -
Page 19: Cleaning
Unauthorised repairs will invalidate the guarantee. Customer service/service Should you have any questions on custo- mer service/service, please contact BDS. We will be happy to give you the address of your nearest service partner. MAB 825 KTS WWW.CSUNITEC.COM... -
Page 20: Storage
If you do not intend to use the machine for a longer period of time, clean it as described in the section Cleaning. Store the machine and all its accessories in the transport case at a dry, clean and frost-free location. MAB 825 KTS WWW.CSUNITEC.COM... -
Page 21: Troubleshooting
The lubrication system does Lubricant tap closed. Open the lubricant tap. not function. Connecting nipple clogged. Clean the tank and nipple. NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. MAB 825 KTS WWW.CSUNITEC.COM... -
Page 22: Technical Data
Technical data Technical data Model MAB 825 KTS Dimensions (L x W x H) 434 x 367 x 676 (758) Magnetic foot (L x W) 220 x 220 Approx. net weight. 57.5 230 V / 50-60 Hz Operating voltage (see type plate) - Page 23 Technical data Travel distance 110 mm 50 mm 70 mm MAB 825 KTS WWW.CSUNITEC.COM...
-
Page 24: Ec Declaration Of Conformity
D-41063 Mönchengladbach We hereby declare that the product: Magnetic core drilling machine Model: Model MAB 825 KTS conforms to the following relevant regulations: EC Directive 2006/42/EC on machinery ■ The following harmonised standards were applied in whole or in part: ●... - Page 25 Fig. 1 Fig. 2 Fig. 3 Fig. 4 A, B, C, D G, H I, J WWW.CSUNITEC.COM...
- Page 26 CS Unitec, Inc. 22 Harbor Ave, Norwalk, CT, 06850 4330 Center St., Deer Park, TX 77536 Phone: 1-800-700-5919(US/CA) +1-203-853-9522 (Intl.) Internet: www.csunitec.com E-mail: info@csunitec.com WWW.CSUNITEC.COM...
