Generac Power Systems MDG25IF4 Owner's Manual page 19

L
K
J
A Main Circuit Breaker
B Control Panel Lights (3)
C 50A Circuit Breakers (2)
D Service Lights Switch
E 20A Circuit Breakers (2)
F Lug Door Safety Switch
G 120V GFCI Receptacles (2)
H 120V/240V Twist-Lock Receptacles (2)
Owner's Manual for MDG25IF4
B
A
I

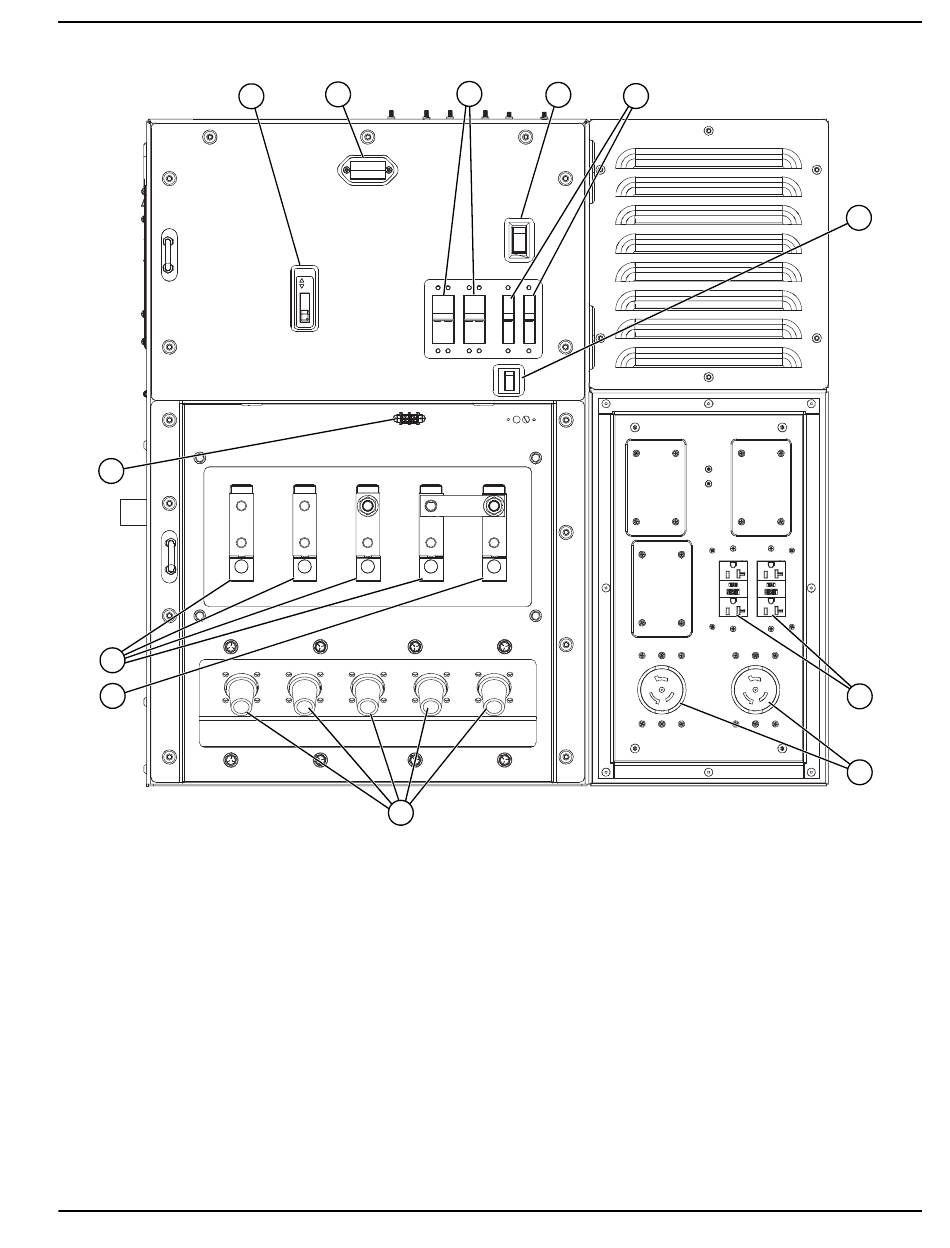

Figure 2-4. Control Panel (right side of unit)
C D
E
I Cam Lock Connection Lugs (5) (if equipped)
J Ground Connection Lug
K Connection Lugs
L Remote Start Terminal Block
General Information
F
G
H
007613
