C.M.I.
Control and Monitoring Interface
Software Version 1.30.2
Quick Guide:
Mounting and connection
Commissioning
Manual Version 1.08.1
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C.M.I. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technische Alternative C.M.I.

Summary of Contents for Technische Alternative C.M.I.

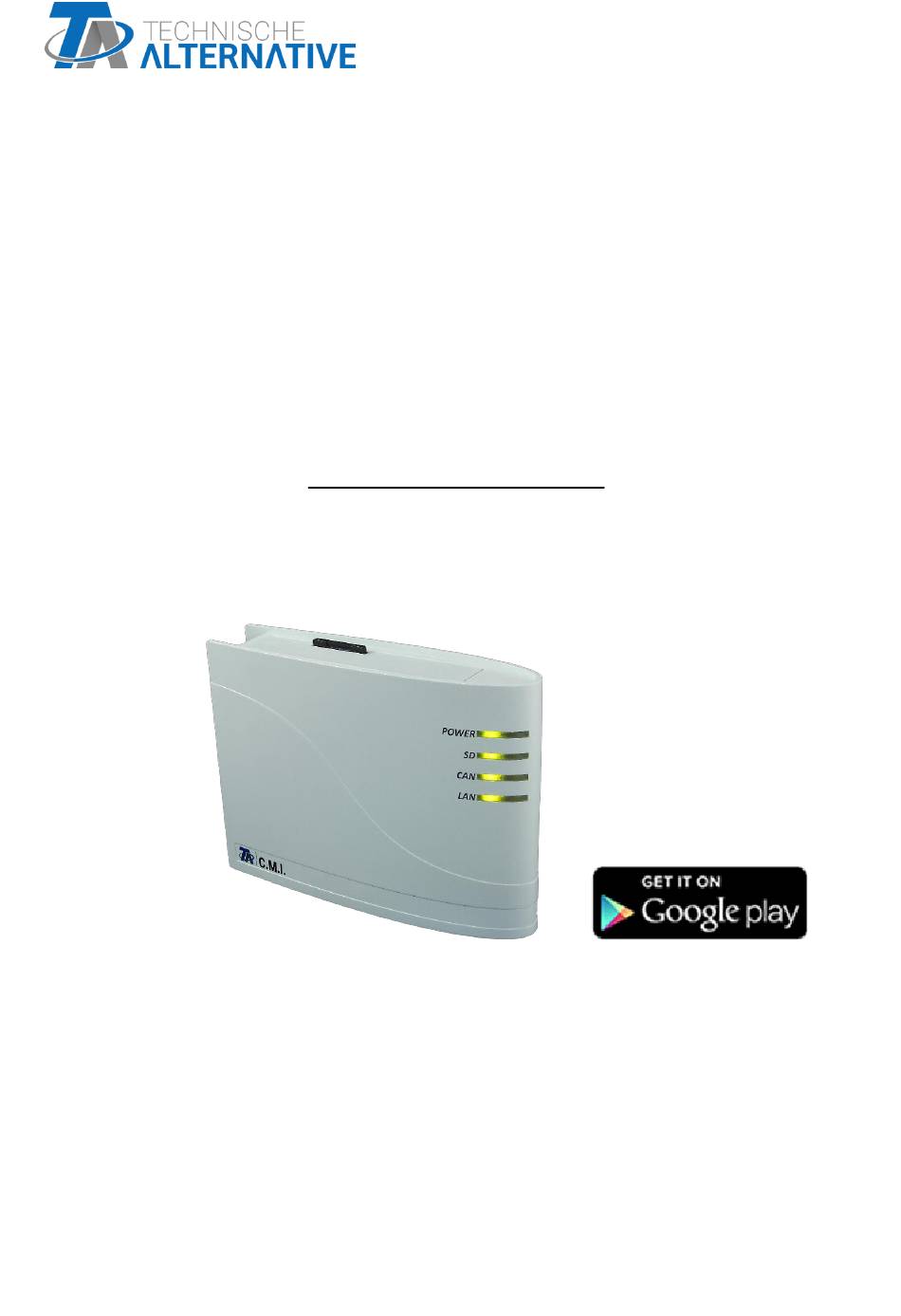

  • Page 1 www.ta.co.at C.M.I. Control and Monitoring Interface Software Version 1.30.2 Quick Guide: Mounting and connection Commissioning Manual Version 1.08.1 English...

  • Page 3: Table Of Contents

    Table of contents Manual version 1.08.1 EN 1. Delivery scope ......................4 2. Mounting and connection .................... 4 2.1. Connections ........................4 2.2. Making the connections ....................5 3. IP-Address ........................5 3.1 Network with DHCP server (standard) ................5 3.2.

  • Page 4: Delivery Scope

    1. Delivery scope The delivery scope of the device includes the following parts: 1 pc. Control and Monitoring Interface C.M.I. 1 pc. SD card 1 pc. 4-pole plug for the CAN bus 1 pc. 3-pole plug for the DL bus 1 pc.

  • Page 5: Making The Connections

    2.2. Making the connections Connections must be made in the following sequence 1. Connection LAN cable 2. Connection CAN bus or DL bus cable 3. Optional: power supply with power unit (positive pole on the internal conductor, earth outside) The POWER LED now has to be green permanently. 3.

  • Page 6: Access Via C.m.i. Web Portal Https://Cmi.ta.co.at

    4.2. Access via C.M.I. web portal https://cmi.ta.co.at If you want access via Internet, then the C.M.I can be connected via “„C.M.I. web portal“. The C.M.I. web portal is a server that was set up by Technische Alternative. 1. Select the address https://cmi.ta.co.at...
  • Page 7 This process can take up to 30 minutes. 4. After clicking the link, the start page of the web portal is displayed already. 5. Adding the C.M.I. in the Web portal Selection of the tab “C.M.I.s“ 6. Selection “Add C.M.I.“...
  • Page 8 Caution All warranty and guarantee claims become void if the rating plate or key label is removed! The "Designation“ helps with the selection of several individual C.M.I.s and is visible in the list of individual C.M.I.s. If service by the super user (e.g. Technische Alternative)

  • Page 9: Resetting And Loading Of Factory Settings

    8. After updating the page, the C.M.I. appears in the list “My C.M.I.s“. Clicking on the serial number takes you to the C.M.I. menu. The additional operation is described in the online help (help.ta.co.at). 5. Resetting and loading of factory settings Briefly pressing the reset key on the rear of the C.M.I.
  • Page 10 EU Declaration of conformity Document- Nr. / Date: TA17021 / 02/02/2017 Company / Manufacturer: Technische Alternative RT GmbH Address: A- 3872 Amaliendorf, Langestraße 124 This declaration of conformity is issued under the sole responsibility of the manufacturer. Product name: C.M.I.
  • Page 12 1. The company Technische Alternative RT GmbH provides a two-year guarantee from the date of purchase by the end consumer for all the devices and parts which it sells. Defects must be reported immediately upon detection and within the guarantee period.
