Solatube Energy Care Optima 160 DS Installation Manual

For Solatube 160 DS (250mm diameter) & Solatube 290 DS (350mm diameter)
Product Installation Guide
Energy Care Optima
Solatube 160DS and 290DS models (pitched or flat roof) to enhance the thermal and
acoustic properties of the Solatube Daylighting System to Passive House standards
PLEASE READ THIS GUIDE IN CONJUNCTION WITH THE SOLATUBE BRIGHTEN UP SERIES
INSTALLATION GUIDE
❶
❷
❸

Step 1 Installing the insulated roof flashing

Please see separate installation guide for your
specified flashing (diagram A).

Step 2 Installing the Solatube inner dome

At step 9 of the Solatube Brighten Up Series
installation guide;
Insert the inner dome on top of the dome ring prior to
the roof dome being fixed in place (diagram B).
Align the tabs of the inner dome with the snaps on
the dome ring and press down into place. Check to
ensure that the snaps are fully engaged then install
the outer Solatube roof dome.
ML-INST-ECO
®
is an optional enhancement available for the BBA Certified

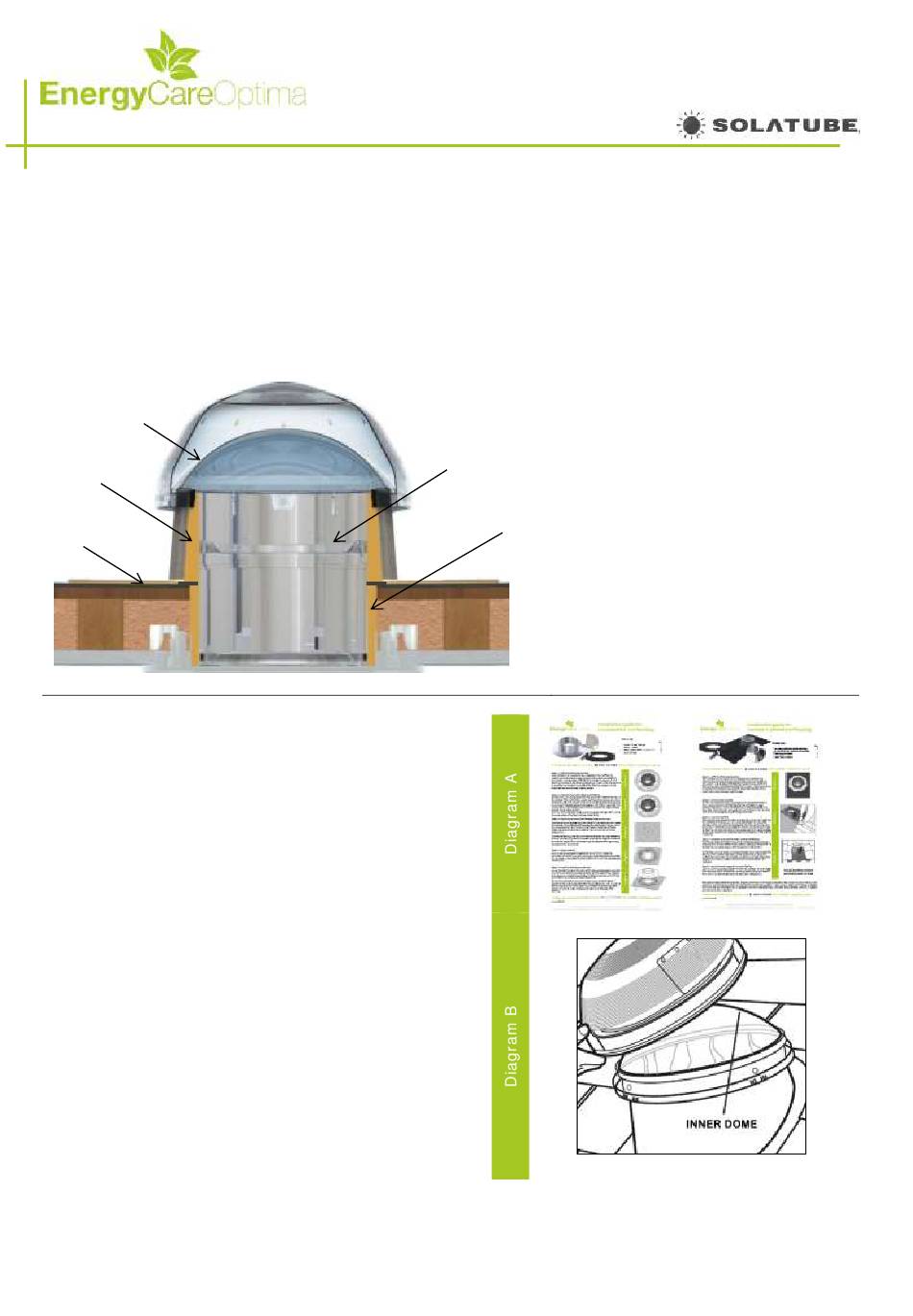

Parts list:

❹
1. Inner dome
2. Insulated roof flashing
❺
3. Flashing insulator
4. Climate control lens
5. Multi-layer foil insulation
Page | 1
(as specified)
